INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01237
(Parking)
The steering is locked, and the taillights
and auxiliary lights are on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
ECA00043
CAUTION:@ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. @
EAU03034
Indicator and warning lights
EAU00061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU00063
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU00057
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU03284
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
3.5 L. When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on, have a Yamaha dealer check
the electrical circuit.NOTE:@ This model is equipped with a self-di-
agnosis device for the fuel level warn-
ing light circuit. (See page 3-23 for an
explanation of the self-diagnosis de-
vice.) @

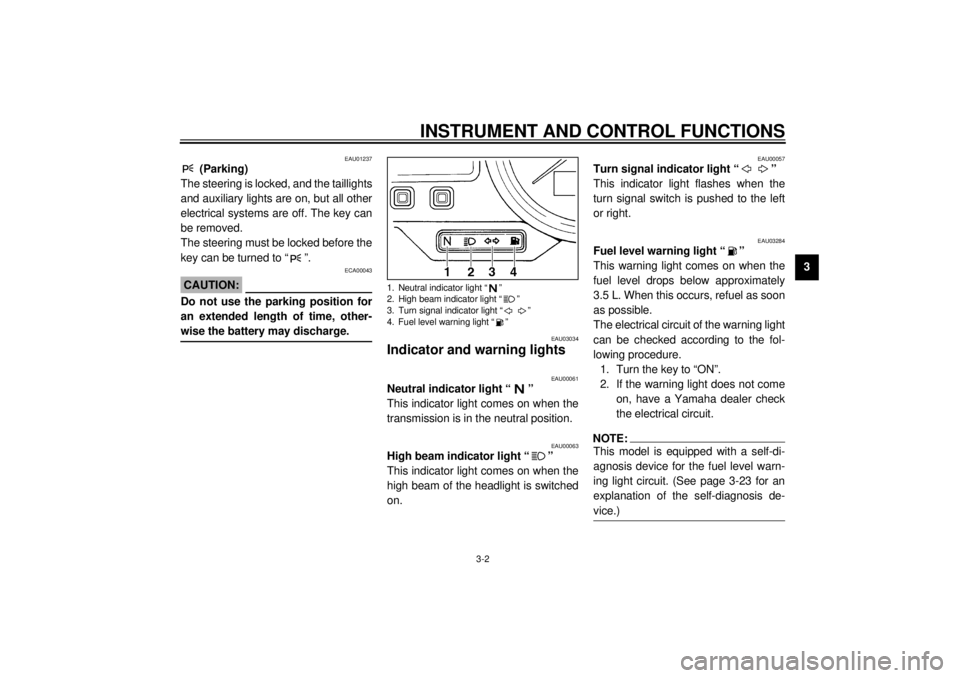

1. Neutral indicator light “ ”
2. High beam indicator light “ ”
3. Turn signal indicator light “ ”
4. Fuel level warning light “ ”
E_5mt.book Page 2 Monday, September 18, 2000 9:08 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU03729
Self-diagnosis device This model is equipped with a self-di-
agnosis device for the following electri-
cal circuits:l
throttle position sensor
l
speed sensor
If any of those circuits are defective,
the tachometer will repeatedly display
the following error code:
CB-11E
Use the table below to identify the
faulty electrical circuit.CB-28EIf the tachometer displays such an er-
ror code, note the circuit-specific num-
ber of r/min, and then have a Yamaha
dealer check the motorcycle.
EC000004
CAUTION:_ When the tachometer displays an
error code, the motorcycle should
be checked as soon as possible in
order to avoid engine damage. _
EAU00118
Handlebar switches
EAU00120
Pass switch “PASS”
Press this switch to flash the headlight.
EAU00121
Dimmer switch
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
0 r/min for
3 seconds
Circuit-specific
number of r/min
for 2.5 seconds
(See the table
below.)
Current
engine
speed for
3 seconds
Specific r/min
Faulty electrical circuit
3,000 r/min
Throttle position sensor
4,000 r/min
Speed sensor
1. Pass switch “PASS”
2. Dimmer switch
3. Turn signal switch
4. Horn switch “ ”
E_5mt.book Page 7 Monday, September 18, 2000 9:08 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6
EC000104
CAUTION:@ Take care not to damage the follow-
ing parts:l
Headlight bulb
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with
alcohol or thinner.
l
Headlight lens
• Do not affix any type of tinted
film or stickers to the head-
light lens.
• Do not use a headlight bulb of
a wattage higher than
specified.
@5. Install the bulb cover, and then
connect the coupler.
6. Install the panel.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU03730
Tail/brake light This motorcycle is equipped with an
LED type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU03497
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it
counterclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
ECA00065
CAUTION:@ Do not overtighten the screw, other-
wise the lens may break. @1. Screw
E_5mt.book Page 40 Monday, September 18, 2000 9:08 AM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 2
Tail/brake light 13.5 V, 1/6.1 W ´ 2 (LED)
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 5 W ´ 2
Meter lighting 12 V, 1.4 W ´ 2
Neutral indicator light LED
High beam indicator light LED
Turn signal indicator light LED
Fuel level warning light LED
Oil level/coolant temperature
warning light LED
Fuses
Main fuse 30 A
Headlight fuse 20 A
Signaling system fuse 15 A
Radiator fan fuse 7.5 A
Ignition fuse 15 A
Odometer fuse 7.5 A
E_5mt.book Page 4 Monday, September 18, 2000 9:08 AM

10-INDEXAAir filter element, checking ..................... 6-17
Air intake duct ........................................ 6-20
Anti-theft alarm ...................................... 3-10BBattery ................................................... 6-37
Brake and clutch levers, checking and
lubricating ............................................ 6-34
Brake fluid, changing ............................. 6-30
Brake fluid level, checking...................... 6-29
Brake lever...............................................3-9
Brake light switch (rear), adjusting ......... 6-27
Brake pads, checking............................. 6-28
Brake pedal............................................ 3-10
Brake pedal, lubricating.......................... 6-34
Brake pedal position, adjusting .............. 6-27CCables, checking and lubricating............ 6-33
Carburetors, adjusting............................ 6-20
Care.........................................................7-1
Clutch lever ..............................................3-9
Clutch lever free play, adjusting ............. 6-25
Conversion table ......................................8-5
Coolant .................................................. 6-13
Changing .......................................... 6-15
Checking .......................................... 6-13
Cowlings and panels, removing and
installing ................................................6-6DDimmer switch .........................................3-7
Drive chain, lubricating ........................... 6-32
Drive chain slack ................................... 6-31
Adjusting .......................................... 6-31
Checking .......................................... 6-31EEngine break-in ....................................... 5-4
Engine oil and oil filter cartridge ............. 6-10
Engine stop switch................................... 3-8FFront and rear suspension settings ........ 3-21
Front fork, adjusting ............................... 3-17
Front fork, checking ............................... 6-35
Fuel ....................................................... 3-11
Fuel consumption, tips for reducing ......... 5-3
Fuel level warning light ............................ 3-2
Fuel tank breather hose ......................... 3-12
Fuel tank cap ......................................... 3-11
Fuses, replacing .................................... 6-38HHandlebar switches ................................. 3-7
Headlight bulb, replacing ....................... 6-39
Helmet holder ........................................ 3-15
High beam indicator light ......................... 3-2
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Idling speed, adjusting ........................... 6-21
Ignition circuit cut-off system.................. 3-23
Indicator and warning lights ..................... 3-2KKey identification number ........................ 9-1
LLight switch ..............................................3-8
Luggage strap holders ...........................3-22MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level/coolant temperature warning
light ........................................................3-3PParking.....................................................5-4
Part locations ...........................................2-1
Pass switch ..............................................3-7
Periodic maintenance and lubrication
chart ......................................................6-3
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seats .....................................................3-13
Passenger seat.................................3-14
Rider seat .........................................3-13
Self-diagnosis device ...............................3-7
Shifting .....................................................5-3
Shift pedal ................................................3-9
Shock absorber assembly, adjusting ......3-19
Sidestand ...............................................3-22
Sidestand, checking and lubricating .......6-34
Spark plugs, checking ..............................6-9
