PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6
EAU04225
Replacing the fuses The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the rider seat.
(See page 3-13 for rider seat removal
and installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Headlight fuse
2. Radiator fan fuse
3. Ignition fuse
4. Signaling system fuse
5. Backup fuse (odometer)
6. Spare fuse (× 3)
1. Main fuse
2. Spare main fuse
Specified fuses:
Main fuse: 30 A
Headlight fuse: 20 A
Signaling system fuse: 15 A
Radiator fan fuse: 7.5 A
Ignition fuse: 15 A
Backup fuse (odometer): 7.5 A
U5MTE1.book Page 37 Monday, August 6, 2001 6:10 PM

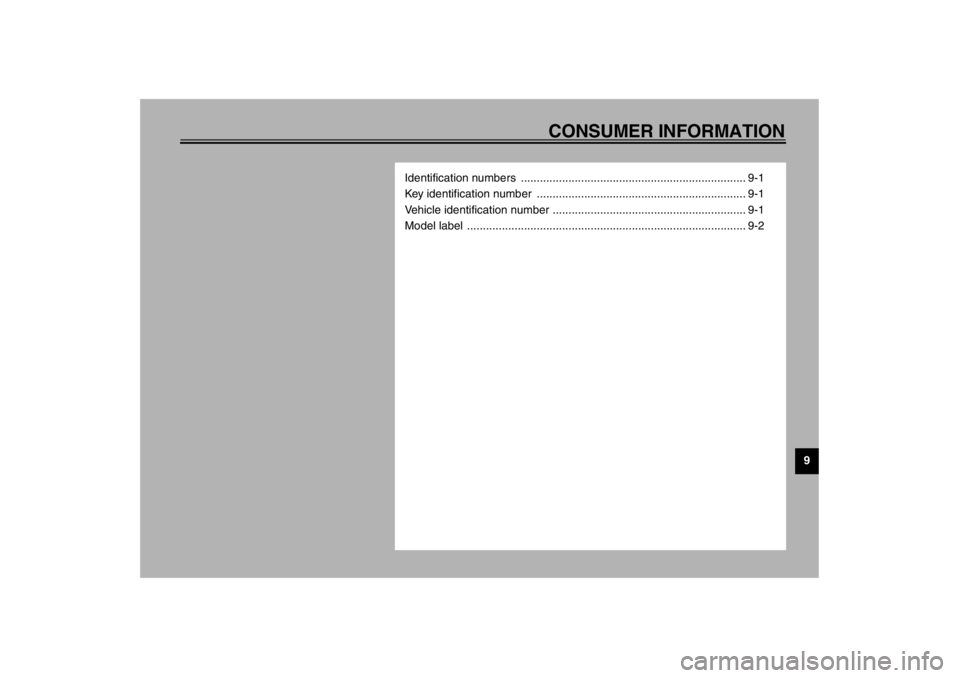

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5MTE1.book Page 1 Monday, August 6, 2001 6:10 PM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space
provided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. @
1. Key identification number
1. Vehicle identification number
U5MTE1.book Page 1 Monday, August 6, 2001 6:10 PM

10-INDEXAAir filter element, checking ..................... 6-17
Air intake duct ........................................ 6-19
Anti-theft alarm ........................................3-7BBattery ................................................... 6-35
Brake and clutch levers, checking and
lubricating ............................................ 6-32
Brake fluid, changing ............................. 6-29
Brake fluid level, checking...................... 6-28
Brake lever............................................. 3-10
Brake light switch (rear), adjusting ......... 6-26
Brake pads, checking............................. 6-27
Brake pedal............................................ 3-10
Brake pedal, lubricating.......................... 6-32
Brake pedal position, adjusting .............. 6-26CCables, checking and lubricating............ 6-31
Carburetors, adjusting............................ 6-20
Care.........................................................7-1
Clutch lever ..............................................3-9
Clutch lever free play, adjusting ............. 6-25
Conversion table ......................................8-5
Coolant .................................................. 6-13
Changing .......................................... 6-14
Checking .......................................... 6-13
Cowlings and panel, removing and
installing ................................................6-6DDimmer switch .........................................3-8
Drive chain, lubricating ........................... 6-31
Drive chain slack ................................... 6-29
Adjusting .......................................... 6-30
Checking .......................................... 6-29EEngine break-in ....................................... 5-4
Engine oil and oil filter cartridge ............... 6-9
Engine stop switch................................... 3-8FFront and rear suspension settings ........ 3-22
Front fork, adjusting ............................... 3-17
Front fork, checking ............................... 6-33
Fuel ....................................................... 3-11
Fuel consumption, tips for reducing ......... 5-4
Fuel level warning light ............................ 3-2
Fuel tank breather hose ......................... 3-12
Fuel tank cap ......................................... 3-11
Fuses, replacing .................................... 6-37HHandlebar switches ................................. 3-8
Headlight bulb, replacing ....................... 6-38
Helmet holders ...................................... 3-15
High beam indicator light ......................... 3-2
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Idling speed, adjusting ........................... 6-20
Ignition circuit cut-off system.................. 3-24
Indicator and warning lights ..................... 3-2KKey identification number ........................ 9-1
LLight switch ..............................................3-8
Luggage strap holders ...........................3-23MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level/coolant temperature warning
light ........................................................3-3PParking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-8
Periodic maintenance and lubrication
chart ......................................................6-3
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seats ....................................................... 3-13
Passenger seat .................................. 3-14
Rider seat........................................... 3-13
Self-diagnosis device ...............................3-7
Shifting .....................................................5-3
Shift pedal ................................................3-9
Shift points (for Switzerland only) .............5-3
Shock absorber assembly, adjusting ......3-19
Sidestand ...............................................3-23
Sidestand, checking and lubricating .......6-33
