6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic main-
tenance and lubrication chart should be
simply considered as a general guide
under normal riding conditions. Howev-
er, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCA-
TION, AND INDIVIDUAL USE, THE
MAINTENANCE INTERVALS MAY
NEED TO BE SHORTENED.
EW000060
WARNING
@ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. @
EAU01296
CAUTION:@ Do not test this motorcycle on a dy-
namometer stand for an extended
period of time, otherwise heat-in-
duced discoloration of the fiber-con-
structed muffler may occur. @
EAU04223

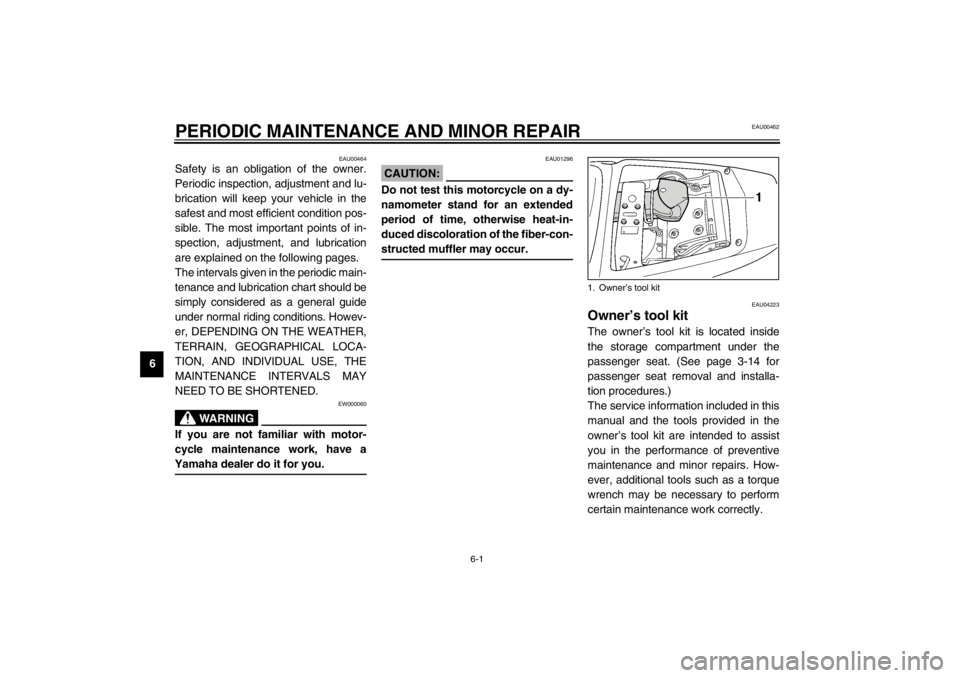

Owner’s tool kit The owner’s tool kit is located inside
the storage compartment under the
passenger seat. (See page 3-14 for
passenger seat removal and installa-
tion procedures.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.1. Owner’s tool kit
U5MTE1.book Page 1 Monday, August 6, 2001 6:10 PM
Page 60 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:
@
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. @
ECA00021
CAUTION:@ Do not use any tools to remove or
install the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twist
it back and forth while pushing it in. @
EAU04224
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _
a. Spark plug gapSpark plug gap:
0.6–0.7 mm
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf)
U5MTE1.book Page 9 Monday, August 6, 2001 6:10 PM
Page 63 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 7. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
8. Install the engine oil drain bolt, and
then tighten it to the specified
torque.9. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
ECA00105
CAUTION:_
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives with
the oil or use oils of grade “CD”
or higher. In addition, do not
use oils labeled “ENERGY CON-
SERVING II” or higher.
Make sure that no foreign mate-
rial enters the crankcase.
_10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.NOTE:_ After the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient. _
EC000067
CAUTION:_ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. _11. Turn the engine off, and then
check the oil level and correct it if
necessary.
12. Install the cowlings.
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf)Left side
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge
replacement:
2.5 L
With oil filter cartridge
replacement:
2.7 L
Total amount (dry engine):
3.5 L
U5MTE1.book Page 12 Monday, August 6, 2001 6:10 PM
Page 66 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
65. Remove the water pump drain bolt
to drain the water pump housing.
6. Loosen the clamp screw, and then
disconnect the radiator hose to
drain the radiator.
7. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
8. Connect the radiator hose, and
then tighten the clamp screw.
9. Install the coolant drain bolt, and
then tighten it to the specified
torque.
NOTE:@ Check the washer for damage and re-
place it if necessary. @
10. Remove the coolant reservoir cov-
er by removing the bolts.
1. Water pump drain bolt
2. Clamp screwRight side
Tightening torque:
Coolant drain bolt:
12 Nm (1.2 m·kgf)
1. Bolt (× 2)Left side
U5MTE1.book Page 15 Monday, August 6, 2001 6:10 PM
Page 79 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6 2. Install the brake caliper by install-
ing the bolt, then tightening it to the
specified torque.
EAU03294
Checking the brake fluid level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake flu-
id level may indicate worn brake pads
and/or brake system leakage. If the
brake level is low, be sure to check the
brake pads for wear and the brake sys-
tem for leakage.Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.
Use only the recommended quali-
ty brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
1. Brake pad wear indicator groove
Tightening torque:
Brake caliper bolt:
40 Nm (4.0 m·kgf)Rear
1. Minimum level markFront
1. Minimum level markRecommended brake fluid: DOT 4Rear
U5MTE1.book Page 28 Monday, August 6, 2001 6:10 PM
Page 81 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6 3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain
slack as shown.
4. If the drive chain slack is incorrect,
adjust it as follows.
EAU03608
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction
a. To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction
b, and then
push the rear wheel forward.
NOTE:_ Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-
tion for proper wheel alignment. _
EC000096
CAUTION:_ Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within the
specified limits. _3. Tighten the locknuts, and then
tighten the axle nut to the specified
torque.
a. Drive chain slack
Drive chain slack:
40–50 mm
1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
4. Alignment marks
Tightening torque:
Axle nut:
150 Nm (15.0 m·kgf)
U5MTE1.book Page 30 Monday, August 6, 2001 6:10 PM
Page 92 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-41
6
EAU04257
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Install the brake calipers by install-
ing the bolts.NOTE:_ Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs. _5. Install the brake hose holders by
installing the bolts.
6. Install the front wheel axle pinch
bolt, and then tighten the wheel
axle, pinch bolt and brake caliper
bolts to the specified torques.7. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU03537
Rear wheel To remove the rear wheel
EW000122
WARNING
_
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no danger
of it falling over.
_1. Loosen the axle nut and the brake
caliper bolts.
2. Lift the rear wheel off the ground
according to the procedure on
page 6-40. Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf)
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf)
Brake caliper bolt:
40 Nm (4.0 m·kgf)1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
U5MTE1.book Page 41 Monday, August 6, 2001 6:10 PM
Page 94 of 116

PERIODIC MAINTENANCE AND MINOR REPAIR
6-43
6
EAU03538
To install the rear wheel
1. Install the wheel by inserting the
wheel axle from the left hand side.
2. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-30 for
drive chain slack adjustment pro-
cedures.)
3. Install the axle nut, and then lower
the rear wheel so that it is on the
ground.
4. Install the brake caliper by install-
ing the bolts.NOTE:_ Make sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brake
disc. _5. Tighten the axle nut and the brake
caliper bolts to the specified
torques.
EAU03087
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills. Tightening torques:
Axle nut:
150 Nm (15.0 m·kgf)
Brake caliper bolt:
40 Nm (4.0 m·kgf)
U5MTE1.book Page 43 Monday, August 6, 2001 6:10 PM
Page 108 of 116

SPECIFICATIONS
8-5
8
EAU03941
Conversion table CS-03EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskgf/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°
F
U5MTE1.book Page 5 Monday, August 6, 2001 6:10 PM
