YAMAHA YZF-R6 2003 Owners Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
ECA00052
CAUTION:@ Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings. @
EAU02962
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
EW000112
WARNING
@ Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions. @
EAU04034
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated or
replaced at the intervals specified in
the periodic maintenance chart.
Recommended lubricant:
Engine oil
U5SLE0.book Page 34 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU03164
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
EAU03370
Checking and lubricating the
brake and shift pedals The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
U5SLE0.book Page 35 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU03165
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
EW000113
WARNING
@ If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. @Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
U5SLE0.book Page 36 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6
EAU02939
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @Check the inner tubes for scratches,
damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:@ If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it. @
EAU00794
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @
U5SLE0.book Page 37 Wednesday, September 11, 2002 11:46 AM

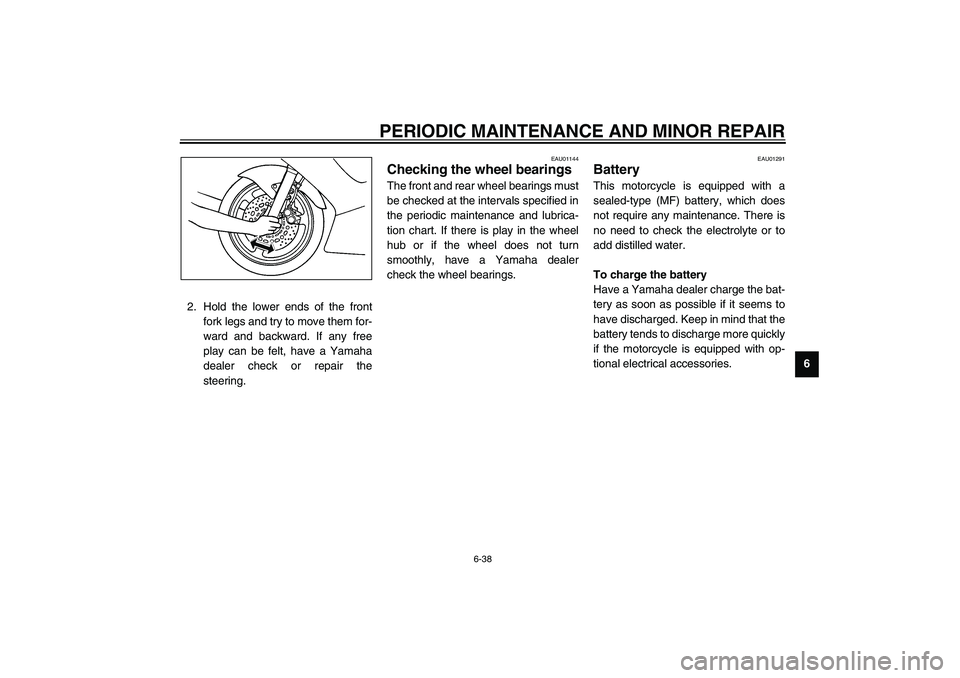

PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
6 2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the
steering.
EAU01144
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
EAU01291
Battery This motorcycle is equipped with a
sealed-type (MF) battery, which does
not require any maintenance. There is
no need to check the electrolyte or to
add distilled water.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the motorcycle is equipped with op-
tional electrical accessories.
U5SLE0.book Page 38 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6
EW000116
WARNING
@

Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for
15 minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
@To store the battery
1. If the motorcycle will not be used
for more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
EC000102
CAUTION:@

Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is re-
quired. Using a conventional
battery charger will damage the
battery. If you do not have ac-
cess to a sealed-type (MF) bat-
tery charger, have a Yamaha
dealer charge your battery.
@
U5SLE0.book Page 39 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6
EAU04981
Replacing the fuses The main fuse and fuse box 1 are locat-
ed under the rider seat. (See page 3-19
for rider seat removal and installation
procedures.)Fuse box 2 is located under panel B.
(See page 6-7 for panel removal and
installation procedures.)If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Spare main fuse
2. Main fuse
3. Fuse box 1
4. Electronic fuel injection fuse
5. Turn signal light, taillight, license plate light,
auxiliary light and hazard fuse
6. Spare fuse
1. Fuse box 2
2. Headlight fuse
3. Radiator fan fuse
4. Ignition fuse
5. Signaling system fuse
6. Odometer, clock and immobilizer system fuse
(backup fuse)
7. Spare fuse (× 2)
Specified fuses:
Main fuse: 40 A
Fuse box 1:
Electronic fuel injection
fuse: 15 A
Turn signal light,
taillight, license plate
light, auxiliary light and
hazard fuse: 10 A
Fuse box 2:
Headlight fuse: 20 A
Signaling system fuse: 15 A
Radiator fan fuse: 15 A
Ignition fuse: 15 A
Odometer, clock and
immobilizer system fuse
(backup fuse): 10 A
U5SLE0.book Page 40 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-41
6
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU04954
Replacing a headlight bulb This motorcycle is equipped with
quartz bulb headlights. If a headlight
bulb burns out, replace it as follows.
1. Remove panel B (if replacing the
left headlight bulb) or panel A (if
replacing the right headlight bulb).
(See page 6-7 for panel removal
and installation procedures.)
2. Remove the headlight bulb cover
by turning it counterclockwise.3. Disconnect the headlight coupler.1. Headlight bulb cover
1. Headlight coupler
U5SLE0.book Page 41 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-42
6 4. Unhook the headlight bulb holder,
and then remove the defective
bulb.
EW000119
WARNING
_ Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down. _5. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
EC000104
CAUTION:_ Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosi-
ty of the bulb, and the bulb life
will be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the head-
light lens.
Do not use a headlight bulb of
a wattage higher than speci-
fied.
_
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U5SLE0.book Page 42 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-43
66. Connect the headlight coupler.
7. Install the headlight bulb cover by
turning it clockwise.
8. Install the panel.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU04982
Replacing an auxiliary light
bulb This motorcycle is equipped with two
auxiliary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the auxiliary light bulb
cover by removing the quick fas-
tener.NOTE:_ Remove the quick fastener by pushing
the center pin in with a screwdriver,
then pulling the fastener out. _
2. Remove the socket (together with
the bulb) by pulling it out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the auxiliary light bulb cover
by installing the quick fastener.
1. Auxiliary light bulb cover
2. Quick fastener
1. Auxiliary light bulb
2. Auxiliary light bulb socket
U5SLE0.book Page 43 Wednesday, September 11, 2002 11:46 AM
