PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
ECA00133
CAUTION:_

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the crankcase.
_13. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.NOTE:_ After the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient. _
EC000067
CAUTION:_ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. _14. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU04945
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
To check the coolant level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the motorcycle is
positioned straight up when
checking the coolant level. A slight
tilt to the side can result in a false
reading.
_
U5SLE0.book Page 13 Wednesday, September 11, 2002 11:46 AM

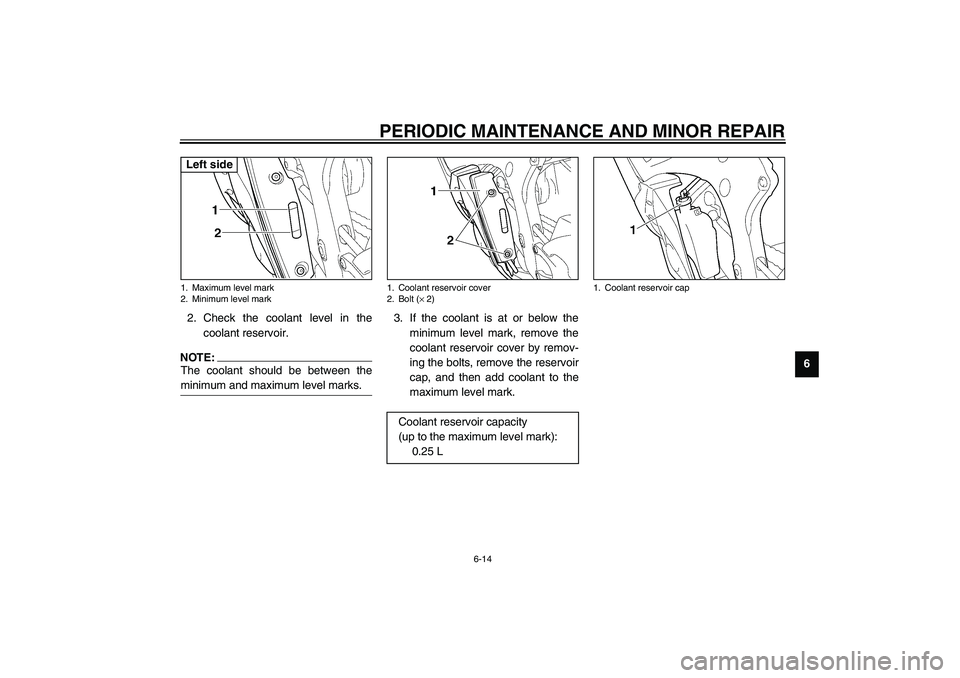

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6 2. Check the coolant level in the
coolant reservoir.
NOTE:_ The coolant should be between the
minimum and maximum level marks. _
3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the reservoir
cap, and then add coolant to the
maximum level mark.
1. Maximum level mark
2. Minimum level markLeft side
1. Coolant reservoir cover
2. Bolt (× 2)Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
1. Coolant reservoir cap
U5SLE0.book Page 14 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EC000080
CAUTION:_

If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the cool-
ing system will not be protected
against frost and corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.
_
EW000067
WARNING
_ Never attempt to remove the radia-
tor cap when the engine is hot. _4. Install the reservoir cap, and then
install the coolant reservoir cover
by installing the bolts.NOTE:_

The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see page
6-53 for further instructions.
_
EAU04970
To change the coolant
1. Place the motorcycle on a level
surface and let the engine cool if
necessary.
2. Remove panel A and cowling A.
(See pages 6-5–6-8 for panel and
cowling removal and installation
procedures.)
3. Place a container under the en-
gine to collect the used coolant.
U5SLE0.book Page 15 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 4. Loosen the clamp screw, and then
disconnect the air intake duct.5. Remove the radiator cap.
EW000067
WARNING
_ Never attempt to remove the radia-
tor cap when the engine is hot. _
6. Remove the coolant drain bolt to
drain the cooling system.
7. Loosen the clamp screw, and then
disconnect the radiator hose to
drain the radiator.
1. Clamp screw
2. Air intake duct
1. Radiator cap
1. Coolant drain bolt
2. Clamp screw
U5SLE0.book Page 16 Wednesday, September 11, 2002 11:46 AM

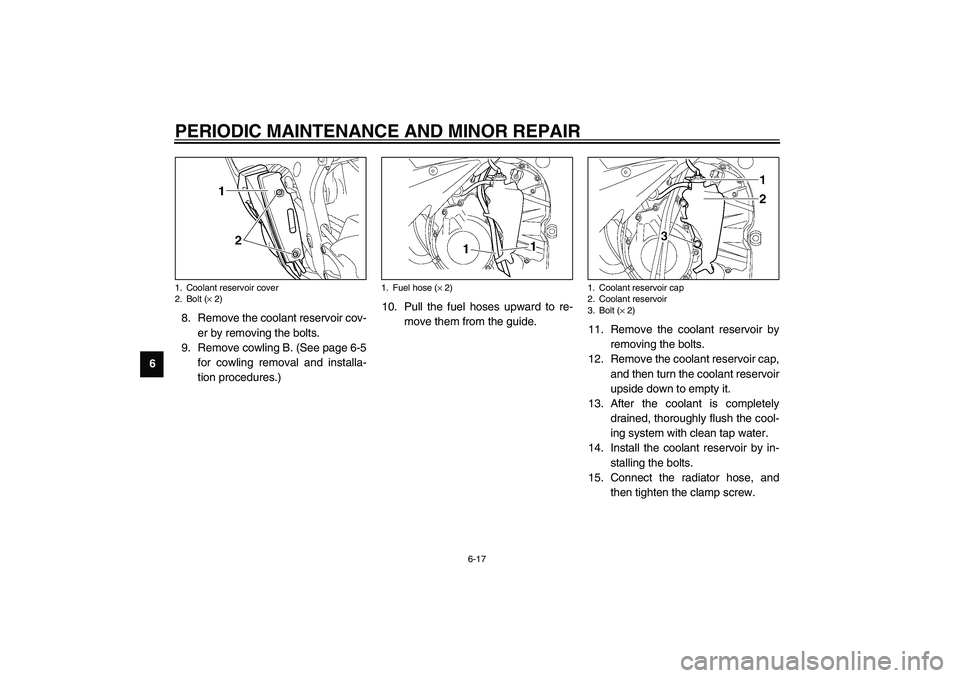

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
68. Remove the coolant reservoir cov-
er by removing the bolts.
9. Remove cowling B. (See page 6-5
for cowling removal and installa-
tion procedures.)10. Pull the fuel hoses upward to re-
move them from the guide.
11. Remove the coolant reservoir by
removing the bolts.
12. Remove the coolant reservoir cap,
and then turn the coolant reservoir
upside down to empty it.
13. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
14. Install the coolant reservoir by in-
stalling the bolts.
15. Connect the radiator hose, and
then tighten the clamp screw.
1. Coolant reservoir cover
2. Bolt (× 2)
1. Fuel hose (× 2)
1. Coolant reservoir cap
2. Coolant reservoir
3. Bolt (× 2)
U5SLE0.book Page 17 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6 16. Install the coolant drain bolt, and
then tighten it to the specified
torque.
NOTE:_ Check the washer for damage and re-
place it if necessary. _17. Pour the recommended coolant
into the reservoir to the maximum
level mark, and then install the
coolant reservoir cap.
18. Install the coolant reservoir cover
by installing the bolts.
19. Insert the fuel hoses into the guide
and place them in their original po-
sition.20. Install cowling B.
21. Pour the recommended coolant
into the radiator until it is full.
EC000080
CAUTION:_

If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the cool-
ing system will not be protected
against frost and corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.
_
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol
antifreeze containing corrosion
inhibitors for aluminum engines
Coolant quantity:
Total amount:
2.15 L
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U5SLE0.book Page 18 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
622. Install the radiator cap, start the
engine, let it idle for several min-
utes, and then turn it off.
23. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
24. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
25. Connect the air intake duct, and
then tighten the clamp screw.
26. Install the panel and the cowling.
EAU04946*
Checking the air filter element The air filter element should be
checked at the intervals specified in the
periodic maintenance and lubrication
chart. Check the air filter element more
frequently if you are riding in unusually
wet or dusty areas.
1. Remove the rider seat. (See page
3-19 for rider seat removal and in-
stallation procedures.)
2. Remove the fuel tank bolts and
slightly lift the fuel tank.
1. Bolt (× 2)
U5SLE0.book Page 19 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-53
6Engine overheating
EW000070
WARNING
@

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hiss-
ing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
@aNOTE:@ If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible. @
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U5SLE0.book Page 53 Wednesday, September 11, 2002 11:46 AM

SPECIFICATIONS
8-4
8
Battery
Model GT9B-4
Voltage, capacity 12 V, 8 Ah
Headlight typeHalogen bulb
Bulb voltage, wattage × quantity
Headlight 12 V, 55 W × 2
Tail/brake light LED
Turn signal light 12 V, 10 W × 4
Auxiliary light 12 V, 5 W × 2
License plate light 12 V, 5 W × 1
Meter lighting LED
Neutral indicator light LED
High beam indicator light LED
Turn signal indicator light LED
Fuel level warning light LED
Oil level warning light LED
Coolant temperature warning
light LED
Engine trouble warning light LED
Shift timing indicator light LED
Immobilizer system
indicator light LEDFuses
Main fuse 40 A
Headlight fuse 20 A
Signaling system fuse 15 A
Radiator fan fuse 15 A
Ignition fuse 15 A
Electronic fuel injection fuse 15 A
Turn signal light, taillight,
license plate light, auxiliary
light and hazard fuse 10 A
Odometer, clock and
immobilizer system fuse
(backup fuse) 10 A
U5SLE0.book Page 4 Wednesday, September 11, 2002 11:46 AM

10-INDEXAAir filter element, checking ..................... 6-19
Air intake duct ........................................ 6-22
Anti-theft alarm ...................................... 3-13
Auxiliary light bulb, replacing .................. 6-43BBattery ................................................... 6-38
Brake and clutch levers, checking and
lubricating ............................................ 6-35
Brake and shift pedals, checking and
lubricating ............................................ 6-35
Brake fluid, changing ............................. 6-32
Brake fluid level, checking...................... 6-31
Brake lever............................................. 3-16
Brake light switch (rear), adjusting ......... 6-29
Brake pads, checking............................. 6-30
Brake pedal............................................ 3-16
Brake pedal position, adjusting .............. 6-29CCables, checking and lubricating............ 6-34
Care.........................................................7-1
Catalytic converter ................................. 3-19
Clutch lever ............................................ 3-15
Clutch lever free play, adjusting ............. 6-27
Conversion table ......................................8-5
Coolant .................................................. 6-13
Changing .......................................... 6-15
Checking .......................................... 6-13
Coolant temperature warning light............3-6
Cowlings and panels, removing and
installing ................................................6-5
DDimmer switch ....................................... 3-13
Drive chain, lubricating .......................... 6-33
Drive chain slack ................................... 6-32
Adjusting .......................................... 6-33
Checking .......................................... 6-32EEngine break-in ....................................... 5-3
Engine idling speed ............................... 6-23
Engine oil and oil filter cartridge ............... 6-9
Engine stop switch................................. 3-14
Engine trouble warning light .................... 3-5FFront fork, adjusting ............................... 3-23
Front fork, checking ............................... 6-37
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ......... 5-3
Fuel level warning light ............................ 3-4
Fuel tank breather hose ......................... 3-18
Fuel tank cap ......................................... 3-17
Fuses, replacing .................................... 6-40HHandlebar switches ............................... 3-13
Hazard switch ........................................ 3-14
Headlight bulb, replacing ....................... 6-41
Helmet holders ...................................... 3-21
High beam indicator light ......................... 3-5
Horn switch ........................................... 3-14
IIdentification numbers ..............................9-1
Ignition circuit cut-off system ..................3-28
Immobilizer system..................................3-1
Immobilizer system indicator light.............3-6
Indicator and warning lights......................3-4KKey identification number .........................9-1LLicense plate light bulb, replacing...........6-45
Luggage strap holders ...........................3-27MMain switch/steering lock .........................3-2
Model label ..............................................9-2
Multi-function display................................3-8NNeutral indicator light ...............................3-5OOil level warning light ...............................3-5PParking.....................................................5-4
Part locations ...........................................2-1
Pass switch ............................................3-13
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM
