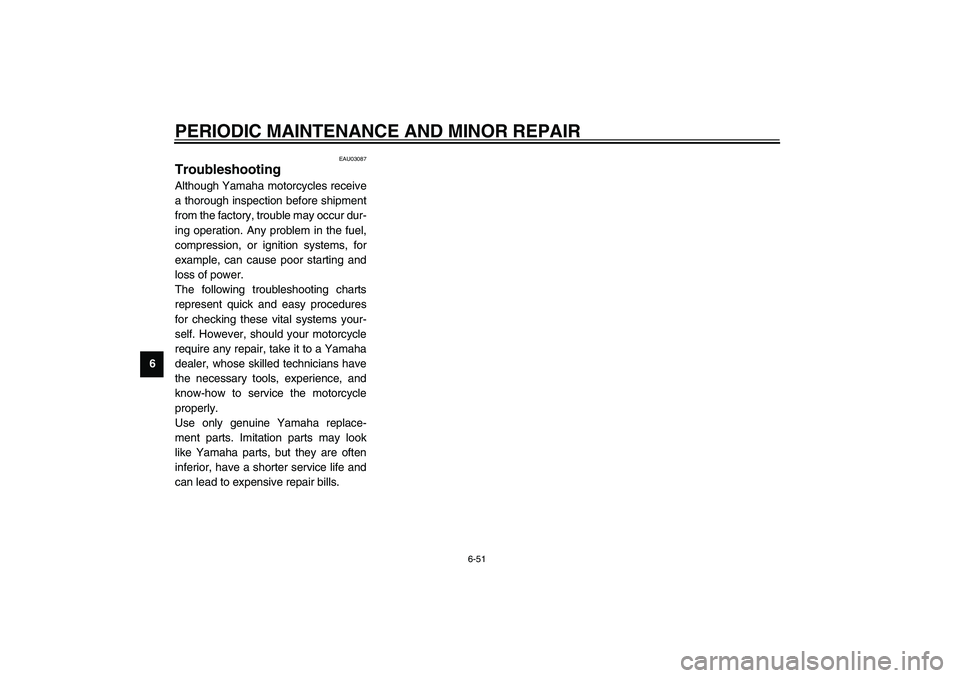

PERIODIC MAINTENANCE AND MINOR REPAIR
6-51
6
EAU03087
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills. U5SLE0.book Page 51 Wednesday, September 11, 2002 11:46 AM
8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model YZF-R6
Dimensions
Overall length 2,025 mm
Overall width 690 mm
Overall height 1,090 mm
Seat height 820 mm
Wheelbase 1,380 mm
Ground clearance 135 mm
Minimum turning radius 3,400 mm
Basic weight (with oil and full
fuel tank)
182 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 600 cm
3
Bore × stroke 65.5 × 44.5 mm
Compression ratio 12.4:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter cartridge
replacement 2.4 L
With oil filter car tridge
replacement 2.6 L
Total amount (dry engine) 3.4 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils la-
beled “ENERGY CONSERVING II” or higher.
