key YAMAHA YZF-R6 2007 User Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
NOTE:In this mode, the right display shows
the current setting for each function
(except the shift timing indicator lightactivity function).
To adjust the brightness of the multi-function meter displays and tachometer1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton.
3. Turn the key to “ON”, and then re-
lease the “SELECT” button after
five seconds.
4. Push the “RESET” button to select
the desired brightness level.
5. Push the “SELECT” button to con-
firm the selected brightness level.
The control mode changes to the
shift timing indicator light activity
function.
To set the shift timing indicator light ac-tivity function1. Push the “RESET” button to select
one of the following indicator light
activity settings:


The indicator light will stay on
when activated. (This setting
is selected when the indicator
light stays on.)


The indicator light will flash
when activated. (This setting
is selected when the indicator
light flashes four times per
second.)


The indicator light is deacti-
vated; in other words, it will
not come on or flash. (This
setting is selected when the
indicator light flashes once
every two seconds.)
2. Push the “SELECT” button to con-
firm the selected indicator light ac-
tivity. The control mode changes to
the shift timing indicator light acti-
vation function.
To set the shift timing indicator light ac-
tivation functionNOTE:The shift timing indicator light activation
function can be set between 10000
r/min and 18000 r/min. From 10000
r/min to 13000 r/min, the indicator lightcan be set in increments of 500 r/min.
From 13000 r/min to 18000 r/min, the
indicator light can be set in increments
of 200 r/min.
1. Push the “RESET” button to select
the desired engine speed for acti-
vating the indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift timing indicator light deactiva-
tion function.
To set the shift timing indicator light de-activation functionNOTE:

The shift timing indicator light de-
activation function can be set be-
tween 10000 r/min and 18000
r/min. From 10000 r/min to 13000
r/min, the indicator light can be set
in increments of 500 r/min. From
13000 r/min to 18000 r/min, the in-
dicator light can be set in incre-
ments of 200 r/min.
U2C0E1E0.book Page 12 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3Right
EAU12350
Pass switch “”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
1. Engine stop switch “/”
2. Start switch “”U2C0E1E0.book Page 14 Friday, July 7, 2006 11:14 AM

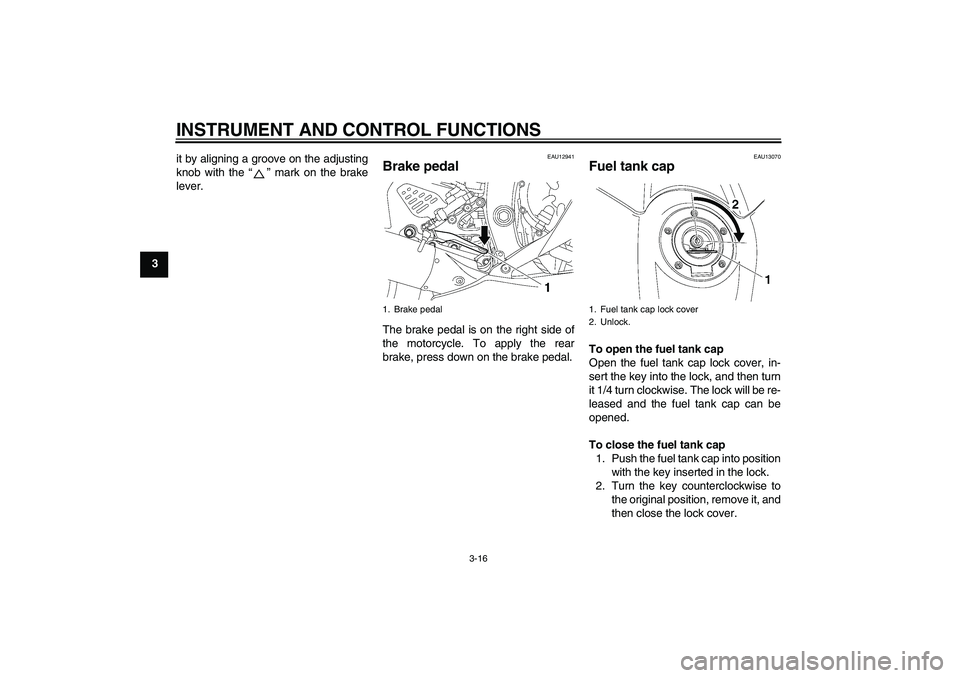

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3it by aligning a groove on the adjusting
knob with the “” mark on the brake
lever.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13070
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
1. Brake pedal
1. Fuel tank cap lock cover
2. Unlock.
U2C0E1E0.book Page 16 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
NOTE:The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly closed and locked.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU13220
Fuel Make sure that there is sufficient fuel in
the tank. When refueling, be sure to in-
sert the pump nozzle into the fuel tank
filler hole and to fill the tank to the bot-
tom of the filler tube as shown.
WARNING
EWA10880


Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13390
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
17.5 L (4.62 US gal) (3.85 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
3.5 L (0.92 US gal) (0.77 Imp.gal)
U2C0E1E0.book Page 17 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU39030
Seats Rider seat
To remove the rider seatPull back the rear of the rider seat as
shown, remove the bolts, and then pull
the seat off.
To install the rider seatInsert the projection on the front of the
rider seat into the seat holder as
shown, place the seat in the original po-
sition, and then install the bolts.Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it clockwise.2. While holding the key in that posi-
tion, lift the front of the passenger
seat and pull it forward.
To install the passenger seat
1. Insert the projections on the rear of
the passenger seat into the seat
holders as shown, and then push
the front of the seat down to lock it
in place.
2. Remove the key.NOTE:Make sure that the seats are properlysecured before riding.
1. Bolt
1. Projection
2. Seat holder
1. Passenger seat lock
2. Unlock.
1. Projection
2. Seat holder
U2C0E1E0.book Page 19 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-28
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:
U2C0E1E0.book Page 28 Friday, July 7, 2006 11:14 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU33010
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-27.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA11730
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Fuel level warning light


Coolant temperature warning
light


Shift timing indicator light


Engine trouble warning light


Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
U2C0E1E0.book Page 1 Friday, July 7, 2006 11:14 AM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU17212
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.
U2C0E1E0.book Page 4 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6 sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23703
Replacing the fuses The main fuse and fuse box 1 are locat-
ed under the rider seat. (See page
3-19.)
Fuse box 2 is located under panel A.
(See page 6-6.)If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Main fuse
2. Fuel injection system spare fuse
3. Fuel injection system fuse
4. Fuse box 1
5. Spare fuse
6. ETV (electric throttle valve) fuse
7. Backup fuse (for odometer, clock and immo-
bilizer system)
1. Fuse box 2
2. Right radiator fan fuse
3. Left radiator fan fuse
4. Signaling system fuse
5. Ignition fuse
6. Taillight fuse
7. Headlight fuse
8. Spare fuse
U2C0E1E0.book Page 32 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU39010
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
1. Remove the headlight bulb cover
by turning it counterclockwise.
2. Disconnect the headlight coupler.
Specified fuses:
Main fuse:
50.0 A
Fuel injection system fuse:
15.0 A
Electric throttle valve fuse:
7.5 A
Backup fuse:
7.5 A
Radiator fan fuse:
15.0 A × 2
Ignition fuse:
15.0 A
Signaling system fuse:
10.0 A
Taillight fuse:
7.5 A
Headlight fuse:
15.0 A
1. Headlight bulb cover
1. Headlight coupler
U2C0E1E0.book Page 33 Friday, July 7, 2006 11:14 AM
