check engine YAMAHA YZF-R6 2007 Owner's Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
1. Throttle cable free play
U2C0E1E0.book Page 18 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU23022
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.CAUTION:
ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers orinappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.
Recommended lubricant:
Engine oil
U2C0E1E0.book Page 26 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
U2C0E1E0.book Page 30 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6 3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU39020
Auxiliary light bulb If the auxiliary light does not come on,
have a Yamaha dealer check the elec-
trical circuit or replace the bulb.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Auxiliary light bulb
U2C0E1E0.book Page 36 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-42
6
EAU42500
Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U2C0E1E0.book Page 42 Friday, July 7, 2006 11:14 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-43

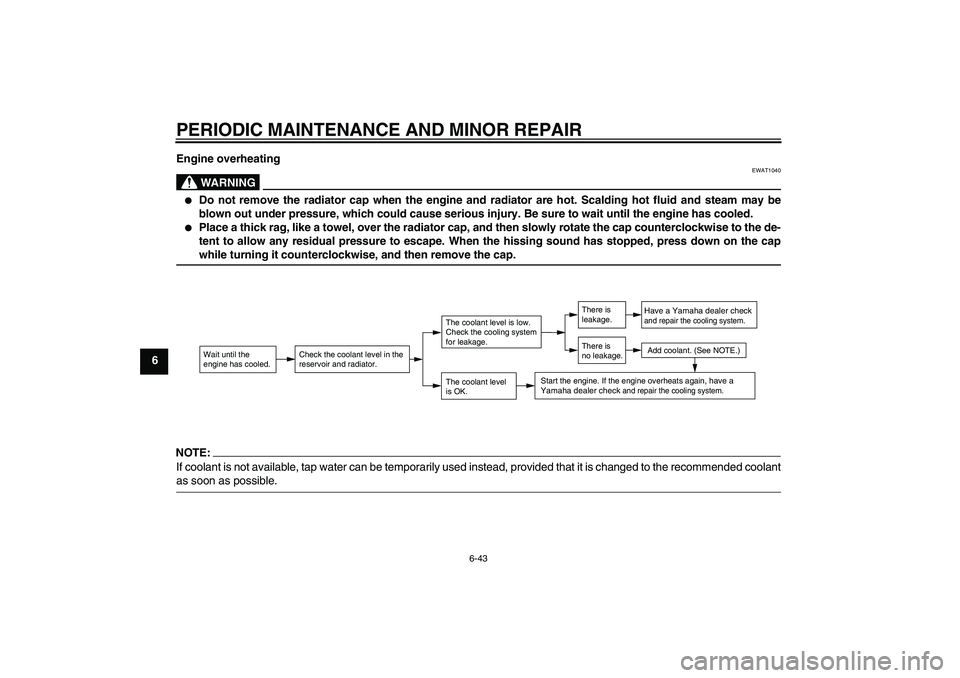

6Engine overheating
WARNING
EWAT1040


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U2C0E1E0.book Page 43 Friday, July 7, 2006 11:14 AM

MOTORCYCLE CARE AND STORAGE
7-4
7
EAU26180
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U2C0E1E0.book Page 4 Friday, July 7, 2006 11:14 AM

INDEXAAir filter element .................................... 6-17
Anti-theft alarm (optional)...................... 3-13
Auxiliary light bulb ................................. 6-36BBattery................................................... 6-31
Brake and clutch levers, checking and
lubricating ........................................... 6-28
Brake and shift pedals, checking and
lubricating ........................................... 6-27
Brake fluid, changing ............................ 6-24
Brake fluid level, checking .................... 6-23
Brake lever ............................................ 3-15
Brake pedal ........................................... 3-16CCables, checking and lubricating .......... 6-26
Care ........................................................ 7-1
Catalytic converter ................................ 3-18
Caution, matte color ................................ 7-1
Clutch lever ........................................... 3-15
Clutch lever free play, adjusting ............ 6-21
Coolant.................................................. 6-14
Coolant temperature warning light .......... 3-4
Cowlings and panels, removing and
installing................................................ 6-6DDimmer switch ...................................... 3-14
Drive chain, cleaning and lubricating .... 6-26
Drive chain slack ................................... 6-24EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge ............ 6-11
Engine stop switch ................................ 3-14
Engine trouble warning light.................... 3-7EXUP system ....................................... 3-26
FFor solo riding ......................................... 9-2
Front and rear brake pads, checking .... 6-22
Front fork, adjusting .............................. 3-21
Front fork, checking .............................. 6-29
Fuel....................................................... 3-17
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather/overflow hose ......... 3-18
Fuel tank cap ........................................ 3-16
Fuses, replacing ................................... 6-32HHandlebar switches .............................. 3-13
Hazard switch ....................................... 3-14
Headlight bulb, replacing ...................... 6-33
Helmet holding cable ............................ 3-20
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-27
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-35
Luggage strap holders .......................... 3-25MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-7
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14
Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-22SSafety information ................................... 1-1
Seats ..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-15
Shift timing indicator light ........................ 3-7
Shock absorber assembly, adjusting .... 3-23
Sidestand .............................................. 3-26
Sidestand, checking and lubricating...... 6-28
Spark plugs, checking ........................... 6-10
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-14
Steering, checking................................. 6-30
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-36
Swingarm pivots, lubricating ................. 6-29TTail/brake light ....................................... 6-35
Throttle cable free play, checking ......... 6-18
U2C0E1E0.book Page 1 Friday, July 7, 2006 11:14 AM
