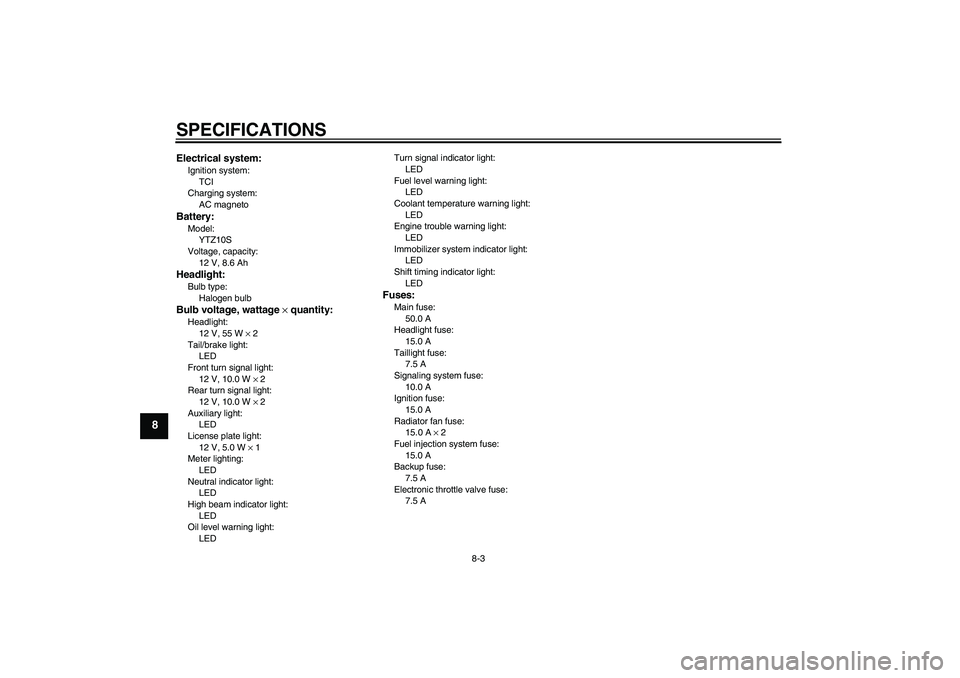

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 55 W × 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
LED
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U13SE3E0.book Page 3 Tuesday, June 8, 2010 4:39 PM

INDEXAAir filter element .................................... 6-19
Anti-theft alarm (optional)...................... 3-14
Auxiliary light ......................................... 6-38BBattery................................................... 6-33
Brake and clutch levers, checking and
lubricating ........................................... 6-30
Brake and shift pedals, checking and
lubricating ........................................... 6-30
Brake fluid, changing ............................ 6-26
Brake fluid level, checking .................... 6-25
Brake lever ............................................ 3-16
Brake lever free play, checking ............. 6-24
Brake light switches .............................. 6-24
Brake pedal ........................................... 3-17CCables, checking and lubricating .......... 6-29
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Clutch lever ........................................... 3-15
Clutch lever free play, adjusting ............ 6-23
Coolant.................................................. 6-16
Coolant temperature warning light .......... 3-5
Cowlings and panels, removing and
installing................................................ 6-8DDimmer switch ...................................... 3-14
Drive chain, cleaning and lubricating .... 6-28
Drive chain slack ................................... 6-27EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ............ 6-13Engine stop switch................................ 3-15
Engine trouble warning light ................... 3-7
EXUP system ....................................... 3-28
FFront and rear brake pads, checking .... 6-25
Front fork, adjusting .............................. 3-23
Front fork, checking .............................. 6-32
Fuel....................................................... 3-18
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather/overflow hose ......... 3-19
Fuel tank cap ........................................ 3-17
Fuses, replacing ................................... 6-34HHandlebar switches .............................. 3-14
Hazard switch ....................................... 3-15
Headlight bulb, replacing ...................... 6-35
Helmet holding cable ............................ 3-21
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-15IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-29
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator lights and warning lights .......... 3-4LLicense plate light bulb, replacing ........ 6-38
Luggage strap holders .......................... 3-27MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-4
Maintenance, emission control system... 6-3
Matte color, caution ................................ 7-1Model label .............................................. 9-1
Multi-function meter unit .......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14RRear view mirrors .................................. 3-22SSafety information ................................... 1-1
Seats ..................................................... 3-20
Shifting .................................................... 5-2
Shift pedal ............................................. 3-16
Shift timing indicator light ........................ 3-7
Shock absorber assembly, adjusting .... 3-25
Sidestand .............................................. 3-28
Sidestand, checking and lubricating...... 6-31
Spark plugs, checking ........................... 6-12
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-15
Steering, checking................................. 6-32
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-39
Swingarm pivots, lubricating ................. 6-31TTail/brake light ....................................... 6-37
Throttle grip and cable, checking and
lubricating ........................................... 6-29
Throttle grip free play, checking ............ 6-19
