DESCRIPTION
2-1
2
EAU10410

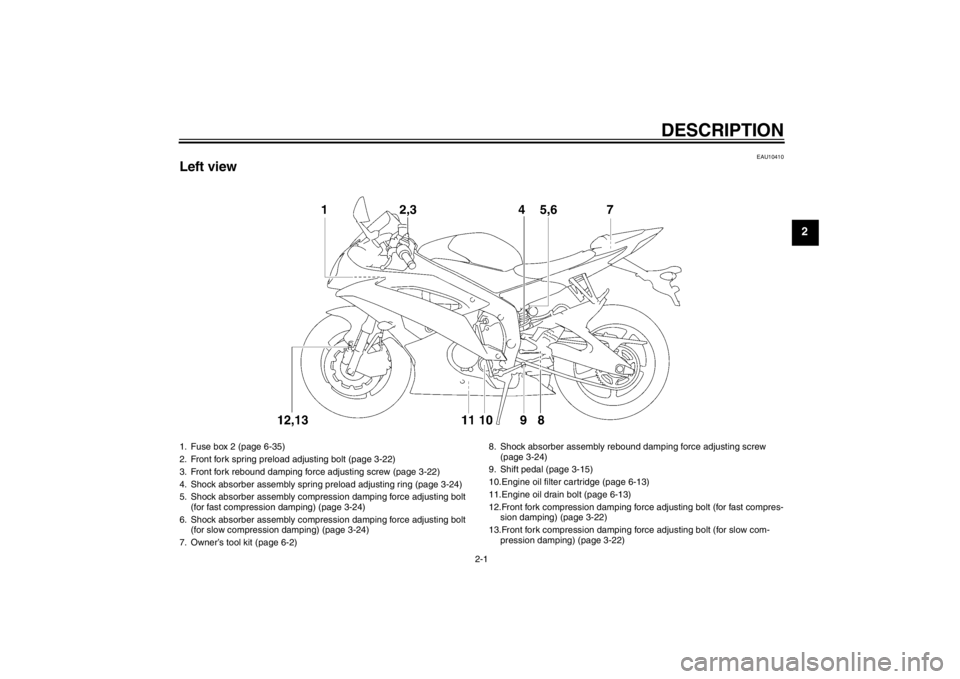

Left view1. Fuse box 2 (page 6-35)
2. Front fork spring preload adjusting bolt (page 3-22)
3. Front fork rebound damping force adjusting screw (page 3-22)
4. Shock absorber assembly spring preload adjusting ring (page 3-24)
5. Shock absorber assembly compression damping force adjusting bolt (for fast compression damping) (page 3-24)
6. Shock absorber assembly compression damping force adjusting bolt (for slow compression damping) (page 3-24)
7. Owner’s tool kit (page 6-2) 8. Shock absorber assembly rebo
und damping force adjusting screw
(page 3-24)
9. Shift pedal (page 3-15)
10.Engine oil filter cartridge (page 6-13)
11.Engine oil drain bolt (page 6-13)
12.Front fork compression damping force adjusting bolt (for fast compres- sion damping) (page 3-22)
13.Front fork compression damping force adjusting bolt (for slow com- pression damping) (page 3-22)
U1JSE1E0.book Page 1 Wednesday, June 6, 2012 10:05 AM

DESCRIPTION
2-2
2
EAU10420
Right view
1
2
3,4,5,6
710
9
8
11
12
13
14
15
1. Luggage strap holder (page 3-27)
2. Helmet cable holder (page 3-21)
3. Fuse box 1 (page 6-35)
4. Main fuse (page 6-35)
5. Fuel injection system fuse (page 6-35)
6. Battery (page 6-33)
7. Air filter element (page 6-19)
8. Coolant reservoir (page 6-16)9. Radiator cap (page 6-16)
10.Engine oil filler cap (page 6-13)
11.Coolant drain bolt (page 6-17)
12.Engine oil dipstick (page 6-13)
13.Brake pedal (page 3-16)
14.Rear brake light switch (page 6-24)
15.Rear brake fluid reservoir (page 6-25)U1JSE1E0.book Page 2 Wednesday, June 6, 2012 10:05 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6
EAU23706
Replacing the fuses The main fuse, the fuel injection system
fuse, and fuse box 1 are located under
the rider seat. (See page 3-20.)TIPTo access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
Fuse box 2 is located under panel A.
(See page 6-8.)
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Fuel injection system spare fuse
3. Starter relay cover
4. Fuel injection system fuse
5. Fuse box 1
6. Backup fuse (for clock and immobilizer sys-tem)
7. Electronic throttle valve fuse
8. Spare fuse
2
1
5
6
3
748
1. Fuse box 2
2. Left radiator fan fuse
3. Right radiator fan fuse
4. Signaling system fuse
5. Ignition fuse
6. Taillight fuse
7. Headlight fuse
8. Spare fuse
Specified fuses: Main fuse:50.0 A
Fuel injection system fuse:
15.0 A
Electronic throttle valve fuse: 7.5 A
Backup fuse: 7.5 A
Radiator fan fuse:
15.0 A × 2
Ignition fuse: 15.0 A
Signaling system fuse: 10.0 A
Taillight fuse:
7.5 A
Headlight fuse: 15.0 A
