Instrument and control functions
4-12
4
This display shows the selected gear.
The neutral position is indicated by “ ”
and by the neutral indicator light.
Drive mo
de display
This display indicates which drive
mode has been selected: “STD”, “A” or
“B”. For more details on the modes
and on how to select them, see page
3-1. TCS
display
This display indicates which traction
control system setting has been se-
lected: “1” through “6” or “OFF”. For
more details on the TCS settings and
on how to select them, see page 3-2. QS icon
When the quick shift system is set to
on (i.e. when the shift switch is con-
nected), this icon will turn on. See page
3-4 for quick shift information.
Multi-function
display
1. Drive mode display
1
1. TCS display
1
1. Quick shift icon “QS”
1. Multi-function display
11
UBN6E2E0.book Page 12 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-13
4 The multi-function display is equipped
with the following:
 odometer
 two tripmeters
 fuel reserve tripmeter
 instantaneous fuel consumption
 average fuel consumption
 total fuel used
Navi gatin g the multi-function dis-
play
Push the “SELECT” button to change
between the odometer “ODO”, tripme-
ters “TRIP 1” and “TRIP 2”, instanta-
neous fuel consumption “km/L”,
“L/100 km” or “MPG”, average fuel
consumption “AVE _ _ _._ km/L”, “AVE
_ _ _._ L/100 km” or “AVE _ _ _._ MPG”,
and total fuel used “_ _._” in the follow-
ing order:
ODO → TRIP 1 → TRIP 2 → km/L,
L/100 km or MPG → AVE _ _ _._ km/L,
AVE _ _ _._ L/100 km or AVE _ _ _._
MPG → _ _._ → ODO
O dometer an d tripmeters
The odometer shows the total distance
traveled by the vehicle. The tripmeters show the distance trav-
eled since they were last reset. To reset
a tripmeter, push the “RESET” button
for one second.
TIP
The odometer will lock at 999999.
 The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.Fuel reserve tripmeter
If the fuel level warning light comes on,
the display will automatically change to
the fuel reserve tripmeter “TRIP F” and
start counting the distance traveled
from that point. In this case, push the
“SELECT” button to switch the display
in the following order:
TRIP F → km/L, L/100 km or MPG →
AVE _ _ _._ km/L, AVE _ _ _._ L/100 km
or AVE _ _ _._ MPG → _ _._ → ODO →
TRIP 1 → TRIP 2 → TRIP F
TIPIf you do not reset the fuel reserve trip-
meter manually, after refueling and
traveling 5 km (3 mi), it will reset auto-
matically and disappear from the dis-
play.Instantaneous fuel consumption
This function calculates the fuel con-
sumption under current riding condi-
tions.
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km” when using kilometers, or
to “MPG” when using miles. When us-1. Instantaneous fuel consumption display
1
UBN6E2E0.book Page 13 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-14
4
ing kilometers, push the “SELECT”
button for one second to switch be-
tween “km/L” and “L/100 km”.
 “km/L”: The distance that can be
traveled on 1.0 L of fuel under the
current riding conditions is shown.
 “L/100 km”: The amount of fuel
necessary to travel 100 km under
the current riding conditions is
shown.
 “MPG”: The distance that can be
traveled on 1.0 US gal of fuel un-
der the current riding conditions is
shown.
TIPIf traveling at speeds under 20 km/h
(12 mi/h), “_ _ _._” is displayed.
Avera ge fuel consumption
This function calculates the average
fuel consumption since it was last re-
set.
The average fuel consumption display
can be set to either “AVE _ _ _._ km/L”
or “AVE _ _ _._ L/100 km” when using
kilometers, or to “AVE _ _ _._ MPG”
when using miles. When using kilome-
ters, push the “SELECT” button for one
second to switch between “AVE _ _ _._
km/L” and “AVE _ _ _._ L/100 km”.  “AVE _ _ _._ km/L”: The average
distance that can be traveled on
1.0 L of fuel is shown.
 “AVE _ _ _._ L/100 km”: The aver-
age amount of fuel necessary to
travel 100 km is shown. 
“AVE _ _ _._ MPG”: The average
distance that can be traveled on
1.0 US gal of fuel is shown.
TIPTo reset the average fuel con-
sumption display, push the “RE-
SET” button for one second.
 After resetting the average fuel
consumption display, “_ _ _._” will
be shown until the vehicle has
traveled 1 km (0.6 mi).Total fuel use d
This display shows the total amount of
fuel that has been used since it was
last reset.
1. Average fuel consumption display
1
1. Total fuel used display
1
UBN6E2E0.book Page 14 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-15
4 When using kilometers, this figure is
shown in liters. When using miles, this
figure is shown in gallons.
To reset the total fuel used display,
push the “RESET” button for one sec-
ond.
TIPAfter the total fuel used display is reset,
“_ _ . _” will be shown until the vehicle
has traveled a sufficient distance.Display
bri ghtness an d shift li ght
control mo de This mode cycles through five control
functions, allowing you to make the fol-
lowing settings in the order listed be-
low.
 Display brightness - adjust the
brightness of the displays and ta-
chometer.
 Shift light activity function - set the
shift light to on, flash, or off.
 Shift light activation - set the en-
gine speed at which the shift light
will be come on.
 Shift light deactivation - set the
engine speed at which the shift
light will be go off.
 Shift light brightness - adjust the
brightness of the shift light.
TIPRefer to the brightness level display
when adjusting brightness levels.To adjust the display and tachometerbrightness1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton. 3. Turn the key to “ON”, and then re-
lease the “SELECT” button after
five seconds.
4. Push the “RESET” button to set the brightness level.
5. Push the “SELECT” button to con- firm the setting. The control mode
changes to the shift light activity
function.
To set the shift light activity function
1. Push the “RESET” button to select one of the following shift light ac-
tivity settings: On - the shift light will come
on when activated. (This set-
ting is selected when the shift
light stays on.)
 Flash - the shift light will flash
when activated. (This setting
is selected when the shift light
flashes four times per sec-
ond.)
 Off - the shift light is deacti-
vated; in other words, it will
not come on or flash. (This
setting is selected when the
shift light flashes once every
two seconds.)
1. Shift light
2. Shift light activation range
3. Brightness level display
1
2
3
UBN6E2E0.book Page 15 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-16
4
2. Push the “SELECT” button to con-
firm the selected shift light activity.
The control mode changes to the
shift light activation point setting
function.
To set the shift light activation point
TIPThe shift light activation point can be
set between 10000 r/min and 18000
r/min. From 10000 r/min to 13000
r/min, the shift light can be set in incre-
ments of 500 r/min. From 13000 r/min
to 18000 r/min, the shift light can be set
in increments of 200 r/min.1. Push the “RESET” button to set the activation point engine speed.
2. Push the “SELECT” button to con- firm the setting. The control mode
changes to the shift light deactiva-
tion point setting function.
To set the shift light deactivation pointTIPThe deactivation range is the same as
the activation range. However, be sure
to set the deactivation point to a higher engine speed than the activation point,
otherwise the shift light will not come
on.
1. Push the “RESET” button to set
the deactivation point engine
speed.
2. Push the “SELECT” button to con- firm the setting. The control mode
changes to the shift light bright-
ness function.
To adjust the shift light brightness1. Push the “RESET” button to set the shift light brightness level.
2. Push the “SELECT” button to con- firm the setting and exit the dis-
play brightness and shift light
control mode.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
4-30.)1. Clutch lever
1
UBN6E2E0.book Page 16 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-17
4
EAU12876
Shift pe dalThe shift pedal is located on the left
side of the motorcycle. To shift the
transmission to a higher gear, move
the shift pedal up. To shift the trans-
mission to a lower gear, move the shift
pedal down. (See page 6-2.)
EAU26827
Brake leverThe brake lever is located on the right
side of the handlebar. To apply the
front brake, pull the lever toward the
throttle grip.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the throttle grip, push the
brake lever away from the throttle grip
and rotate the adjusting dial. Make
sure the setting number on the adjust-
ing dial aligns with the match mark on
the brake lever.
EAU12944
Brake ped alThe brake pedal is located on the right
side of the motorcycle. To apply the
rear brake, press down on the brake
pedal.
1. Shift pedal
2. Shift switch
1
2
1. Brake lever
2. Distance
3. Match mark
4. Brake lever position adjusting dial
1
4
3 2
1. Brake pedal
1
UBN6E2E0.book Page 17 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-18
4
EAU63040
ABSThe Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently.
Operate the brakes with ABS as you
would conventional brakes. If the ABS
is activated, a pulsating sensation may
be felt at the brake lever or brake ped-
al. In this situation, continue to apply
the brakes and let the ABS work; do
not “pump” the brakes as this will re-
duce braking effectiveness.
WARNING
EWA16051
Always keep a sufficient d istance
from the vehicle ahea d to match the
ri din g speed even with ABS.
 The ABS performs best with
lon g b rakin g d istances.
 On certain surfaces, such as
rou gh or g ravel roa ds, the b rak-
in g d istance may be lon ger with
the ABS than without.The ABS is monitored by an ECU,
which will revert the system to conven-
tional braking if a malfunction occurs.
TIP The ABS performs a self-diagno-
sis test each time the vehicle first
starts off after the key is turned to
“ON” and the vehicle has traveled
at a speed of 10 km/h (6 mi/h) or
higher. During this test, a “click-
ing” noise can be heard from the
hydraulic control unit, and if the
brake lever or brake pedal is even
slightly applied, a vibration can be
felt at the lever and pedal, but
these do not indicate a malfunc-
tion.
 This ABS has a test mode which
allows the owner to experience
the pulsation at the brake lever or
brake pedal when the ABS is op-
erating. However, special tools are
required, so please consult your
Yamaha dealer.NOTICE
ECA20100
Be careful not to d amage the wheel
sensor or wheel sensor rotor; other-
wise, improper performance of the
ABS will result.
1. Front wheel sensor rotor
2. Front wheel sensor
1. Rear wheel sensor
2. Rear wheel sensor rotor
1
2
12
UBN6E2E0.book Page 18 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-19
4
EAU13076
Fuel tank capTo open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be
released and the fuel tank cap can be
opened.
To close the fuel tank cap
With the key still inserted in the lock,
push down the fuel tank cap. Turn the
key 1/4 turn counterclockwise, remove
it, and then close the lock cover.
TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly close d after fillin g fuel.
Leakin g fuel is a fire hazar d.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d g asoline vapors are
extremely flamma ble. To avoi d fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank cap lock cover
2. Unlock.
1
2
UBN6E2E0.book Page 19 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-20
4
3. Wipe up any spilled fuel immedi- ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can
cause injury or d eath. Handle gaso-
line with care. Never siphon gasoline
b y mouth. If you shoul d swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some g asoline in
your eyes, see your doctor imme di- ately. If g
asoline spills on your skin,
wash with soap an d water. If gaso-
line spills on your clothin g, chan ge
your clothes.
EAU86071
Your Yamaha engine was designed to
use unleaded gasoline with a research
octane number of 95 or higher. If en-
gine knocking or pinging occurs, use a
gasoline of a different brand or higher
octane rating.
TIP This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
 Confirm the gasoline pump nozzle
has the same same fuel identifica-
tion mark.Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
1. Fuel tank filler tube
2. Maximum fuel level
1
2
Recommen ded fuel:
Unleaded gasoline (E10 acceptable)
Octane num ber (RON):
95
Fuel tank capacity: 17 L (4.5 US gal, 3.7 Imp.gal)
Fuel tank reserve:
3.4 L (0.90 US gal, 0.75 Imp.gal)
E5
E10
UBN6E2E0.book Page 20 Friday, December 7, 2018 2:56 PM

Instrument and control functions
4-21
4
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lead ed g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.
EAU86160
Fuel tank overflow hoseThe overflow hose drains excess gaso-
line and directs it safely away from the
vehicle.
Before operating the vehicle:  Check the fuel tank overflow hose
connection.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the fuel tank over-
flow hose is not blocked, and
clean it if necessary.
 Make sure that the fuel tank over-
flow hose is positioned as shown.
TIPSee page 7-14 for canister information.

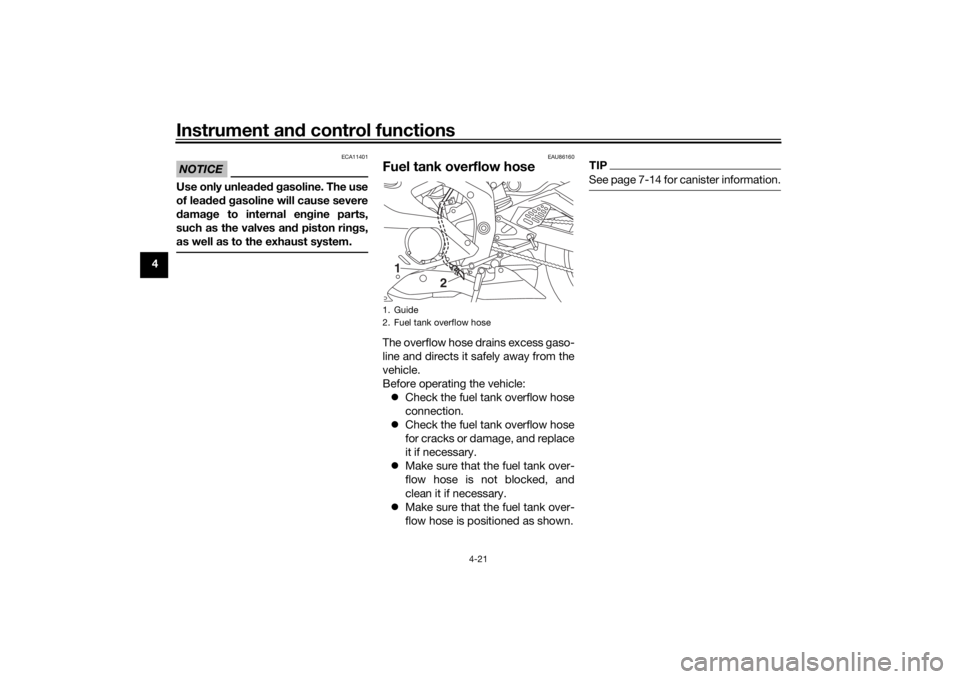

1. Guide
2. Fuel tank overflow hose
1
2
UBN6E2E0.book Page 21 Friday, December 7, 2018 2:56 PM
