Instrument and control functions
3-6
3
EAU92981
Multi-function meter unit
The multi-function meter unit is also
equipped with a display brightness and
shift timing indicator light settings
mode.
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can distract the
operator an d increase the risk of an
acci dent.
EAU92991
TIPThe multi-function meter is controlled

more information.
EAU93001
Switchin g the display units
The display units can be switched be-
tween kilometers and miles. To switch
the display units, set the multi-funtion
display to the odometer or a tripmeter,
and then hold the “SEL” switch until
the display units change.
EAU86831
Speed ometer
The speedometer shows the vehicle’s
traveling speed.
EAU87170
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.NOTICE
ECA10032
Do not operate the en gine in the ta-
chometer red zone.
Re d zone: 10000 r/min an d a bove
1. Transmission gear display
2. Speedometer
3. Tachometer
4. Fuel meter
5. Clock
6. Multi-function display
7. Quick shifter indicator “QS” (if equipped)
1. “SEL/RES” switch
1
2
3
45
6
7
1 1 1
1. Tachometer
2. Tachometer red zone
1
2
UBEBE0E0.book Page 6 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-7
3
EAU86841
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When approximately
2.5 L (0.66 US gal, 0.55 Imp.gal) of fuel
remains, the last segment starts flash-
ing. Refuel as soon as possible.TIPIf a problem is detected in the electrical
circuit, the fuel level segments will flash
repeatedly. If this occurs, have a
Yamaha dealer check the vehicle.
EAU93011
Clock
The clock uses a 12-hour time system.
To set the clock1. Turn the vehicle off.
2. While holding the “RES” switch, turn the vehicle on. Continue hold-
ing the “RES” switch until the hour
digits start flashing.
3. Use the “SEL” switch to set the hours.
4. Push the “RES” switch and the minute digits will start flashing.
5. Use the “SEL” switch to set the minutes.
6. Push the “RES” switch to confirm the setting.
EAU87391
Transmission gear display
This display shows the selected gear.
The neutral position is indicated by “–”
and by the neutral indicator light.
1. Fuel meter
1
1. Clock
1
1. Transmission gear display
1
UBEBE0E0.book Page 7 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-8
3
EAU93021
Quick shifter in dicator “QS” (if
equipped )
This indicator comes on when the
quick shifter is turned on.
EAU93730
Multi-function display The multi-function display is equipped
with the following:
 an odometer (ODO)
 two tripmeters (TRIP 1 and TRIP 2)
 a fuel reserve tripmeter (TRIP F)
 an instantaneous fuel consump-
tion display (km/L, L/100 km, or
MPG)
 an average fuel consumption dis-
play (AVE_ _._ km/L, AVE_ _._
L/100 km, or AVE_ _ _._ MPG)
 a coolant temperature display (_ _
°C)
 an air temperature display (Air_ _
°C)
Use the “SEL” switch to change the
display in the following order:
ODO → TRIP 1 → TRIP 2 → TRIP F →
km/L or L/100 km or MPG → AVE_ _._
km/L or AVE_ _._ L/100 km or AVE_ _._
MPG → _ _ °C → Air_ _ °C → ODO
TIP The fuel reserve tripmeter appears
only when you are low on fuel.
 Use the “RES” switch to change
the display in the reverse order.
EAU86890
Odometer
The odometer shows the total distance
traveled by the vehicle.TIPThe odometer will lock at 999999 and
cannot be reset.
EAU89142
Tripmeters
The tripmeters show the distance trav-
eled since they were last reset.
To reset a tripmeter, change the dis-
play to the tripmeter you want to reset,
and then hold the “RES” switch until it
is reset.TIPThe tripmeters will reset and continue
counting after 9999.9 is reached.
EAU89152
Fuel reserve tripmeter
If the last segment of the fuel meter
starts flashing, the display automati-
cally changes to the fuel reserve trip-
meter “TRIP F” and starts counting the
distance traveled from that point.
1. Quick shifter indicator “QS” (if equipped)
1. Multi-function display
1
1
UBEBE0E0.book Page 8 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-9
3 To reset the fuel reserve tripmeter,
change the display to the fuel reserve
tripmeter, and then hold the “RES”
switch until it is reset.
TIPIf you do not reset the fuel reserve trip-
meter manually, it will reset automati-
cally and disappear from the display
after refueling and traveling 5 km (3 mi).
EAU89181
Instantaneous fuel consumption
d
isplay
This display shows the fuel consump-
tion under the current riding condi-
tions. It can be set to either “km/L” or
“L/100 km”, or “MPG” when using
miles. To switch the fuel consumption measurement units, hold the “SEL”
switch until the measurement units
change.
 “km/L”: the distance that can be
traveled on 1.0 L of fuel.
 “L/100 km”: the amount of fuel
necessary to travel 100 km.
 “MPG”: the distance that can be
traveled on 1.0 Imp.gal of fuel.
TIPWhen traveling under 10 km/h (6 mi/h),

EAU87790
TIPThe instantaneous fuel consumption
function should be used for general
reference only. Do not use this figure to
estimate the distance that can be trav-
eled on the current tank of fuel.
EAU89192
Averag e fuel consumption d isplay
This display shows the average fuel
consumption since it was last reset.
The average fuel consumption display
can be set to either “AVE_ _._ km/L” or
“AVE_ _._ L/100 km”, or “AVE_ _._
MPG” when using miles. To switch the
fuel consumption measurement units,
hold the “SEL” switch until the mea-
surement units change.  “AVE_ _._ km/L”: the average dis-
tance that can be traveled on 1.0 L
of fuel.
 “AVE_ _._ L/100 km”: the average
amount of fuel necessary to travel
100 km.
1. Instantaneous fuel consumption display
1
1. Average fuel consumption display
1
UBEBE0E0.book Page 9 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-10
3

“AVE_ _._ MPG”: the average dis-
tance that can be traveled on
1.0 Imp.gal of fuel.
TIPTo reset the display, change the
display to the average fuel con-
sumption display, and hold the
“RES” switch until it resets.
 After resetting, “- -.-” is shown un-
til the vehicle has traveled some
distance.
EAU93210
Coolant temperature display
This display shows the coolant tem-
perature from 40 °C to 116 °C in 1 °C
increments. If the message “HI” flashes, stop the
vehicle, then stop the engine, and let it
cool. (See page 6-37.)
TIP
When the coolant temperature is
below 40 °C, “Lo” will be dis-
played.
 The coolant temperature varies
with changes in the weather and
engine load.
EAU93222
Air temperature display
This display shows the air temperature
from –9 °C to 50 °C in 1 °C increments.
The temperature displayed may vary
from the actual ambient temperature.
TIPWhen the temperature is below …9 °C,

EAU93241
Display bri ghtness an d shift timin g
in dicator li ght settin gs mo de
The following settings can be adjusted
in order:  Display brightness
 Shift timing indicator light ON /
FLASH / OFF
 Shift timing indicator light ON
r/min
 Shift timing indicator light OFF
r/min
 Shift timing indicator light bright-
ness
To access the settings mode1. Turn the vehicle off.
2. Hold the “SEL” switch, turn the vehicle on and continue holding
the “SEL” switch until the display
changes to the display brightness
control mode.
3. Use the “RES” switch to change the setting values.
1. Coolant temperature display
1
1. Air temperature display
1
UBEBE0E0.book Page 10 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-11
3 4. Push the “SEL” switch to confirm
the selected setting value and cy-
cle to the next setting in the order
listed above.
TIPThe settings mode will exit after all set-
tings are confirmed.Display bri ghtness
An brightness level indicator bar will
appear at the bottom of the display.
Use the “RES” switch to select the de-
sired brightness level and push the
“SEL” to confirm it. Shift timin
g in dicator li ght
The shift timing indicator light has 3
settings:  ON setting: the shift timing indica-
tor light will come on when the set
engine speed is reached. When
this setting is selected, the indica-
tor light will come on and stay on
until the next setting is selected
using the “RES” switch or con-
firmed with the “SEL” switch.
 FLASH setting: the shift timing in-
dicator light will flash when the set
engine speed is reached. When
this setting is selected, the shift
timing indicator light will flash 4
times per second until the next
setting is selected using the “RES”
switch or confirmed with the
“SEL” switch.
 OFF setting: the shift timing indi-
cator light is deactivated. When
this setting is selected, the shift
timing indicator light will flash
once every 2 seconds until the
next setting is selected using the
“RES” switch or confirmed with
the “SEL” switch. Shift timin
g in dicator li ght ON r/min
The shift timing indicator light can be
set between 6000 r/min and 12000
r/min in increments of 200 r/min. While
changing this setting, the shift timing
indicator light will come on and stay on
and the selected increment will be dis-
played on the tachometer.
Use the “RES” switch to select the de-
sired engine speed for activating the
shift timing indicator light.
Shift timin g in dicator li ght OFF r/min
The shift timing indicator light can be
set between 6000 r/min and 12000
r/min in increments of 200 r/min. While
changing this setting, the shift timing
indicator light will flash and the select-
ed increment will be displayed on the
tachometer.
Use the “RES” switch to select the de-
sired engine speed for deactivating the
shift timing indicator light.
TIPBe sure to set the OFF r/min to a higher
engine speed than the ON r/min setting
otherwise the shift timing indicator light
will not come on while riding.
1. Display brightness
1
UBEBE0E0.book Page 11 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-13
3
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12664
Engine stop switch “ / ”
Set this switch to “ ” (run) before
starting the engine. Set this switch
to “ ” (stop) to stop the engine in case
of an emergency, such as in the event
of an overturn or if the throttle is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-2 for start-
ing instructions prior to starting the en-
gine.
EAU88273
Hazard switch “OFF/ ”
Use this switch to turn on the hazard
lights (simultaneous flashing of all turn
signal lights). The hazard lights are
used in case of an emergency or to
warn other drivers when your vehicle is
stopped where it might be a traffic haz-
ard.
The hazard lights can be turned on or
off only when the main switch is in the
“ON” position. You can turn the main
switch to the “OFF” or “LOCK” posi-
tion, and the hazard lights will continue
to flash. To turn off the hazard lights,
turn the main switch to the “ON” posi-
tion and operate the hazard switch
again.NOTICE
ECA10062
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU88941
“SEL/RES” switch
This switch is used to make setting and
display changes in the multi-function
meter unit. See page 3-6 for more in-
formation.
To use the “SEL” switch, move the
“SEL/RES” switch in direction (a). To
use the “RES” switch, move the
“SEL/RES” switch in direction (b).1. “SEL/RES” switch
1 1 1
(a) (a)
(b) (b)
(a)
(b)
UBEBE0E0.book Page 13 Monday, July 5, 2021 2:26 PM

10-1
10

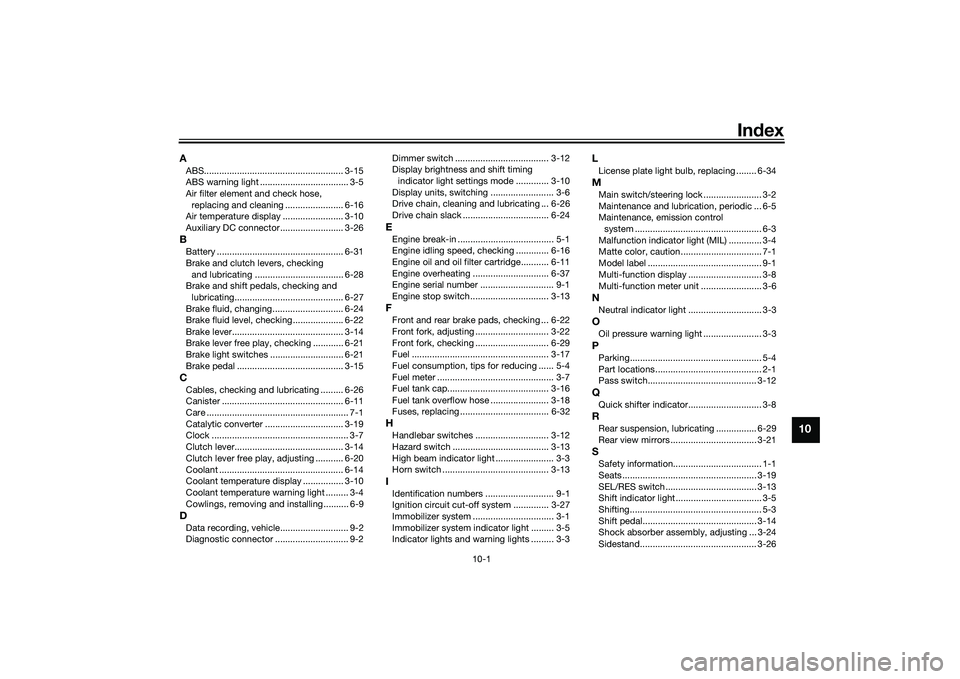

Index
AABS....................................................... 3-15
ABS warning light ................................... 3-5
Air filter element and check hose, replacing and cleaning ....................... 6-16
Air temperature display ........................ 3-10
Auxiliary DC connector ......................... 3-26BBattery .................................................. 6-31
Brake and clutch levers, checking and lubricating ................................... 6-28
Brake and shift pedals, checking and
lubricating........................................... 6-27
Brake fluid, changing............................ 6-24
Brake fluid level, checking.................... 6-22
Brake lever............................................ 3-14
Brake lever free play, checking ............ 6-21
Brake light switches ............................. 6-21
Brake pedal .......................................... 3-15CCables, checking and lubricating ......... 6-26
Canister ................................................ 6-11
Care ........................................................ 7-1
Catalytic converter ............................... 3-19
Clock ...................................................... 3-7
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-20
Coolant ................................................. 6-14
Coolant temperature display ................ 3-10
Coolant temperature warning light ......... 3-4
Cowlings, removing and installing.......... 6-9DData recording, vehicle........................... 9-2
Diagnostic connector ............................. 9-2 Dimmer switch ..................................... 3-12
Display brightness and shift timing
indicator light settings mode ............. 3-10
Display units, switching ......................... 3-6
Drive chain, cleaning and lubricating ... 6-26
Drive chain slack .................................. 6-24
EEngine break-in ...................................... 5-1
Engine idling speed, checking ............. 6-16
Engine oil and oil filter cartridge........... 6-11
Engine overheating .............................. 6-37
Engine serial number ............................. 9-1
Engine stop switch............................... 3-13FFront and rear brake pads, checking ... 6-22
Front fork, adjusting ............................. 3-22
Front fork, checking ............................. 6-29
Fuel ...................................................... 3-17
Fuel consumption, tips for reducing ...... 5-4
Fuel meter .............................................. 3-7
Fuel tank cap........................................ 3-16
Fuel tank overflow hose ....................... 3-18
Fuses, replacing ................................... 6-32HHandlebar switches ............................. 3-12
Hazard switch ...................................... 3-13
High beam indicator light ....................... 3-3
Horn switch .......................................... 3-13IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-27
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-5
Indicator lights and warning lights ......... 3-3
LLicense plate light bulb, replacing ........ 6-34MMain switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-5
Maintenance, emission control
system .................................................. 6-3
Malfunction indicator light (MIL) ............. 3-4
Matte color, caution................................ 7-1
Model label ............................................. 9-1
Multi-function display ............................. 3-8
Multi-function meter unit ........................ 3-6NNeutral indicator light ............................. 3-3OOil pressure warning light ....................... 3-3PParking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch........................................... 3-12QQuick shifter indicator............................. 3-8RRear suspension, lubricating ................ 6-29
Rear view mirrors .................................. 3-21SSafety information................................... 1-1
Seats ..................................................... 3-19
SEL/RES switch .................................... 3-13
Shift indicator light .................................. 3-5
Shifting.................................................... 5-3
Shift pedal............................................. 3-14
Shock absorber assembly, adjusting ... 3-24
Sidestand.............................................. 3-26
UBEBE0E0.book Page 1 Monday, July 5, 2021 2:26 PM

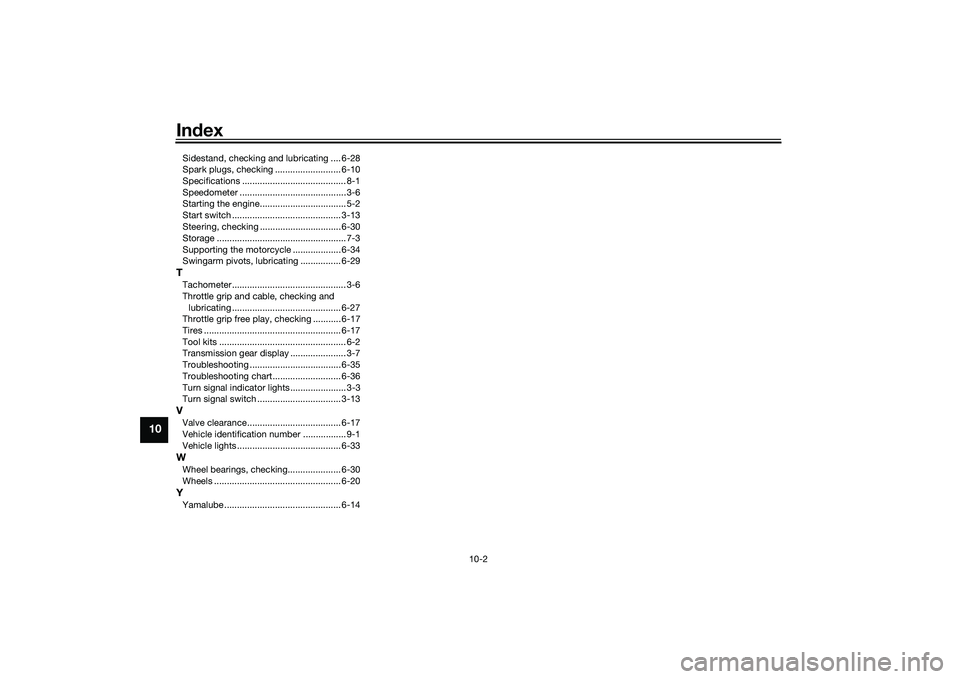

Index
10-2
10
Sidestand, checking and lubricating .... 6-28
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Speedometer .......................................... 3-6
Starting the engine.................................. 5-2
Start switch ........................................... 3-13
Steering, checking ................................ 6-30
Storage ................................................... 7-3
Supporting the motorcycle ................... 6-34
Swingarm pivots, lubricating ................ 6-29TTachometer ............................................. 3-6
Throttle grip and cable, checking and
lubricating ........................................... 6-27
Throttle grip free play, checking ........... 6-17
Tires ...................................................... 6-17
Tool kits .................................................. 6-2
Transmission gear display ...................... 3-7
Troubleshooting .................................... 6-35
Troubleshooting chart........................... 6-36
Turn signal indicator lights ...................... 3-3
Turn signal switch ................................. 3-13VValve clearance..................................... 6-17
Vehicle identification number ................. 9-1
Vehicle lights ......................................... 6-33WWheel bearings, checking..................... 6-30
Wheels .................................................. 6-20YYamalube .............................................. 6-14
UBEBE0E0.book Page 2 Monday, July 5, 2021 2:26 PM
