Page 31 of 114

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3

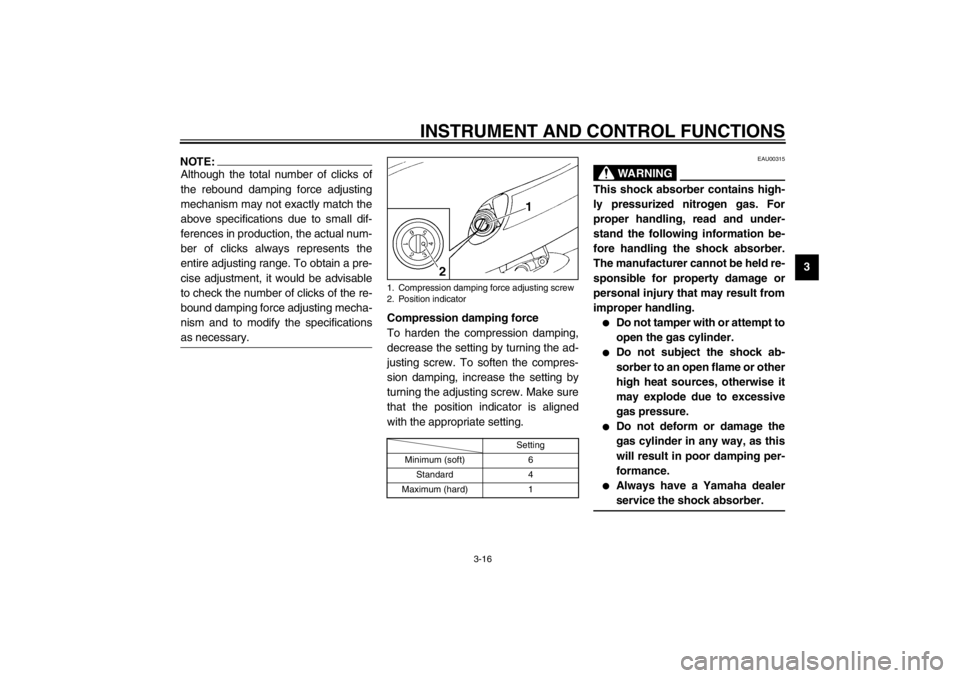

NOTE:_ Although the total number of clicks of
the rebound damping force adjusting
mechanism may not exactly match the
above specifications due to small dif-
ferences in production, the actual num-
ber of clicks always represents the
entire adjusting range. To obtain a pre-
cise adjustment, it would be advisable
to check the number of clicks of the re-
bound damping force adjusting mecha-
nism and to modify the specifications
as necessary. _
Compression damping force
To harden the compression damping,
decrease the setting by turning the ad-
justing screw. To soften the compres-
sion damping, increase the setting by
turning the adjusting screw. Make sure
that the position indicator is aligned
with the appropriate setting.CI-10EEAU00315
WARNING
_ This shock absorber contains high-
ly pressurized nitrogen gas. For
proper handling, read and under-
stand the following information be-
fore handling the shock absorber.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
Do not tamper with or attempt to
open the gas cylinder.
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealer
service the shock absorber.
_
1. Compression damping force adjusting screw
2. Position indicator
Setting
Minimum (soft) 6
Standard 4
Maximum (hard) 1
U4TVE6.book Page 16 Saturday, August 4, 2001 12:14 PM
Page 32 of 114

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU01580
Matching the front and rear suspension settings Use this table as a guide to match the suspension and damping adjustments of the front fork and shock absorber assembly
according to various load conditions.CI-05E
EC000015CAUTION:_ Never attempt to turn an adjusting mechanism beyond the maximum or minimum settings. _Load condition Front fork adjustment Shock absorber assembly adjustment
Spring preloadCompression
damping forceRebound
damping forceSpring preloadCompression
damping forceRebound
damping force
Rider only 1–81–10 1–10 1–51–63–25
With passenger 1–81–10 1–10 3–71–43–10
U4TVE6.book Page 17 Saturday, August 4, 2001 12:14 PM
Page 33 of 114

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU04276
Luggage strap holders There are four luggage strap holders,
two of which can be turned out for eas-
ier access.
EAU00330
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:_ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) _
EW000044
WARNING
_ The motorcycle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up), oth-
erwise the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control. Yamaha’s ignition circuit
cut-off system has been designed to
assist the operator in fulfilling the
responsibility of raising the side-
stand before starting off. Therefore,
check this system regularly as de-
scribed below and have a Yamaha
dealer repair it if it does not function
properly. _
1. Luggage strap holder (× 4)Left
Right
U4TVE6.book Page 18 Saturday, August 4, 2001 12:14 PM
Page 34 of 114

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU03720
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.
It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_ If a malfunction is noted, have a
Yamaha dealer check the system
before riding. _U4TVE6.book Page 19 Saturday, August 4, 2001 12:14 PM
Page 35 of 114

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
U4TVE6.book Page 20 Saturday, August 4, 2001 12:14 PM
Page 36 of 114

U4TVE6.book Page 21 Saturday, August 4, 2001 12:14 PM
Page 37 of 114

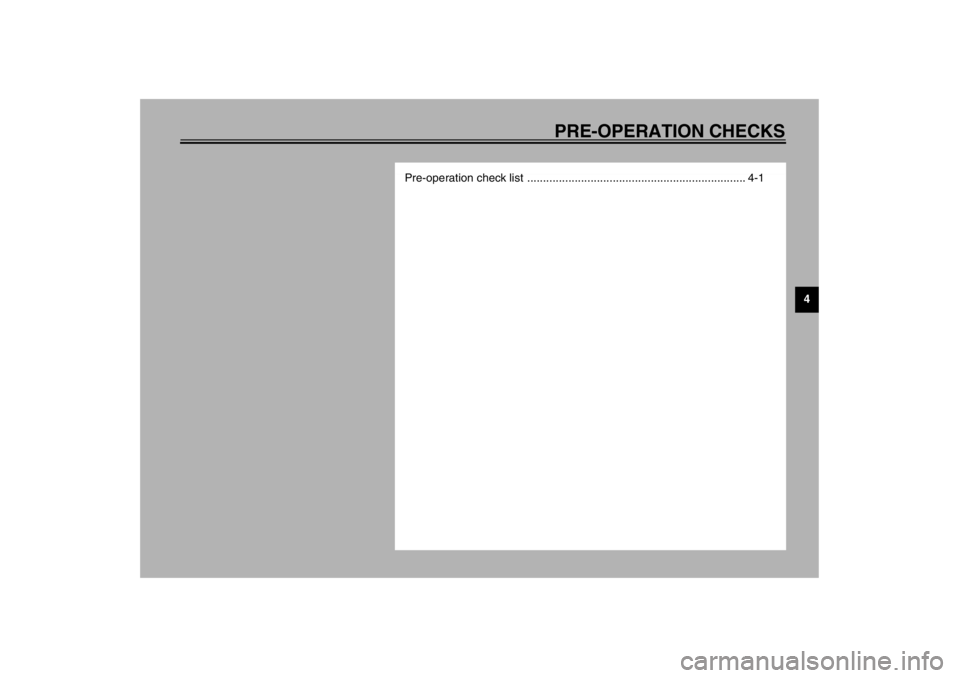

PRE-OPERATION CHECKS
4
Pre-operation check list ..................................................................... 4-1
U4TVE6.book Page 1 Saturday, August 4, 2001 12:14 PM
Page 38 of 114

4-1
4
EAU01114
4-PRE-OPERATION CHECKSThe condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
CO-01E
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-9
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-10
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-13–6-14
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-27–6-28
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-25–6-28
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-25
U4TVE6.book Page 1 Saturday, August 4, 2001 12:14 PM
Page 39 of 114

PRE-OPERATION CHECKS
4-2
4
Throttle gripMake sure that operation is smooth.
Check free play.
If necessary, have Yamaha dealer make adjustment or lubricate.6-20
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-31
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-29, 6-30
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-21–6-24
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-31
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-32
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-32
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-18
Air intake ductCheck that the screen is not clogged.
Clean if necessary.6-19 ITEM CHECKS PAGE
U4TVE6.book Page 2 Saturday, August 4, 2001 12:14 PM
Page 40 of 114

PRE-OPERATION CHECKS
4-3
4
NOTE:_ Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved. _
EWA00033
WARNING
_ If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the motorcycle. _U4TVE6.book Page 3 Saturday, August 4, 2001 12:14 PM
