2-1
2
EAU00026

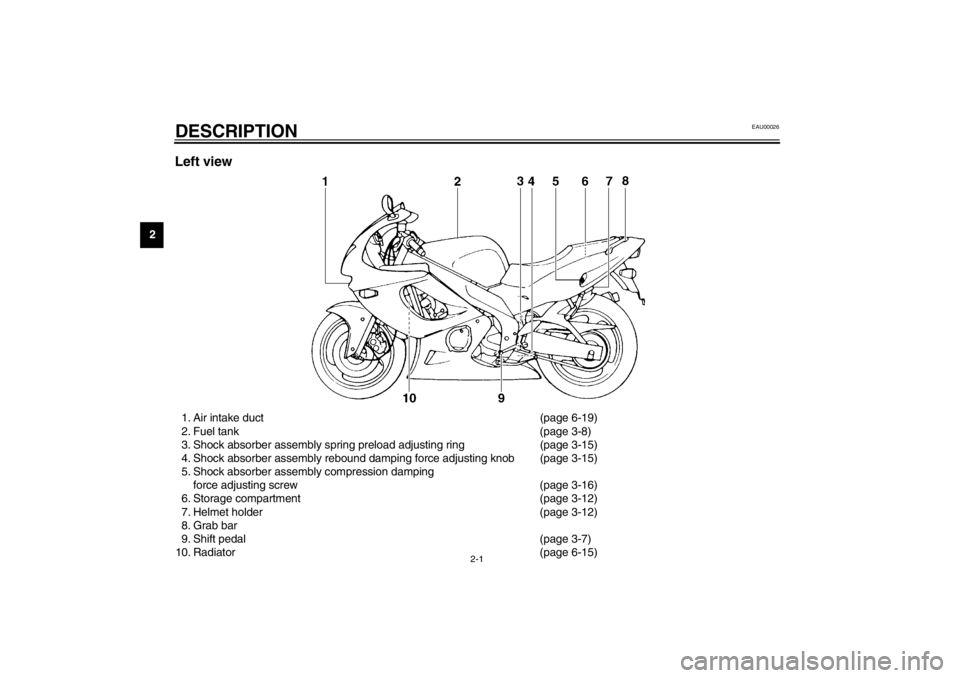

2-DESCRIPTION Left view1. Air intake duct (page 6-19)
2. Fuel tank (page 3-8)
3. Shock absorber assembly spring preload adjusting ring (page 3-15)
4. Shock absorber assembly rebound damping force adjusting knob (page 3-15)
5. Shock absorber assembly compression damping
force adjusting screw (page 3-16)
6. Storage compartment (page 3-12)
7. Helmet holder (page 3-12)
8. Grab bar
9. Shift pedal (page 3-7)
10. Radiator (page 6-15)
U4TVE6.book Page 1 Saturday, August 4, 2001 12:14 PM

DESCRIPTION
2-2
2

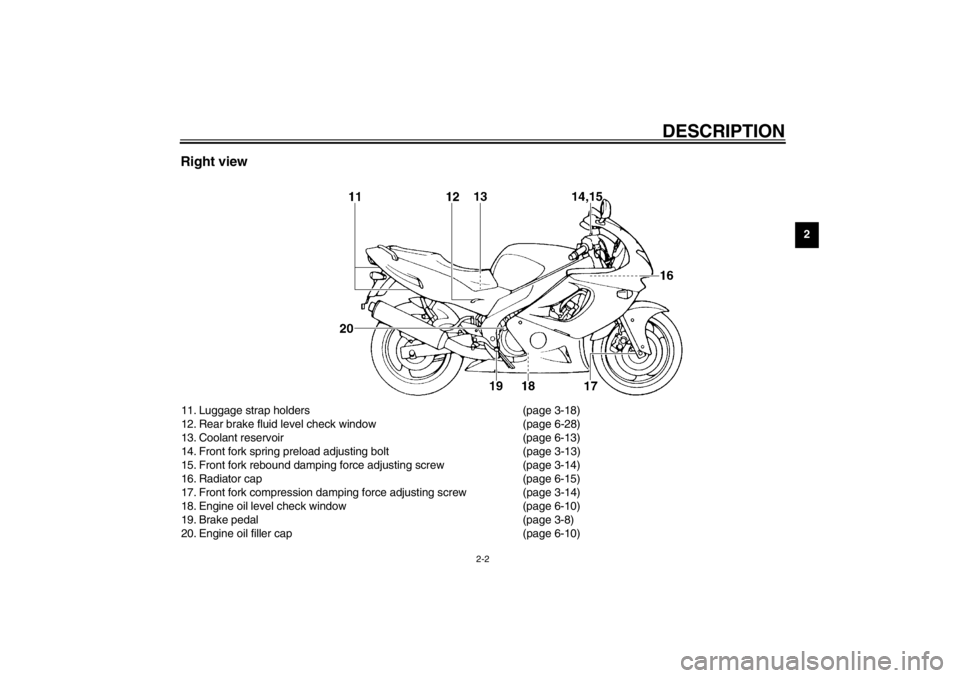

Right view11. Luggage strap holders (page 3-18)
12. Rear brake fluid level check window (page 6-28)
13. Coolant reservoir (page 6-13)
14. Front fork spring preload adjusting bolt (page 3-13)
15. Front fork rebound damping force adjusting screw (page 3-14)
16. Radiator cap (page 6-15)
17. Front fork compression damping force adjusting screw (page 3-14)
18. Engine oil level check window (page 6-10)
19. Brake pedal (page 3-8)
20. Engine oil filler cap (page 6-10)
U4TVE6.book Page 2 Saturday, August 4, 2001 12:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
EW000067
WARNING
_ Never attempt to remove the radia-
tor cap when the engine is hot. _NOTE:_

The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see
page 6-45 for further instructions.
_
EAU04280
To change the coolant
1. Place the motorcycle on a level
surface and let the engine cool if
necessary.
2. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
3. Remove cowling D. (See page 6-7
for cowling removal and installa-
tion procedures.)
4. Remove the coolant reservoir by
removing the bolts.
5. Drain the coolant from the coolant
reservoir.
6. Remove cowlings A and C. (See
page 6-5 for cowling removal and
installation procedures.)7. Remove the fuel tank bolts, and
then lift the fuel tank. (Do not re-
move the fuel hoses.)
EW000071
WARNING
_

Make sure that the fuel tank is
well supported.


Do not tilt or pull the fuel tank
too much, otherwise the fuel
hoses may come loose, which
could cause fuel leakage.
_
1. Bolt (× 2)
2. Coolant reservoir
1. Fuel tank bolt (× 2)
U4TVE6.book Page 14 Saturday, August 4, 2001 12:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
68. Remove the right air intake duct by
loosening the clamp screws.9. Remove the radiator cap.
EW000067
WARNING
_ Never attempt to remove the radia-
tor cap when the engine is hot. _10. Place a container under the en-
gine to collect the used coolant.11. Remove the water pump drain bolt
to drain the cooling system.
12. Remove the cylinder drain bolts to
drain the cooling system.
13. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
14. Install the water pump drain bolt
and cylinder drain bolts, and then
tighten them to the specified
torques.
1. Clamp screw (× 2)
2. Right air intake duct
1. Radiator cap
1. Water pump drain bolt
2. Cylinder drain bolt (× 2)
U4TVE6.book Page 15 Saturday, August 4, 2001 12:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 15. Install the coolant reservoir by in-
stalling the bolts.
16. Pour the specified amount of rec-
ommended coolant into the radia-
tor and reservoir.
ECA00041
CAUTION:_ Hard water or salt water is harmful
to the engine. You may use soft wa-
ter if you can’t get distilled water. _17. Install the radiator cap and the
coolant reservoir cap, start the en-
gine, let it idle for several minutes,
and then turn it off.
18. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
19. Check the coolant level in the res-
ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.
20. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
21. Install the right air intake duct, and
then tighten the clamp screws.22. Place the fuel tank in the original
position, and then install the bolts.
23. Install the cowlings.
24. Install the seat. Tightening torques:
Water pump drain bolt:
10 Nm (1.0 m·kgf)
Cylinder drain bolt:
7.0 Nm (0.7 m·kgf)
Antifreeze/water mixture ratio:
1:1
Recommended anti-freeze:
High-quality ethylene glycol
antifreeze containing corrosion
inhibitors for aluminum engines
Coolant quantity:
Total amount:
1.95 L
Coolant reservoir capacity:
0.55 L
U4TVE6.book Page 16 Saturday, August 4, 2001 12:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EC000102
CAUTION:_

Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer charge
your battery.
_
EAU04246*
Replacing the fuses The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the seat. (See
page 3-11 for seat removal and instal-
lation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Spare fuse (× 2)
1. Main fuseSpecified fuses:
Main fuse: 30 A
Headlight fuse: 20 A
Signaling system fuse: 15 A
Radiator fan fuse: 7.5 A
Ignition fuse: 7.5 A
U4TVE6.book Page 36 Saturday, August 4, 2001 12:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-45

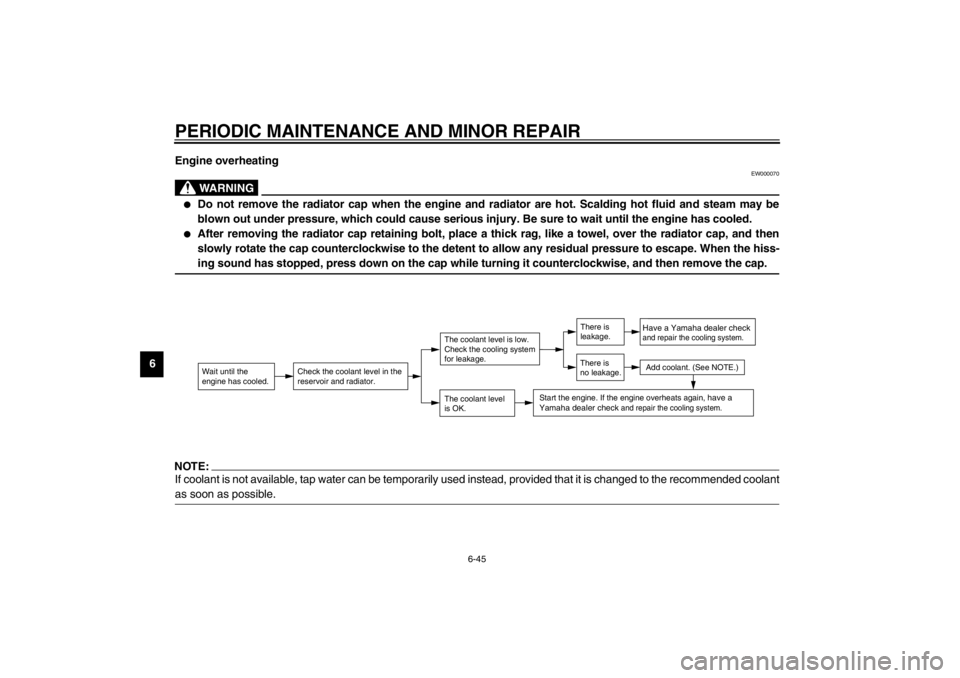

6Engine overheating
EW000070
WARNING
_

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hiss-
ing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
_NOTE:_ If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible. _
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U4TVE6.book Page 45 Saturday, August 4, 2001 12:14 PM

SPECIFICATIONS
8-4
8
Wheel travel
Front 130 mm
Rear 120 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 18.5 A @ 5,000 r/min
Battery
Model YTX12-BS
Voltage, capacity 12 V, 10 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Tail/brake light 12 V, 5/21 W × 1
Turn signal light 12 V, 21 W × 4
Auxiliary light 12 V, 4 W × 1
Meter lighting 12 V, 1.7 W × 4
Neutral indicator light 12 V, 3.4 W × 1
High beam indicator light 12 V, 3.4 W × 1
Oil level warning light 12 V, 3.4 W × 1
Turn signal indicator light 12 V, 3.4 W × 1
Fuel level warning light 12 V, 3.4 W × 1Fuses
Main fuse 30 A
Headlight fuse 20 A
Signaling system fuse 15 A
Radiator fan fuse 7.5 A
Ignition fuse 7.5 A
