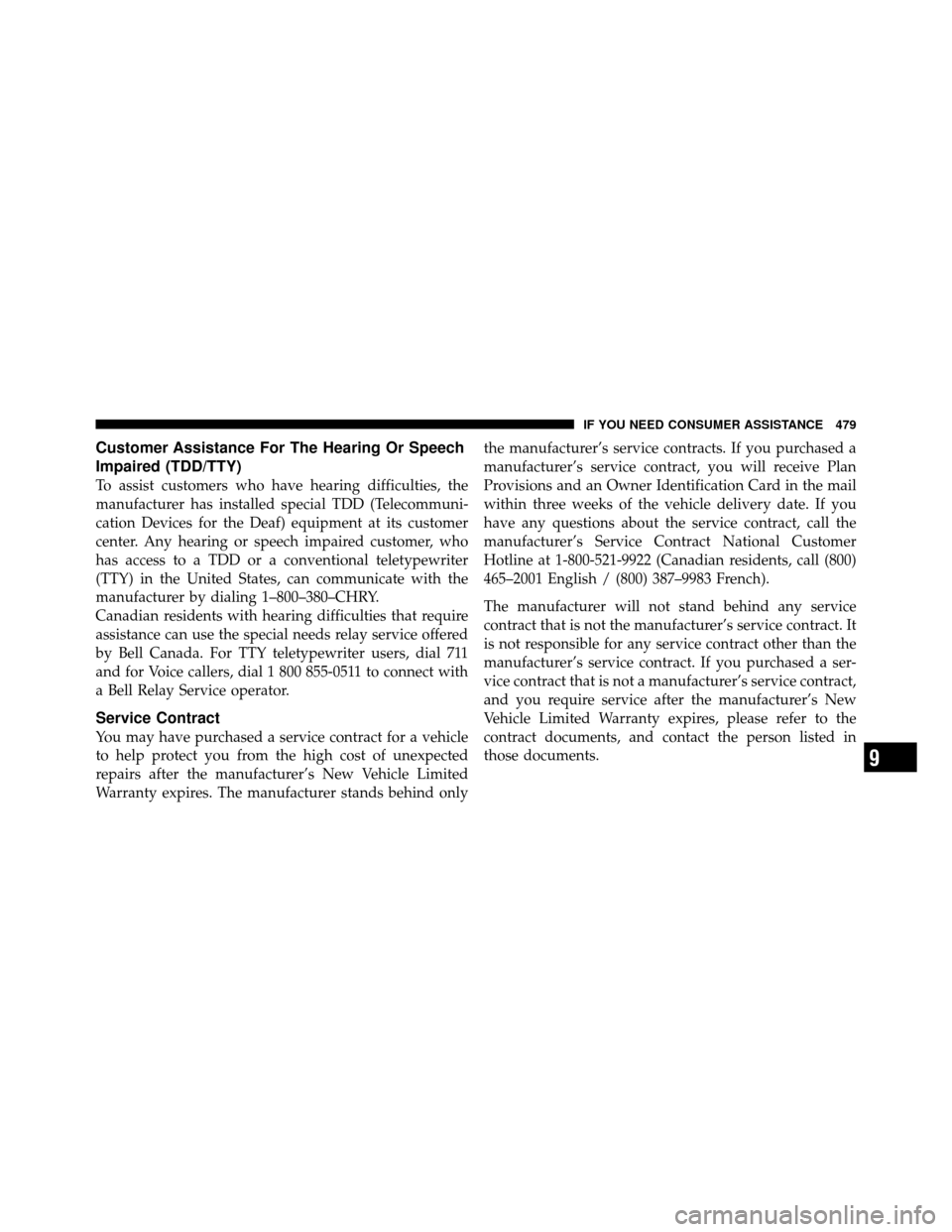

Page 481 of 508
Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711
and for Voice callers, dial 1 800 855-0511 to connect with
a Bell Relay Service operator.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind onlythe manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If you
have any questions about the service contract, call the
manufacturer’s Service Contract National Customer
Hotline at 1-800-521-9922 (Canadian residents, call (800)
465–2001 English / (800) 387–9983 French).
The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a ser-
vice contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Vehicle Limited Warranty expires, please refer to the
contract documents, and contact the person listed in
those documents.
9
IF YOU NEED CONSUMER ASSISTANCE 479
Page 482 of 508
We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
the ownership experience. You’ll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addi-
tion, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemi-
cals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of Chrysler Group
LLC warranties applicable to this vehicle and market.
MOPARPARTS
MOPAR fluids, lubricants, parts, and accessories are
available from an authorized dealer. They are recom-
mended for your vehicle in order to help keep the vehicle
operating at its best.
REPORTING SAFETY DEFECTS
In the 50 United States and Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
480 IF YOU NEED CONSUMER ASSISTANCE

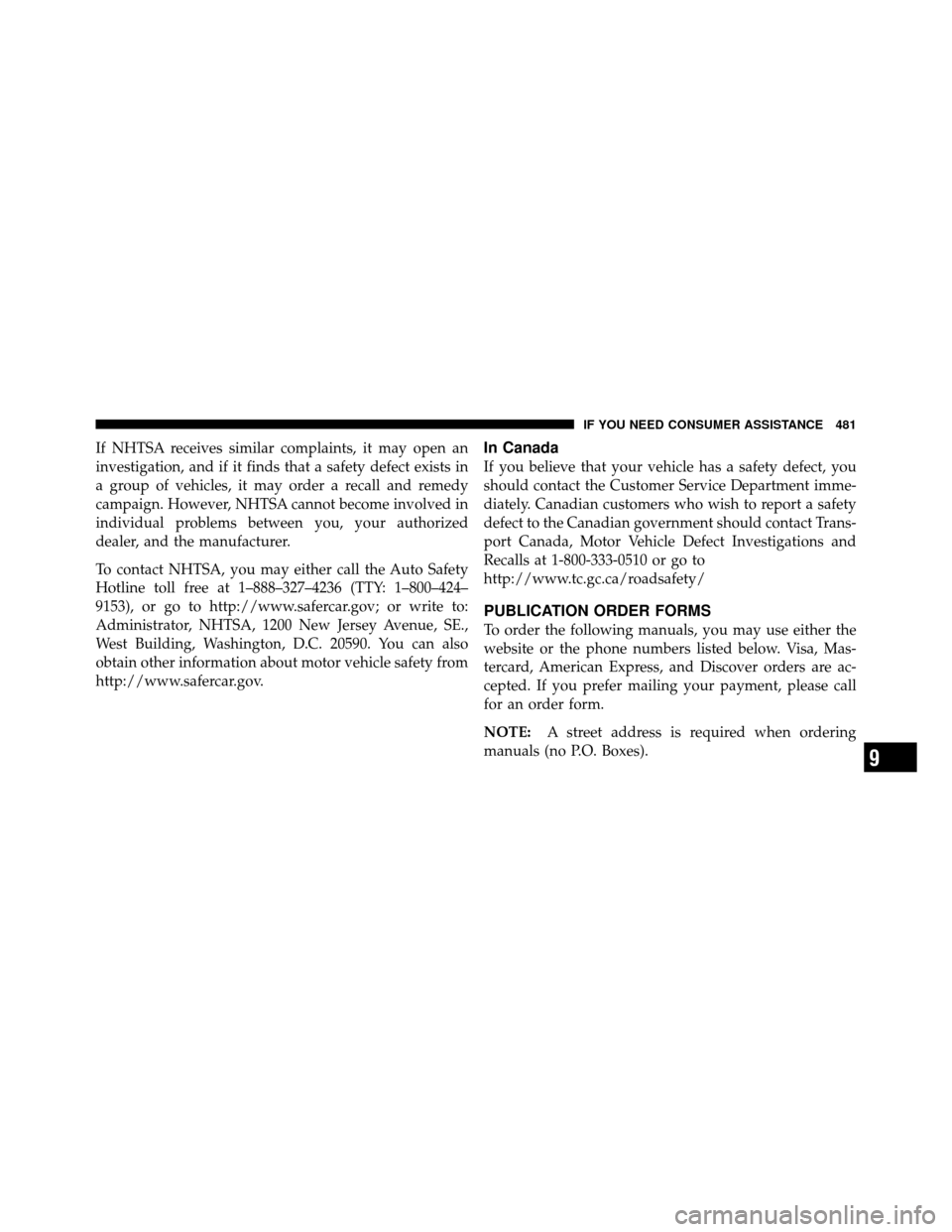

Page 483 of 508
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your authorized
dealer, and the manufacturer.
To contact NHTSA, you may either call the Auto Safety
Hotline toll free at 1–888–327–4236 (TTY: 1–800–424–
9153), or go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
West Building, Washington, D.C. 20590. You can also
obtain other information about motor vehicle safety from
http://www.safercar.gov.In Canada
If you believe that your vehicle has a safety defect, you
should contact the Customer Service Department imme-
diately. Canadian customers who wish to report a safety
defect to the Canadian government should contact Trans-
port Canada, Motor Vehicle Defect Investigations and
Recalls at 1-800-333-0510 or go to
http://www.tc.gc.ca/roadsafety/
PUBLICATION ORDER FORMS
To order the following manuals, you may use either the
website or the phone numbers listed below. Visa, Mas-
tercard, American Express, and Discover orders are ac-
cepted. If you prefer mailing your payment, please call
for an order form.
NOTE:A street address is required when ordering
manuals (no P.O. Boxes).
9
IF YOU NEED CONSUMER ASSISTANCE 481
Page 484 of 508
•Service Manuals
These comprehensive Service Manuals provide the
information that students and professional technicians
need in diagnosing/troubleshooting, problem solving,
maintaining, servicing, and repairing Chrysler Group
LLC vehicles. A complete working knowledge of the
vehicle, system, and/or components is written in
straightforward language with illustrations, diagrams,
and charts.
•Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with dia-
grams, charts and detailed illustrations. These practi-
cal manuals make it easy for students and technicians
to find and fix problems on computer-controlled ve-
hicle systems and features. They show exactly how to
find and correct problems the first time, using step-by-
step troubleshooting and drivability procedures,
proven diagnostic tests and a complete list of all tools
and equipment.
•Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific Chrysler Group LLC ve-
hicles. Included are starting, operating, emergency
and maintenance procedures as well as specifications,
capabilities and safety tips.
Call toll free at:
•1–800–890–4038 (U.S.)
•1–800–387–1143 (Canada)
Or
Visit us on the Worldwide Web at:
•www.techauthority.com
482 IF YOU NEED CONSUMER ASSISTANCE

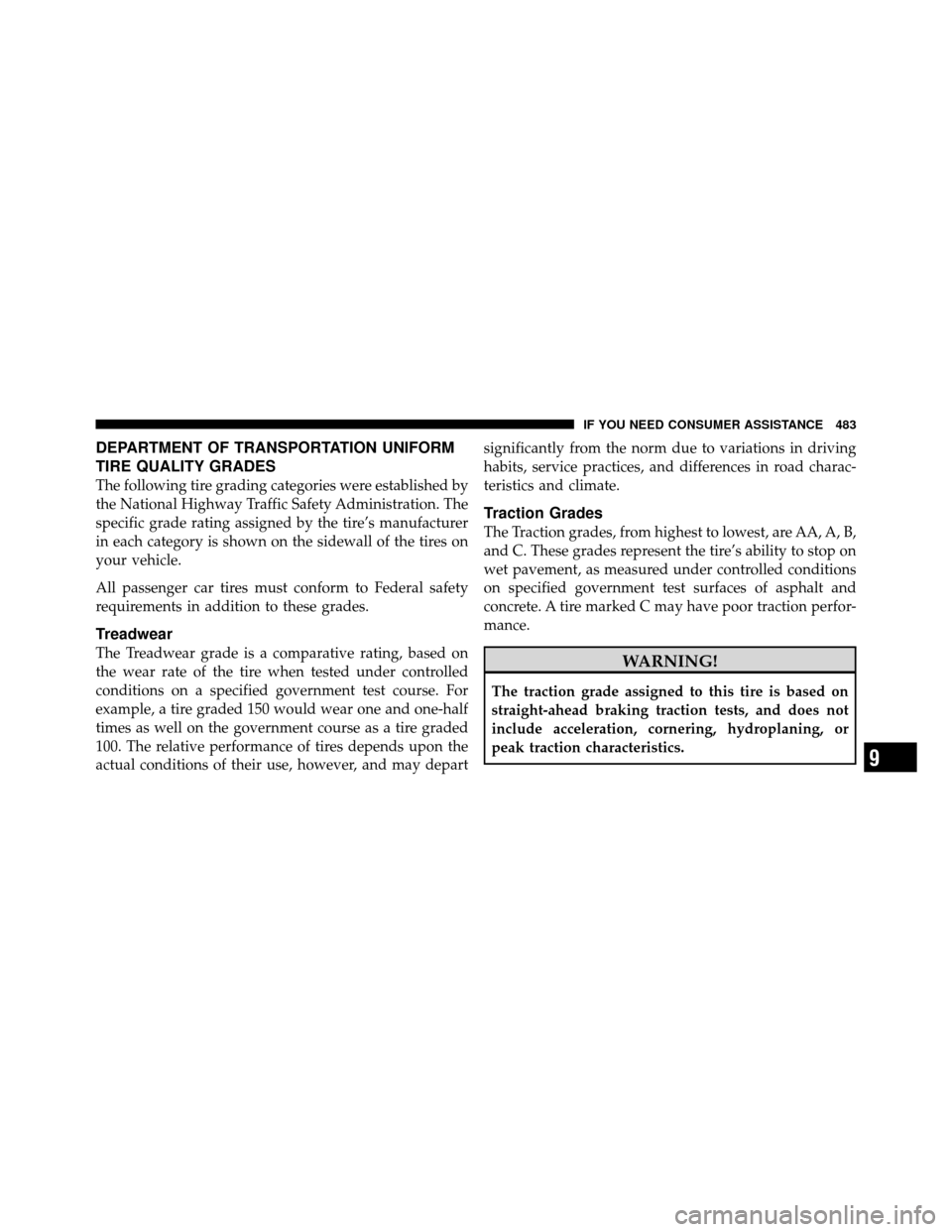

Page 485 of 508
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may departsignificantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
9
IF YOU NEED CONSUMER ASSISTANCE 483

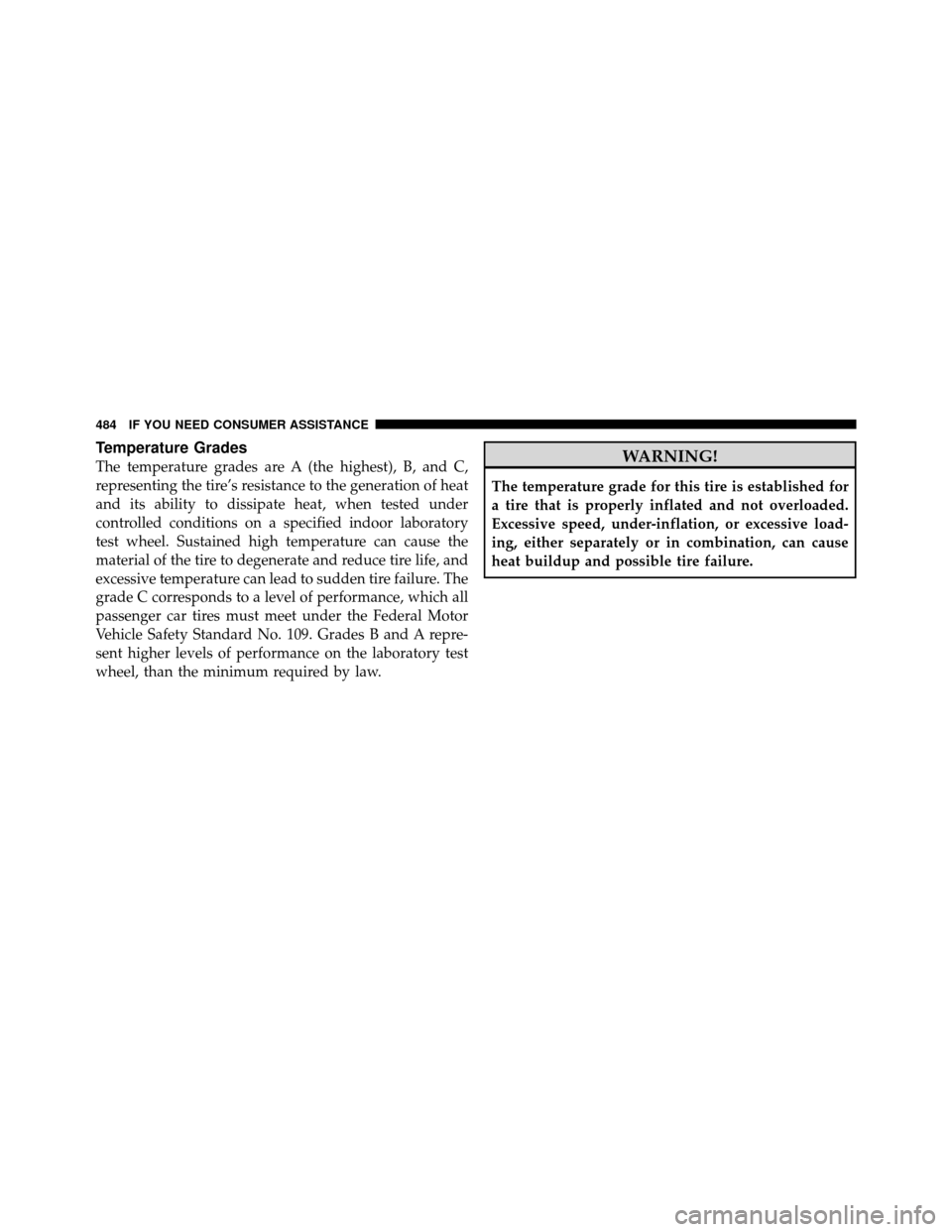

Page 486 of 508
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
484 IF YOU NEED CONSUMER ASSISTANCE

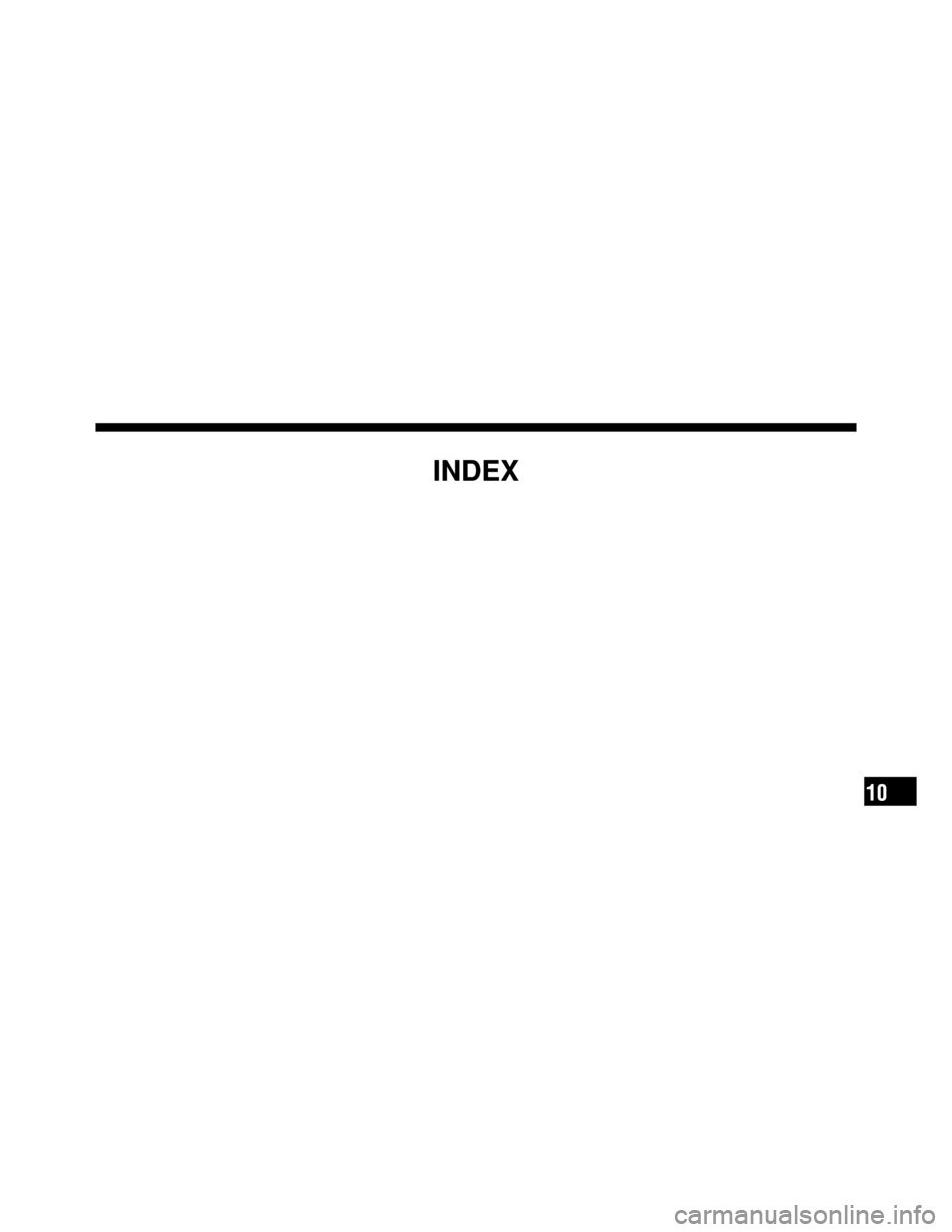

Page 487 of 508
INDEX
10

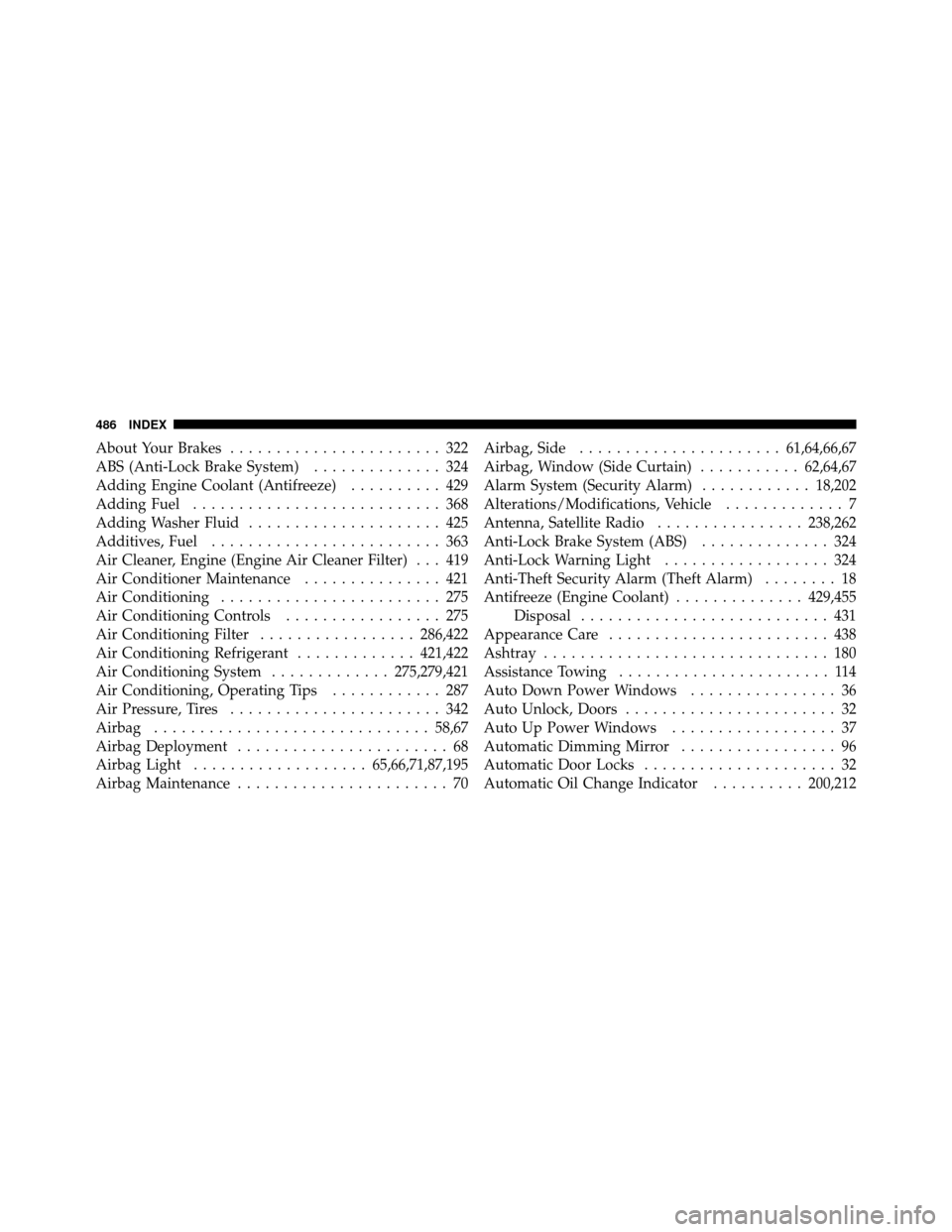

Page 488 of 508
About Your Brakes....................... 322
ABS (Anti-Lock Brake System) .............. 324
Adding Engine Coolant (Antifreeze) .......... 429
Adding Fuel ........................... 368
Adding Washer Fluid ..................... 425
Additives, Fuel ......................... 363
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 419
Air Conditioner Maintenance ............... 421
Air Conditioning ........................ 275
Air Conditioning Controls ................. 275
Air Conditioning Filter .................286,422
Air Conditioning Refrigerant .............421,422
Air Conditioning System .............275,279,421
Air Conditioning, Operating Tips ............ 287
Air Pressure, Tires ....................... 342
Airbag .............................. 58,67
Airbag Deployment ....................... 68
Airbag Light ................... 65,66,71,87,195
Airbag Maintenance ....................... 70 Airbag, Side
...................... 61,64,66,67
Airbag, Window (Side Curtain) ...........62,64,67
Alarm System (Security Alarm) ............18,202
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................238,262
Anti-Lock Brake System (ABS) .............. 324
Anti-Lock Warning Light .................. 324
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Antifreeze (Engine Coolant) ..............429,455
Disposal ........................... 431
Appearance Care ........................ 438
Ashtray ............................... 180
Assistance Towing ....................... 114
Auto Down Power Windows ................ 36
Auto Unlock, Doors ....................... 32
Auto Up Power Windows .................. 37
Automatic Dimming Mirror ................. 96
Automatic Door Locks ..................... 32
Automatic Oil Change Indicator ..........200,212
486 INDEX
Page 489 of 508
Automatic Temperature Control (ATC)......... 279
Automatic Transaxle .................... 12,294
Adding Fluid ....................... 457
Selection Of Lubricant ................. 457
Automatic Transmission ................297,435
Adding Fluid .................... 437,438
Fluid and Filter Changes ............... 438
Fluid Level Check ................. 437,438
Fluid Type ......................... 436
Gear Ranges ..................... 300,308
Special Additives ..................... 436
Autostick ............................. 315
B-Pillar Location ........................ 337
Battery ............................... 419
Jump Starting ........................ 30
Keyless Transmitter Replacement (RKE) ..... 26
Location ........................... 419
Belts, Seat .............................. 87 Body Mechanism Lubrication
............... 423
Brake Assist System ...................... 327
Brake System ........................... 433
Anti-Lock (ABS) ..................... 324
Fluid Check ..................... 433,457
Master Cylinder ..................... 433
Parking ........................... 322
Warning Light ....................... 197
Brake, Parking .......................... 322
Brake/Transmission Interlock ............... 299
Brakes ............................... 433
Break-In Recommendations, New Vehicle ........ 84
Bulb Replacement ..................... 449,450
Bulbs, Light .......................... 89,449
Calibration, Compass ..................... 215
Capacities, Antifreeze (Engine Coolant) ......... 20
Capacities, Fluid ........................ 455
10
INDEX 487
Page 490 of 508
Caps, FillerFuel .............................. 368
Oil (Engine) ..................... 409,417
Power Steering ...................... 321
Radiator (Coolant Pressure) ............. 430
Car Washes ............................ 439
Carbon Monoxide Warning ...............86,364
Cellular Phone ....................... 100,274
Chains, Tire ............................ 350
Changing A Flat Tire ..................... 388
Chart, Tire Sizing ........................ 333
Check Engine Light
(Malfunction Indicator Light) ............... 412
Checking Your Vehicle For Safety ............. 85
Checks, Safety ........................... 85
Child Restraint .................... 72,74,79,82
Child Restraint Tether Anchors .............77,79
Child Safety Locks ........................ 34
Cigar Lighter ........................... 180 Clean Air Gasoline
....................... 361
Cleaning Wheels ............................ 441
Windshield Wiper Blades ............... 424
Climate Control ......................... 274
Clock ........................ 221,224,242,251
Coin Holder ........................... 182
Compact Disc (CD) Maintenance ............. 274
Compact Spare Tire ...................... 345
Compass ........................... 207,214
Compass Calibration ..................... 215
Compass Variance ....................... 215
Computer, Trip/Travel .................. 20,213
Connector UCI .............................. 265
Universal Consumer Interface (UCI) ....... 265
Console .............................. 147
Console, Floor ....................... 147,182
Contract, Service ........................ 479
488 INDEX
