FIAT BRAVO 2015 2.G Owner's Manual
Manufacturer: FIAT, Model Year: 2015, Model line: BRAVO, Model: FIAT BRAVO 2015 2.GPages: 275, PDF Size: 7.55 MB
Page 21 of 275

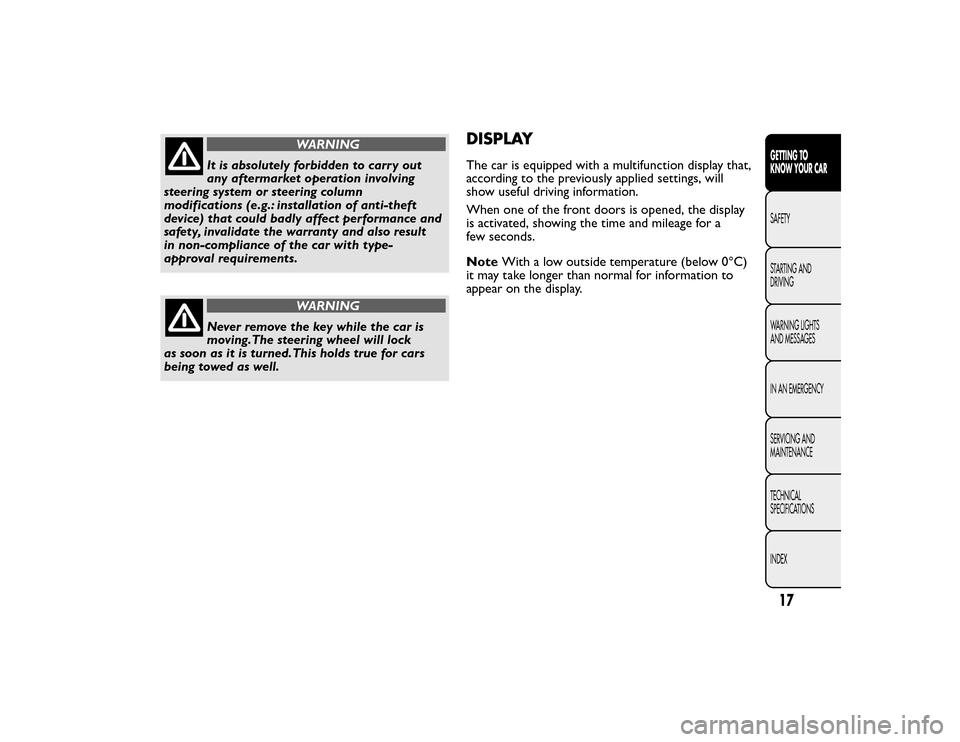

WARNING
It is absolutely forbidden to carry out
any aftermarket operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device) that could badly affect performance and
safety, invalidate the warranty and also result
in non-compliance of the car with type-
approval requirements.WARNING
Never remove the key while the car is
moving.The steering wheel will lock
as soon as it is turned.This holds true for cars
being towed as well.
DISPLAYThe car is equipped with a multifunction display that,
according to the previously applied settings, will
show useful driving information.
When one of the front doors is opened, the display
is activated, showing the time and mileage for a
few seconds.
Note With a low outside temperature (below 0°C)
it may take longer than normal for information to
appear on the display.
17GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 22 of 275

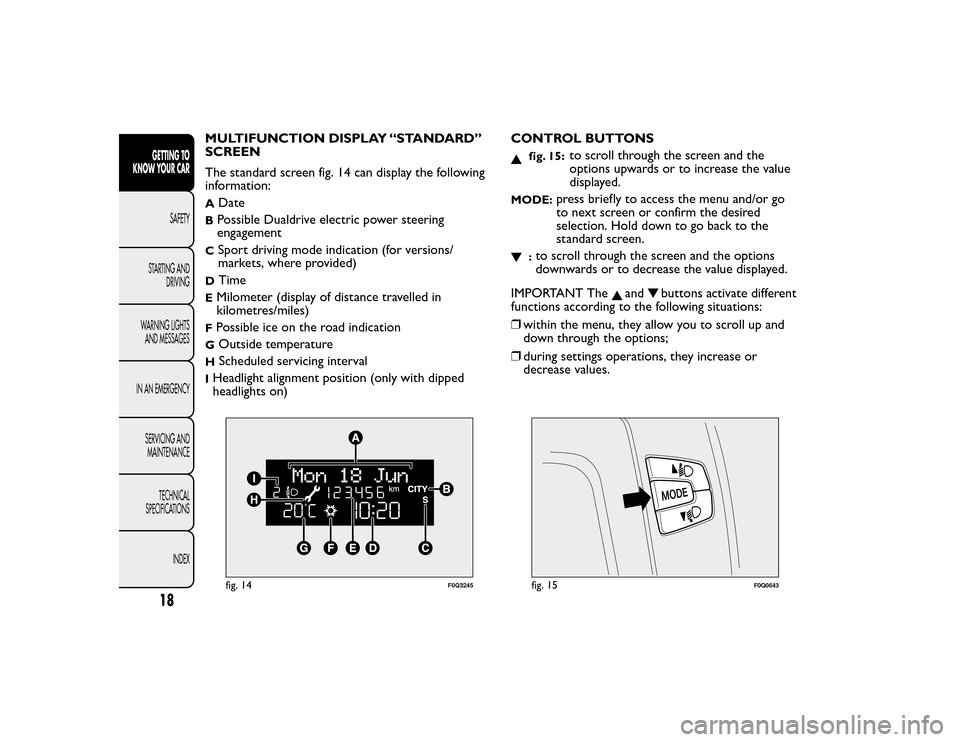

MULTIFUNCTION DISPLAY “STANDARD”
SCREEN
The standard screen fig. 14 can display the following
information:A
Date
BPossible Dualdrive electric power steering
engagementC
Sport driving mode indication (for versions/
markets, where provided)
D
Time
EMilometer (display of distance travelled in
kilometres/miles)FPossible ice on the road indicationG
Outside temperature
H
Scheduled servicing interval
IHeadlight alignment position (only with dipped
headlights on)CONTROL BUTTONS
fig. 15:
to scroll through the screen and the
options upwards or to increase the value
displayed.
MODE:
press briefly to access the menu and/or go
to next screen or confirm the desired
selection. Hold down to go back to the
standard screen.
:to scroll through the screen and the options
downwards or to decrease the value displayed.
IMPORTANT The
and
buttons activate different
functions according to the following situations:
❒ within the menu, they allow you to scroll up and
down through the options;
❒ during settings operations, they increase or
decrease values.
fig. 14
F0Q3245
fig. 15
F0Q0643
18GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 23 of 275
IMPORTANT When one of the front doors is
opened, the display is activated, showing the time
and mileage for a few seconds.
SETUP MENU
The menu comprises a series of functions which can
be selected using the
and
buttons to access
the different selection and setting (setup) operations
indicated below.
Some options have a submenu.
The Setup Menu can be activated by pressing the
MODE button briefly.
If the Radionavigator is installed, only the following
functions can be adjusted/set from the instrument
panel: "Lighting", “Speed beep”, "Headlight sensor"
(for versions/markets, where provided), "Belt buzzer"
and "Passenger airbag". The other functions are
shown on the Radionavigator display. You can set and
adjust them there.
The menu comprises the following options:
❒ LIGHTING
❒ SPEED BEEP
❒ HEADLIGHT SENSOR (for versions/markets,
where provided)
❒ TRIP B ACTIVATION/DATA
❒ SET TIME
❒ SET DATE
❒ FIRST PAGE (for versions/markets, where
provided) ❒
SEE RADIO
❒ AUTOCLOSE
❒ UNITS OF MEASUREMENT
❒ LANGUAGE
❒ WARNINGS VOLUME
❒ BUTTON VOLUME
❒ SEAT BELT BEEP/BUZZ.
❒ SERVICE
❒ AIRBAG/PASSENGER BAG
❒ CORNERING LIGHTS (for versions/markets,
where provided)
❒ EXIT MENU
Selecting an option from the main menu
without a submenu:
❒ briefly press the MODE button to select the main
menu option that needs to be changed;
❒ press buttons
or
(with single presses) to
select the new setting;
❒ briefly press the MODE button to store the new
setting and at the same time go back to the
previously selected menu option.
19GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 24 of 275

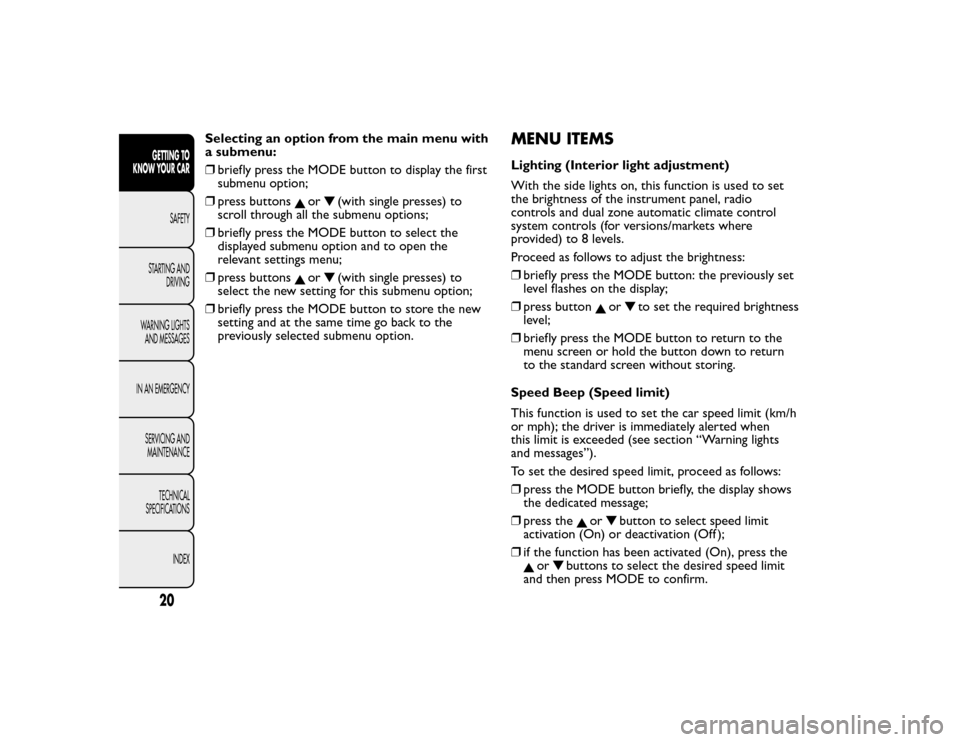

Selecting an option from the main menu with
a submenu:
❒briefly press the MODE button to display the first
submenu option;
❒ press buttons
or
(with single presses) to
scroll through all the submenu options;
❒ briefly press the MODE button to select the
displayed submenu option and to open the
relevant settings menu;
❒ press buttons
or
(with single presses) to
select the new setting for this submenu option;
❒ briefly press the MODE button to store the new
setting and at the same time go back to the
previously selected submenu option.
MENU ITEMSLighting (Interior light adjustment)
With the side lights on, this function is used to set
the brightness of the instrument panel, radio
controls and dual zone automatic climate control
system controls (for versions/markets where
provided) to 8 levels.
Proceed as follows to adjust the brightness:
❒briefly press the MODE button: the previously set
level flashes on the display;
❒ press button
or
to set the required brightness
level;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Speed Beep (Speed limit)
This function is used to set the car speed limit (km/h
or mph); the driver is immediately alerted when
this limit is exceeded (see section “Warning lights
and messages”).
To set the desired speed limit, proceed as follows:
❒ press the MODE button briefly, the display shows
the dedicated message;
❒ press the
or
button to select speed limit
activation (On) or deactivation (Off );
❒ if the function has been activated (On), press the
or
buttons to select the desired speed limit
and then press MODE to confirm.
20GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 25 of 275
IMPORTANT Setting is possible between 30 and 200
km/h, or 20 and 125 mph, according to the
previously set unit. See the "Units of measurement
adjustment (Units of measurement)" paragraph
described below. The setting will increase/decrease
by 5 units each time button
/
is pressed. Hold
down the
/
button to automatically increase/
decrease the setting rapidly. Complete the
adjustment with single presses of the button when
you approach the desired value.
Briefly press the MODE button to return to the
menu screen or hold the button down to return to
the standard screen without storing.
To cancel the setting, proceed as follows:
❒ briefly press button MODE, (On) will flash on the
display;
❒ press button, (Off ) will flash on the display;
❒ press the MODE button briefly to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Headlight sensor (Automatic headlight/dusk
sensor sensitivity adjustment)
(for versions/markets, where provided)
This function is used to turn the headlights on or off
according to external lighting conditions.
The headlight sensor sensitivity can be adjusted
according to 3 levels (level 1 = minimum sensitivity,
level2=av erage sensitivity, level 3 = maximum
sensitivity). The higher the sensitivity set, the lesser
is the external light variation needed to switch the lights on (e.g. with a setting on level 3 at sunset
the headlights come on in advance in relation to
levels 1 and 2).
Proceed as follows to set the desired adjustment:
❒
briefly press the MODE button: the previously set
level flashes on the display;
❒ press
or
to make your choice;
❒ press the MODE button briefly to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Cornering lights (Activation/deactivation of
“Cornering lights”)
(fog light with cornering function)
(for versions/markets where provided)
This function activates/deactivates the cornering
lights.
To activate/deactivate (On/Off ) the lights, proceed as
follows:
❒ press the MODE button briefly, the display will
show “On” or “Off ” flashing depending on the
previous setting;
❒ press
or
to make your choice;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
21GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 26 of 275

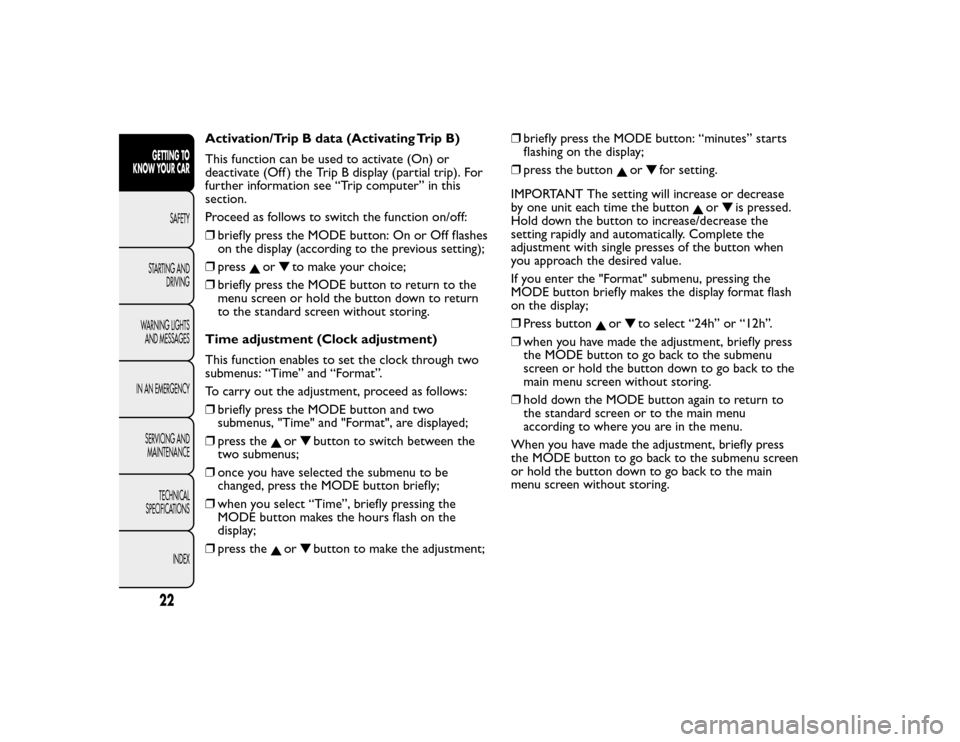

Activation/Trip B data (Activating Trip B)
This function can be used to activate (On) or
deactivate (Off ) the Trip B display (partial trip). For
further information see “Trip computer” in this
section.
Proceed as follows to switch the function on/off:
❒briefly press the MODE button: On or Off flashes
on the display (according to the previous setting);
❒ press
or
to make your choice;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Time adjustment (Clock adjustment)
This function enables to set the clock through two
submenus: “Time” and “Format”.
To carry out the adjustment, proceed as follows:
❒ briefly press the MODE button and two
submenus, "Time" and "Format", are displayed;
❒ press theor
button to switch between the
two submenus;
❒ once you have selected the submenu to be
changed, press the MODE button briefly;
❒ when you select “Time”, briefly pressing the
MODE button makes the hours flash on the
display;
❒ press the
or
button to make the adjustment; ❒
briefly press the MODE button: “minutes” starts
flashing on the display;
❒ press the button
or
for setting.
IMPORTANT The setting will increase or decrease
by one unit each time the button
or
is pressed.
Hold down the button to increase/decrease the
setting rapidly and automatically. Complete the
adjustment with single presses of the button when
you approach the desired value.
If you enter the "Format" submenu, pressing the
MODE button briefly makes the display format flash
on the display;
❒ Press button
or
to select “24h” or “12h”.
❒ when you have made the adjustment, briefly press
the MODE button to go back to the submenu
screen or hold the button down to go back to the
main menu screen without storing.
❒ hold down the MODE button again to return to
the standard screen or to the main menu
according to where you are in the menu.
When you have made the adjustment, briefly press
the MODE button to go back to the submenu screen
or hold the button down to go back to the main
menu screen without storing.
22GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 27 of 275

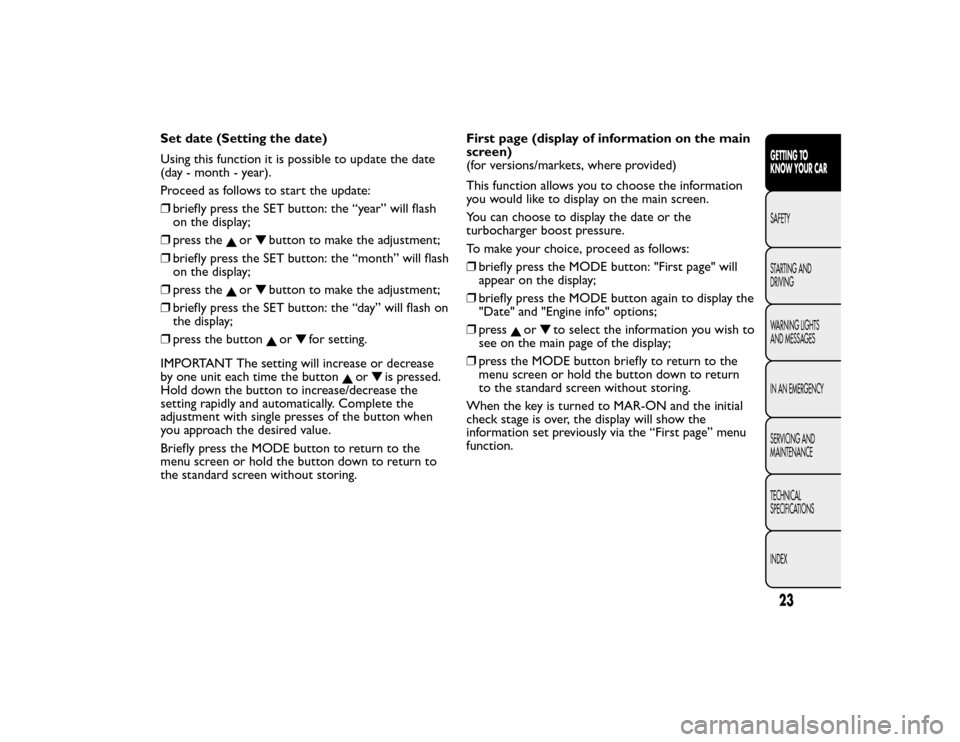

Set date (Setting the date)
Using this function it is possible to update the date
(day - month - year).
Proceed as follows to start the update:
❒briefly press the SET button: the “year” will flash
on the display;
❒ press the
or
button to make the adjustment;
❒ briefly press the SET button: the “month” will flash
on the display;
❒ press the
or
button to make the adjustment;
❒ briefly press the SET button: the “day” will flash on
the display;
❒ press the buttonor
for setting.
IMPORTANT The setting will increase or decrease
by one unit each time the button
or
is pressed.
Hold down the button to increase/decrease the
setting rapidly and automatically. Complete the
adjustment with single presses of the button when
you approach the desired value.
Briefly press the MODE button to return to the
menu screen or hold the button down to return to
the standard screen without storing. First page (display of information on the main
screen)
(for versions/markets, where provided)
This function allows you to choose the information
you would like to display on the main screen.
You can choose to display the date or the
turbocharger boost pressure.
To make your choice, proceed as follows:
❒
briefly press the MODE button: "First page" will
appear on the display;
❒ briefly press the MODE button again to display the
"Date" and "Engine info" options;
❒ press
or
to select the information you wish to
see on the main page of the display;
❒ press the MODE button briefly to return to the
menu screen or hold the button down to return
to the standard screen without storing.
When the key is turned to MAR-ON and the initial
check stage is over, the display will show the
information set previously via the “First page” menu
function.
23GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 28 of 275
See radio (Audio information display)
With this function the display shows information
about the sound system.
❒Radio: selected radio station frequency or RDS
message, automatic tuning activation or
AutoSTore;
❒ Audio CD, MP3 CDs: track number;
❒ CD Changer: CD number and track number;
To show the radio information on the display (On)
or clear it (Off ), proceed as follows:
❒ briefly press the MODE button, the display will
show "On" or "Off" flashing depending on the
previous setting;
❒ press
or
to make your choice;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Autoclose (Automatic central locking with
the car in motion)
When activated (On), this function locks the doors
automatically when the vehicle speed exceeds 20
km/h.
Proceed as follows to activate or deactivate this
function:
❒ briefly press the MODE button to display a
submenu; ❒
briefly press the MODE button: "On" or "Off"
flashes on the display according to the previous
setting;
❒ press
or
to make your choice;
❒ press the MODE button briefly to return to the
submenu screen or hold the button down to
return to the main menu screen without storing;
❒ hold down the MODE button again to return to
the standard screen or to the main menu
according to where you are in the menu.
Unit of measurement (Setting the unit of
measurement)
With this function it is possible to set the units
through three submenus: "Distances",
"Consumption" and "Temperature". To set the
desired unit, proceed as follows:
❒ briefly press the MODE button to display the
three submenus;
❒ press buttonor
to navigate through the three
submenus;
❒ once you have selected the submenu to be
changed, press the MODE button briefly;
❒ when you select the “Distances” submenu, briefly
pressing the MODE button makes the display
show “km” or “mi” depending on the previous
setting;
24GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 29 of 275

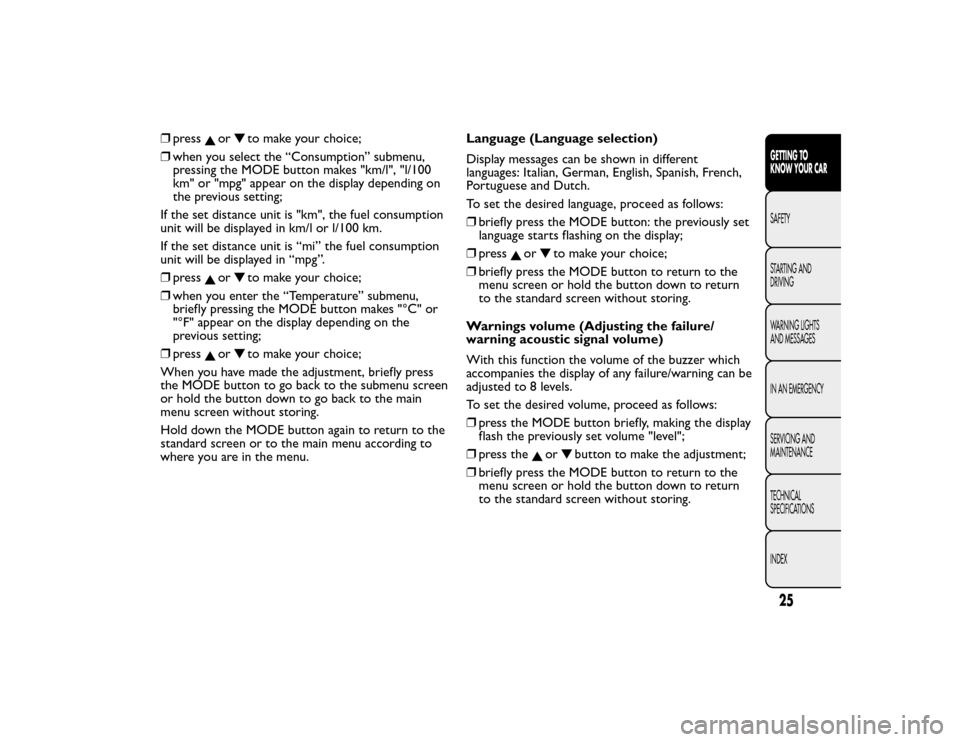

❒press
or
to make your choice;
❒ when you select the “Consumption” submenu,
pressing the MODE button makes "km/l", "l/100
km" or "mpg" appear on the display depending on
the previous setting;
If the set distance unit is "km", the fuel consumption
unit will be displayed in km/l or l/100 km.
If the set distance unit is “mi” the fuel consumption
unit will be displayed in “mpg”.
❒ press
or
to make your choice;
❒ when you enter the “Temperature” submenu,
briefly pressing the MODE button makes "°C" or
"°F" appear on the display depending on the
previous setting;
❒ press
or
to make your choice;
When you have made the adjustment, briefly press
the MODE button to go back to the submenu screen
or hold the button down to go back to the main
menu screen without storing.
Hold down the MODE button again to return to the
standard screen or to the main menu according to
where you are in the menu. Language (Language selection)
Display messages can be shown in different
languages: Italian, German, English, Spanish, French,
Portuguese and Dutch.
To set the desired language, proceed as follows:
❒
briefly press the MODE button: the previously set
language starts flashing on the display;
❒ press
or
to make your choice;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Warnings volume (Adjusting the failure/
warning acoustic signal volume)
With this function the volume of the buzzer which
accompanies the display of any failure/warning can be
adjusted to 8 levels.
To set the desired volume, proceed as follows:
❒ press the MODE button briefly, making the display
flash the previously set volume "level";
❒ press theor
button to make the adjustment;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
25GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 30 of 275

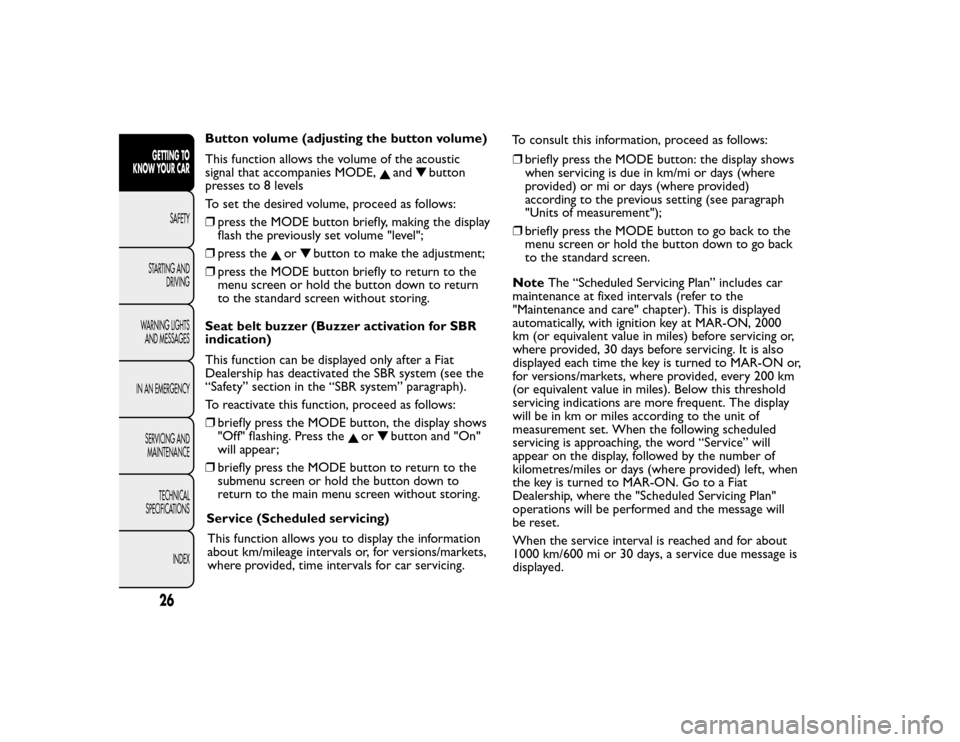

Button volume (adjusting the button volume) This function allows the volume of the acoustic signal that accompanies MODE,
and
button
presses to 8 levels To set the desired volume, proceed as follows:❒
press the MODE button briefly, making the display flash the previously set volume "level";
❒
press the
or
button to make the adjustment;
❒
press the MODE button briefly to return to themenu screen or hold the button down to returnto the standard screen without storing.
Seat belt buzzer (Buzzer activation for SBRindication) This function can be displayed only after a Fiat Dealership has deactivated the SBR system (see the“Safety” section in the “SBR system” paragraph). To reactivate this function, proceed as follows:❒
briefly press the MODE button, the display shows "Off" flashing. Press the
or
button and "On"
will appear;
❒
briefly press the MODE button to return to thesubmenu screen or hold the button down toreturn to the main menu screen without storing.
Service (Scheduled servicing)
26GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND MESSAGESIN AN EMERGENCYSERVICING ANDMAINTENANCETECHNICAL
SPECIFICATIONS
INDEX
This function allows you to display the information about km/mileage intervals or, for versions/markets,where provided, time intervals for car servicing. To consult this information, proceed as follows:
❒
briefly press the MODE button: the display shows when servicing is due in km/mi or days (whereprovided) or mi or days (where provided)according to the previous setting (see paragraph"Units of measurement");
❒
briefly press the MODE button to go back to the menu screen or hold the button down to go backto the standard screen.
Note
The “Scheduled Servicing Plan” includes car
maintenance at fixed intervals (refer to the"Maintenance and care" chapter). This is displayedautomatically, with ignition key at MAR-ON, 2000km (or equivalent value in miles) before servicing or,where provided, 30 days before servicing. It is alsodisplayed each time the key is turned to MAR-ON or,for versions/markets, where provided, every 200 km(or equivalent value in miles). Below this thresholdservicing indications are more frequent. The displaywill be in km or miles according to the unit ofmeasurement set. When the following scheduledservicing is approaching, the word “Service” willappear on the display, followed by the number ofkilometres/miles or days (where provided) left, whenthe key is turned to MAR-ON. Go to a FiatDealership, where the "Scheduled Servicing Plan"operations will be performed and the message willbe reset. When the service interval is reached and for about 1000 km/600 mi or 30 days, a service due message isdisplayed.
