Page 41 of 275

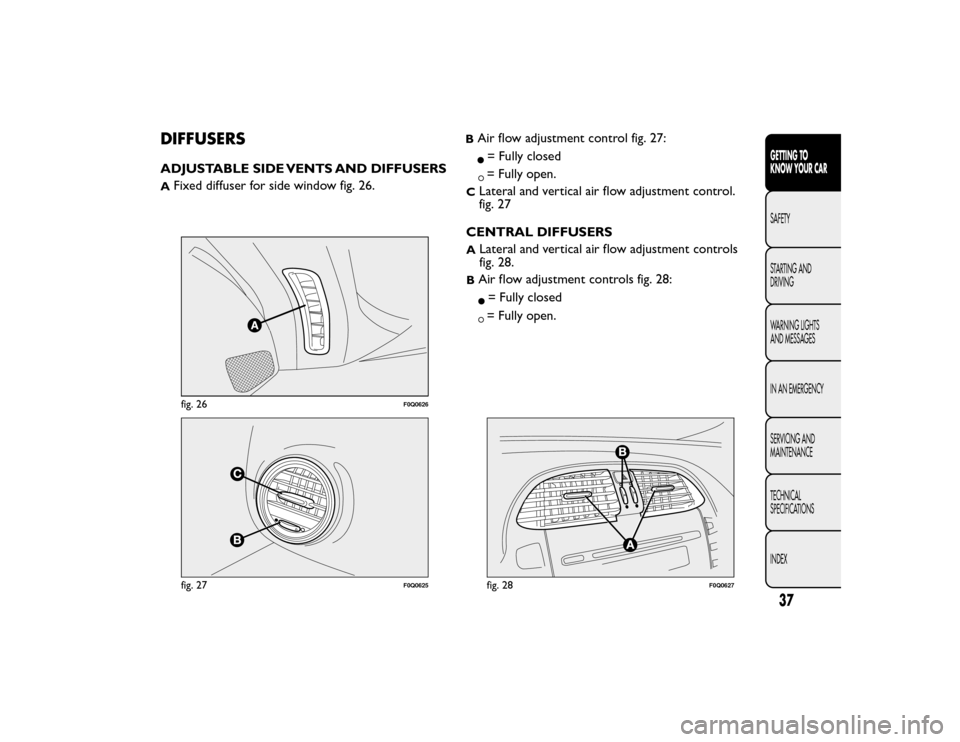

DIFFUSERSADJUSTABLE SIDE VENTS AND DIFFUSERSA
Fixed diffuser for side window fig. 26.
BAir flow adjustment control fig. 27:= Fully closed= Fully open.
C
Lateral and vertical air flow adjustment control.
fig. 27
CENTRAL DIFFUSERS
A
Lateral and vertical air flow adjustment controls
fig. 28.
BAir flow adjustment controls fig. 28:= Fully closed= Fully open.
fig. 26
F0Q0626
fig. 27
F0Q0625
fig. 28
F0Q0627
37GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 42 of 275

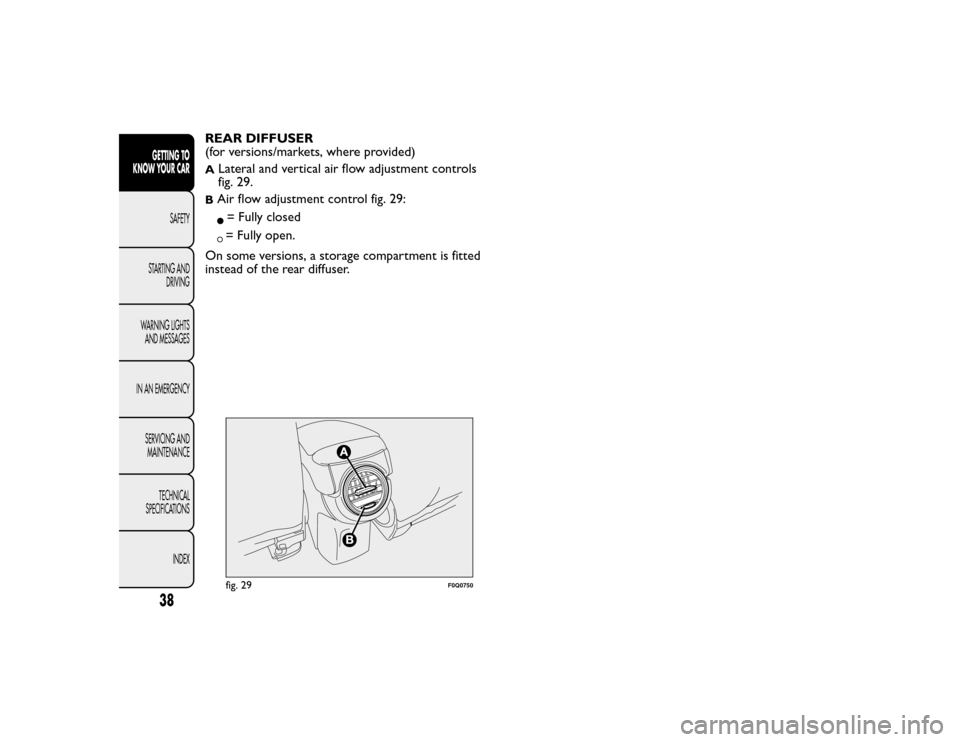

REAR DIFFUSER
(for versions/markets, where provided)A
Lateral and vertical air flow adjustment controls
fig. 29.
BAir flow adjustment control fig. 29:= Fully closed= Fully open.
On some versions, a storage compartment is fitted
instead of the rear diffuser.fig. 29
F0Q0750
38GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 43 of 275

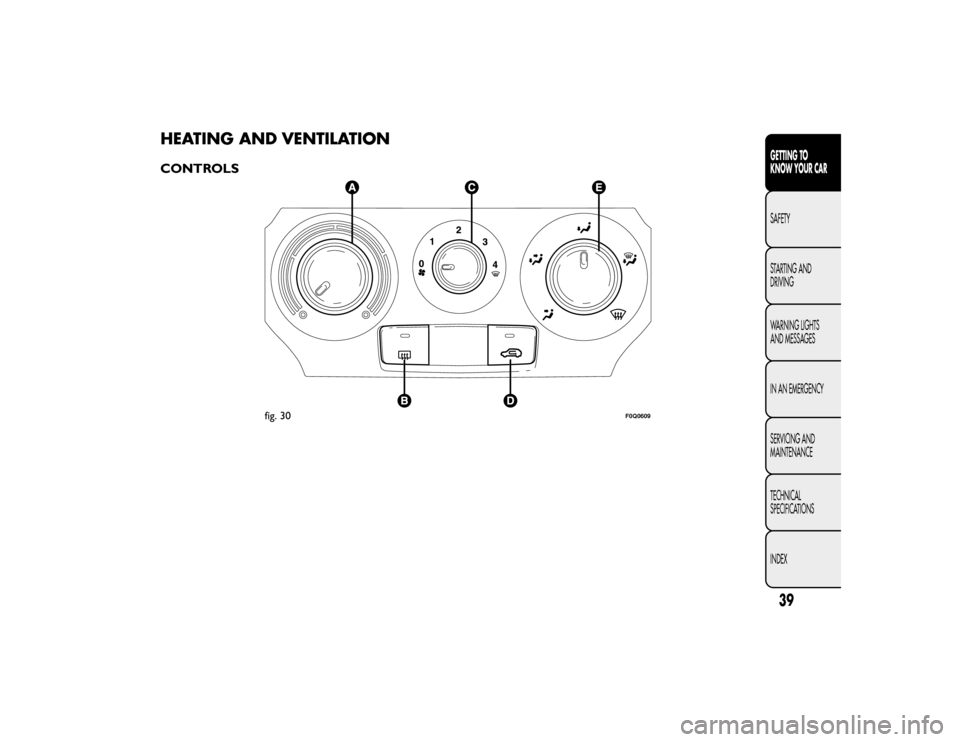

HEATING AND VENTILATIONCONTROLS
fig. 30
F0Q0609
39GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 44 of 275

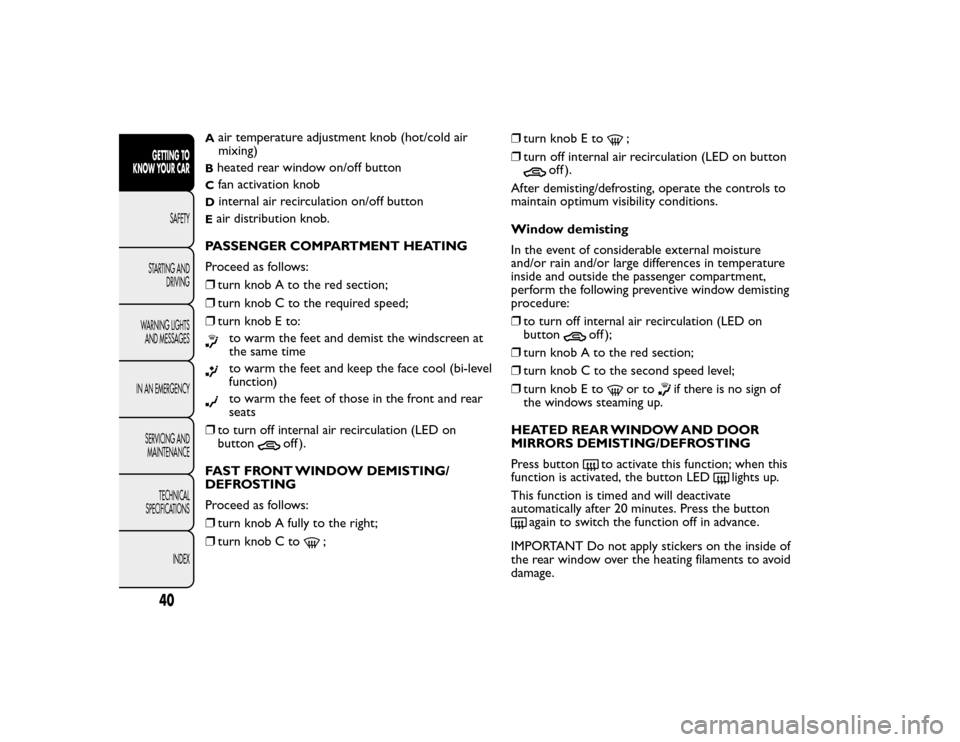

A
air temperature adjustment knob (hot/cold air
mixing)
Bheated rear window on/off buttonC
fan activation knob
D
internal air recirculation on/off button
Eair distribution knob.
PASSENGER COMPARTMENT HEATING
Proceed as follows:
❒ turn knob A to the red section;
❒ turn knob C to the required speed;
❒ turn knob E to:
to warm the feet and demist the windscreen at
the same timeto warm the feet and keep the face cool (bi-level
function)to warm the feet of those in the front and rear
seats
❒ to turn off internal air recirculation (LED on
button
off ).
FAST FRONT WINDOW DEMISTING/
DEFROSTING
Proceed as follows:
❒ turn knob A fully to the right;
❒ turn knob C to
; ❒
turn knob E to
;
❒ turn off internal air recirculation (LED on button
off ).
After demisting/defrosting, operate the controls to
maintain optimum visibility conditions.
Window demisting
In the event of considerable external moisture
and/or rain and/or large differences in temperature
inside and outside the passenger compartment,
perform the following preventive window demisting
procedure:
❒ to turn off internal air recirculation (LED on
button
off );
❒ turn knob A to the red section;
❒ turn knob C to the second speed level;
❒ turn knob E to
or to
if there is no sign of
the windows steaming up.
HEATED REAR WINDOW AND DOOR
MIRRORS DEMISTING/DEFROSTING
Press button
to activate this function; when this
function is activated, the button LED
lights up.
This function is timed and will deactivate
automatically after 20 minutes. Press the button
again to switch the function off in advance.
IMPORTANT Do not apply stickers on the inside of
the rear window over the heating filaments to avoid
damage.
40GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 45 of 275

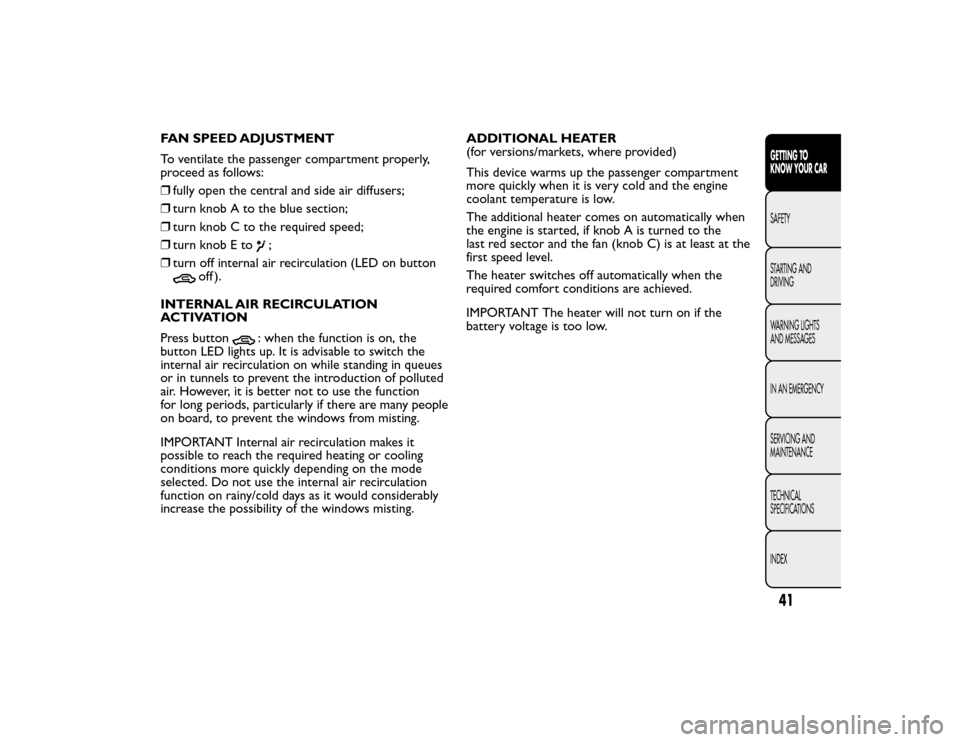

FAN SPEED ADJUSTMENT
To ventilate the passenger compartment properly,
proceed as follows:
❒fully open the central and side air diffusers;
❒ turn knob A to the blue section;
❒ turn knob C to the required speed;
❒ turn knob E to
;
❒ turn off internal air recirculation (LED on button
off ).
INTERNAL AIR RECIRCULATION
ACTIVATION
Press button
: when the function is on, the
button LED lights up. It is advisable to switch the
internal air recirculation on while standing in queues
or in tunnels to prevent the introduction of polluted
air. However, it is better not to use the function
for long periods, particularly if there are many people
on board, to prevent the windows from misting.
IMPORTANT Internal air recirculation makes it
possible to reach the required heating or cooling
conditions more quickly depending on the mode
selected. Do not use the internal air recirculation
function on rainy/cold days as it would considerably
increase the possibility of the windows misting. ADDITIONAL HEATER
(for versions/markets, where provided)
This device warms up the passenger compartment
more quickly when it is very cold and the engine
coolant temperature is low.
The additional heater comes on automatically when
the engine is started, if knob A is turned to the
last red sector and the fan (knob C) is at least at the
first speed level.
The heater switches off automatically when the
required comfort conditions are achieved.
IMPORTANT The heater will not turn on if the
battery voltage is too low.
41GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 46 of 275

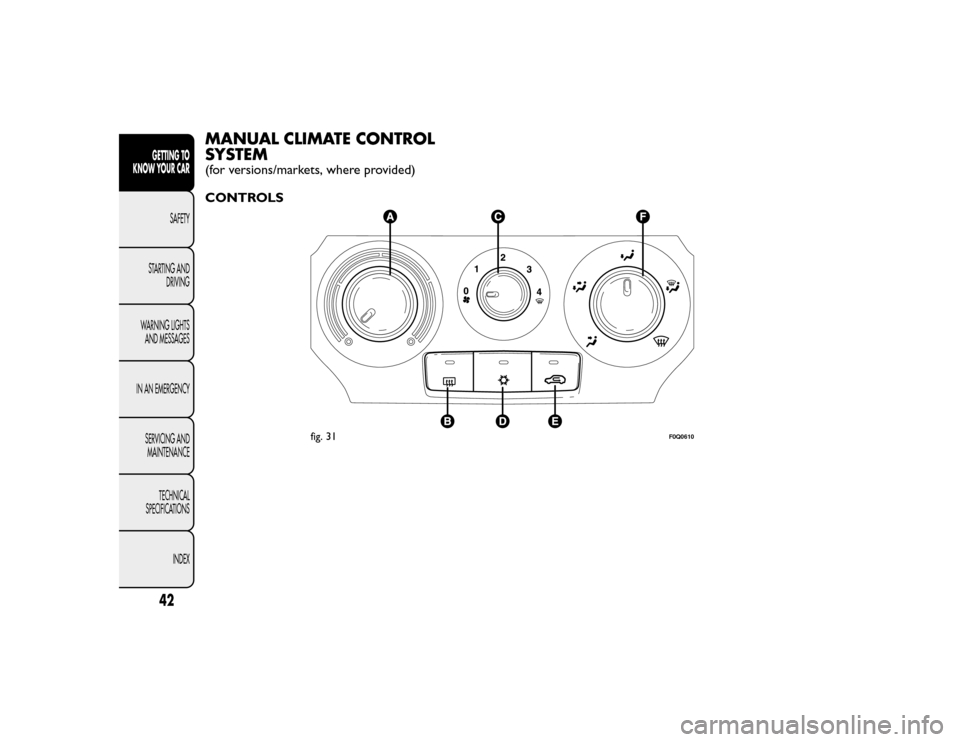

MANUAL CLIMATE CONTROL
SYSTEM(for versions/markets, where provided)
CONTROLS
fig. 31
F0Q0610
42GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 47 of 275

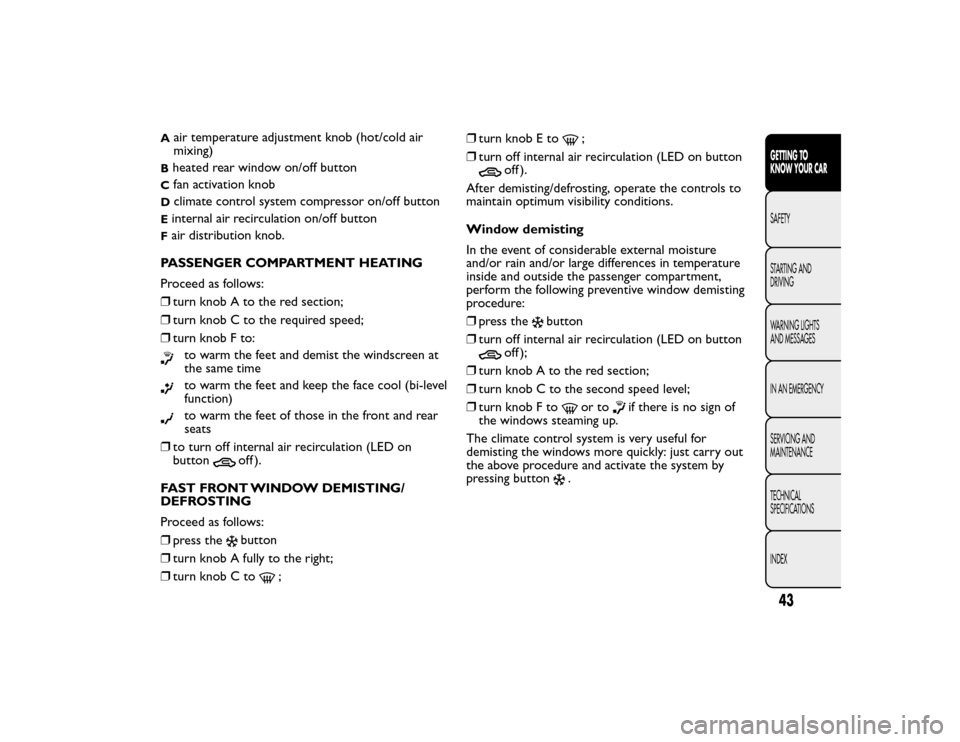

A
air temperature adjustment knob (hot/cold air
mixing)
Bheated rear window on/off buttonC
fan activation knob
D
climate control system compressor on/off button
Einternal air recirculation on/off buttonFair distribution knob.
PASSENGER COMPARTMENT HEATING
Proceed as follows:
❒ turn knob A to the red section;
❒ turn knob C to the required speed;
❒ turn knob F to:
to warm the feet and demist the windscreen at
the same timeto warm the feet and keep the face cool (bi-level
function)to warm the feet of those in the front and rear
seats
❒ to turn off internal air recirculation (LED on
button
off ).
FAST FRONT WINDOW DEMISTING/
DEFROSTING
Proceed as follows:
❒ press thebutton
❒ turn knob A fully to the right;
❒ turn knob C to
; ❒
turn knob E to
;
❒ turn off internal air recirculation (LED on button
off ).
After demisting/defrosting, operate the controls to
maintain optimum visibility conditions.
Window demisting
In the event of considerable external moisture
and/or rain and/or large differences in temperature
inside and outside the passenger compartment,
perform the following preventive window demisting
procedure:
❒ press the
button
❒ turn off internal air recirculation (LED on button
off );
❒ turn knob A to the red section;
❒ turn knob C to the second speed level;
❒ turn knob F to
or to
if there is no sign of
the windows steaming up.
The climate control system is very useful for
demisting the windows more quickly: just carry out
the above procedure and activate the system by
pressing button
.
43GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 48 of 275

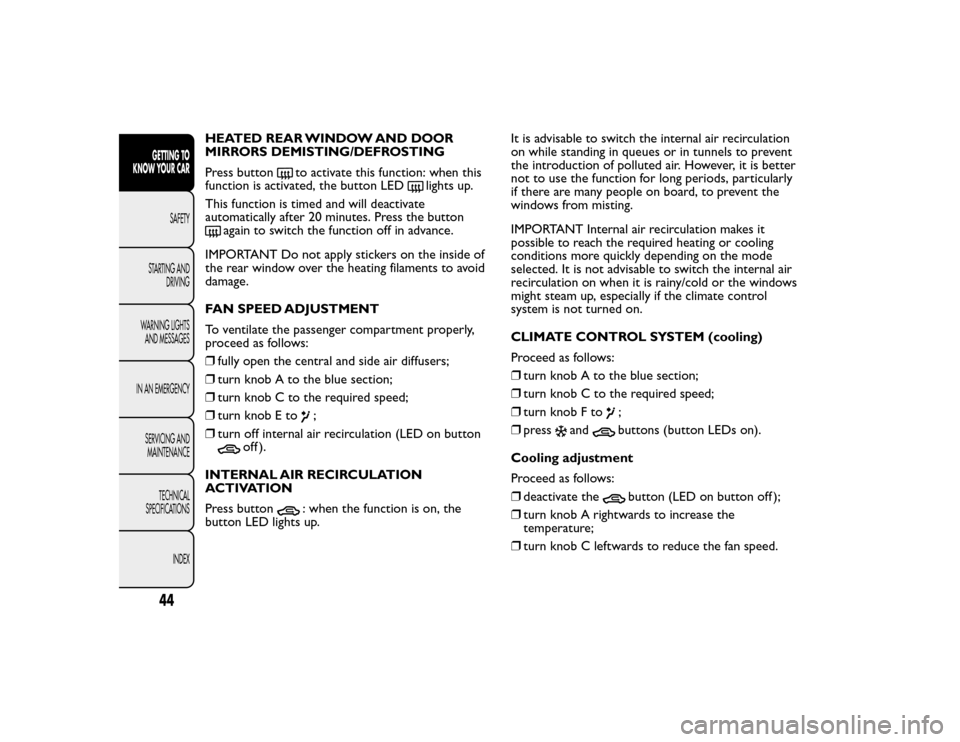

HEATED REAR WINDOW AND DOOR
MIRRORS DEMISTING/DEFROSTING
Press button
to activate this function: when this
function is activated, the button LED
lights up.
This function is timed and will deactivate
automatically after 20 minutes. Press the button
again to switch the function off in advance.
IMPORTANT Do not apply stickers on the inside of
the rear window over the heating filaments to avoid
damage.
FAN SPEED ADJUSTMENT
To ventilate the passenger compartment properly,
proceed as follows:
❒ fully open the central and side air diffusers;
❒ turn knob A to the blue section;
❒ turn knob C to the required speed;
❒ turn knob E to
;
❒ turn off internal air recirculation (LED on button
off ).
INTERNAL AIR RECIRCULATION
ACTIVATION
Press button
: when the function is on, the
button LED lights up. It is advisable to switch the internal air recirculation
on while standing in queues or in tunnels to prevent
the introduction of polluted air. However, it is better
not to use the function for long periods, particularly
if there are many people on board, to prevent the
windows from misting.
IMPORTANT Internal air recirculation makes it
possible to reach the required heating or cooling
conditions more quickly depending on the mode
selected. It is not advisable to switch the internal air
recirculation on when it is rainy/cold or the windows
might steam up, especially if the climate control
system is not turned on.
CLIMATE CONTROL SYSTEM (cooling)
Proceed as follows:
❒
turn knob A to the blue section;
❒ turn knob C to the required speed;
❒ turn knob F to
;
❒ press
and
buttons (button LEDs on).
Cooling adjustment
Proceed as follows:
❒ deactivate thebutton (LED on button off );
❒ turn knob A rightwards to increase the
temperature;
❒ turn knob C leftwards to reduce the fan speed.
44GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 49 of 275

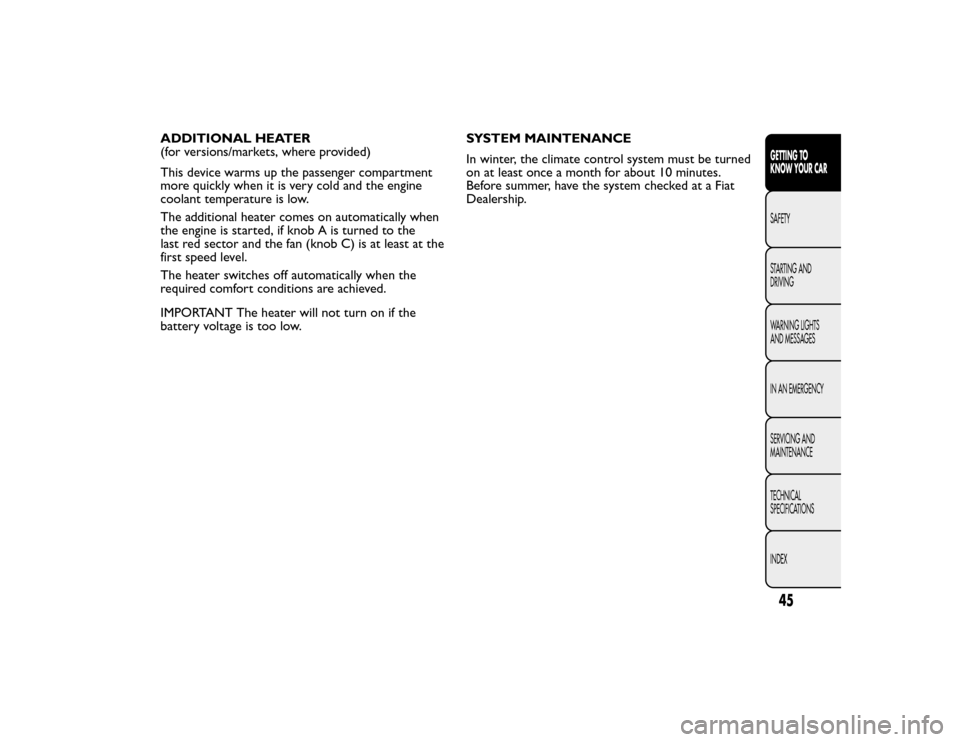

ADDITIONAL HEATER
(for versions/markets, where provided)
This device warms up the passenger compartment
more quickly when it is very cold and the engine
coolant temperature is low.
The additional heater comes on automatically when
the engine is started, if knob A is turned to the
last red sector and the fan (knob C) is at least at the
first speed level.
The heater switches off automatically when the
required comfort conditions are achieved.
IMPORTANT The heater will not turn on if the
battery voltage is too low.SYSTEM MAINTENANCE
In winter, the climate control system must be turned
on at least once a month for about 10 minutes.
Before summer, have the system checked at a Fiat
Dealership.
45GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 50 of 275

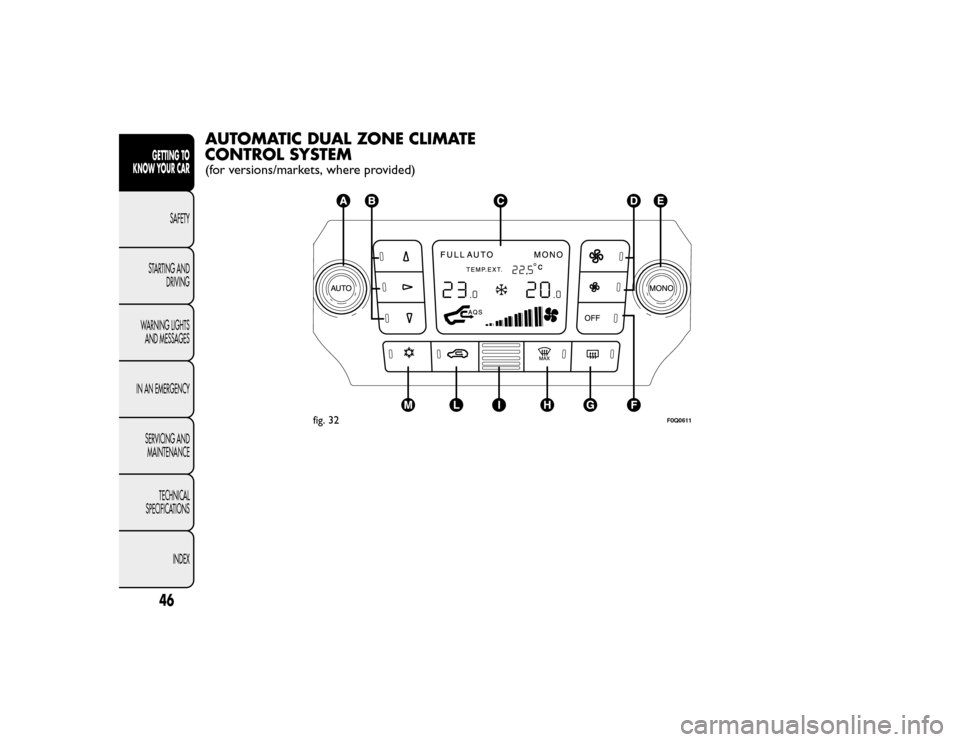

AUTOMATIC DUAL ZONE CLIMATE
CONTROL SYSTEM(for versions/markets, where provided)
fig. 32
F0Q0611
