FIAT DOBLO PANORAMA 2016 2.G User Guide
Manufacturer: FIAT, Model Year: 2016, Model line: DOBLO PANORAMA, Model: FIAT DOBLO PANORAMA 2016 2.GPages: 323, PDF Size: 25.46 MB
Page 11 of 323
Page 12 of 323
8

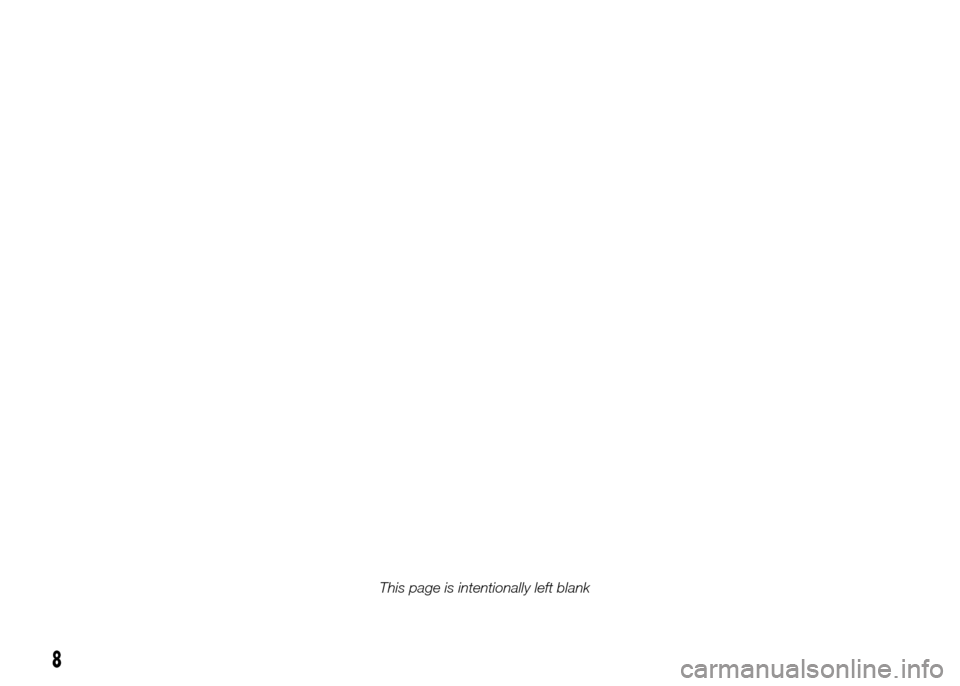

This page is intentionally left blank
Page 13 of 323

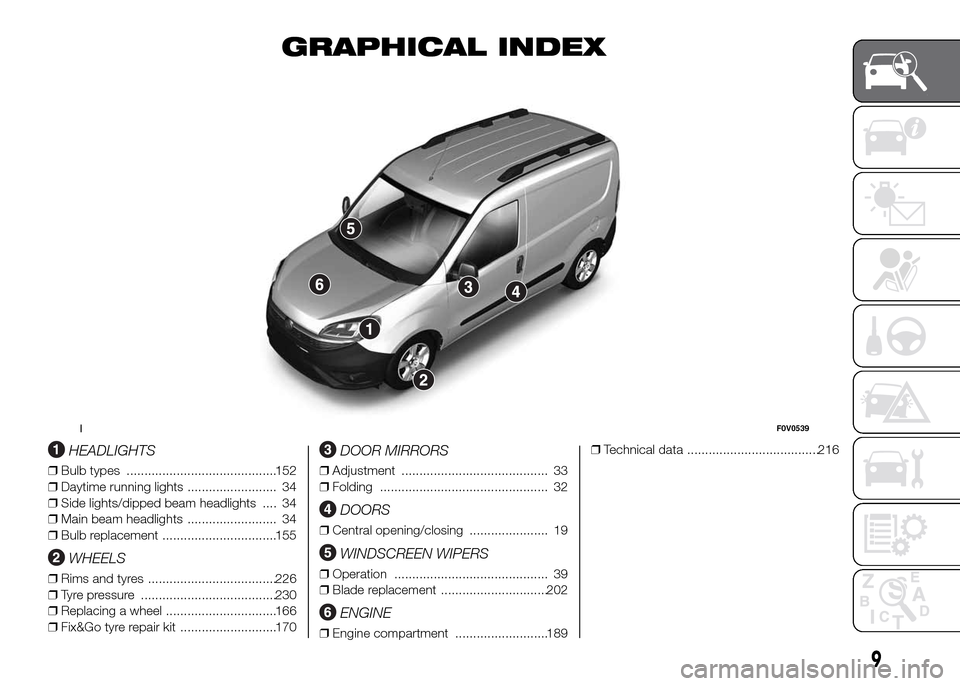

GRAPHICAL INDEX
.
HEADLIGHTS
❒Bulb types ..........................................152
❒Daytime running lights ......................... 34
❒Side lights/dipped beam headlights .... 34
❒Main beam headlights ......................... 34
❒Bulb replacement ................................155
WHEELS
❒Rims and tyres ....................................226
❒Tyre pressure ......................................230
❒Replacing a wheel ...............................166
❒Fix&Go tyre repair kit ...........................170
DOOR MIRRORS
❒Adjustment ......................................... 33
❒Folding ............................................... 32
DOORS
❒Central opening/closing ...................... 19
WINDSCREEN WIPERS
❒Operation ........................................... 39
❒Blade replacement ..............................202
ENGINE
❒Engine compartment ..........................189❒Technical data .....................................216
1F0V0539
9
Page 14 of 323
.
REAR LIGHTS
❒Bulb types ..........................................152
❒Bulb replacement ................................155
LOAD COMPARTMENT
❒Opening/closing .................................. 21
THIRD BRAKE LIGHT
❒Bulb types ..........................................152
❒Bulb replacement ................................155
PARKING SENSORS
❒Operation ...........................................144
ROOF RACK
❒Setup .................................................. 66
❒Roof rails ............................................ 66
2F0V0540
10
GRAPHICAL INDEX

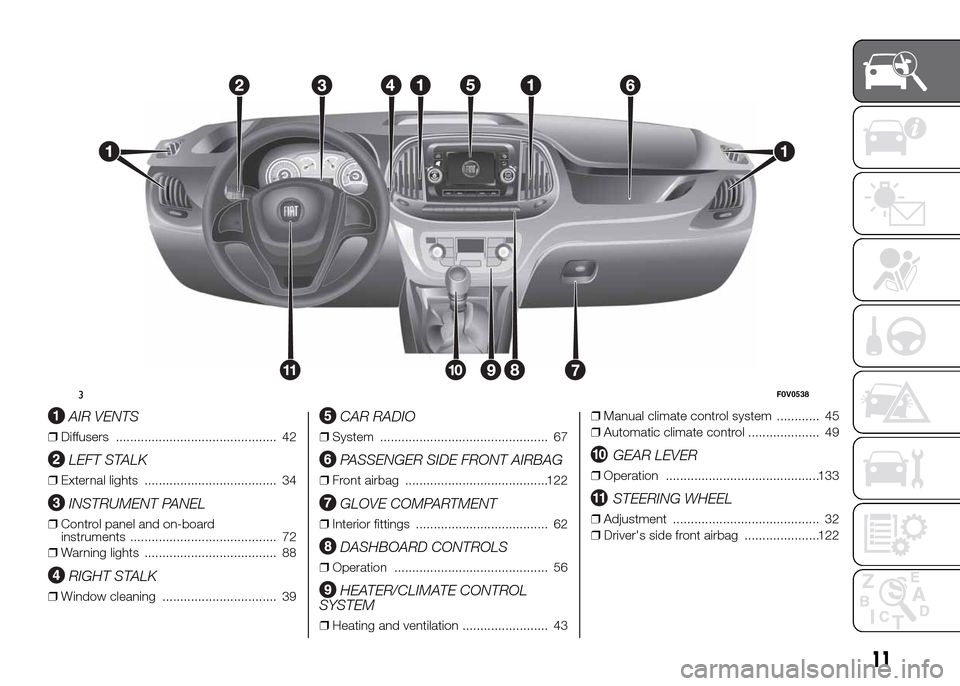

Page 15 of 323
.
AIR VENTS
❒Diffusers ............................................. 42
LEFT STALK
❒External lights ..................................... 34
INSTRUMENT PANEL
❒Control panel and on-board
instruments ......................................... 72
❒Warning lights ..................................... 88
RIGHT STALK
❒Window cleaning ................................ 39
CAR RADIO
❒System ............................................... 67
PASSENGER SIDE FRONT AIRBAG
❒Front airbag ........................................122
GLOVE COMPARTMENT
❒Interior fittings ..................................... 62
DASHBOARD CONTROLS
❒Operation ........................................... 56
HEATER/CLIMATE CONTROL
SYSTEM
❒Heating and ventilation ........................ 43❒Manual climate control system ............ 45
❒Automatic climate control .................... 49
GEAR LEVER
❒Operation ...........................................133
STEERING WHEEL
❒Adjustment ......................................... 32
❒Driver's side front airbag .....................122
3F0V0538
11

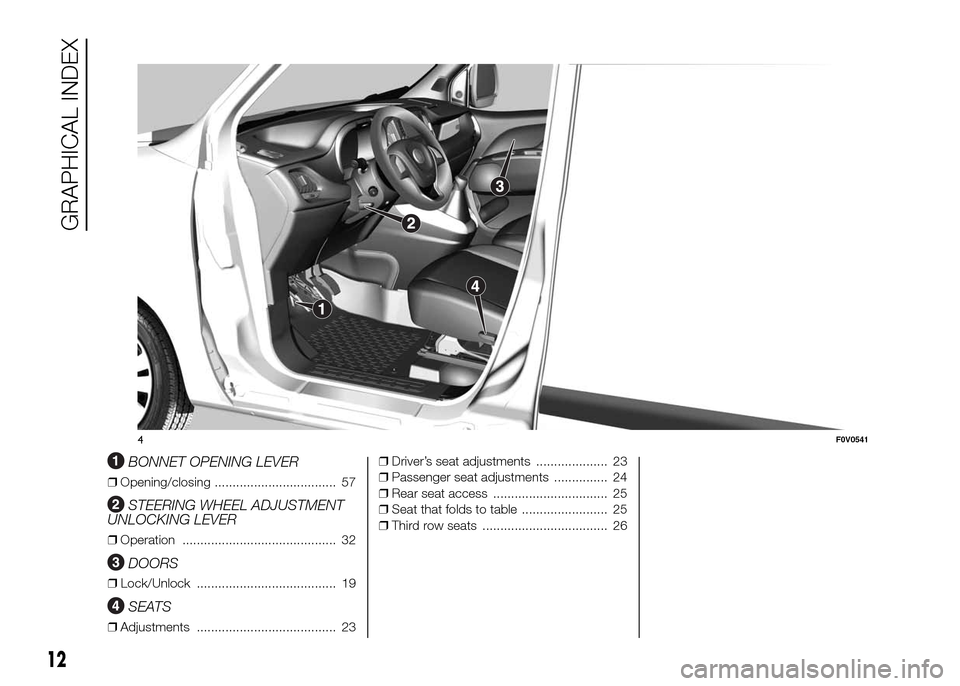

Page 16 of 323
.
BONNET OPENING LEVER
❒Opening/closing .................................. 57
STEERING WHEEL ADJUSTMENT
UNLOCKING LEVER
❒Operation ........................................... 32
DOORS
❒Lock/Unlock ....................................... 19
SEATS
❒Adjustments ....................................... 23❒Driver’s seat adjustments .................... 23
❒Passenger seat adjustments ............... 24
❒Rear seat access ................................ 25
❒Seat that folds to table ........................ 25
❒Third row seats ................................... 26
4F0V0541
12
GRAPHICAL INDEX

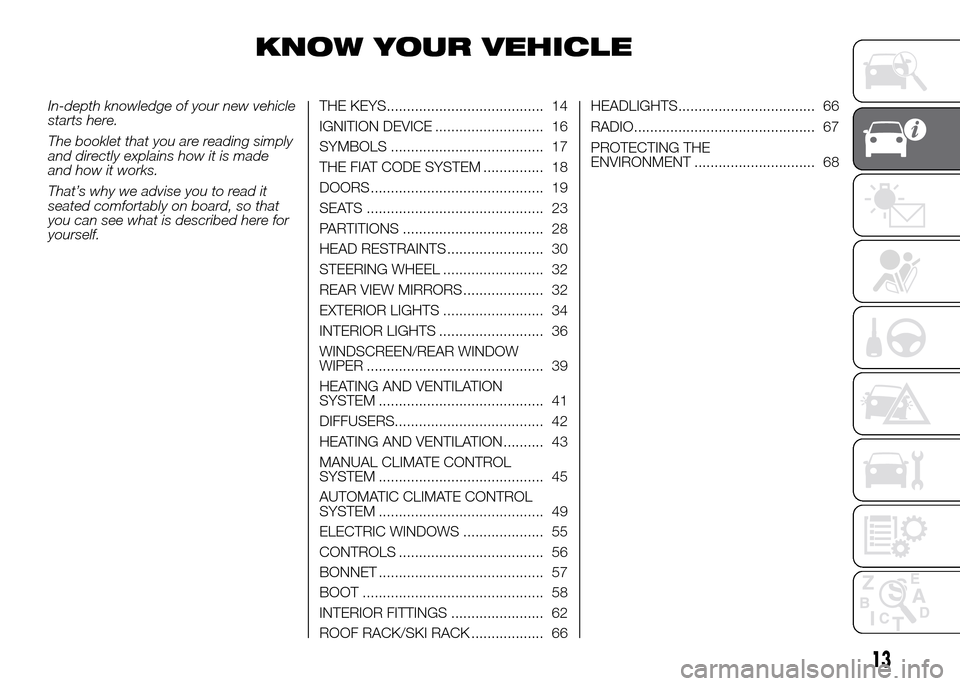

Page 17 of 323
KNOW YOUR VEHICLE
In-depth knowledge of your new vehicle
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.THE KEYS....................................... 14
IGNITION DEVICE ........................... 16
SYMBOLS ...................................... 17
THE FIAT CODE SYSTEM ............... 18
DOORS ........................................... 19
SEATS ............................................ 23
PARTITIONS ................................... 28
HEAD RESTRAINTS ........................ 30
STEERING WHEEL ......................... 32
REAR VIEW MIRRORS .................... 32
EXTERIOR LIGHTS ......................... 34
INTERIOR LIGHTS .......................... 36
WINDSCREEN/REAR WINDOW
WIPER ............................................ 39
HEATING AND VENTILATION
SYSTEM ......................................... 41
DIFFUSERS..................................... 42
HEATING AND VENTILATION.......... 43
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 45
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 49
ELECTRIC WINDOWS .................... 55
CONTROLS .................................... 56
BONNET ......................................... 57
BOOT ............................................. 58
INTERIOR FITTINGS ....................... 62
ROOF RACK/SKI RACK .................. 66HEADLIGHTS.................................. 66
RADIO............................................. 67
PROTECTING THE
ENVIRONMENT .............................. 68
13

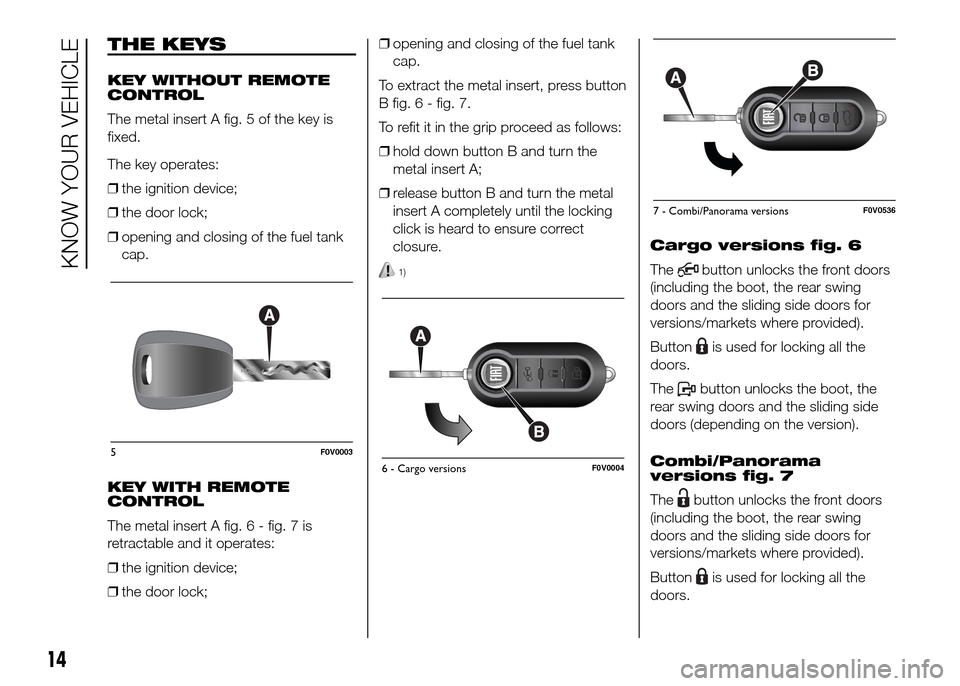

Page 18 of 323
THE KEYS
KEY WITHOUT REMOTE
CONTROL
The metal insert A fig. 5 of the key is
fixed.
The key operates:
❒the ignition device;
❒the door lock;
❒opening and closing of the fuel tank
cap.
KEY WITH REMOTE
CONTROL
The metal insert A fig.6-fig.7is
retractable and it operates:
❒the ignition device;
❒the door lock;❒opening and closing of the fuel tank
cap.
To extract the metal insert, press button
B fig. 6 - fig. 7.
To refit it in the grip proceed as follows:
❒hold down button B and turn the
metal insert A;
❒release button B and turn the metal
insert A completely until the locking
click is heard to ensure correct
closure.
1)
Cargo versions fig. 6
The
button unlocks the front doors
(including the boot, the rear swing
doors and the sliding side doors for
versions/markets where provided).
Button
is used for locking all the
doors.
The
button unlocks the boot, the
rear swing doors and the sliding side
doors (depending on the version).
Combi/Panorama
versions fig. 7
The
button unlocks the front doors
(including the boot, the rear swing
doors and the sliding side doors for
versions/markets where provided).
Button
is used for locking all the
doors.
5F0V0003
6 - Cargo versionsF0V0004
7 - Combi/Panorama versionsF0V0536
14
KNOW YOUR VEHICLE

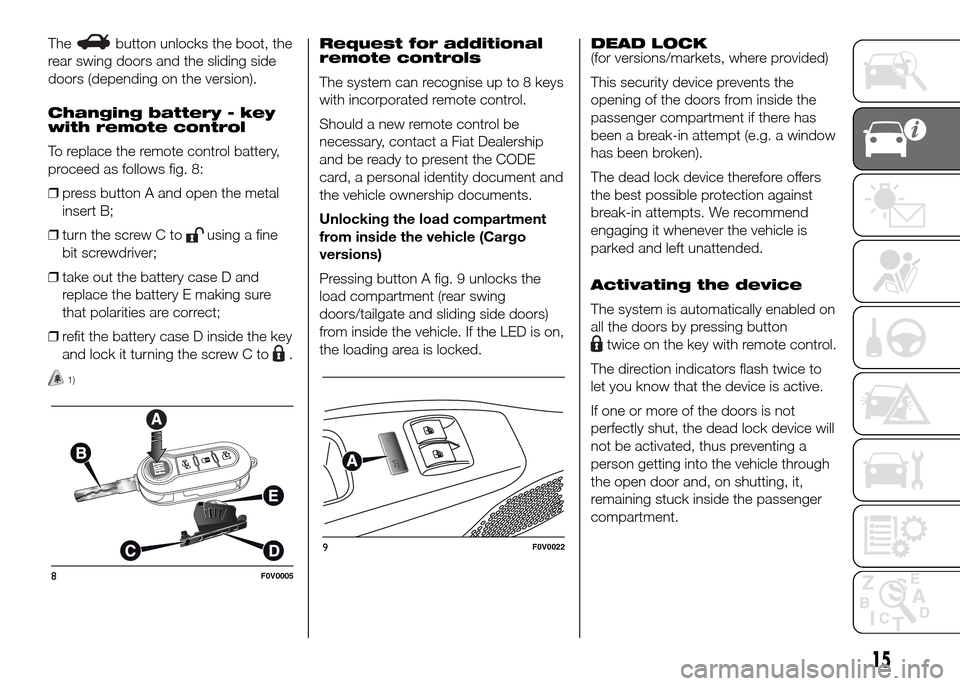

Page 19 of 323
Thebutton unlocks the boot, the
rear swing doors and the sliding side
doors (depending on the version).
Changing battery - key
with remote control
To replace the remote control battery,
proceed as follows fig. 8:
❒press button A and open the metal
insert B;
❒turn the screw C to
using a fine
bit screwdriver;
❒take out the battery case D and
replace the battery E making sure
that polarities are correct;
❒refit the battery case D inside the key
and lock it turning the screw C to
.
1)
Request for additional
remote controls
The system can recognise up to 8 keys
with incorporated remote control.
Should a new remote control be
necessary, contact a Fiat Dealership
and be ready to present the CODE
card, a personal identity document and
the vehicle ownership documents.
Unlocking the load compartment
from inside the vehicle (Cargo
versions)
Pressing button A fig. 9 unlocks the
load compartment (rear swing
doors/tailgate and sliding side doors)
from inside the vehicle. If the LED is on,
the loading area is locked.DEAD LOCK
(for versions/markets, where provided)
This security device prevents the
opening of the doors from inside the
passenger compartment if there has
been a break-in attempt (e.g. a window
has been broken).
The dead lock device therefore offers
the best possible protection against
break-in attempts. We recommend
engaging it whenever the vehicle is
parked and left unattended.
Activating the device
The system is automatically enabled on
all the doors by pressing button
twice on the key with remote control.
The direction indicators flash twice to
let you know that the device is active.
If one or more of the doors is not
perfectly shut, the dead lock device will
not be activated, thus preventing a
person getting into the vehicle through
the open door and, on shutting, it,
remaining stuck inside the passenger
compartment.
8F0V0005
9F0V0022
15

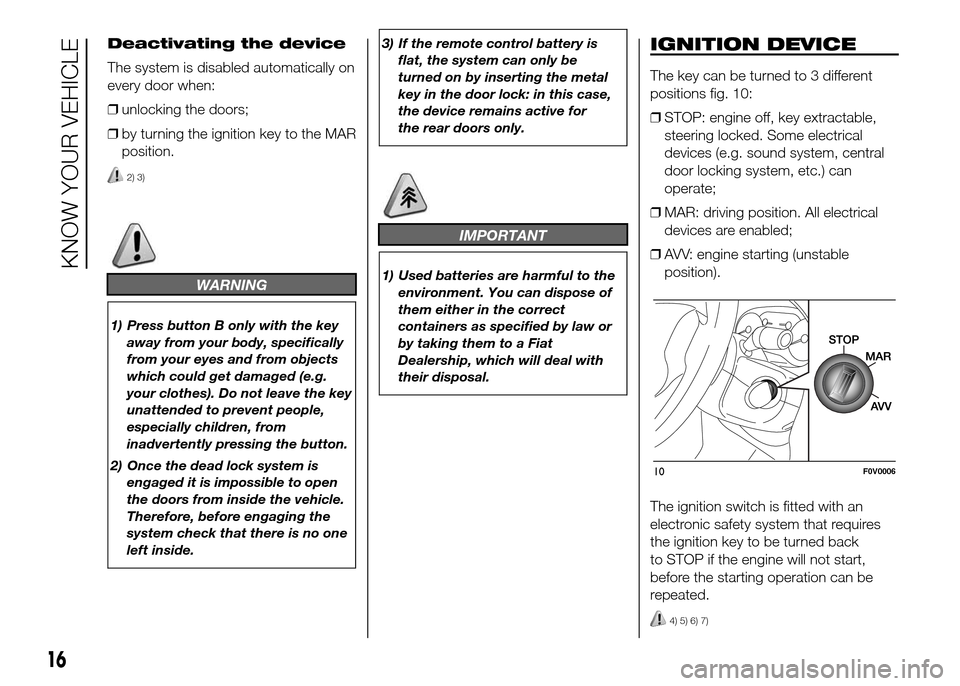

Page 20 of 323
Deactivating the device
The system is disabled automatically on
every door when:
❒unlocking the doors;
❒by turning the ignition key to the MAR
position.
2) 3)
WARNING
1) Press button B only with the key
away from your body, specifically
from your eyes and from objects
which could get damaged (e.g.
your clothes). Do not leave the key
unattended to prevent people,
especially children, from
inadvertently pressing the button.
2) Once the dead lock system is
engaged it is impossible to open
the doors from inside the vehicle.
Therefore, before engaging the
system check that there is no one
left inside.3) If the remote control battery is
flat, the system can only be
turned on by inserting the metal
key in the door lock: in this case,
the device remains active for
the rear doors only.
IMPORTANT
1) Used batteries are harmful to the
environment. You can dispose of
them either in the correct
containers as specified by law or
by taking them to a Fiat
Dealership, which will deal with
their disposal.
IGNITION DEVICE
The key can be turned to 3 different
positions fig. 10:
❒STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can
operate;
❒MAR: driving position. All electrical
devices are enabled;
❒AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that requires
the ignition key to be turned back
to STOP if the engine will not start,
before the starting operation can be
repeated.
4) 5) 6) 7)
10F0V0006
16
KNOW YOUR VEHICLE
