STEERING LOCK
Activation
When the key is at STOP, remove the
key and turn the steering wheel until
it locks.
Deactivation
Move the steering wheel slightly as you
turn the ignition key to MAR.
WARNING
4) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
5) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.6) Never extract the key while the
vehicle is moving. The steering
wheel will automatically lock
as soon as it is turned. This also
applies to cases in which the
vehicle is towed.
7) It is absolutely forbidden to carry
out any after-market operation
involving steering system or
steering column modifications
(e.g.: installation of anti-theft
device) that could badly affect
performance and safety, cause
the lapse of warranty and also
result in non-compliance of the
vehicle with type approval
requirements.
SYMBOLS
Some vehicle components have
coloured labels whose symbols indicate
precautions to be observed when
using this component. Under the
bonnet there is also a label that
summarises all the symbols.
17
Page 22 of 323

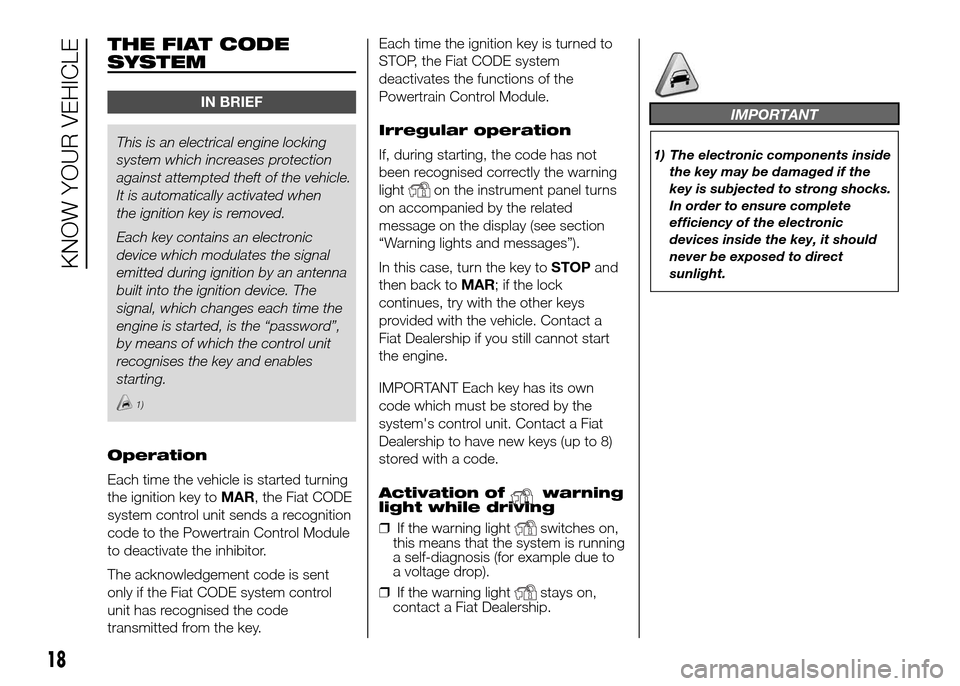

THE FIAT CODE
SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases protection
against attempted theft of the vehicle.
It is automatically activated when
the ignition key is removed.
Each key contains an electronic
device which modulates the signal
emitted during ignition by an antenna
built into the ignition device. The
signal, which changes each time the
engine is started, is the “password”,
by means of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started turning
the ignition key toMAR, the Fiat CODE
system control unit sends a recognition
code to the Powertrain Control Module
to deactivate the inhibitor.
The acknowledgement code is sent
only if the Fiat CODE system control
unit has recognised the code
transmitted from the key.Each time the ignition key is turned to
STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code has not
been recognised correctly the warning
light
on the instrument panel turns
on accompanied by the related
message on the display (see section
“Warning lights and messages”).
In this case, turn the key toSTOPand
then back toMAR; if the lock
continues, try with the other keys
provided with the vehicle. Contact a
Fiat Dealership if you still cannot start
the engine.
IMPORTANT Each key has its own
code which must be stored by the
system's control unit. Contact a Fiat
Dealership to have new keys (up to 8)
stored with a code.
Activation of
warning
light while driving
❒If the warning light
switches on,
this means that the system is running
a self-diagnosis (for example due to
a voltage drop).
❒If the warning light
stays on,
contact a Fiat Dealership.
IMPORTANT
1) The electronic components inside
the key may be damaged if the
key is subjected to strong shocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
18
KNOW YOUR VEHICLE
Page 23 of 323

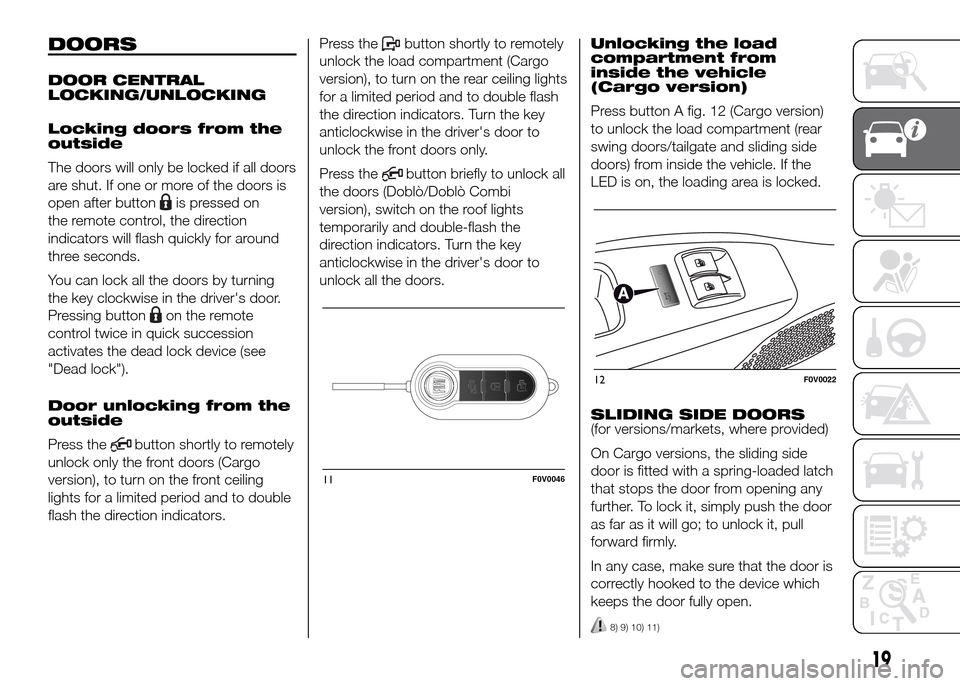

DOORS
DOOR CENTRAL
LOCKING/UNLOCKING
Locking doors from the
outside
The doors will only be locked if all doors
are shut. If one or more of the doors is
open after button
is pressed on
the remote control, the direction
indicators will flash quickly for around
three seconds.
You can lock all the doors by turning
the key clockwise in the driver's door.
Pressing button
on the remote
control twice in quick succession
activates the dead lock device (see
"Dead lock").
Door unlocking from the
outside
Press the
button shortly to remotely
unlock only the front doors (Cargo
version), to turn on the front ceiling
lights for a limited period and to double
flash the direction indicators.Press the
button shortly to remotely
unlock the load compartment (Cargo
version), to turn on the rear ceiling lights
for a limited period and to double flash
the direction indicators. Turn the key
anticlockwise in the driver's door to
unlock the front doors only.
Press the
button briefly to unlock all
the doors (Doblò/Doblò Combi
version), switch on the roof lights
temporarily and double-flash the
direction indicators. Turn the key
anticlockwise in the driver's door to
unlock all the doors.Unlocking the load
compartment from
inside the vehicle
(Cargo version)
Press button A fig. 12 (Cargo version)
to unlock the load compartment (rear
swing doors/tailgate and sliding side
doors) from inside the vehicle. If the
LED is on, the loading area is locked.
SLIDING SIDE DOORS
(for versions/markets, where provided)
On Cargo versions, the sliding side
door is fitted with a spring-loaded latch
that stops the door from opening any
further. To lock it, simply push the door
as far as it will go; to unlock it, pull
forward firmly.
In any case, make sure that the door is
correctly hooked to the device which
keeps the door fully open.
8) 9) 10) 11)
11F0V0046
12F0V0022
19
Page 24 of 323

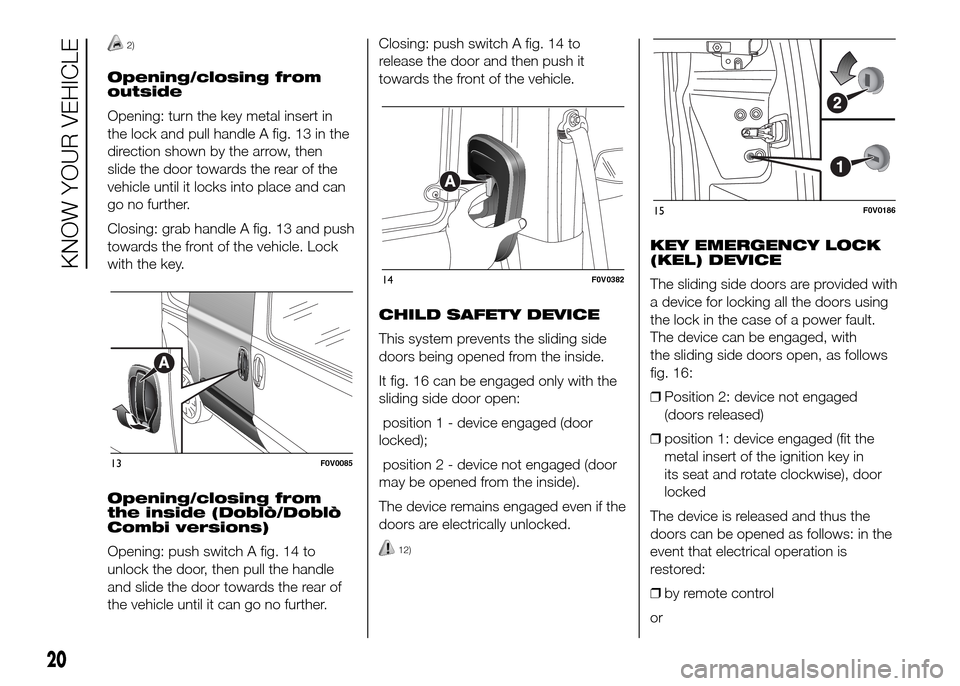

2)
Opening/closing from
outside
Opening: turn the key metal insert in
the lock and pull handle A fig. 13 in the
direction shown by the arrow, then
slide the door towards the rear of the
vehicle until it locks into place and can
go no further.
Closing: grab handle A fig. 13 and push
towards the front of the vehicle. Lock
with the key.
Opening/closing from
the inside (Doblò/Doblò
Combi versions)
Opening: push switch A fig. 14 to
unlock the door, then pull the handle
and slide the door towards the rear of
the vehicle until it can go no further.Closing: push switch A fig. 14 to
release the door and then push it
towards the front of the vehicle.
CHILD SAFETY DEVICE
This system prevents the sliding side
doors being opened from the inside.
It fig. 16 can be engaged only with the
sliding side door open:
position 1 - device engaged (door
locked);
position 2 - device not engaged (door
may be opened from the inside).
The device remains engaged even if the
doors are electrically unlocked.
12)
KEY EMERGENCY LOCK
(KEL) DEVICE
The sliding side doors are provided with
a device for locking all the doors using
the lock in the case of a power fault.
The device can be engaged, with
the sliding side doors open, as follows
fig. 16:
❒Position 2: device not engaged
(doors released)
❒position 1: device engaged (fit the
metal insert of the ignition key in
its seat and rotate clockwise), door
locked
The device is released and thus the
doors can be opened as follows: in the
event that electrical operation is
restored:
❒by remote control
or
13F0V0085
14F0V0382
15F0V0186
20
KNOW YOUR VEHICLE
Page 25 of 323
❒opening a front door by inserting the
key into the key pawl. if the power is
not restored;
❒opening the driver side door by key
pawl and the other doors
(passenger's side and sliding side
door) pulling the inner handle.
DOUBLE REAR SWING
DOORS
The double rear swing doors are fitted
with a link system that stops them
when they have opened to an angle of
approximately 90 degrees.
To open them wider to an angle of 180
degrees, push the locking device A
fig. 17 (one on each side) as shown in
the diagram and simultaneously open
the doors.
13)
Using the key latch on the door, you
can do the following:
❒for Cargo versions with wing door:
centrally unlock the load
compartment (sliding side doors +
rear wing doors), centrally lock all the
doors;
❒for Doblò/Doblò Combi versions with
swing door: local unlocking/locking.
Opening/closing the first
swing door from the
outside
To open the door, turn the key metal
insert in the lock or press button
on
the remote control and then pull handle
A fig. 18 in the direction of the arrow.
To close the door, turn the key metal
insert in the closing direction or press
button
on the remote control.
14)
Emergency opening of
the first swing door
from the inside
From inside, use device A fig. 19.
16F0V0383
17F0V006718F0V0518
19F0V0080
21
Page 26 of 323

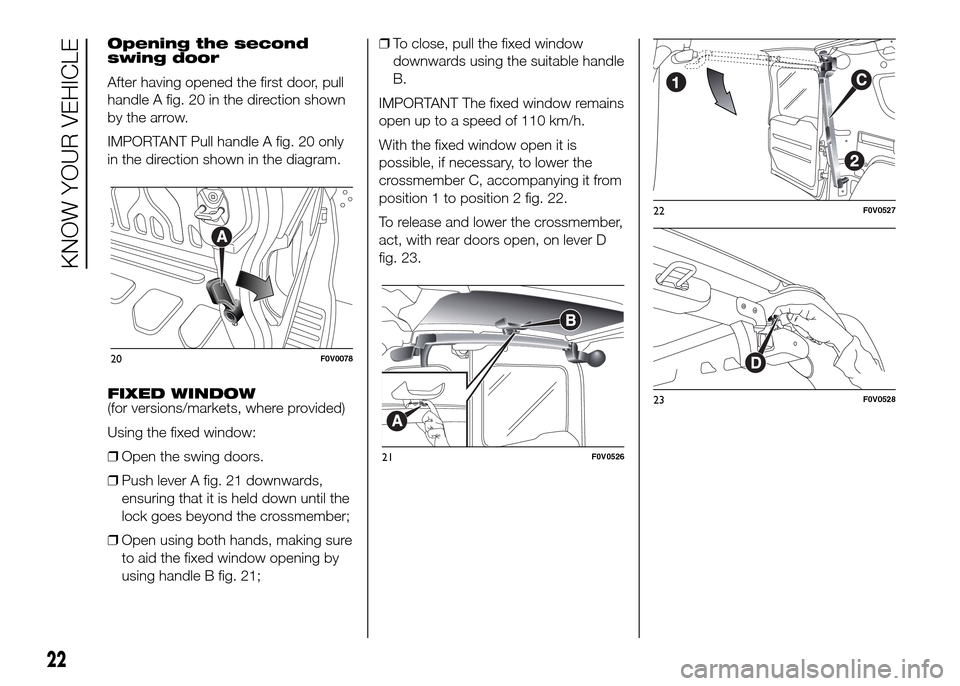

Opening the second
swing door
After having opened the first door, pull
handle A fig. 20 in the direction shown
by the arrow.
IMPORTANT Pull handle A fig. 20 only
in the direction shown in the diagram.
FIXED WINDOW
(for versions/markets, where provided)
Using the fixed window:
❒Open the swing doors.
❒Push lever A fig. 21 downwards,
ensuring that it is held down until the
lock goes beyond the crossmember;
❒Open using both hands, making sure
to aid the fixed window opening by
using handle B fig. 21;❒To close, pull the fixed window
downwards using the suitable handle
B.
IMPORTANT The fixed window remains
open up to a speed of 110 km/h.
With the fixed window open it is
possible, if necessary, to lower the
crossmember C, accompanying it from
position 1 to position 2 fig. 22.
To release and lower the crossmember,
act, with rear doors open, on lever D
fig. 23.
20F0V0078
21F0V0526
22F0V0527
23F0V0528
22
KNOW YOUR VEHICLE
Page 27 of 323

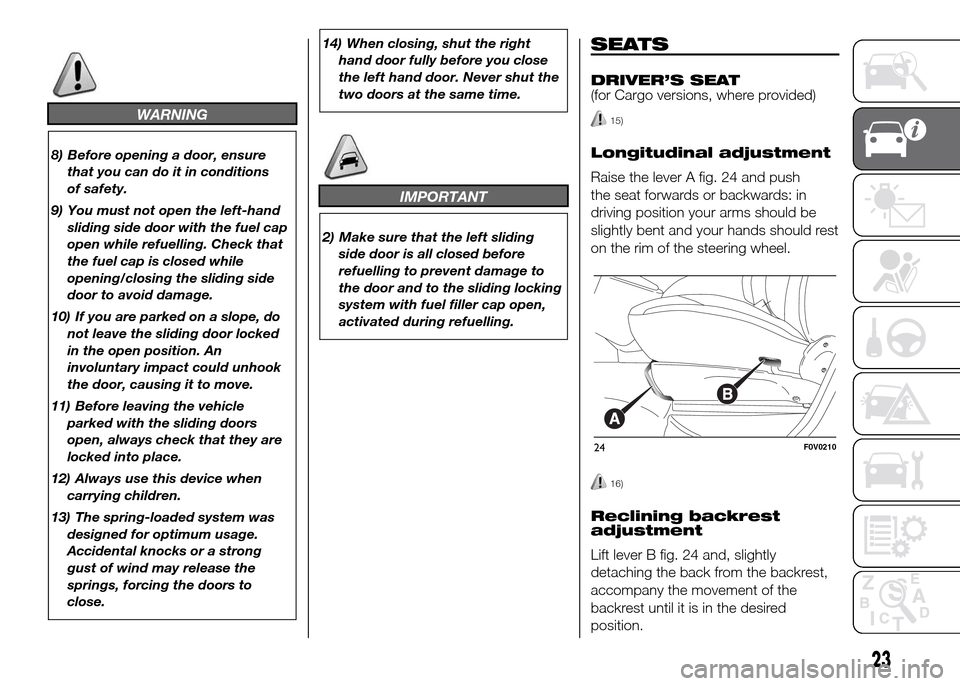

WARNING
8) Before opening a door, ensure
that you can do it in conditions
of safety.
9) You must not open the left-hand
sliding side door with the fuel cap
open while refuelling. Check that
the fuel cap is closed while
opening/closing the sliding side
door to avoid damage.
10) If you are parked on a slope, do
not leave the sliding door locked
in the open position. An
involuntary impact could unhook
the door, causing it to move.
11) Before leaving the vehicle
parked with the sliding doors
open, always check that they are
locked into place.
12) Always use this device when
carrying children.
13) The spring-loaded system was
designed for optimum usage.
Accidental knocks or a strong
gust of wind may release the
springs, forcing the doors to
close.14) When closing, shut the right
hand door fully before you close
the left hand door. Never shut the
two doors at the same time.
IMPORTANT
2) Make sure that the left sliding
side door is all closed before
refuelling to prevent damage to
the door and to the sliding locking
system with fuel filler cap open,
activated during refuelling.
SEATS
DRIVER’S SEAT
(for Cargo versions, where provided)
15)
Longitudinal adjustment
Raise the lever A fig. 24 and push
the seat forwards or backwards: in
driving position your arms should be
slightly bent and your hands should rest
on the rim of the steering wheel.
16)
Reclining backrest
adjustment
Lift lever B fig. 24 and, slightly
detaching the back from the backrest,
accompany the movement of the
backrest until it is in the desired
position.
24F0V0210
23
Page 28 of 323

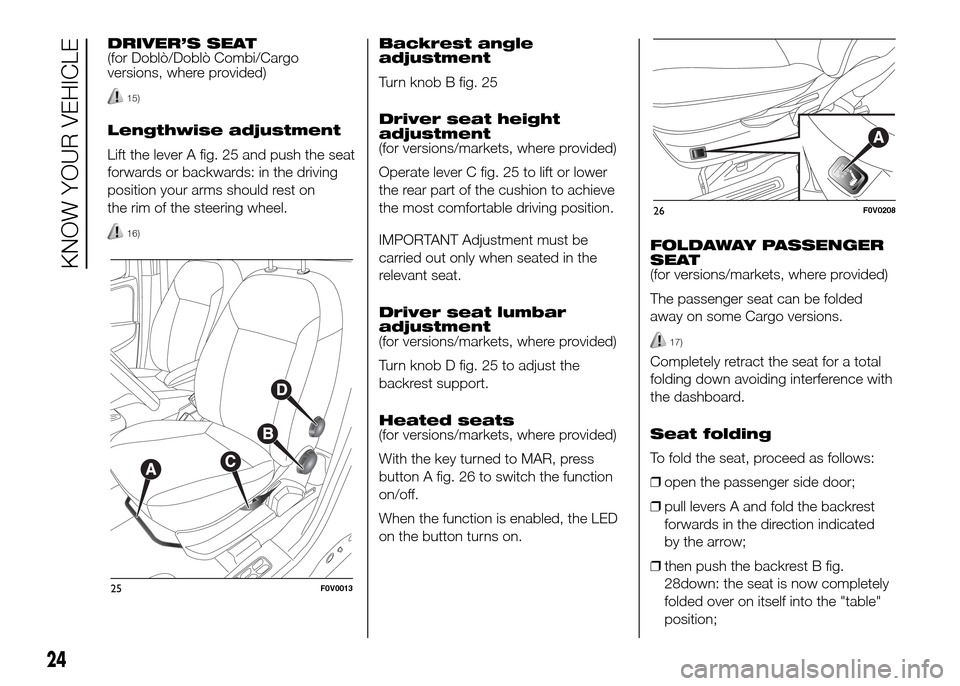

DRIVER’S SEAT
(for Doblò/Doblò Combi/Cargo
versions, where provided)
15)
Lengthwise adjustment
Lift the lever A fig. 25 and push the seat
forwards or backwards: in the driving
position your arms should rest on
the rim of the steering wheel.
16)
Backrest angle
adjustment
Turn knob B fig. 25
Driver seat height
adjustment
(for versions/markets, where provided)
Operate lever C fig. 25 to lift or lower
the rear part of the cushion to achieve
the most comfortable driving position.
IMPORTANT Adjustment must be
carried out only when seated in the
relevant seat.
Driver seat lumbar
adjustment
(for versions/markets, where provided)
Turn knob D fig. 25 to adjust the
backrest support.
Heated seats
(for versions/markets, where provided)
With the key turned to MAR, press
button A fig. 26 to switch the function
on/off.
When the function is enabled, the LED
on the button turns on.FOLDAWAY PASSENGER
SEAT
(for versions/markets, where provided)
The passenger seat can be folded
away on some Cargo versions.
17)
Completely retract the seat for a total
folding down avoiding interference with
the dashboard.
Seat folding
To fold the seat, proceed as follows:
❒open the passenger side door;
❒pull levers A and fold the backrest
forwards in the direction indicated
by the arrow;
❒then push the backrest B fig.
28down: the seat is now completely
folded over on itself into the "table"
position;
25F0V0013
26F0V0208
24
KNOW YOUR VEHICLE
Page 29 of 323

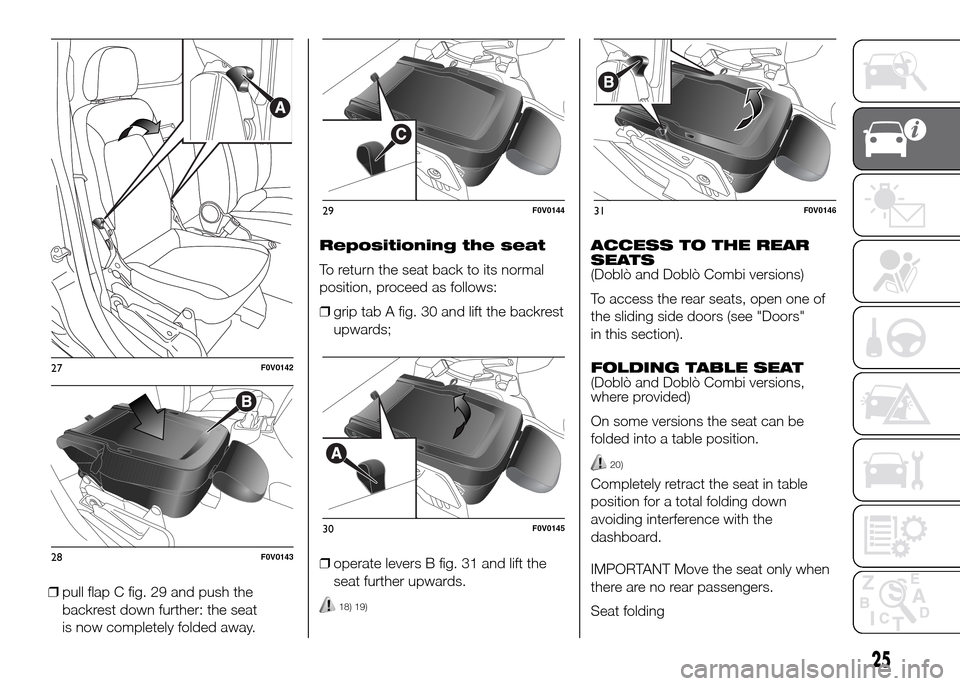

❒pull flap C fig. 29 and push the
backrest down further: the seat
is now completely folded away.Repositioning the seat
To return the seat back to its normal
position, proceed as follows:
❒grip tab A fig. 30 and lift the backrest
upwards;
❒operate levers B fig. 31 and lift the
seat further upwards.18) 19)
ACCESS TO THE REAR
SEATS
(Doblò and Doblò Combi versions)
To access the rear seats, open one of
the sliding side doors (see "Doors"
in this section).
FOLDING TABLE SEAT
(Doblò and Doblò Combi versions,
where provided)
On some versions the seat can be
folded into a table position.
20)
Completely retract the seat in table
position for a total folding down
avoiding interference with the
dashboard.
IMPORTANT Move the seat only when
there are no rear passengers.
Seat folding
27F0V0142
28F0V0143
29F0V0144
30F0V0145
31F0V0146
25
Page 30 of 323
❒Open the passenger side door;
❒Pull lever A fig. 32 and fold the
backrest forwards in the direction
indicated by the arrow;
❒Push the backrest B fig. 32 down:
the seat is now completely folded
over on itself into the "table" position.
Repositioning the seat:
❒operate lever A fig. 32 and lift the
backrest upwards.
3RD ROW SEAT
MOVEMENTS
Proceed as follows:
❒completely lower the rear seat head
restraints;
❒move the seat belt to the side,
making sure that it is fully extended
and not twisted;❒lift lever A fig. 33 retaining the
backrest and fold the latter forwards.
When you lift the lever, you will see
a red band.
❒pull the tape B fig. 33 behind the seat
backrests and fold the seats and the
backrests forwards.NoteOn the split seats, there are
rubber bands on the lower edge of the
cushion so you can attach the folded
seat to the 2nd row rear seat head
restraint rods (see the plate on the seat
backrest fig. 33).
21)
REMOVING 3RD ROW
SEATS
Proceed as follows:
❒remove the rear seat head restraints;
❒remove the rolling curtain from its
housing;
❒move the seat belt to the side,
making sure that it is fully extended
and not twisted;
❒lift lever A fig. 33 retaining the
backrest and fold the latter forwards.
When you lift the lever, you will see
a red band.
❒pull the tape B fig. 33 behind the seat
backrests and fold the seats and the
backrests forwards;
❒position the head restraint using the
openings under the cushion to insert
the rods;
❒push the lever as indicated in fig. 35;
❒remove the seat from the
attachments on the floor.
32F0V0201
3
124
12437856
33F0V0407
34F0V0408
26
KNOW YOUR VEHICLE
