Page 41 of 323

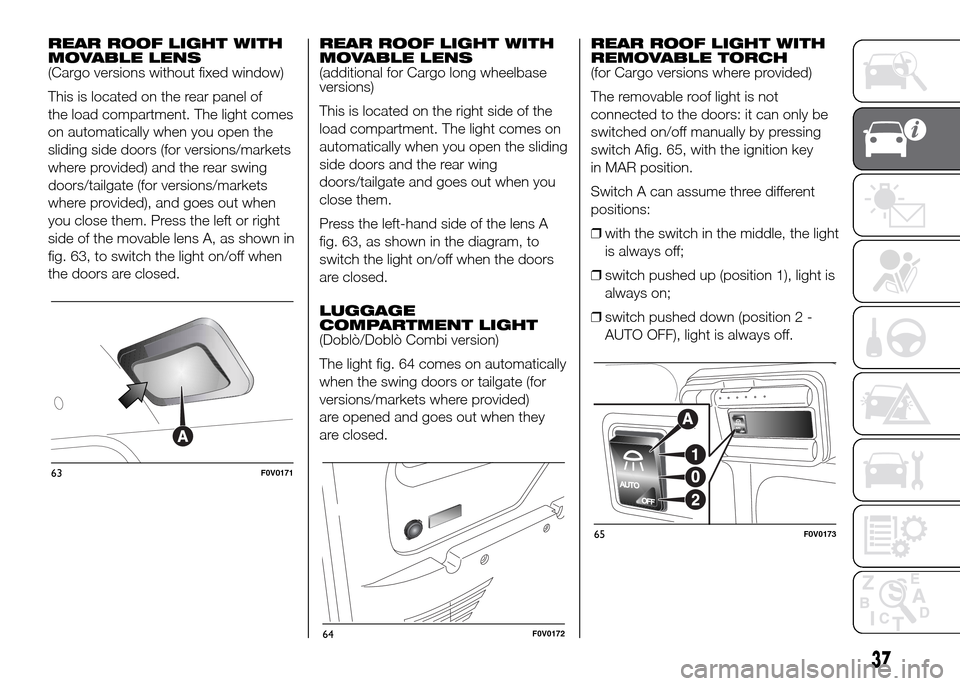

REAR ROOF LIGHT WITH
MOVABLE LENS
(Cargo versions without fixed window)
This is located on the rear panel of
the load compartment. The light comes
on automatically when you open the
sliding side doors (for versions/markets
where provided) and the rear swing
doors/tailgate (for versions/markets
where provided), and goes out when
you close them. Press the left or right
side of the movable lens A, as shown in
fig. 63, to switch the light on/off when
the doors are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(additional for Cargo long wheelbase
versions)
This is located on the right side of the
load compartment. The light comes on
automatically when you open the sliding
side doors and the rear wing
doors/tailgate and goes out when you
close them.
Press the left-hand side of the lens A
fig. 63, as shown in the diagram, to
switch the light on/off when the doors
are closed.
LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 64 comes on automatically
when the swing doors or tailgate (for
versions/markets where provided)
are opened and goes out when they
are closed.REAR ROOF LIGHT WITH
REMOVABLE TORCH
(for Cargo versions where provided)
The removable roof light is not
connected to the doors: it can only be
switched on/off manually by pressing
switch Afig. 65, with the ignition key
in MAR position.
Switch A can assume three different
positions:
❒with the switch in the middle, the light
is always off;
❒switch pushed up (position 1), light is
always on;
❒switch pushed down (position 2 -
AUTO OFF), light is always off.
63F0V0171
64F0V0172
65F0V0173
37
Page 42 of 323

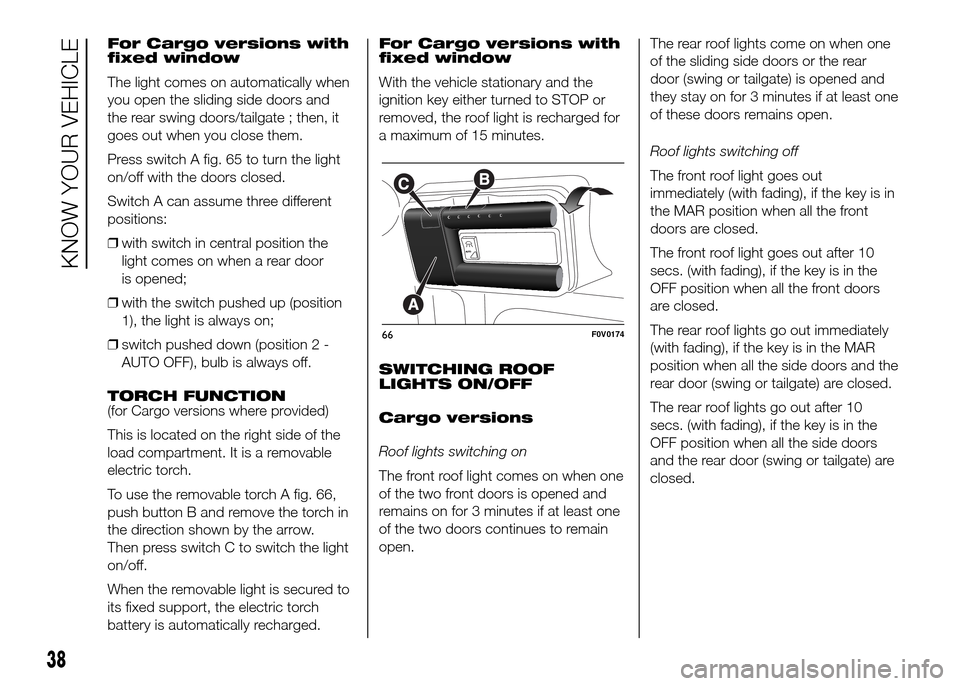

For Cargo versions with
fixed window
The light comes on automatically when
you open the sliding side doors and
the rear swing doors/tailgate ; then, it
goes out when you close them.
Press switch A fig. 65 to turn the light
on/off with the doors closed.
Switch A can assume three different
positions:
❒with switch in central position the
light comes on when a rear door
is opened;
❒with the switch pushed up (position
1), the light is always on;
❒switch pushed down (position 2 -
AUTO OFF), bulb is always off.
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of the
load compartment. It is a removable
electric torch.
To use the removable torch A fig. 66,
push button B and remove the torch in
the direction shown by the arrow.
Then press switch C to switch the light
on/off.
When the removable light is secured to
its fixed support, the electric torch
battery is automatically recharged.For Cargo versions with
fixed window
With the vehicle stationary and the
ignition key either turned to STOP or
removed, the roof light is recharged for
a maximum of 15 minutes.
SWITCHING ROOF
LIGHTS ON/OFF
Cargo versions
Roof lights switching on
The front roof light comes on when one
of the two front doors is opened and
remains on for 3 minutes if at least one
of the two doors continues to remain
open.The rear roof lights come on when one
of the sliding side doors or the rear
door (swing or tailgate) is opened and
they stay on for 3 minutes if at least one
of these doors remains open.
Roof lights switching off
The front roof light goes out
immediately (with fading), if the key is in
the MAR position when all the front
doors are closed.
The front roof light goes out after 10
secs. (with fading), if the key is in the
OFF position when all the front doors
are closed.
The rear roof lights go out immediately
(with fading), if the key is in the MAR
position when all the side doors and the
rear door (swing or tailgate) are closed.
The rear roof lights go out after 10
secs. (with fading), if the key is in the
OFF position when all the side doors
and the rear door (swing or tailgate) are
closed.
66F0V0174
38
KNOW YOUR VEHICLE

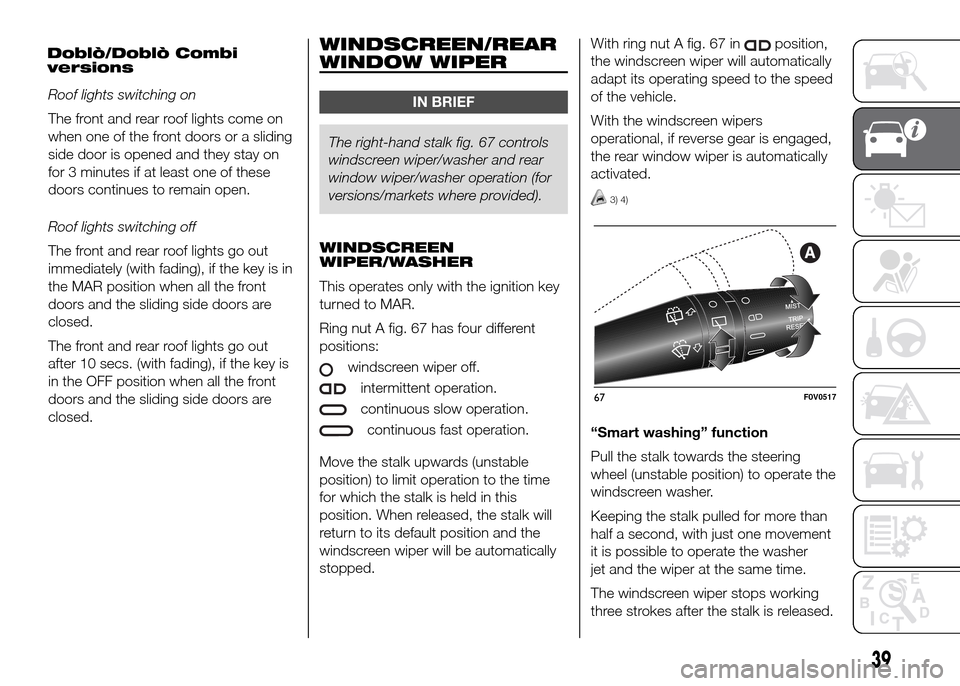

Page 43 of 323
Roof lights switching on
The front and rear roof lights come on
when one of the front doors or a sliding
side door is opened and they stay on
for 3 minutes if at least one of these
doors continues to remain open.
Roof lights switching off
The front and rear roof lights go out
immediately (with fading), if the key is in
the MAR position when all the front
doors and the sliding side doors are
closed.
The front and rear roof lights go out
after 10 secs. (with fading), if the key is
in the OFF position when all the front
doors and the sliding side doors are
closed.
WINDSCREEN/REAR
WINDOW WIPER
IN BRIEF
The right-hand stalk fig. 67 controls
windscreen wiper/washer and rear
window wiper/washer operation (for
versions/markets where provided).
WINDSCREEN
WIPER/WASHER
This operates only with the ignition key
turned to MAR.
Ring nut A fig. 67 has four different
positions:
windscreen wiper off.
intermittent operation.
continuous slow operation.
continuous fast operation.
Move the stalk upwards (unstable
position) to limit operation to the time
for which the stalk is held in this
position. When released, the stalk will
return to its default position and the
windscreen wiper will be automatically
stopped.With ring nut A fig. 67 in
position,
the windscreen wiper will automatically
adapt its operating speed to the speed
of the vehicle.
With the windscreen wipers
operational, if reverse gear is engaged,
the rear window wiper is automatically
activated.
3) 4)
“Smart washing” function
Pull the stalk towards the steering
wheel (unstable position) to operate the
windscreen washer.
Keeping the stalk pulled for more than
half a second, with just one movement
it is possible to operate the washer
jet and the wiper at the same time.
The windscreen wiper stops working
three strokes after the stalk is released.
67F0V0517
39
Doblò/Doblò Combi
versions
Page 44 of 323
A further stroke after approximately 6
seconds completes the cycle.
REAR WINDOW
WIPER/WASHER
This operates only with the ignition key
turned to MAR.
Activation
Turn the ring nut to
to operate the
rear window wiper:
❒in intermittent mode when the
windscreen wiper is not operating;
❒in synchronous mode (at half the
speed of the windscreen wiper) when
the windscreen wiper is operating;
❒in continuous mode with reverse gear
engaged and the control active.
With the windscreen wiper on and
reverse gear engaged, rear window
wiping will be continuous.
Pushing the stalk towards the
dashboard (unstable position) will
activate the rear window washer jet.
Keep the stalk pushed for more than
half a second to activate the rear
window wiper as well. Releasing the
stalk will activate the smart washing
function, as described for the
windscreen wiper.
The function stops when the stalk is
released.
5)
HEADLIGHT WASHERS
(for versions/markets, where provided)
They are activated when the dipped
headlights are on and the windscreen
washer is activated.
IMPORTANT Check jet function and
cleanliness at regular intervals.
6)
IMPORTANT
3) Do not use the windscreen wiper
to remove layers of snow or ice
from the windscreen. In such
conditions, the windscreen wiper
may be subjected to excessive
stress and the motor cut-out
switch, which prevents operation
for a few seconds, may intervene.
If operation is not restored (even
after turning the key and
restarting the engine), contact a
Fiat Dealership.
4) Do not operate the windscreen
wiper with the blades lifted from
the windscreen.5) Do not use the rear window wiper
to remove layers of snow or ice. In
such conditions, the wiper may
be subjected to excessive stress
and the motor protection, which
prevents operation for a few
seconds, may intervene. If
operation is not restored, contact
a Fiat Dealership.
6) The headlamp washer jet does not
function when the level of fluid in
the reservoir falls below 1.6 litres.
40
KNOW YOUR VEHICLE
Page 45 of 323

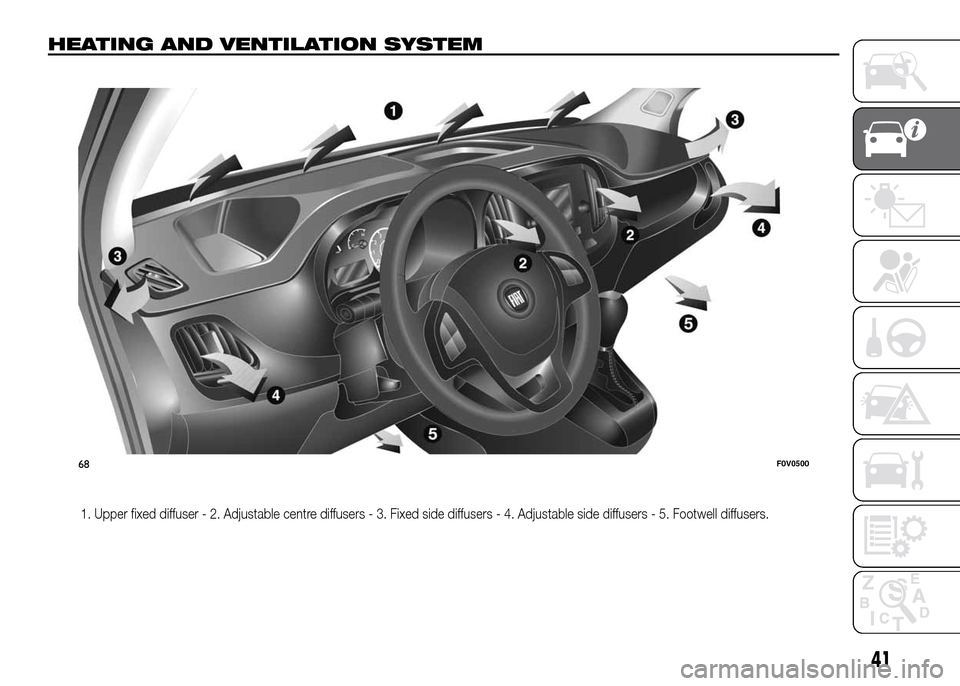

HEATING AND VENTILATION SYSTEM
1. Upper fixed diffuser - 2. Adjustable centre diffusers - 3. Fixed side diffusers - 4. Adjustable side diffusers - 5. Footwell diffusers.
68F0V0500
41
Page 46 of 323

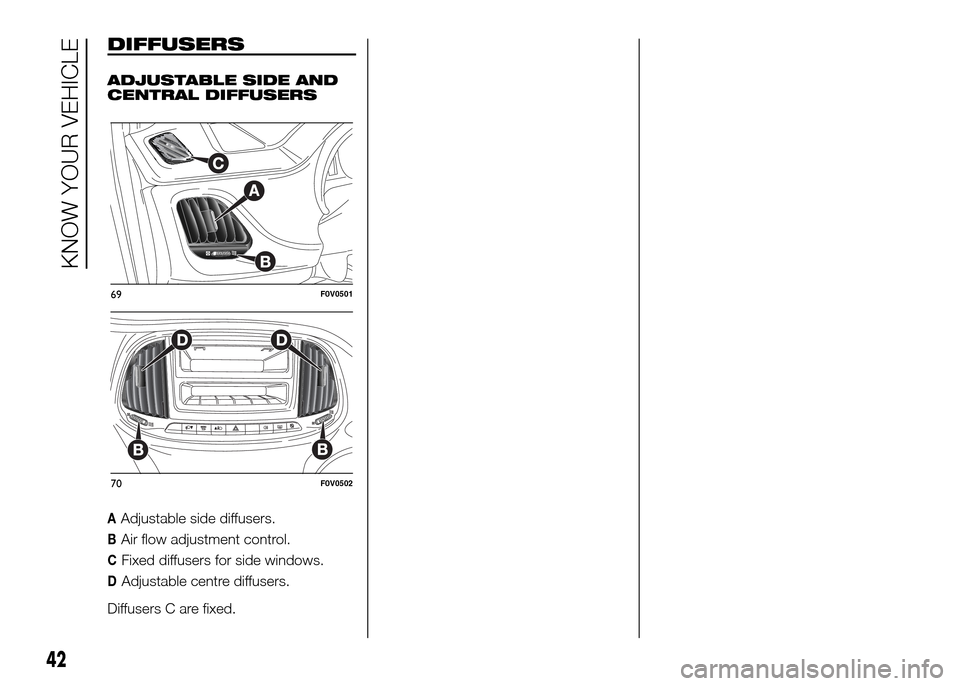

DIFFUSERS
ADJUSTABLE SIDE AND
CENTRAL DIFFUSERS
AAdjustable side diffusers.
BAir flow adjustment control.
CFixed diffusers for side windows.
DAdjustable centre diffusers.
Diffusers C are fixed.
69F0V0501
70F0V0502
42
KNOW YOUR VEHICLE
Page 47 of 323
HEATING AND VENTILATION.
CONTROLS
A: air temperature adjustment knob (hot/cold air mixing)
B: fan activation knob
C: air distribution knob.
D: internal air recirculation on/off button
E: heated rear window on/off button (for versions/markets, where provided).
71F0V0503
43
Page 48 of 323

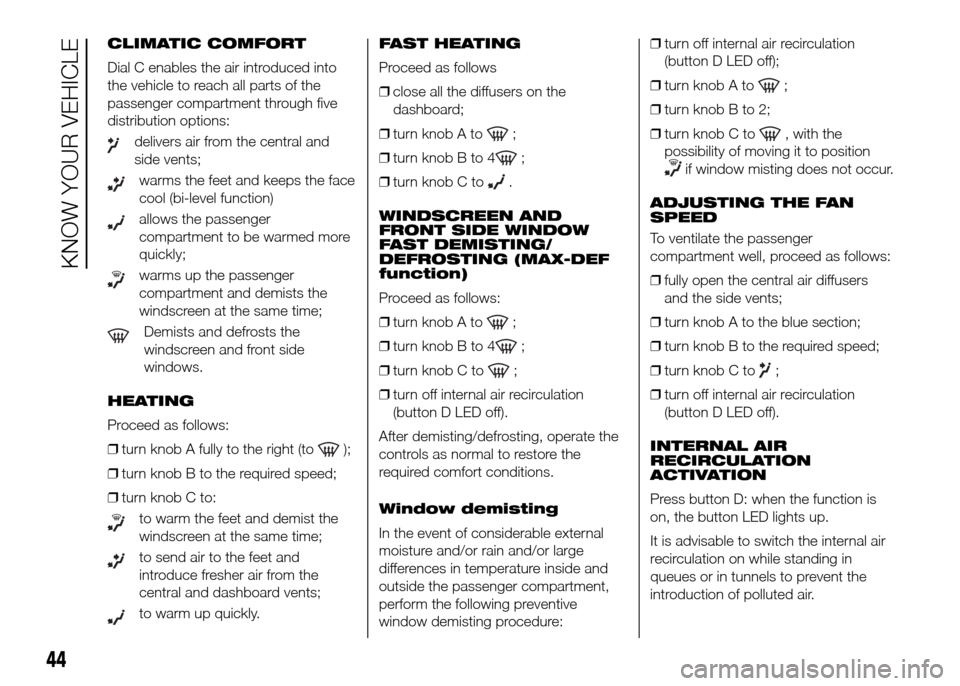

CLIMATIC COMFORT
Dial C enables the air introduced into
the vehicle to reach all parts of the
passenger compartment through five
distribution options:
delivers air from the central and
side vents;
warms the feet and keeps the face
cool (bi-level function)
allows the passenger
compartment to be warmed more
quickly;
warms up the passenger
compartment and demists the
windscreen at the same time;
Demists and defrosts the
windscreen and front side
windows.
HEATING
Proceed as follows:
❒turn knob A fully to the right (to
);
❒turn knob B to the required speed;
❒turn knob C to:
to warm the feet and demist the
windscreen at the same time;
to send air to the feet and
introduce fresher air from the
central and dashboard vents;
to warm up quickly.FAST HEATING
Proceed as follows
❒close all the diffusers on the
dashboard;
❒turn knob A to
;
❒turn knob B to 4
;
❒turn knob C to
.
WINDSCREEN AND
FRONT SIDE WINDOW
FAST DEMISTING/
DEFROSTING (MAX-DEF
function)
Proceed as follows:
❒turn knob A to
;
❒turn knob B to 4
;
❒turn knob C to
;
❒turn off internal air recirculation
(button D LED off).
After demisting/defrosting, operate the
controls as normal to restore the
required comfort conditions.
Window demisting
In the event of considerable external
moisture and/or rain and/or large
differences in temperature inside and
outside the passenger compartment,
perform the following preventive
window demisting procedure:❒turn off internal air recirculation
(button D LED off);
❒turn knob A to
;
❒turn knob B to 2;
❒turn knob C to
, with the
possibility of moving it to position
if window misting does not occur.
ADJUSTING THE FAN
SPEED
To ventilate the passenger
compartment well, proceed as follows:
❒fully open the central air diffusers
and the side vents;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to
;
❒turn off internal air recirculation
(button D LED off).
INTERNAL AIR
RECIRCULATION
ACTIVATION
Press button D: when the function is
on, the button LED lights up.
It is advisable to switch the internal air
recirculation on while standing in
queues or in tunnels to prevent the
introduction of polluted air.
44
KNOW YOUR VEHICLE
Page 49 of 323

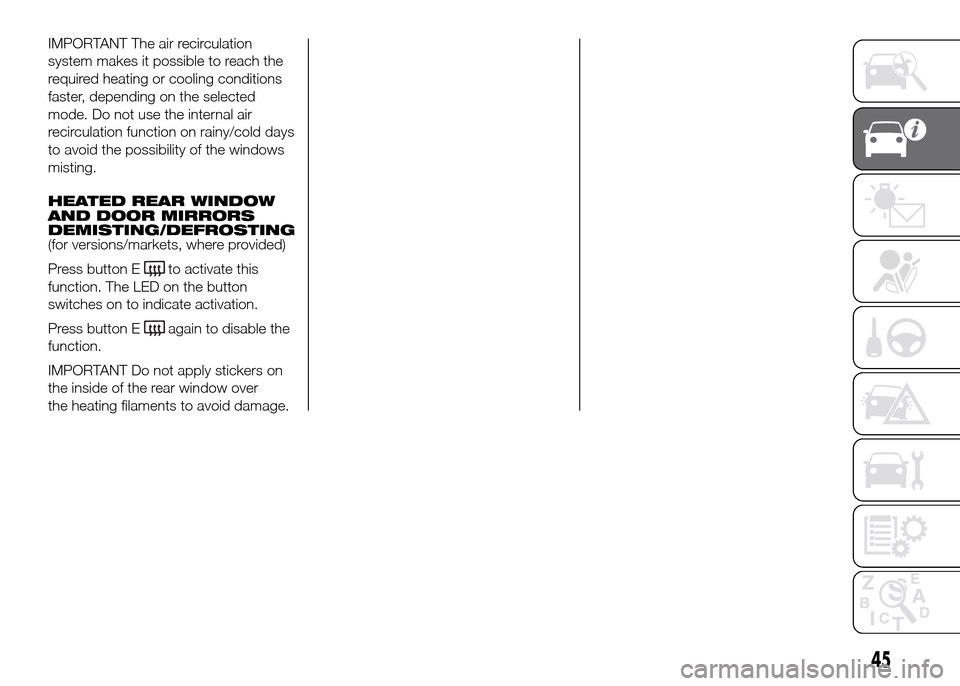

IMPORTANT The air recirculation
system makes it possible to reach the
required heating or cooling conditions
faster, depending on the selected
mode. Do not use the internal air
recirculation function on rainy/cold days
to avoid the possibility of the windows
misting.
HEATED REAR WINDOW
AND DOOR MIRRORS
DEMISTING/DEFROSTING
(for versions/markets, where provided)
Press button E
to activate this
function. The LED on the button
switches on to indicate activation.
Press button E
again to disable the
function.
IMPORTANT Do not apply stickers on
the inside of the rear window over
the heating filaments to avoid damage.
45
Page 50 of 323
F: heated rear window on/off button (for versions/markets, where provided)
72F0V0504
46
KNOW YOUR VEHICLE
MANUAL CLIMATE CONTROL SYSTEM
(for versions/markets, where provided).
CONTROLS
A: air temperature adjustment knob (hot/cold air mixing)
B: fan activation knob
C: air distribution knob.
D: climate control system compressor on/off button
E: internal air recirculation on/off button
