Abarth 500 2014 Owner handbook (in English)

30
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Fast front window and front side
windows demisting/defrosting
(MAX-DEF)
Proceed as follows:
❒ rotate knob Ato red section;
❒ rotate knob Cto Ú;
❒ rotate knob Dto -;
❒ rotate knob Bto 4-(max. fan speed).IMPORTANT the climate control system
is very useful to accelerate demisting, be-
cause it dehumidifies the air. Adjust the
controls as described above and press
knob Eto switch the climate control sys-
tem on: the LED on the knob will light up.LOOKING AFTER THE SYSTEM
Run the climate control system for at least
10 minutes every month during the win-
ter. Have the system inspected at a Abarth
Abarth Dealershipbefore the summer.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 30

31
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
AUTOMATIC CLIMATE
CONTROL SYSTEM
(for versions/markets, where provided)
According to the temperature set by the
user, the automatic climate control sys-
tem automatically adjusts:
❒the temperature of the air sent to the
passenger compartment;
❒fan speed (continuous air flow varia-
tion);
❒the distribution of air inside the pas-
senger compartment;
❒compressor activation/deactivation (to
cool/dehumidify air);
❒air recycle activation/deactivation;
All functions can be manually changed. In
other words, you may operate the system
selecting one or more functions. The man-
ual setting of a function does not impair
the automatic control of the other func-
tions even if the led of the knob AUTO
is off.
fig. 29F0S029Ab
CONTROLS fig. 29
Button AUTO - A
Activation of the automatic
function of the climate control
system
Pressing the button AUTOand setting
the temperature, the system adjusts the
temperature, the quantity and distribution
of the air into the passenger compartment
and controls the activation of the com-
pressor.Button √- B
Climate control compressor on/off
Pressing the button, with led on, the com-
pressor and the led switch off.
When the compressor is off:
❒the system deactivates air recycle to
avoid window misting;
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 31

32
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
❒it is not possible to supply into the pas-
senger compartment air with a tem-
perature lower than external air tem-
perature (the temperature indicated on
the display blinks when the system does
not ensure the achievement of the re-
quired comfort conditions);
❒it is possible to manually reset the fan
speed (with compressor enabled, ven-
tilation cannot go below a bar shown
on the display).
Button OFF - C
System switch off
Pressing the button OFFthe system is
switched off.
The following climate control conditions
will be established when the system is off:
❒all LEDs off;
❒set temperature display off;
❒air recycle off;
❒compressor off;
❒fan off.
In this condition, it is possible to enable or
disable air recycle without system activa-
tion.Button
…- D
Air recycle on/off button
It is advisable to activate air recycle in
queues or in tunnels to prevent the in-
troduction of polluted air.
Led on button ON = recycle ON.
Led on button OFF = recycle OFF.
For low temperatures or if the compres-
sor is off, the recycle is forced to off to
avoid misting.
IMPORTANT It is advisable not to use the
air recycle function when the outside tem-
perature is low, to prevent the windows
from rapidly misting up.
Buttons
ÕÔ- E
Temperature setting
Pressing the button
Õthe temperature
in the passenger compartment rises until
the value HI is reached (maximum heat-
ing).
Pressing the button
Ôthe temperature
in the passenger compartment decreases
until the value LO is reached (maximum
cooling).
IMPORTANT Specifically, if the heating flu-
id is not sufficiently warm, the fan will not
start up at the maximum speed immedi-
ately to limit introducing excessively cool
air into the passenger compartment.Buttons
ÕÔ- F
Fan speed setting
Pressing the buttons
Õor Ôrespective-
ly, the fan speed displayed on the display
bars increases or decreases.
The fan can be cut off only if the com-
pressor has been switched off (button B).
To restore automatic fan speed control,
press button AUTO.
Buttons
´μ∂- G H I
Manual selection
of air distribution
Pressing the buttons, it is possible to set
one of 5 different air flow options:
´to the windscreen and front side win-
dow vents to demist or defrost them.
μto central and side dashboard vents to
ventilate the chest and the face during
the hot season.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 32

33
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
∂to the vents in the feet area (front
seats). The natural tendency of hot
air to spread upwards, allows to
warm the passenger compartment
up as quickly as possible, providing
an immediate feeling of warmth.
∂+μdistribution between feet area
vents (warmer air) and dashboard
vents (cooler air).
∂+´distribution between feet area
vents and windscreen and front
side window vents). This distribu-
tion allows an adequate warming of
the passenger compartment and
prevents the windows from mist-
ing up.
The set distribution is shown by the LEDs
on the selected buttons.
To restore automatic air distribution con-
trol, press button AUTO.Button
-- L
Front window fast
demisting/defrosting button
Pressing the button
-the system acti-
vates all the functions required for fast
demisting/defrosting:
❒compressor switch on (if climatic con-
ditions are suitable);
❒air recycle off;
❒air temperature set to maximum (HI);
❒fan speed selection depending on
coolant temperature;
❒air flow toward the windshield and the
front side windows;
❒heated rear window on.
IMPORTANT The function remains active
for about 3 minutes since the engine
coolant temperature exceeds 50°C (for
petrol versions) or 35°C (for Diesel ver-
sions).The system uses R134a
coolant which, in the event of
accidental leaks, is not dan-
gerous for the environment.
Do not use R12 coolant, not suitable
for the components of the system.HEATED REAR WINDOW
DEMISTER/DEFROSTER
Press the button Mto activate this func-
tion; its activation is shown by a warning
light on the instrument panel.
The function is automatically deactivated
after about 20 minutes. To turn off the
function beforehand, press again the but-
ton
(.
IMPORTANT Do not apply stickers on
the internal side of the rear window over
the filaments of the heated rear window,
to avoid damaging it. LOOKING AFTER THE SYSTEM
Run the climate control system for at least
10 minutes every month during the win-
ter.
Have the system inspected at a Abarth
Dealership before the summer.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 33

34
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
LOW BEAMS SIDE/TAILLIGHTS
fig. 30
With the key on MAR turn the knurled
ring to
2. If low beams are activated, day-
light lights are deactivated and taillights and
low beams are activated. The warning light
3on the instrument panel will come on
at the same time. With ignition key on
STOPor removed, rotate the knurled
ring from position Oto position
2. The
light
3on the instrument panel turns on
and all taillights and number plate lights
turn on.
MAIN BEAMS fig. 30
With knurled ring in position
2, push the
stalk forward toward the dashboard
(steady position). The warning light
1on the instrument panel will come on.
They switch off pulling the stalk toward
the wheel (low beams turn on).FLASHING fig. 30
You can flash the beams pulling the stalk
toward the wheel (unstable position).
The warning light
1on the instrument
panel will come on at the same time.
DIRECTION INDICATORS fig. 31
Move the stalk to (steady) position:
up (position a): right-hand indicator
down (position b): left-hand indicator
Warning light ¥or Îwill blink on the in-
strument panel. Direction indicator auto-
matically turn off, when the car travels
again in a straight direction.
Lane change function
If you want to signal that you want to
change lane, move the left stalk to un-
steady position for less than half a second.
The direction indicator of the selected
side activates for three blinks and then au-
tomatically turns off.
EXTERNAL LIGHTS
The left-hand stalk operates most of the
external lights. The external lights can on-
ly be switched on when the ignition key
is on MAR. The instrument panel and the
various instrument panel controls will
come on with the external lights.
DAYLIGHT LIGHT (D.R.L.) fig. 30
(for versions/markets, where provided)
With the key on MARand the knurled ring
on Othe daylight lights automatically turn
on; the other lights and the internal lighting
do not turn on. The daylight lights auto-
matic switch on function can be en-
abled/disabled using the display menus (see
paragraph “Multifunctional and reconfig-
urable multifunctional display” in this chap-
ter). If daylight lights are disabled, with
knurled ring in position Ono light turns on.
fig. 30F0S030Abfig. 31F0S031Ab
Daylight lights are an alter-
native to the low beams
during daylight travelling, when they
are mandatory, and their use is al-
lowed when low beams are not
mandatory.
Daylight lights do not replace low
beams when travelling in tunnels or
during the night.
The use of daylight lights is governed
by the Highway Code of the country
you are in. Keep to the rules.
WARNING
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 34

35
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
WINDOW WASHING
The right stalk fig. 32controls windscreen
wiper/washer and heated rear window
wiper/washer operation.
WINDSCREEN WASHER/WIPER
The device can work only when the igni-
tion key is on MAR.
The stalk has 5 different positions (4
speeds):
Awindscreen wiper off.
Bintermittent.
Ccontinuous slow.
Dcontinuous fast.
Etemporary fast (unstable position).
The temporary fast function lasts as long
as you manually keep the stalk in that po-
sition. When released, the stalk will return
to position Aand the wiper will be auto-
matically stopped.“Smart washing” function
Pull the stalk towards the steering wheel
(unstable position) to operate the wind-
screen washer jet.
Keep the stalk pulled to activate with a sin-
gle movement the windscreen washer jet
and the windscreen wiper; the latter au-
tomatically turns on if you keep the stalk
pulled for over half a second. The wind-
screen wiper stops operating a few
strokes after releasing the stalk; a further
“cleaning stroke”, after a few seconds,
completes the wiping operation. “FOLLOW ME HOME” DEVICE
This function allows the illumination of the
space in front of the car for a preset pe-
riod of time.
Activation
With the ignition key on STOPor re-
moved, pull the stalk towards the steering
wheel within 2 minutes from when the en-
gine is turned off.
At each movement of the stalk, the stay-
ing on of the lights is extended by 30 sec-
onds up to a maximum of 210 seconds;
then the lights are switched off automati-
cally.
Each time the stalk is operated, the warn-
ing light
3on the instrument panel
turns on and the display shows how long
the function remains active.
The warning light turns on the first time
the stalk is operated, and stays on until the
function is automatically deactivated. Each
time you operate the lever, only the per-
manence of lights increases.
Deactivation
Keep the stalk pulled towards the steer-
ing wheel for more than 2 seconds.
F0S032Abfig. 32
Do not use the windscreen
wiper to remove layers of
snow or ice from the wind-
screen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If the issue persists,
contact the Abarth Dealership.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 35

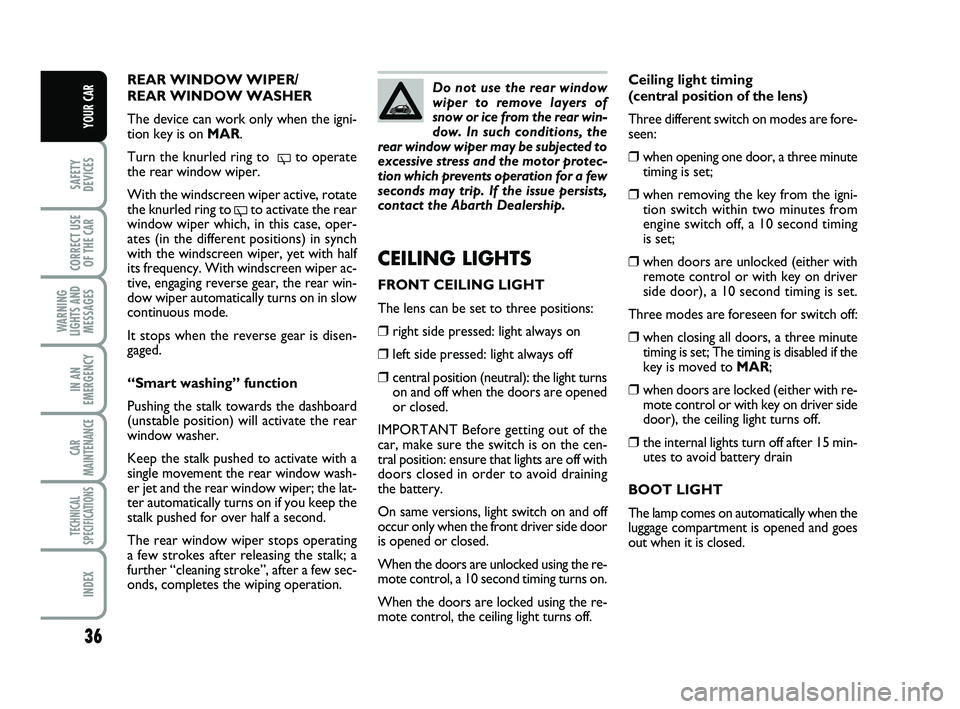

36
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Ceiling light timing
(central position of the lens)
Three different switch on modes are fore-
seen:
❒when opening one door, a three minute
timing is set;
❒when removing the key from the igni-
tion switch within two minutes from
engine switch off, a 10 second timing
is set;
❒when doors are unlocked (either with
remote control or with key on driver
side door), a 10 second timing is set.
Three modes are foreseen for switch off:
❒when closing all doors, a three minute
timing is set; The timing is disabled if the
key is moved to MAR;
❒when doors are locked (either with re-
mote control or with key on driver side
door), the ceiling light turns off.
❒the internal lights turn off after 15 min-
utes to avoid battery drain
BOOT LIGHT
The lamp comes on automatically when the
luggage compartment is opened and goes
out when it is closed.
CEILING LIGHTS
FRONT CEILING LIGHT
The lens can be set to three positions:
❒right side pressed: light always on
❒left side pressed: light always off
❒central position (neutral): the light turns
on and off when the doors are opened
or closed.
IMPORTANT Before getting out of the
car, make sure the switch is on the cen-
tral position: ensure that lights are off with
doors closed in order to avoid draining
the battery.
On same versions, light switch on and off
occur only when the front driver side door
is opened or closed.
When the doors are unlocked using the re-
mote control, a 10 second timing turns on.
When the doors are locked using the re-
mote control, the ceiling light turns off. REAR WINDOW WIPER/
REAR WINDOW WASHER
The device can work only when the igni-
tion key is on MAR.
Turn the knurled ring to
'to operate
the rear window wiper.
With the windscreen wiper active, rotate
the knurled ring to
'to activate the rear
window wiper which, in this case, oper-
ates (in the different positions) in synch
with the windscreen wiper, yet with half
its frequency. With windscreen wiper ac-
tive, engaging reverse gear, the rear win-
dow wiper automatically turns on in slow
continuous mode.
It stops when the reverse gear is disen-
gaged.
“Smart washing” function
Pushing the stalk towards the dashboard
(unstable position) will activate the rear
window washer.
Keep the stalk pushed to activate with a
single movement the rear window wash-
er jet and the rear window wiper; the lat-
ter automatically turns on if you keep the
stalk pushed for over half a second.
The rear window wiper stops operating
a few strokes after releasing the stalk; a
further “cleaning stroke”, after a few sec-
onds, completes the wiping operation.
Do not use the rear window
wiper to remove layers of
snow or ice from the rear win-
dow. In such conditions, the
rear window wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If the issue persists,
contact the Abarth Dealership.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 36

37
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
CONTROLS
SPORT FUNCTION CONTROL
fig. 33
When the SPORT button A-fig. 33is
pressed the sports driving setting is turned
on featuring more responsiveness during
acceleration, an increase in drive torque
and more precise steering with greater ef-
fort required on the steering wheel.
When the function is active, the message
SPORT is displayed on the instrument
panel. Press again the button to deactivate
the function and return to the standard
driving mode.
IMPORTANT Pressing SPORT, the func-
tion is active after about 5 seconds.
IMPORTANT When in SPORT mode, ac-
celeration may be abrupt, This is typical of
this mode.FRONT/REAR FOG LIGHTS
fig. 33
(for versions/markets, where provided)
To turn on the front/rear fog lights, use
the button Cas follows:
1° Pressure: front fog lights on
2° Pressure: rear fog lights on
3° Pressure: lights off
When the front fog lights are on, the
warning light
5turns on on the instru-
ment panel; when the rear fog lights are
on, the warning light
4turns on on the
instrument panel.
Front fog lights are turned on with low
beams on.
F0S033Abfig. 33
HAZARD LIGHTS fig. 33
They turn on pressing the button B, re-
gardless of the position of the ignition key.
When the function is active, warning lights
Îand ¥on the panel blink.
To switch off, press again the button B.
The use of hazard lights is governed by the
Highway Code of the country you are in.
Keep to the rules.
Emergency braking
In the event of emergency braking the
emergency lights automatically turn on and
at the same time the lights
Îend ¥turn
on on the dashboard.
The function automatically turns off when
the emergency braking stops.
This function complies with the current ap-
plicable laws.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 37

38
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING
FUEL CUT-OFF SYSTEM
It intervenes in case of collision, activating:
❒switch off of fuel supply with resultant
engine switch off;
❒automatic door lock release;
❒switch on of all lights inside the car.
When the system is active, the message
“Fuel cut-off see handbook” is displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, be-
low the car or near the tank area.
After the collision, position ignition key on
STOPto avoid battery draining.To reset car operation, follow this pro-
cedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP. REAR FOG LIGHTS fig. 34
They turn on, with low beams on, press-
ing the button D.
With lights on, the warning light 4on the
instrument panel will come on at the same
time. Press the button again to turn the
lights off.
123456AUD
F0S034Abfig. 34
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 38

39
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
INTERIOR FITTINGS
CIGAR LIGHTER
(for versions/markets, where provided)
SUN VISORS fig. 35
These are arranged at the sides of the in-
ternal rearview mirror.
They may be oriented frontally and to the
side.
At the back of the passenger side sun vi-
sor there is a vanity mirror, lit up by a spe-
cial courtesy light (for versions/markets,
where provided) that can be activated by
pressing button B. The sun visor on the
driver’s side and passenger side have doc-
ument holder pockets.
The cigar lighter becomes
very hot. Handle with care.
The device must not be used by chil-
dren: risk of fire or burns. Always check
that the cigar lighter has turned off.
WARNING
fig. 35
A
F0S035Abfig. 36F0S036Ab
GLOVE BOX ON PASSENGER
SIDE DASHBOARD fig. 36
(for versions/markets, where provided)
To open the glove box, operate opening
device A.
Do not travel with the odd-
ment compartments open:
they could hurt the passenger in case
of crash.
WARNING
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 39
