For the correct operation of the ESP and
ASR systems, the tyres must be the same
make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNINGASR SYSTEM (Antislip Regulator)
This function controls car drive and intervenes
automatically every time one or both driving wheels slip.
Depending on the slipping conditions, two different
control systems are activated:
❒if both drive wheels are slipping, the ASR function
intervenes by reducing the power transmitted by the
engine;
❒if the slipping only involves only one drive wheel, the
ASR system intervenes automatically braking the
wheel that is slipping.
The action of the ASR system is particularly helpful in
the following circumstances:
❒slipping of the inner wheel when cornering due to
the effect of dynamic load changes or excessive
acceleration;
❒too much power transmitted to the wheels in
relation to the conditions of the road surface;
❒acceleration on slippery, snowy or icy surfaces;
❒loss of grip on a wet surface (aquaplaning).Failure indications
In the event of a failure, the ASR will be automatically
switched off and the warning light áwill appear on the
instrument panel along with a message on the
reconfigurable multifunction display (see “Warning lights
and messages”). In this case, contact an Abarth
Dealership as soon as possible.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 90

92
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
EOBD SYSTEM
The EOBD system (European On Board Diagnosis)
carries out a continuous diagnosis of the components of
the car related to emissions.
It also alerts the driver, by turning on the warning light
Uon the instrument panel (together with relevant
message on the reconfigurable multifunction display)
(see section “Warning lights and messages”), when
these components are no longer in peak conditions.
The goal of the system is to:
❒keep the system efficiency under control;
❒warn when a failure causes emissions levels to
increase;
❒warn of the need to replace deteriorated
components.
The system also has a connector that can be interfaced
with appropriate equipment, which makes it possible to
read the error codes stored in the control unit together
with a series of specific parameters for engine operation
and diagnosis. This check can also be carried out by
traffic control authorities.
Contact an Abarth Dealership as soon as
possible if warning light
Ueither does
not light up when the key is turned to
MAR or if while travelling it comes on either
steady or blinking (along with a message on the
multifunctional display, where provided).
The operation of the
Uwarning light may be
checked by the traffic control authorities using
specific devices. Always comply with the traffic
regulations in force in the country where you are
driving.
IMPORTANT After eliminating the failure, to check the
system completely, Abarth Dealerships run a bench test
and, if necessary, road tests which may require a long
journey.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 92

93
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
TYRE PRESSURE MONITORING
SYSTEM (TPMS)
(for versions/markets where provided)
The car may be equipped with a tyre pressure
monitoring system (T.P.M.S.). This system comprises a
radio frequency transmitter fitted to each wheel (on the
rim inside the tyre), which is able to send information
on the pressure of each tyre to the control unit.
Take the greatest of care when checking
or restoring the tyre pressures. If the
pressure is too high, road hold is compromised,
there is more demand on the suspension and
wheels, and the tyres wear abnormally.
WARNING
Tyre pressure should be checked when
the tyres are cold; if, for whatever
reason, you check the pressure when the tyres
are hot, do not reduce the pressure even if it is
higher than the recommended value, but check
again when the tyres are cold.
WARNING
IMPORTANT NOTES ABOUT THE TPMS
SYSTEM
The fault indications are not stored and will therefore
not be displayed after the engine has been switched off
and then on again. If the fault conditions persist, the
control unit will send the relative indications to the
instrument panel only after the vehicle has been in
motion for a short time.
The presence of the TPMS does not
exonerate the driver from regularly
checking the pressure of the tyres and the spare
wheel (see “Wheels” in the “Maintenance and
care” section).
WARNING
The TPMS is not able to warn you of
sudden tyre pressure losses (for example
when a tyre bursts). In this case, stop the car,
braking with care and avoiding sharp steering
actions.
WARNING
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 93

94
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Replacing the normal tyres with winter
tyres and vice versa requires an
inspection of the TPMS, which should be carried
out only by an Abarth Dealership.
WARNING
The TPMS requires the use of specific
equipment. Contact an Abarth
Dealership to find out which accessories are
compatible with the system (wheels, hub caps
etc.). The use of other accessories may affect
the normal operation of the system.
WARNING
Tyre inflation pressure may vary
according to outdoor temperature. The
TPMS system may temporarily indicate
insufficient pressure. In this case, check the tyre
pressures with the tyres cold and, if necessary,
pump them up.
WARNING
.If the vehicle is fitted with TPMS, tyre
and wheel fitting/removal operations
require specific precautions. To prevent damage
or incorrect sensor refitting, contact an Abarth
Dealership to have tyre and/or
rim changed.
WARNING
If the vehicle is fitted with TPMS, when
a tyre is removed, it is advisable to
replace the rubber gasket for the valve. Contact
an Abarth Dealership.
WARNING
Strong radio-frequency interference
could inhibit the correct operation of
the TPMS system.
This condition will be indicated by a message on
the reconfigurable multfunction display. The
message will disappear automatically as soon as
the interference ceases to disturb the system.
WARNING
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 94

96
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 91
DRIVING MODES
The activation of “Sport” driving mode is indicated by
the switching on of the “S” symbol on the lower right
area of the reconfigurable multifunction display, as
shown in fig. 92-93.
When “Normal” mode is selected, no messages or
symbols are shown on the display, fig. 94-95.“MANETTINO ABARTH” CAR
DYNAMIC CONTROL SYSTEM
(DSS - Driving Sport Switch)
This device allows, using switch A-fig. 91, two response
modes to be selected according to driving style and
road conditions.
S = Sport (mode for sports driving)
N = Normal (mode for driving in normal conditions)
After being operated, the lever A always returns to the
central position.
The device also acts on the car dynamic control systems
(instrument panel, steering, engine, TTC and ASR
systems).
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 96

98

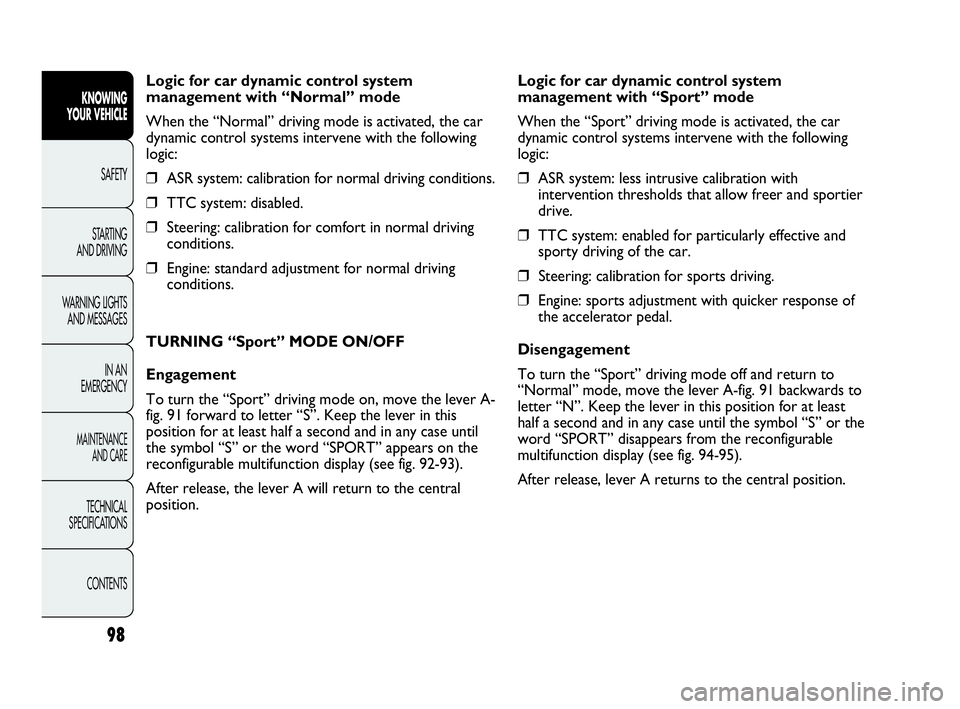

Logic for car dynamic control system
management with “Normal” mode
When the “Normal” driving mode is activated, the car
dynamic control systems intervene with the following
logic:
❒ASR system: calibration for normal driving conditions.
❒TTC system: disabled.
❒Steering: calibration for comfort in normal driving
conditions.
❒Engine: standard adjustment for normal driving
conditions.
TURNING “Sport” MODE ON/OFF
Engagement
To turn the “Sport” driving mode on, move the lever A-
fig. 91 forward to letter “S”. Keep the lever in this
position for at least half a second and in any case until
the symbol “S” or the word “SPORT” appears on the
reconfigurable multifunction display (see fig. 92-93).
After release, the lever A will return to the central
position.
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Logic for car dynamic control system
management with “Sport” mode
When the “Sport” driving mode is activated, the car
dynamic control systems intervene with the following
logic:
❒ASR system: less intrusive calibration with
intervention thresholds that allow freer and sportier
drive.
❒TTC system: enabled for particularly effective and
sporty driving of the car.
❒Steering: calibration for sports driving.
❒Engine: sports adjustment with quicker response of
the accelerator pedal.
Disengagement
To turn the “Sport” driving mode off and return to
“Normal” mode, move the lever A-fig. 91 backwards to
letter “N”. Keep the lever in this position for at least
half a second and in any case until the symbol “S” or the
word “SPORT” disappears from the reconfigurable
multifunction display (see fig. 94-95).
After release, lever A returns to the central position.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 98

100
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
NO ENGINE CUT-OUT CONDITIONS
With the device activated, for reasons of comfort,
limiting emissions and safety, the engine does not stop in
certain conditions, including:
❒engine still cold;
❒particularly cold outside temperatures, where the
appropriate indication is provided;
❒battery not sufficiently charged;
❒ driver’s door not shut;
❒ driver’s seat belt not fastened;
❒ reverse gear engaged (for example, during parking
manoeuvres);
❒automatic climate control is on and a comfortable
temperature has not yet been reached or MAX –
DEF function enabled;
❒during the first period of use, to initialise the system.
In the above cases, a message appears in the display and
the warning light fig. 98 flashes in the instrument panel. MANUAL ACTIVATION AND
DEACTIVATION
You can activate/deactivate the Start&Stop device by
pressing the button on the dashboard fig. 96.
When the device is active, the relevant warning light on
the instrument panel switches on fig. 97.
When the system is deactivated, the warning light on
the instrument panel switches on fig. 98.
The relevant device deactivation/activation messages
appear on the reconfigurable multifunction display.
fig. 98
If climate comfort is to be favoured, the
Start&Stop system can be disabled, for
a continuous operation of the climate
control system.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 100

101
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 99
SAFETY FUNCTIONS
In engine cut-out conditions through the Start&Stop
system, if the driver unfastens his/her seat belt and
opens the driver’s door or the passenger door, the
engine can be restarted only by using the key.
The driver is notified of this condition both by a buzzer
and through an information message in the display and
by the warning light fig. 98 on the instrument panel
flashing.
ENERGY SAVING FUNCTION
(for versions/markets, where provided)
If, after the engine has been automatically restarted, the
driver does not take any action for a period of about
three minutes, the Start&Stop system will definitively
stop the engine to avoid fuel consumption. In these
cases, the engine can be restarted only by using the key. RESTARTING CONDITIONS
For reasons of comfort, limiting pollutant emissions and
safety purposes, the power unit can restart automatically
without any action on behalf of the driver if certain
conditions are met, including:
❒battery not sufficiently charged;
❒reduced braking system pressure, e.g. following the
brake pedal being pressed repeatedly;
❒car in motion, for example when driving on steep
roads;
❒stopping the engine through the Start&Stop system
for more than about three minutes;
❒automatic climate control system for establishing a
comfortable temperature or enabling the MAX –
DEF function.
With a gear engaged, the engine can be automatically
restarted only by fully depressing the clutch pedal.
The driver is asked to perform this operation through
a message on the instrument panel and, where provided,
by the warning light fig. 97 on the instrument panel
flashing.
Notes
If the clutch is not depressed when three minutes have
elapsed since the engine was stopped, the engine can
only be restarted using the key.
In cases when the engine stops and this is not desired,
due for example to the clutch pedal being released
sharply with a gear engaged, if the Start&Stop system is
activated, the engine can be restarted by fully depressing
the clutch pedal or by putting the gear lever into
neutral.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 101

104
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CD CHANGER CAPABILITY
(for versions/markets where provided)
The system consists of:
❒power cables;
❒connection cables.
For connection to the preset cables,
contact an Abarth Dealership to prevent
any problem that could impair car safety.
WARNING
When the SHIFT UP icon (NSHIFT) is shown on the
display, the “e-GSI” system is advising the driver to
select a higher gear, while the SHIFT DOWN
(
OSHIFT) icon suggests that a lower gear should be
engaged.
Note The “e-GSI” system intervenes only when the
“Normal” driving mode is activated (see the “Manettino
Abarth car dynamic control system (DSS – Driving
Sport Switch)” paragraph in this section).
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 104

111
PRETENSIONERS
To increase the efficiency of the seat belts, the car is
fitted with front pretensioners. These devices, in the
event of a violent crash, rewind the seat belts by a few
centimetres. In this way, they ensure that the seat belt
adheres perfectly to the wearer before the restraining
action begins.
The seat belt locks to indicate that the device has
intervened; the seat belt cannot be drawn back up even
when guiding it manually.
This car is equipped with a second pretensioner (in the
kick plate area). Its activation is signalled by the
shortening of the metal cable.
IMPORTANT To obtain the highest degree of
protection from the action of the pretensioning device,
wear the seat belt keeping it tight to the chest and
pelvis.
A slight amount of smoke may be detected during
operation of the pretensioners. This smoke is not
harmful and does not indicate a fire.
The pretensioner does not require any maintenance or
lubrication.
Anything that modifies its original conditions invalidates
its efficiency.
If, due to unusual natural events (floods, sea storms,
etc.), the device has been affected by water and mud,
it must be replaced.
S.B.R. SYSTEM
The car is fitted with the S.B.R. system (Seat Belt
Reminder), consisting of a buzzer which, together with
the turning on of warning light
panel, warns the driver and the front passenger (for
versions/markets, where provided) to fasten their seat
belts.
For permanent deactivation, contact an Abarth
Dealership.
With reconfigurable multifunction display, the S.B.R.
system can be reactivated through the set-up menu.
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
109-130 PUNTO Abarth GB 1ed 17-07-2012 12:10 Pagina 111
