CD player Abarth Punto 2018 Owner handbook (in English)

Automatic tuning ............................................................ 245
Manual tuning .................................................................. 245
Autostore function ........................................................ 246
Emergency alarm reception ......................................... 247
EON function ................................................................. 247
Stereophonic broadcasters .......................................... 247
CD PLAYER .................................................................... 248
Introduction .................................................................... 248
CD player selection ....................................................... 248
CD loading/ejection ....................................................... 249
Display readings .............................................................. 250
Track selection ................................................................ 250
Fast forward/rewind through tracks .......................... 250
Pause function ................................................................. 250
CD MP3 PLAYER ........................................................... 251
Introduction .................................................................... 251
MP3 mode ....................................................................... 251
Selection of MP3 sessions with hybrid discs ............ 251
Display readings .............................................................. 252
Selection of next/previous folder ............................... 252
Folder structure ............................................................. 252
AUX (only with Blue&Me™)..................................... 253
Introduction .................................................................... 253
AUX mode ...................................................................... 253
TROUBLESHOOTING ............................................... 254
RADIO
INTRODUCTION ........................................................ 222
Suggestions ...................................................................... 222
Technical specifications ................................................. 224
QUICK GUIDE .............................................................. 225
Steering wheel controls ................................................ 228
General information ...................................................... 229
FUNCTIONS AND ADJUSTMENTS ........................ 231
Turning the car radio on .............................................. 231
Turning the car radio off .............................................. 231
Selecting the radio functions ....................................... 231
Selecting CD function ................................................... 231
Audio source memory function .................................. 231
Volume adjustment ........................................................ 232
Mute/Pause function ...................................................... 232
Audio adjustments ......................................................... 233
Preset/User/Classic/Rock/Jazz functions ................... 235
User Eq Settings function ............................................. 235
Menu ................................................................................. 236
Phone function................................................................. 241
Phone set-up ................................................................... 242
Anti-theft protection ..................................................... 243

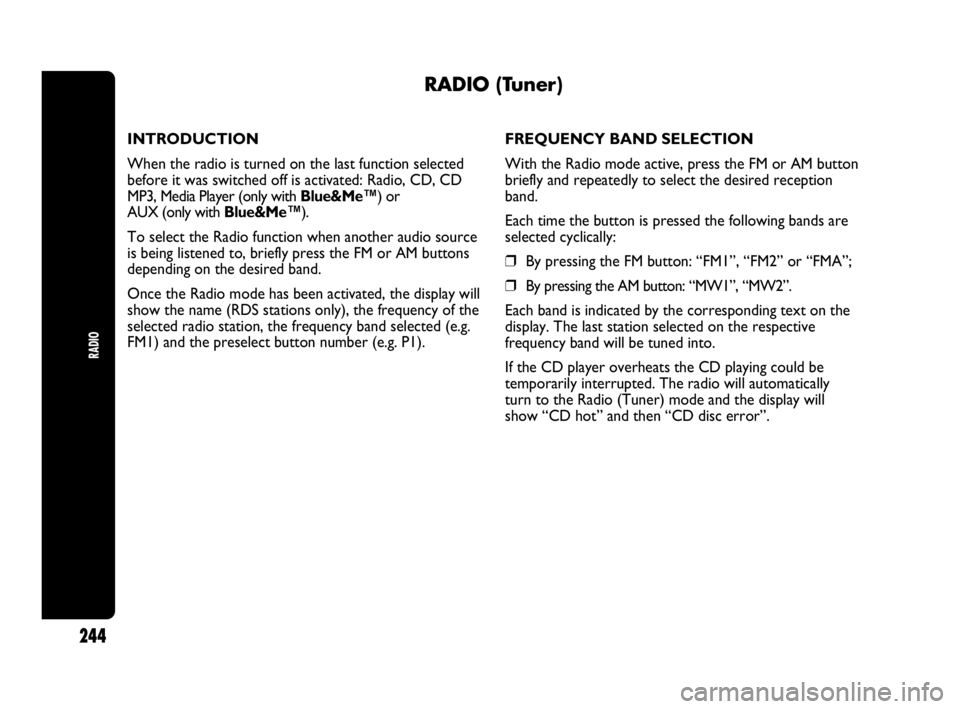

RADIO (Tuner) .............................................................. 244
Introduction .................................................................... 244
Selecting a frequency band ........................................... 244
Preselection buttons ..................................................... 245
Storing the last station listened to ............................. 245
RADIO
221
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 221

CDs
The presence of dirt, scratches or distortions on the
CDs may cause skipping while it is playing and poor
sound quality. For optimal playback conditions, follow
these guidelines:
❒only use CDs with the following mark;
RADIO
223
❒clean every CD thoroughly removing any fingermarks
or dust using a soft cloth. Hold CDs by the
circumference and clean them from the centre
towards the edge;
❒never use chemicals (e.g. antistatics or thinners or
sprays) for cleaning as they may damage the surface of
the CDs;
❒after listening place CDs back in their boxes to avoid
them from being damaged;
❒do not expose CDs to direct sunlight, high
temperatures or moisture for long periods;
❒do not stick labels on the CD surface or write on the
recorded surface with pencils or pens.
❒do not use CDs that are very scratched, flawed,
distorted, etc. Using discs like these will result in
malfunctions or damage to the player;
❒The use of original CD media is required for the best
quality audio production. Correct operation is not
guaranteed when CD-R/RW media are used that
were not correctly mastered and/or with a maximum
capacity above 650 Mb;
❒Do not use commercially available protective sheets
for CDs or discs with stabilisers, etc. as they could
get stuck in the internal mechanism and damage the
disc;
❒if a copy-protected CD is used, it may take a few
seconds before the system starts to reproduce it.
The CD player cannot be guaranteed to play all
protected discs. The fact that the CD is protected
from being copied is often shown in very small letters
or is just legible on the CD cover itself where it may,
for example, say “COPY CONTROL”, “COPY
PROTECTED”, “THIS CD CANNOT BE PLAYED
ON A PC/MAC”, or it may be identified through the
use of symbols, such as, for example:
❒The CD player is capable of reading most
compression systems currently in use (e.g.: LAME,
BLADE, XING, FRAUNHOFER) but, following the
development of these systems, the reading of all
compression formats is not guaranteed.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 223

225
RADIO
QUICK GUIDE
Button
FM
AM
MEDIA
GENERAL FUNCTIONS
On
Off
FM1, FM2, FM Autostore radio source selection
MW1, MW2 radio source selection
Selection of CD/Media Player source (only with Blue&Me™)/
AUX (only with Blue&Me™)
Mode
Short button press
Short button press
Short cyclical button press
Short cyclical button press
Short cyclical button pressgON/OFF fig. 1
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 225

RADIO
227
Button
˚EJECT
CD FUNCTIONS
CD ejection
Play previous/next track
Fast forwarding/rewinding CD track
Playing previous/next folder (for CD-MP3)
Mode
Short button press
Short press of buttons ¯or ˙
Long press of buttons ¯or ˙
Short press of buttons ▲or ▼
Media Player FUNCTIONS
(only with Blue&Me™)
Selecting previous/next folder/artist/genre/album depending on
selected selection mode
Play previous/next track
Mode
Short button press
Short button press
Button
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 227

CONTROLS ON THE STEERING
WHEEL
(for versions/markets where provided)
Button
&
+
–
SRC
▲
▼
FUNCTION
AudioMute on/off (Radio mode)
or Pause function (MP3 or Media Player mode only with
Blue&Me™)
Increasing volume
Decreasing volume
Selection of Radio frequency range (FM1, FM2, FMT, FMA,
MW1, MW2) or listening sources (Radio, MP3 or Media
Player only with Blue&Me™)/AUX
(only with Blue&Me™)
Radio: automatic search for next station available
CD/CD MP3: select next track.
Radio: automatic search for previous station available
CD/CD MP3: select previous trackMode
Short button press
Button press
Button press
Button press
Button press
Button press
RADIO
228
fig. 2
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 228

RADIO
230
CD MP3 section
❒MP3-Info function (ID3-TAG);
❒Select folder (previous/next);
❒Track selection (forward/backward);
❒Fast forward/rewind through tracks;
❒MP3 Display function: display of folder name, ID3-
TAG information, time elapsed since the start of the
track, name of the file);
❒Audio or data CD, CD-R and CD-RW playback.
Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function;
❒7 band graphic equaliser:
❒Separate bass/treble adjustment;
❒Right/left channel balance.Media Player section
(only with Blue&Me™)
See the description in the Blue&Me™Supplement for
the operation of the Media Player.
AUX section
(only with Blue&Me™)
❒AUX source selection;
❒AUX Offset function: alignment of the portable device
volume to the one of the other sources;
❒Portable player reading.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 230

233
RADIO
AUDIO ADJUSTMENTS
The functions in the audio menu are different depending
on the status activated: AM/FM/CE/Media Player
(only with Blue&Me™)/AUX (only with Blue&Me™).
Press the AUDIO button briefly to change the Audio
functions. After the AUDIO button is first pressed, the
display will show the bass level value for the source
activated at that time (e.g. in FM mode the display will
show the wording “FM Bass +2“).
Use the buttons ▲or ▼ to scroll through the menu
functions. To change the setting of the selected function,
use the buttons ¯or ˙.
The current status of the selected function appears on
the display.The functions managed by the Menu are:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance adjustment);
❒FADER (front/rear balance adjustment);
❒LOUDNESS (LOUDNESS function
activation/deactivation);
❒EQUALIZER (activation and selection of factory
equalisation presets);
❒USER EQUALISER (customised equalisation
adjustment).
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 233

238
RADIO
TRAFFIC INFORMATION function
(traffic information)
Some stations on the FM band (FM1, FM2 and FMA) can
transmit information about traffic conditions. In this case
the text “TA” appears on the display.
Proceed as follows to activate/deactivate the TA
function:
❒press the MENU button briefly and select “Traffic
info”;
❒press the ¯/ ˙buttons to turn the function on/off.
If the TA function has been activated, the icon “TA”
lights up on the display.
IMPORTANT If the TA function is activated with an
audio source other than Tuner (Radio) (CD, MP3,
telephone or Mute/Pause), the radio can carry out an
automatic search and therefore it is possible, when
reactivating the Tuner (Radio) source, that the frequency
tuned into is different from the one previously set.
With the TA function, it is possible to:
❒search only for RDS stations that transmit on the FM
band, that are enabled to transmit traffic information;
❒receive traffic information even if the CD player is on;
❒receive traffic information at a minimum preset
volume even with the radio volume off.
IMPORTANT In some countries there are radio stations
that, even with the TP function activated, do not
transmit traffic information (the icon “TP” appears on
the display).If the radio is tuned to a station in the AM band, when
TA is activated it will tune to the last selected station in
the FM1 band.
The volume at which the traffic news is transmitted
depends on the listening volume:
❒listening volume below 5: traffic news volume equal
to 5 (fixed value);
❒listening volume above 5: traffic news volume equal
to listening volume +1.
If the volume is changed during the traffic news, the level
will not be shown on the display; the new level will only
be maintained during the traffic news in progress.
While traffic information is being received, “TRAFFIC
INFORMATION” will appear on the display.
The TA function can be interrupted by pressing any
button on the car radio.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:28 Pagina 238

241
RADIO
PHONE FUNCTION (telephone volume
adjustment) (only with Blue&MeTMsystem)
With Speech volume function present in Menu
This function makes it possible to adjust (settings from 1
to 40), by turning the ON/OFF button/knob or pressing
the ¯/ ˙buttons or exclude (OFF setting), the volume
of the Telephone or the Blue&Me™(except the Media
Player function).
The display shows the current function status:
❒“Speech Off”: function deactivated.
❒“Speech volume 23”: function activated with volume
set to 23.
With Speech volume function not present in Menu
When one phone call is received, the audio passes to the
car sound system through the radio.
The incoming telephone sound is always at a fixed
volume, but it can be adjusted during the conversation
using the ON/OFF button/knob.
If, while using the Blue&Me™, the phone call volume is
changed, the same is displayed on the radio display,
memorised and kept for all the following phone calls
until the engine is switched off.
With the RADIO ON VOLUME function activated,
when the engine is started again:
❒if the radio was switched off with a Blue&Me™
volume lower than 12, at the next phone call the
Blue&Me™volume is automatically set to 12;
❒if the radio was switched off with a Blue&Me™
volume higher than 25, at the next phone call the
Blue&Me™volume is automatically set to 25;❒if the radio was switched off with a Blue&Me™
volume ranging between 12 and 25, at the next phone
call the Blue&Me™volume is kept as previously set
by the user.
If instead the RADIO ON VOLUME function is
deactivated, the radio keeps the last setting.
SPEECH VOLUME function
(telephone volume adjustment)
This function makes it possible to adjust (settings from 1
to 40), by turning the control fig. 1 or pressing the ¯/ ˙
buttons or exclude (OFF setting) the volume of the
Telephone, the Blue&Me™(except the Media Player
function).
The display shows the current function status:
❒“Speech Off”: function deactivated.
❒“Speech volume 23”: function activated with volume
setting 23.
AUX OFFSET function
(alignment of the portable device volume to the
one of the other sources)
(for versions/markets, where provided)
This function enables to align the volume of the AUX
source, depending on its own portable player, to the one
of the other sources. To activate the function, press the
MENU button and then select “AUX offset”.
Press the buttons ¯or ˙to decrease or increase the
volume value (set from – 6 to + 6).
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:28 Pagina 241

RADIO
244
RADIO (Tuner)
INTRODUCTION
When the radio is turned on the last function selected
before it was switched off is activated: Radio, CD, CD
MP3, Media Player (only with Blue&Me™) or
AUX (only with Blue&Me™).
To select the Radio function when another audio source
is being listened to, briefly press the FM or AM buttons
depending on the desired band.
Once the Radio mode has been activated, the display will
show the name (RDS stations only), the frequency of the
selected radio station, the frequency band selected (e.g.
FM1) and the preselect button number (e.g. P1).FREQUENCY BAND SELECTION
With the Radio mode active, press the FM or AM button
briefly and repeatedly to select the desired reception
band.
Each time the button is pressed the following bands are
selected cyclically:
❒By pressing the FM button: “FM1”, “FM2” or “FMA”;
❒By pressing the AM button: “MW1”, “MW2”.
Each band is indicated by the corresponding text on the
display. The last station selected on the respective
frequency band will be tuned into.
If the CD player overheats the CD playing could be
temporarily interrupted. The radio will automatically
turn to the Radio (Tuner) mode and the display will
show “CD hot” and then “CD disc error”.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:28 Pagina 244
