maintenance schedule Abarth Punto 2018 Owner handbook (in English)

REFUELLING
Only refuel with unleaded petrol with octane rating
(RON) not less than 95 conforming to the European
specification EN 228.
The use of petrol that does not conform to the
above-mentioned specification will cause the EOBD
warning light to come on and the irregular operation
of the engine.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the
gearshift lever to neutral; fully depress the clutch
without pressing the accelerator, then turn the ignition
key to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures
during operation. Do not park the car on grass, dry
leaves, pine needles or other flammable material: fire
hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous
diagnosis of the components linked to emissions to
ensure better respect for the environment.ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical
accessories (with the risk of gradually draining the
battery), contact an Abarth Dealership. They can
calculate the overall electrical requirement and check
that the vehicle electric system can support the
required load.
CODE card (for versions/markets where provided)
Keep the card in a safe place, not in the car.
Make sure you have the electronic code written on
the CODE card with you at all times.
SCHEDULED SERVICING
Correct car servicing is essential for ensuring it stays in
tip-top condition and safeguards its safety features, its
environmental friendliness and low running costs for
a long time to come.
THE OWNER HANDBOOK CONTAINS…
... important information and warnings on the correct
use and maintenance of your car over time as well as
safe driving tips. Pay special attention to the symbols
"(personal safety) #(car safety) !(environmental
protection).
VERY IMPORTANT
K


001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 2

27
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

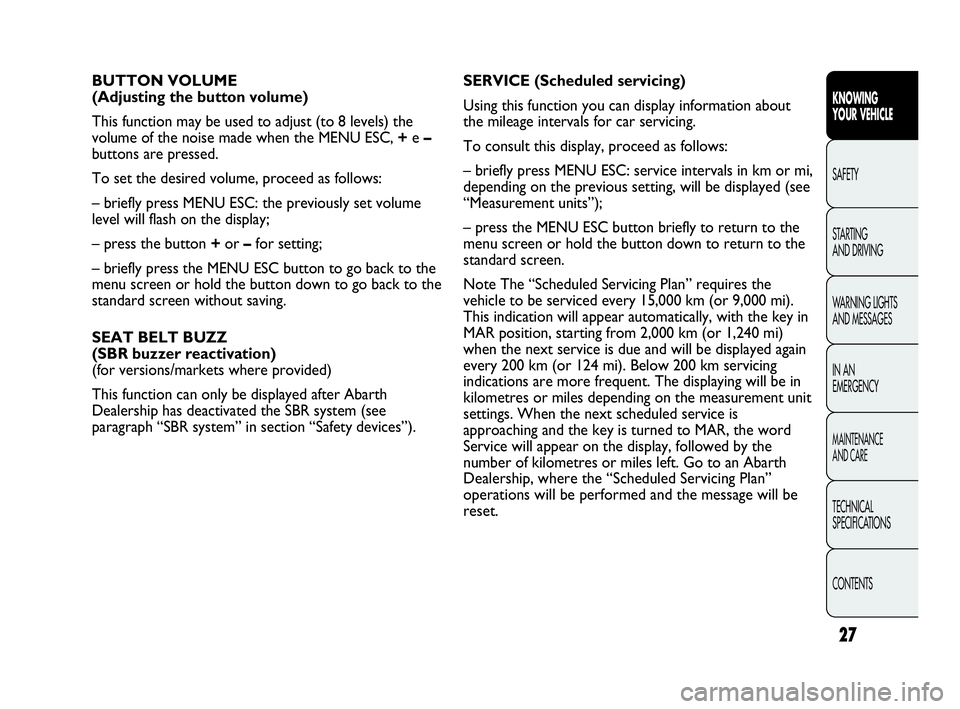

BUTTON VOLUME
(Adjusting the button volume)
This function may be used to adjust (to 8 levels) the
volume of the noise made when the MENU ESC, +e –
buttons are pressed.
To set the desired volume, proceed as follows:
– briefly press MENU ESC: the previously set volume
level will flash on the display;
– press the button +or –for setting;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
SEAT BELT BUZZ
(SBR buzzer reactivation)
(for versions/markets where provided)
This function can only be displayed after Abarth
Dealership has deactivated the SBR system (see
paragraph “SBR system” in section “Safety devices”).SERVICE (Scheduled servicing)
Using this function you can display information about
the mileage intervals for car servicing.
To consult this display, proceed as follows:
– briefly press MENU ESC: service intervals in km or mi,
depending on the previous setting, will be displayed (see
“Measurement units”);
– press the MENU ESC button briefly to return to the
menu screen or hold the button down to return to the
standard screen.
Note The “Scheduled Servicing Plan” requires the
vehicle to be serviced every 15,000 km (or 9,000 mi).
This indication will appear automatically, with the key in
MAR position, starting from 2,000 km (or 1,240 mi)
when the next service is due and will be displayed again
every 200 km (or 124 mi). Below 200 km servicing
indications are more frequent. The displaying will be in
kilometres or miles depending on the measurement unit
settings. When the next scheduled service is
approaching and the key is turned to MAR, the word
Service will appear on the display, followed by the
number of kilometres or miles left. Go to an Abarth
Dealership, where the “Scheduled Servicing Plan”
operations will be performed and the message will be
reset.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 27

135
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Press the clutch pedal fully to change
gears correctly. For this reason, there
must be no obstacles on the floor under the
pedals: ensure that rubber mats (if any) are
lying flat and do not interfere with the pedals.
WARNING
Do not drive with your hand resting on
the shifting lever, because this pressure,
even if light, over time can wear out the
gearbox internal components.
MPORTANT Use of the clutch pedal must be limited
solely to gear changes. Do not drive with your foot
resting on the clutch pedal, however slightly. For
versions/markets where provided, the electronic clutch
control can intervene if it interprets incorrect driving
style as a fault.CONTAINING RUNNING COSTS
Here are some suggestions which may help you to keep
the running costs of your vehicle down and lower the
amount of toxic emissions released into the
atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in accordance
with the “Scheduled Servicing Plan”.
Tyres
Check the pressure of the tyres routinely at an interval
of no more than 4 weeks: if the pressure is too low,
consumption levels increase as resistance to rolling is
higher.
Unnecessary loads
Do not travel with an overloaded boot. The weight of
the car (especially when driving in town) and the way in
which it is laden greatly affect fuel consumption and
stability.
131-140 PUNTO Abarth GB 1ed 17-07-2012 13:20 Pagina 135

150
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Strong radio-frequency interference
could inhibit the regular operation of
the TPMS system.
This condition will be indicated by a message.
The message will disappear automatically as
soon as the interference ceases to disturb the
system.
WARNINGWINDSCREEN WIPER AUTOMATIC
OPERATION NOT AVAILABLE
(amber)
The symbol is shown on the display when the
windscreen wiper automatic control, which adapts
operation speed to vehicle speed, is not available.
The display will show a dedicated message.
u
POSSIBLE PRESENCE OF ICE ON
THE ROAD
The outside temperature indicator starts
flashing when the outside temperature reaches or falls
below 3°C and the
❄symbol lights up on the display to
warn the driver of the possible presence of ice on the
road.
The display will show a dedicated message.
❄
SERVICE DUE
The display shows a dedicated message to indicate the
scheduled servicing deadline.
õ
ALTERNATOR (BATTERY)
FAILURE (red)
If the symbol is shown on the display, contact
an Abarth Dealership immediately.
The display shows the dedicated message.w
EXCEEDING SPEED LIMIT (red)
The symbol is shown on the display when the
car exceeds the set speed limit (see
“Reconfigurable Multifunction Display” in section
“Knowing your car”).
12 0
141-150 PUNTO Abarth GB 1ed 17-07-2012 13:21 Pagina 150

183
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
MAINTENANCE AND CARE
SCHEDULED SERVICING
Correct servicing is essential in guaranteeing a long life
for the car under the best conditions.
This is why Abarth has planned a series of checks and
maintenance operations every 15,000 km.
It is, however, important to remember that scheduled
servicing does not completely cover all the car’s
requirements: even in the initial period before 15,000
km, and then subsequently between one service and
another, ordinary care is always required such as
routine checks involving topping up fluid level, checking
tyre pressures etc...IMPORTANT Scheduled Servicing coupons is specified
by the Manufacturer.
Failure to have them carried out may invalidate the
warranty.
The services can be carried out by any Abarth
Dealership at the appointed times.
If during each operation, in addition to the ones
scheduled, the need arises for further replacements or
repairs, these may only be carried out with the express
agreement of the Customer.
IMPORTANT You are advised to contact an Abarth
Dealership in the event of any minor operating faults,
without waiting for the next service.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 183

184
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●
SCHEDULED SERVICING PLAN
Services must be carried out every 15,000 km.
Thousands of miles 9 18 27 36 45 54 63 72 81 90 99 108
Thousands of km 15 30 45 60 75 90 105 120 135 150 165 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps,
direction indicators, hazard warning lights, luggage compartment,
passenger compartment, glove box,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust
nozzles if necessary
Check windscreen/rear window wiper blade position/wear
Check condition and wear of front disc brake pads
and operation of pad wear indicator
Check condition and wear of rear disc brake pads
and operation of pad wear indicator
Visually inspect the condition of: exterior bodywork,
underbody protection, rigid pipes and hoses (exhaust –
fuel supply – brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of locks, lids, engine and boot, and the
cleanliness and lubrication of linkage
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check handbrake lever travel and adjust if necessary
Visually inspect conditions of the accessory drive belt(s)
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 184

185
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●●
●●● ●● ●
●●● ●● ●
●
●
●●● ●● ●
●● ●
●●●●●●● ●● ●● ●
●● ●
●●● ●● ●
Thousands of miles 9 18 27 36 45 54 63 72 81 90 99 108
Thousands of km 15 30 45 60 75 90 105 120 135 150 165 180
Visually inspect the conditions of toothed timing belt
Check exhaust gas emissions
Check engine control system operation (using diagnosis socket)
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace spark plugs (1)
Replace air filter cartridge
Change engine oil and replace oil filter (or every 12 months) (2)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates, city
driving, idling for a long time, dusty areas) or, in any case, every 5 years.
(1)The following are extremely important to ensure correct operation and prevent serious damage to the
engine:
– only use spark plugs of the same make and type specially certified for 1.4 Turbo Multi Air engines
(see “Engine” paragraph in “Technical specifications” chapter);
– strictly comply with the spark plug replacement interval given in the Scheduled Servicing Plan;
– it is advisable to contact an Abarth Dealership.
(2) If the car is equipped with esseesse kit (for versions/markets, where provided), the engine oil and engine oil
filter must be changed every 10,000 km or every 12 months.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 185

186
HEAVY USAGE OF THE CAR
Should the car be used predominantly in one of the
following particularly demanding conditions:
❒dusty roads;
❒short distances (less than 7-8 km) and with external
temperatures below zero;
❒frequently idling engine or long distance low speed
driving (e. g. taxis or door-to-door deliveries) or in
the case of long term inactivity;
❒in cities;
perform the following inspections more frequently than
shown on the Scheduled Servicing Plan:
❒check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and boot locks and
linkage cleanliness and lubrication;
❒visually inspect the conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust – fuel
– brakes), rubber parts (boots, sleeves, bushes, etc.);
❒check battery charge and liquid level (electrolyte);
❒visually inspect condition of accessory drive belts;
❒check pollen filter and replace it, if required;
❒check air filter and replace, if required.
PERIODIC CHECKS
Every 1,000 km or before long journeys, check and, if
necessary, top up the following:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions;
❒operation of lighting system (headlights, direction
indicators, hazard lights, etc.);
❒operation of the windscreen wiper/washer system,
position and wear of the windscreen and rear
window wiper blades.
Every 3,000 km check and top up if required: engine oil
level.
It is advisable to use PETRONAS LUBRICANTS products,
designed and produced specifically for Abarth cars (see
table “Capacities” in section “Technical Specifications”).
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 186

191
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U174Abfig. 170
IMPORTANT Brake fluid absorbs moisture. For this
reason, if the vehicle is mainly used in areas with a high
degree of atmospheric humidity, the fluid should be
replaced at more frequent intervals than specified in the
“Scheduled servicing plan”. BRAKE FLUID fig. 170
Undo the cap A and check that the liquid contained in
the reservoir is at the maximum level.
Fluid level in the reservoir must not exceed the MAX
mark.
Use the brake fluid shown in the “Fluids and lubricants”
table (see “Technical Specifications”).
Note Carefully clean the cap of the reservoir A and the
surrounding surface.
Take great care that impurities do not enter the
reservoir when the cap is opened.
For topping up always use a funnel with integrated filter
that has a mesh inferior or equal to 0.12 mm.
Prevent brake fluid which is highly
corrosive from coming into contact with
painted parts. Should this occur,
immediately wash with water.
Brake fluid is poisonous and highly
corrosive. In the event of accidental
contact, immediately wash the affected parts
with water and neutral soap. Then rinse
thoroughly. If swallowed call a doctor
immediately.
WARNING
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 191

193
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
BATTERY
The car is fitted with a low-maintenance battery: no
top-ups with distilled water are needed in standard
conditions of use.
INSPECTING THE CHARGE AND THE
ELECTROLYTE LEVEL
The operations must be carried out as described in this
Owner Handbook only by skilled personnel. Any top-up
operations must be carried out by skilled personnel and
by an Abarth Dealership.
Battery liquid is poisonous and corrosive.
Avoid contact with the skin and eyes.
Keep naked flames or possible sources of sparks
away from the battery: risk of explosion or fire.
WARNING
Using the battery when the fluid is too
low can damage it irreparably and
generate a risk of explosion.
WARNING
CHANGING THE BATTERY
If required, replace the battery with a genuine spare part
with the same specifications.
If a battery with different specifications is fitted, the
service intervals given in the “Scheduled Servicing
Programme” in this chapter will no longer be valid.
Follow the battery manufacturer’s instructions for
maintenance.
Incorrect installation of electric and
electronic devices may cause severe
damage to your car. Contact an Abarth
Ford Dealership if you want to install accessories
(alarms, mobile phone, etc.): they will suggest the
most suitable devices and advise you if a higher
capacity battery needs to be installed.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 193
