INSTRUMENT PANEL
A Speedometer (speed indicator)
B Fuel level gauge with reserve
warning light
C Engine coolant temperature
gauge with overheating warning
light
D Rev counter
E Reconfigurable multifunction
display
F0U011Abfig. 10
CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
13
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 13

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR VEHICLE
14

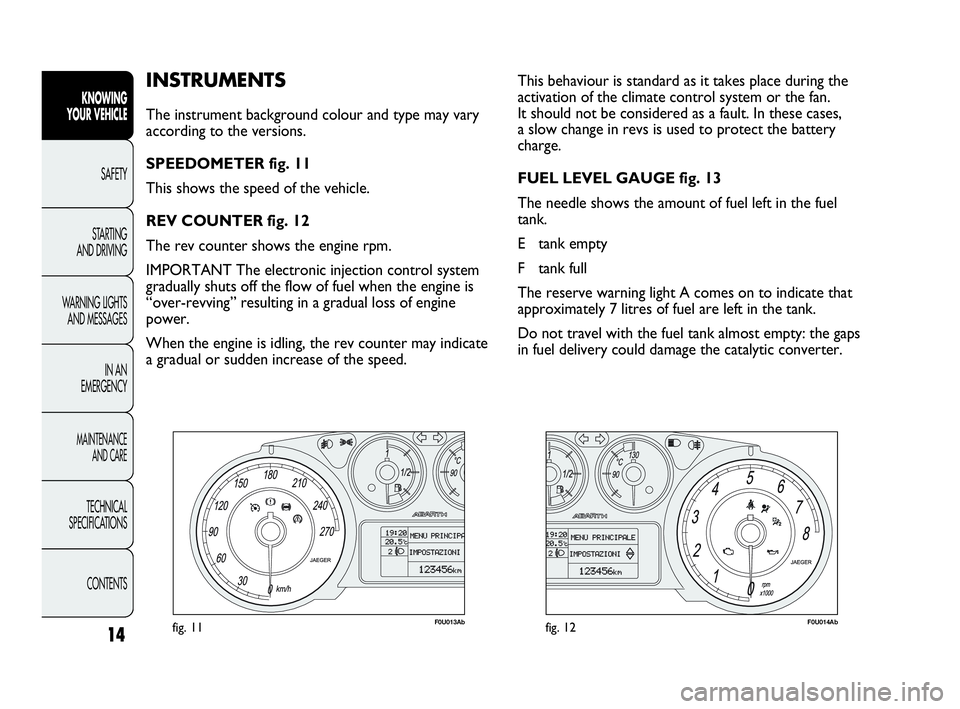

INSTRUMENTS
The instrument background colour and type may vary
according to the versions.
SPEEDOMETER fig. 11
This shows the speed of the vehicle.
REV COUNTER fig. 12
The rev counter shows the engine rpm.
IMPORTANT The electronic injection control system
gradually shuts off the flow of fuel when the engine is
“over-revving” resulting in a gradual loss of engine
power.
When the engine is idling, the rev counter may indicate
a gradual or sudden increase of the speed.This behaviour is standard as it takes place during the
activation of the climate control system or the fan.
It should not be considered as a fault. In these cases,
a slow change in revs is used to protect the battery
charge.
FUEL LEVEL GAUGE fig. 13
The needle shows the amount of fuel left in the fuel
tank.
E tank empty
F tank full
The reserve warning light A comes on to indicate that
approximately 7 litres of fuel are left in the tank.
Do not travel with the fuel tank almost empty: the gaps
in fuel delivery could damage the catalytic converter.
fig. 12F0U014Abfig. 11F0U013Ab
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 14

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
15
F0U015Abfig. 13F0U016Abfig. 14
C Low engine coolant temperature.
H High engine coolant temperature.
Warning light B may light up (and a message on the
reconfigurable multifunction display may appear in
certain versions) to indicate that the coolant
temperature is too high; in this case, stop the engine and
contact an Abarth Dealership. See the description in the “Refuelling” paragraph.
IMPORTANT The needle will point to E and warning
light A will flash to indicate a fault in the system. If this is
the case, go to an Abarth Dealership to have the system
checked.
ENGINE COOLANT TEMPERATURE
GAUGE fig. 14
This shows the temperature of the engine coolant fluid
and starts working when the fluid temperature exceeds
approx. 50°C.
Under normal conditions, the needle assumes different
positions within the scale depending on the usage
conditions.
If the needle reaches the red area, stop
the engine immediately and contact an
Abarth Dealership.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 15

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR VEHICLE
16fig. 15F0U2050Abg
RECONFIGURABLE MULTIFUNCTION
DISPLAY
The car may be equipped with a reconfigurable
multifunction display that, according to previous
settings, will show useful driving information.“STANDARD” SCREEN fig. 15
The standard screen shows the following information:
A Time
B Date
D Odometer (display of distance travelled in
kilometres/miles)
E Car status indications (e.g. doors open, possible ice on
road, etc.)
F Headlamp alignment position (only with dipped
headlamps on)
G Outside temperature
When the ignition key is turned to MAR, the display’s
main screen will show the date fig. 15 or the
turbocharging pressure fig. 16, depending on the setting
previously chosen from the “First page” menu item
(“Date” or “Engine info”).
fig. 16F0U196Ab
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 16

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
17
CONTROL BUTTONS FOR
RECONFIGURABLE MULTIFUNCTION
DISPLAY fig. 17
+To scroll through the displayed menu and the
related options upwards or to increase the value
displayed.
MENUPress briefly to access the menu and/or
ESCgo to the next screen or confirm your choice.
Hold pressed to go back to the standard
screen.
–To scroll through the displayed menu and the related
options downwards or to decrease the value
displayed.
Note Buttons +and –activate different functions
according to the following situations: Passenger compartment light adjustment
– on the standard screen, they control instrument panel
brightness, the radio and the automatic climate control
system.
Setup menu
– within the menu, they allow you to scroll up and
down through the options;
– during setting operations they allow an increase or
decrease.
F0U017Abfig. 17
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 17

18
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
SETUP MENU
The menu comprises a series of functions arranged in a
cycle which can be selected through buttons +and –to
access the different selection and setting options (setup)
given in the following paragraphs. A submenu is
provided for some items (Setting the clock and Set
units).
The setup menu can be activated by pressing the MENU
ESC button briefly fig. 18.
Press buttons +and – to scroll through the setup menu
options.
Operating modes are different according to the
characteristics of the option selected.
Selecting an option from the main menu without a submenu
– Briefly press MENU ESC to select the main menu
option you wish to set;
– press buttons +or –(with a single press) to select the
new setting;
– briefly press the MENU ESC button to store the new
setting and to go back to the main menu option selected
previously.Selecting an option from the main menu with a submenu:
– briefly press the MENU ESC button to display the first
submenu option;
– Press +or –(with single presses) to scroll through all
the submenu options.
– briefly press the MENU ESC button to select the
displayed submenu option and to open the relevant
setup menu;
– Press +or –(with single presses) to select the new
setting for this submenu option.
– briefly press the MENU ESC button to store the new
setting and go back to the previous menu option.
Selecting “Date” and “Set time”:
– briefly press MENU ESC to select the first value to
change
(e.g. hours/minutes or year/month/day).
– press buttons +or –(with a single press) to select the
new setting;
– Briefly press MENU ESC to store the new setting and
go to the next setup menu option; if this is the last one
you will go back to the previous menu option.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 18

19
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Hold down the MENU ESC button:
– to return to the set up menu if you are in the main
menu;
– to return to the main menu if you are at another point
of the menu (e.g.: at submenu option setting level, at
submenu level or at main menu option setting level);
– to save only the settings already stored (and
confirmed by pressing the MENU ESC button).
The setup menu environment is timed. Only the changes
saved by the user (having been confirmed by briefly
pressing MENU ESC) will be stored when the menu is
automatically closed.The menu consists of the following items:
– MENU
– SPEED BEEP
– CORNERING LIGHTS
– RAIN SENSOR
(for versions/markets where provided)
– TRIP B ACTIVATION/DATA
– SET TIME
– SET DATE
– FIRST PAGE
– SEE RADIO
– AUTOCLOSE
– UNITS OF MEASUREMENT:
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOLUME
– SEAT BELT BEEP/BUZZ.
– SERVICE
– AIRBAG/PASSENGER BAG
– DAYTIME RUNNING LIGHTS
– EXIT MENU
fig. 18F0U017Ab
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 19

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR VEHICLE
20
DISPLAY FUNCTIONS
SPEED BEEP
(Setting the speed limit)
This function is used to set the car speed limit (km/h or
mph); the driver is immediately alerted when this limit is
exceeded (see chapter “Warning lights and messages”).
To set the desired speed limit, proceed as follows:
– briefly press the MENU ESC button: the display will
show the words (Speed Beep);
– press button +or –to select speed limit activation
(On) or deactivation (Off);
– when the function has been activated (On) by pressing
buttons +or –, select the speed limit and press MENU
ESC to confirm selection.NB You can select a speed between 30 and 200 km/h,
or 20 and 125 mph depending on the selected unit, see
“Setting measurement unit (Unit)”. The setting will
increase/decrease by five units each time the button +/
–is pressed. Hold the button +/ –pressed to
increase/decrease the setting rapidly and automatically.
Complete the setting by briefly pressing the button
when you approach the required value.
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
To cancel the setting, proceed as follows:
– press the MENU ESC button briefly to make the
display flash (On);
– press the button –: “Off” flashes on the display;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 20

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
21
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
TRIP B ACTIVATION/DATA
(Trip B enablement)
This function can be used to activate (On) or deactivate
(Off) the Trip B display (partial trip).
For further information see “Trip computer”.
Proceed as follows to switch the function on and off:
– briefly press MENU ESC: On or Off will flash on the
display (depending on previous setting);
– press the button +or –to select;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving. CORNERING LIGHTS
(activation/deactivation of Cornering lights
– Fog lights with cornering function)
This function activates/deactivates the corner lights. To
activate/deactivate (ON/OFF) the lights, proceed as
follows:
– press the MENU ESC button briefly, the display will
show “On” or “Off” flashing depending on the previous
setting;
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
RAIN SENSOR
(Adjusting sensitivity)
(for versions/markets where provided)
This function allows you to adjust the rain sensor
sensitivity to 4 levels.
To set the required sensitivity level, proceed as follows:
– briefly press MENU ESC: the previously set sensitivity
level will flash on the display;
– press the button +or –for setting;
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 21

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR VEHICLE
22
SET TIME
(Setting the clock)
This function enables the clock to be set through two
submenus: “Time” and “Format”.
To carry out the adjustment, proceed as follows:
– briefly press MENU ESC: the display will show the
two submenus “Time” and “Mode”;
– press the button +or –to switch between the two
submenus;
– once you have selected a submenu, press MENU ESC
briefly;
– if selecting “Time”, briefly press MENU ESC - the
“hours” will flash on the display;
– press the button +or –for setting;– briefly press MENU ESC: “minutes” will flash on the
display;
– press the button +or –for setting;
– if selecting “Mode”,briefly press MENU ESC: the mode
will flash on the display;
– press the button +or –to select “24h” or “12h”.
When you have made the required adjustments, press
MENU ESC to go back to the submenu screen or hold
the button down to go back to the main menu screen
without saving.
– hold down MENU ESC again to go back to the
standard screen or main menu, depending on which
point in the menu you have reached.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 22
