engine Abarth Punto Evo 2012 Owner handbook (in English)

207
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
ENGINE CODES –
BODYWORK VERSIONS
Version1.4 Turbo Multi Air
Type code 955A8000
Cycle Otto
Number and arrangement of cylinders 4 in line
Piston bore and stroke mm 72 x 84
Total displacement cm31368
Compression ratio 9.8 ± 0.2
Max power (EEC) kW 120
HP 163
at a speed of rpm 5500
Max. torque (EEC) NORMAL SPORT
Nm 230 250
kgm 23.4 25.5
at a speed of rpm 2250 2500
Spark plugs NGK IKR9F8
Fuel Unleaded petrol
95 RON
(EN 228 specification)
Version 1.4 Turbo
Multi Air
Engine code955A8000
Bodywork version
code (4 seats)199AXX1B47
ENGINE

Unleaded petrol with no less than 95
RON (EN 228 Specification)
Mixture of 50% water and
PARAFLU
UP(❒)
SELENIA ABARTH 5W-40
TUTELA TRANSMISSION
GEARFORCE
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC 35
216
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
45
5 ÷ 7
6.0
2.6
3.0
1.5
0.5
2.2
CAPACITIES
1.4 Turbo Multi Air Specified fuelsand original lubricants
Fuel tank: litres
including a reserve of: litres
Engine cooling system: litres
Engine sump: kgEngine sump and filter: kg
Gearbox/differential casing: kg
Hydraulic brake circuit: kg
Windscreen/rear window washer fluid reservoir: litres
(❒) When the vehicle is used in particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUP
and distilled water.

217
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
SAE 5W-40 grade totally synthetic lubricant.SELENIA
ABARTH 5W-40
Approval Abarth 0102According to
Scheduled Servicing
Programme
FLUIDS AND LUBRICANTS
SPECIFICATIONS AND PRESCRIBED PRODUCTS
UseQuality Specifications of fluids and lubricants Genuine fluids Replacement
intervalfor correct car operation and lubricants
Engine
lubricants
The use of lubricants with specifications inferior to ACEA C3 and SAE grade other than 5W-40 could cause damage
to the engine not covered by the warranty.

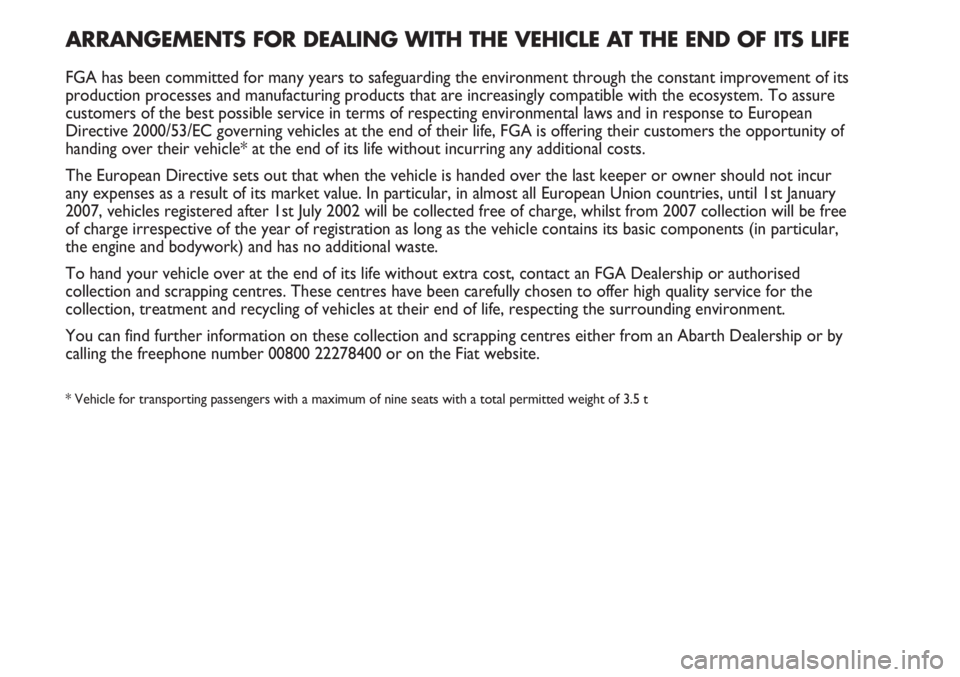

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
FGA has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly compatible with the ecosystem. To assure
customers of the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, FGA is offering their customers the opportunity of
handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur
any expenses as a result of its market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free
of charge irrespective of the year of registration as long as the vehicle contains its basic components (in particular,
the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact an FGA Dealership or authorised
collection and scrapping centres. These centres have been carefully chosen to offer high quality service for the
collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Abarth Dealership or by
calling the freephone number 00800 22278400 or on the Fiat website.
* Vehicle for transporting passengers with a maximum of nine seats with a total permitted weight of 3.5 t

RIGHT HAND DRIVE VERSION
258
INSTRUMENT PANEL
A Speedometer (speed indicator)
B Fuel level gauge with reserve
warning light
C Engine coolant temperature
gauge with overheating warning
light
D Rev counter
E Reconfigurable multifunction
display
F0U198Abfig. 2

260
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Brakes
– brake fluid (type) .................... 218
– checking levels and
topping up .................................... 191
– handbrake ................................. 134
– technical specifications .......... 209
Bulbs
– bulb types ..........................159-160
– external bulb replacement .... 161
– general information
on replacement ........................... 158
– internal bulb replacement ..... 168
– replacement ............................. 158
Can holder .................................... 64
Capability for child seat ............... 115
Card holder ................................... 64
Carrying children safely ............... 115
– passenger seat compliance
with regulations on isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118– universal Isofix child seat
capability ...................................... 120
Carrying children safely ............... 115
– passenger seat compliance
with regulations on isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118
– universal Isofix child seat
capability ...................................... 120
Catalytic converter ...................... 108
CD Changer (capability) ............. 104
Central locking .............................. 59
Central locking .............................. 71
Chassis (marking) ......................... 206
Chassis marking ............................ 206
Checking levels ............................. 187
– brake fluid ................................ 191
– engine coolant ......................... 189
– engine oil .................................. 188
– windscreen/rear window
washer fluid ................................. 190Child seats ...................................... 115
– passenger seat compliance
with regulations on Isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118
– universal Isofix child seat
capability ...................................... 120
Cigarette lighter ............................ 64
Cleaning and maintenance
– bodywork ................................. 200
– engine compartment .............. 202
– front headlights ........................ 202
– interiors .................................... 202
– leather seats ............................. 203
– plastic parts .............................. 204
– seats and fabric parts ............. 203
– windows ................................... 202
Climate control vents .................. 38
Clutch
– technical specifications .......... 208
CO
2at exhaust ............................. 220
CO
2emissions .............................. 220

261
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Dipped beam headlights
– bulb replacement .................... 162
– switching on ............................. 49
Dipped beam headlights
– bulb replacement .................... 162
– switching on ............................. 49
– switching on ............................. 50
Direction Indicators
– front bulb replacement .......... 163
– rear bulb replacement ........... 165
– side bulb replacement ............ 164
– switching on ............................. 50
Document holder pocket ........... 66
Door pockets ................................ 63
Doors .............................................. 71
– central locking ......................... 71
– Dead Lock ................................ 73
– door unlocking from
the outside ................................... 72
– locking the doors from
the outside ................................... 71
– locking/unlocking from
the inside ...................................... 72
– pockets ..................................... 63DSS (Driving Sport Switch)
(car dynamic control system) ... 96
Electrical/electronic devices
(important notes for
installation) .................................. 106
Engine codes .................................. 207
Engine compartment
– checking levels ......................... 187
– opening/closing the bonnet .... 81
– washing ..................................... 202
Engine coolant
temperature gauge ..................... 15
Engine coolant
– checking levels and
topping up .................................... 189
– specifications ............................ 218
– temperature gauge and
warning light ................................ 15
Engine immobiliser
(Fiat CODE) ................................ 4
Engine marking .............................. 206
Engine oil
– checking levels and
topping up .................................... 188 CODE card .................................... 5
Controls ......................................... 58
Controls for climate
control system .......................39-44
Courtesy lights .............................. 56
Cruise Control .............................. 54
Dashboard ..................................... 3
– right hand drive version ........ 257
Day lights (DRL) ........................... 49
– bulb replacement .................... 162
Dead Lock ...................................... 73
Dead lock (device) ....................... 73
Defrosting/demisting
– heated rear window
and door mirrors .................. 43-46
– windscreen and front side
windows ..................................42-45
Demisting/defrosting
– heated rear window
and door mirrors .................. 43-46
– windscreen and front side
windows ..................................42-45
Dimensions of the car ................. 214

262
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
– consumption ............................ 188
– technical specifications .......... 217
Engine starting ............................... 131
– bump starting ........................... 152
– emergency starting
(of engine) .................................... 151
– how to warm up the engine
after it has just started .............. 132
– ignition switch ......................... 11
– jump starting ............................ 151
– stopping the engine ................ 133
Engine
– engine immobiliser
(Fiat CODE) ................................ 4
– how to warm up the engine
after it has just started .............. 132
– identification codes ................ 207
– marking ..................................... 206
– stopping the engine ................ 133
– technical specifications .......... 207
Environment (protection) ........... 108
EOBD (system) ............................. 92
ESP (system) .................................. 88External lights (switching on) ..... 49
"e-GSI" system
(Gear Shift Indicator) ................ 103
Fiat CODE .................................... 4
Fix&Go Automatic
(rapid tyre repair kit) ................ 152
Flashing (main beams) .................. 50
Fluids (specifications) ......... 217-218
Fluids and lubricants
– refuelling ................................... 216
– specifications ..................217-218
Fog lights
– bulb replacement .................... 164
– Cornering Lights function ..... 51
– switching on ............................. 58
Follow me home
(headlight device) ....................... 50
Front airbags .................................. 123
– deactivation............................... 126
– driver's knee bag ..................... 125
– front airbag on driver's side ... 124
– front airbag on
passenger's side .......................... 124– general information ................ 129
Front armrest ................................ 63
Front ceiling light .......................... 56
– bulb replacement .................... 168
– spot lights ................................. 56
Front fog lights
– bulb replacement .................... 164
– Cornering Lights function ..... 51
– switching on ............................. 58
Front light clusters
– bulb replacement .................... 161
Front seats ..................................... 31
– adjusting .................................... 31
– armrest ..................................... 63
– cleaning ..................................... 203
– headrests .................................. 33
Fuel consumption ......................... 219
Fuel cut-off (system) .................... 60
Fuel cut-off system ....................... 60
Fuel gauge ....................................... 14
Fuel tank (capacity) ...................... 216
Fuel tank cap .................................. 107

263
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Fuel
– consumption ............................ 219
– fuel cut-off system .................. 60
– fuel tank cap ............................. 107
– reserve warning light ............. 146
– saving fuel ................................. 135
– specifications ............................ 216
Fuse boxes (location) ......... 171-173
Fuses ................................................ 169
– accessing the fuses .................. 171
– fuse summary table ................ 174
– general information ................ 169
– location (fuse boxes) .... 171-173
Gear lever ..................................... 134
Gear Shift Indicator
(“e-GSI” system) ........................ 103
Gearbox ......................................... 134
Glove compartment ..................... 61
Handbrake ...................................... 134
Handbrake lever ........................... 134
Hazard warning lights .................. 58
Head restraint .............................. 33
Headlight alignment corrector.... 84
Headlights ....................................... 84
– adjusting headlights abroad ... 84
– beam orientation..................... 84
– bulb replacement .................... 162
– headlight alignment
corrector ..................................... 84
– orientation of front
fog lights ....................................... 84
Headrests
– front ........................................... 33
– rear ............................................ 33
Heated rear window .................... 59
Heating and ventilation ................ 37
– bi-zone automatic climate
control system ............................ 44
– diffusers .................................... 38
– maintenance ............................. 43
– manual climate control
system ........................................... 39
Heating and ventilation system ... 37
Hill Holder (system)...................... 89How to warm up the engine
after it has just started .............. 132
Identification data ......................... 205
– bodywork codes...................... 207
– Bodywork paint
identification plate ...................... 206
– chassis marking ........................ 206
– engine codes ............................ 207
– engine marking ........................ 206
– vehicle identification
number plate ............................... 205
Ignition switch ............................... 11
– steering wheel lock ................ 12
Important notes ............................ 2
In an emergency ............................ 151
Installing electrical/electronic
devices (important notes) ........ 106
Instrument panel ........................... 13
– right hand drive version ........ 258
Interior fittings................................ 61
Interiors (cleaning) ....................... 200

267
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Vehicle lifting points ..................... 178
Vehicle weights ............................. 215
Warning lights and messages .... 141
Washer fluid for windscreen/
rear window
– checking levels and
topping up .................................... 190
– specifications ............................ 218
Washing the car
– engine compartment .............. 202
– inside ......................................... 202
– outside ...................................... 201
Wheel geometry ........................... 210
Wheel rims .............................210-212
Wheels and tyres ......................... 195
– reading rim markings ............. 212
– reading tyre markings ............ 210
– Rim Protector tyres ............... 212
– rims and tyres .......................... 210
– tyre and wheel types .............. 213
– tyre inflation pressure ........... 213
– wheel trim ................................ 210
When parked ................................ 133Windows
– cleaning ..................................... 51
– windscreen washer fluid ....... 190
Windscreen washer
– "smart washing" function ...... 52
– activating ................................... 51
– checking levels and
topping up .................................... 190
– nozzles ...................................... 199
– windscreen washer fluid
specifications ............................... 218
Windscreen wiper
– blade maintenance .................. 198
– blade replacement .................. 198
– nozzles ...................................... 199
– operation ................................... 51
– rain sensor ............................... 52
Windscreen/rear window
wiper blades
– replacement ............................. 198
Winter
– snow chains .............................. 139
– snow tyres ................................ 138
