Hold down the MENU ESC button:
– to return to the set up menu if you are in the main
menu;
– to return to the main menu if you are at another point
of the menu (e.g.: at submenu option setting level, at
submenu level or at main menu option setting level);
– to save only the settings already stored (and
confirmed by pressing the MENU ESC button).
The setup menu environment is timed. Only the changes
saved by the user (having been confirmed by briefly
pressing MENU ESC) will be stored when the menu is
automatically closed.The menu consists of the following items:
– MENU
– SPEED BEEP
– CORNERING LIGHTS
– RAIN SENSOR
(for versions/markets where provided)
– TRIP B ACTIVATION/DATA
– SET TIME
– SET DATE
– FIRST PAGE
– SEE RADIO
– AUTOCLOSE
– UNITS OF MEASUREMENT:
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOLUME
– SEAT BELT BEEP/BUZZ.
– SERVICE
– AIRBAG/PASSENGER BAG
– DAYTIME RUNNING LIGHTS
– EXIT MENU
fig. 18F0U017Ab

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
21
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
TRIP B ACTIVATION/DATA
(Trip B enablement)
This function can be used to activate (On) or deactivate
(Off) the Trip B display (partial trip).
For further information see “Trip computer”.
Proceed as follows to switch the function on and off:
– briefly press MENU ESC: On or Off will flash on the
display (depending on previous setting);
– press the button +or –to select;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving. CORNERING LIGHTS
(activation/deactivation of Cornering lights
– Fog lights with cornering function)
This function activates/deactivates the corner lights. To
activate/deactivate (ON/OFF) the lights, proceed as
follows:
– press the MENU ESC button briefly, the display will
show “On” or “Off” flashing depending on the previous
setting;
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
RAIN SENSOR
(Adjusting sensitivity)
(for versions/markets where provided)
This function allows you to adjust the rain sensor
sensitivity to 4 levels.
To set the required sensitivity level, proceed as follows:
– briefly press MENU ESC: the previously set sensitivity
level will flash on the display;
– press the button +or –for setting;

44
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
E heated rear window on/off button
F MONO function activation button (set temperature
alignment) and passenger side temperature
adjustment knob
G climate control on/off button
H fan speed increase/decrease
I air distribution selection buttons;
L AUTO function activation button
(automatic operation) and driver side temperature
adjustment knob
M interior temperature sensor
SWITCHING ON THE CLIMATE
CONTROL SYSTEM
The system can be activated by pressing any of the
buttons; it is, however, advisable to set the desired
temperatures on the display, then press the AUTO
button.
The climate control system allows you to customise the
temperatures requested (driver side and passenger side)
with a maximum difference of 7°C.
The climate control system compressor works only
with the engine running and with an outside
temperature of above 4°C.TWO-ZONE AUTOMATIC
CLIMATE CONTROL
(for versions/markets where provided)
DESCRIPTION
The car is equipped with a two-zone climate control
system which allows you to adjust the air temperature
on the driver’s and the passenger’s side separately.
CONTROLS fig. 35
A climate control compressor on/off button
B internal air recirculation on/off button
C climate control system information display
D button for activating the MAX-DEF function
(fast front window defrosting/demisting)
fig. 35F0U035Ab

52
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The wiper stops working three strokes after the stalk is
released. A further stroke 6 seconds later completes
the wiping operation.
RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear view mirror
in contact with the windscreen and has the purpose of
automatically adjusting the frequency of the windscreen
wiper strokes depending on the intensity of the rain
during intermittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation
Move the twist switch on the right-hand stalk to
≤fig.
38. The activation of the sensor is signalled by a wiper
stroke. Through the setup menu it is possible to
increase the sensitivity of the rain sensor. The increasing
of the rain sensor sensitivity is signalled by a “stroke” to
show the command has been acquired. If the
windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed, after
which the rain sensor resumes its normal automatic
operation.
Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wipers may be subjected to excessive
stress and the motor protection which prevents
operation for a few seconds may intervene. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
When released, the stalk returns to its default position
and the wipers automatically switch off.
With the twist switch at
≤, the windscreen wiper will
automatically adapt to the speed of the car.
IMPORTANT Replace the wiper blades as specified in
the “Maintenance and care” section.
“Smart washing” function
Pull the stalk towards the steering wheel (unstable
position) to operate the windscreen washer.
Keeping the lever pulled for more than half a second,
with just one movement it is possible to operate the
washer jet and the wiper at the same time.

53
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not use the rear window wiper to
remove layers of snow or ice. In such
conditions, the rear window wiper may be
subjected to excessive stress, prompting
intervention from the motor protection which
prevents operation for a few seconds. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
Deactivation
Move the stalk twist switch away from the position
≤fig. 38 or turn the ignition key to STOP. When the
engine is next started (key at MAR), the sensor will not
be reactivated even if the twist switch is still at
≤fig.
38. To activate the rain sensor, you have to move the
twist switch from
≤to another position and then back
to
≤. Rain sensor activation will be indicated by at
least one wiper “stroke” even if the windscreen is dry.
REAR WINDOW WASHER/ WIPER
This operates only with the ignition key turned to MAR.
The function stops when the stalk is released. Turning
the twist switch from Oto
'will operate the rear
window wiper as follows:
❒in intermittent mode if the windscreen wiper is off;
❒synchronised operation (but with half-stroke
frequency) when the windscreen wiper is on;
❒continuous operation with reverse engaged and
function on.The rear window wiper will operate in continuous
mode when the windscreen wiper is on and reverse
gear is engaged.
Pushing the stalk towards the dashboard (unstable
position) the rear window washer jet will activate.
Keep the stalk pushed for more than half a second to
activate the rear window wiper as well.
Releasing the stalk will activate the smart washing
function, as described for the windscreen wiper.

94
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Replacing the normal tyres with winter
tyres and vice versa requires an
inspection of the TPMS, which should be carried
out only by an Abarth Dealership.
WARNING
The TPMS requires the use of specific
equipment. Contact an Abarth
Dealership to find out which accessories are
compatible with the system (wheels, hub caps
etc.). The use of other accessories may affect
the normal operation of the system.
WARNING
Tyre inflation pressure may vary
according to outdoor temperature. The
TPMS system may temporarily indicate
insufficient pressure. In this case, check the tyre
pressures with the tyres cold and, if necessary,
pump them up.
WARNING
.If the vehicle is fitted with TPMS, tyre
and wheel fitting/removal operations
require specific precautions. To prevent damage
or incorrect sensor refitting, contact an Abarth
Dealership to have tyre and/or
rim changed.
WARNING
If the vehicle is fitted with TPMS, when
a tyre is removed, it is advisable to
replace the rubber gasket for the valve. Contact
an Abarth Dealership.
WARNING
Strong radio-frequency interference
could inhibit the correct operation of
the TPMS system.
This condition will be indicated by a message on
the reconfigurable multfunction display. The
message will disappear automatically as soon as
the interference ceases to disturb the system.
WARNING

95
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Sensor Failure warning Abarth Dealership
Service Intervention
–
Replacing a wheel
with the spare wheel
Replacing wheels
with snow tyres
Replacing wheels
with snow tyres
Replacing wheels
with others of
a different size (*)
Switching wheels
(front/rear) (**)
(*) Given as an alternative in the Owner’s Handbook and available at Lineaccessori Abarth.
(**) Not cross-swapped (tyres must stay on the same side).–
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NOContact an Abarth
Dealership
Repair the damaged
wheel
Contact an Abarth
Dealership
–
–
–

102
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

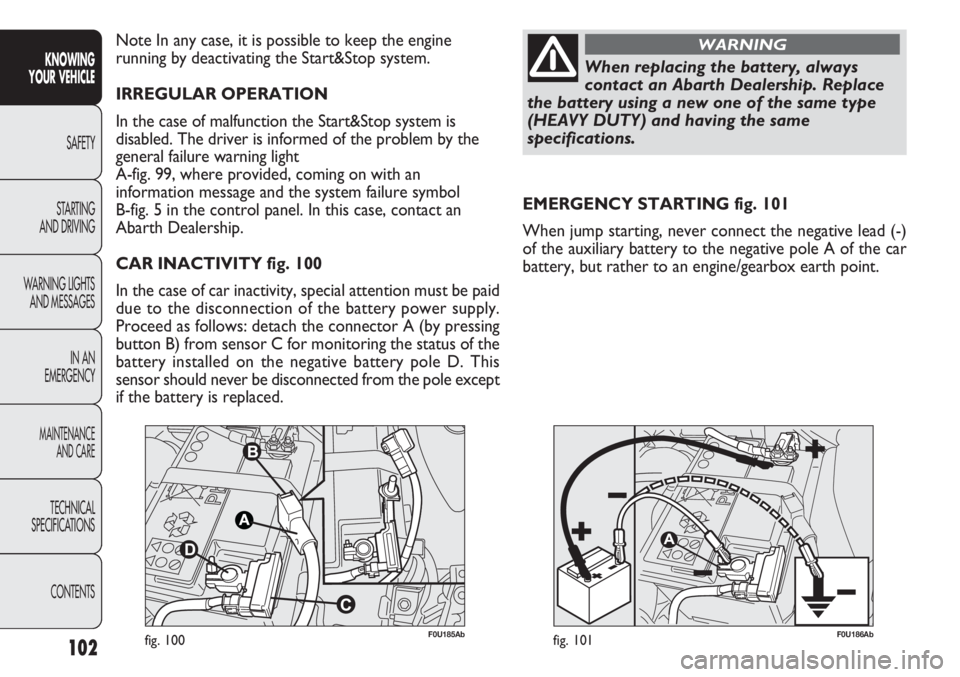

F0U185Abfig. 100F0U186Abfig. 101
EMERGENCY STARTING fig. 101
When jump starting, never connect the negative lead (-)
of the auxiliary battery to the negative pole A of the car
battery, but rather to an engine/gearbox earth point. Note In any case, it is possible to keep the engine
running by deactivating the Start&Stop system.
IRREGULAR OPERATION
In the case of malfunction the Start&Stop system is
disabled. The driver is informed of the problem by the
general failure warning light
A-fig. 99, where provided, coming on with an
information message and the system failure symbol
B-fig. 5 in the control panel. In this case, contact an
Abarth Dealership.
CAR INACTIVITY fig. 100
In the case of car inactivity, special attention must be paid
due to the disconnection of the battery power supply.
Proceed as follows: detach the connector A (by pressing
button B) from sensor C for monitoring the status of the
battery installed on the negative battery pole D. This
sensor should never be disconnected from the pole except
if the battery is replaced.
When replacing the battery, always
contact an Abarth Dealership. Replace
the battery using a new one of the same type
(HEAVY DUTY) and having the same
specifications.
WARNING

108
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Filling the tank
To fill the tank completely, top-up twice after the first
click of the fuel delivery gun. Further top-ups could
cause faults in the fuel supply system.
Do not bring naked flames or lit
cigarettes near to the fuel tank opening:
fire risk. Keep away from the fuel filler to avoid
breathing in harmful vapours.
WARNINGPROTECTING THE ENVIRONMENT
The following devices are used for reducing petrol fuel
engine emissions:
❒three-way catalytic converter;
❒oxygen sensors;
❒evaporation control system.
In addition, do not let the engine run, even for a test,
with one or more spark plugs disconnected.
The catalytic converter develops high
temperature during operation. Do not
park the car on grass, dry leaves, pine needles
or other flammable material: fire hazard.
WARNING

147
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CRUISE CONTROL (green)
(for versions/markets where provided)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light switches on by rotating the Cruise
Control twist switch to ON.
The display will show a dedicated message.
Ü
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
INCOMPLETE DOOR LOCKING (red)
The symbol is shown on the display when one
or more doors or the tailgate are not perfectly
closed.
The display shows the dedicated message.
An acoustic signal is emitted with the doors open and
the car moving.
´
ENGINE OIL LEVEL LOW (red)
The symbol is shown on the display when the
engine oil level falls below the minimum
recommended value. Restore the correct engine
oil level (see “Checking fluid levels” in the “Servicing and
maintenance” section).
The display shows the dedicated message.
k
GENERIC WARNING
(amber)
Engine oil pressure sensor failure
The symbol is shown on the display when a fault in the
engine oil pressure sensor is detected. Contact an Abarth
Dealership to have the fault fixed as soon as possible.
è
ELECTRIC STEERING FAILURE
(red)
When the symbol is shown on the display, you
will not benefit from the electric power steering and the
effort needed to turn the wheel will be greatly
increased, although it will still be possible to steer the
car. Contact an Abarth Dealership.
The display shows the dedicated message.
g
