Acura CL 2001 Owner's Manual

µ
The master control panel also con-
tains these extra features:
To open the driver’s
window f ully, push the window
switch f irmly down and release it.
The window automatically goes all
the way down. To stop the window
f rom going all the way down, pull
back on the window switch brief ly.
To open the driver’s window only
partially, push the window switch
down lightly and hold it. The window
will stop as soon as you release the
switch.
The AUTO f unction only works to
lower the driver’s window. To raise
the window, you must pull back on
the window switch and hold it until
the window reaches the desired
position. The MAIN switch controls power to
the passenger’s window. With this
switch of f , the passenger’s window
cannot be raised or lowered. The
MAIN switch does not af f ect the
driver’s window. Keep the MAIN
switch of f when you have children in
the car so they do not injure
themselves by operating the window
unintentionally. The lights inside the
switches come on when you turn the
ignition switch to ON (II).
The power window system has a key-
of f delay f unction. The windows will
stilloperateforuptotenminutes
after you turn off the ignition.
Opening either door cancels the
delay function. You must turn the
ignition switch ON (II) again before
you can raise or lower the windows.
Inst rument s and Cont rols
AUTO
Power Windows
108

The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can be slid back into
the roof . Use the switch under the
lef t dashboard vent to operate the
moonroof . The ignition switch must
be ON (II).To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the top of the switch
( ). To open the moonroof ,
press and hold the bottom of the
switch ( ). Release the switch
when the moonroof gets to the
desired position. Make sure
everyone’s hands are away f rom the
moonroof bef ore opening or closing
it.
The moonroof has a key-of f delay.
You can still open and close the
moonroof f or up to ten minutes af ter
you turn of f the ignition. The key-of f
delay cancels as soon as you open
either door. You must then turn the
ignition ON (II) f or the moonroof to
operate.
Moonroof
Inst rument s and Cont rols109
M M
O
OOONNRROOO OFF S
SWWI ITT C
CH H
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.

To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake light on the instrument panel
should go out when the parking
brake is f ully released with the
engine running. (see page .)The digital clock displays the time
with the ignition switch in any
position.
To set the clock:
Press and hold the H button until
the hour advances to the desired
time.
1.
553.2 CL without Navigation System
Parking Brake Digital Clock
Parking Brake, Digital Clock
Inst rument s and Cont rols110
P PA
A R
RKKIINNG G B
BRRAA K
KEE P
PE
ED
D A
AL
L H
H
M
MR
R
Driving the car with the parking brake
applied can damage the rear brakes
and axles.

To open the sunglasses holder, push
on the f ront edge. It will unlatch and
swing down. To close it, push it until
it latches. Make sure the holder is
closed while you are driving.
Press and hold the M button until
the numbers advance to the
desired time.
You can use R to quickly set the time
to the nearest hour. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
For example: 1:06 would RESET to 1:00.
1:52 would RESET to 2:00. You may also store small items in
this holder. Make sure they are
small enough to let the holder close
and latch, and that they are not
heavy enough to cause the holder to
pop open while driving. Some larger styles of sunglasses
may not f it in the holder.
2.
Digital Clock, Sunglasses Holder
Inst rument s and Cont rols
Sunglasses Holder
111
P P
u
us
shh
S
SU UN NGGLLAA S
SSSEES
S H
HO
OL LDD E
ER
R

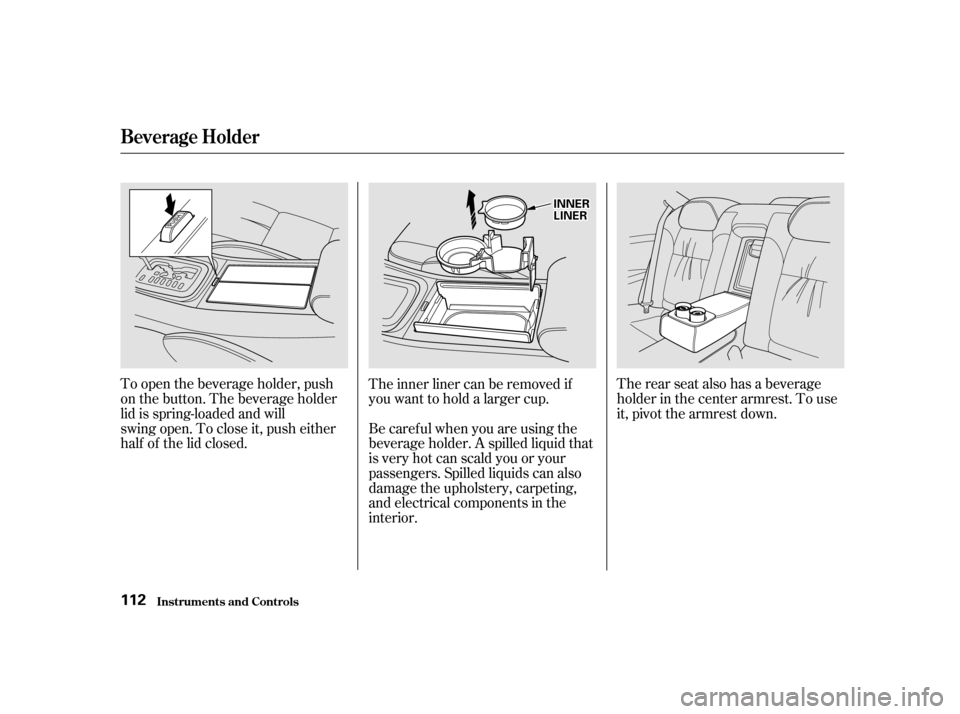

The rear seat also has a beverage
holder in the center armrest. To use
it, pivot the armrest down.
To open the beverage holder, push
on the button. The beverage holder
lid is spring-loaded and will
swing open. To close it, push either
half of the lid closed.
Be caref ul when you are using the
beverage holder. A spilled liquid that
is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior. The inner liner can be removed if
youwanttoholdalargercup.
Beverage Holder
Inst rument s and Cont rols112
I IN
NN NEER
R
L
LI INNE ER
R

To open the console compartment,
pull up on the lef t lever and lif t the
lid.
To close, lower the lid and push it
down until it latches.Youcanputsmallitemsinthetray
located in the console compartment
lid. To use the tray, pull up on the
right lever and lif t up the armrest
pad.
The coin box is located under the
audio system. To open the coin box,
pull the bottom edge. Close it with a
firm push.
The console compartment light
comesononlywhentheparking
lights are on. Coin Box
Console Compartment
Inst rument s and Cont rols113
L LE E V
V E
ER
R
C
COOI INN B
BOOX X
C
CO
ON NSSOOL LEE C
COOM M P
PA
A R
RTTM
M E
EN
NT T
L
LE
E V
V E
ER
R

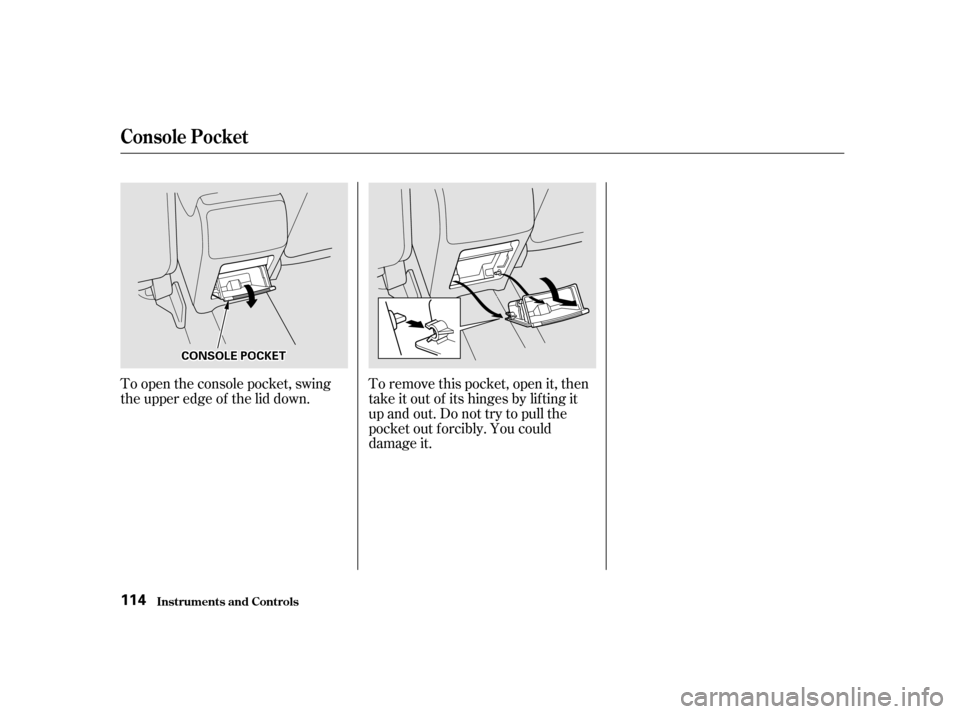

To open the console pocket, swing
the upper edge of the lid down.To remove this pocket, open it, then
take it out of its hinges by lif ting it
up and out. Do not try to pull the
pocket out f orcibly. You could
damage it.
Console Pocket
Inst rument s and Cont rols114
C CO
ON NSSOOL LEE P
PO
OC CKKEET
T

The storage tray is located above the
audio system. Push on the center of
the tray to get it to pop out. Then
remove it by pulling it straight out.Youcanputawritingpad,pen,and
small items in the inner box in the
storagetray.Liftthelidtousethe
tray.
To use a coat hook, push on the lid.
Close it with a f irm push.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed f or large or heavy
items.
To reinstall the storage tray into the
dashboard, close the lid, then push
the storage tray in until it latches.
3.2 CL without Navigation System
St orage T ray, Coat Hook
Storage T ray
Coat Hook
Inst rument s and Cont rols115
S STTO
OR RAA G
GE E T
TR
RA A Y
Y L
LI
IDD

To use the sun visor, pull it down.
You can also use the sun visor at the
side window. Remove the support
rod f rom the clip and swing the sun
visor toward the side window. In this
position, the sun visor can be
extended by sliding out the
extension.Touseavanitymirroronthebackof
the sun visor, pull up the cover.
Make sure you put the sun visor
back in place when you are getting
into or out of the car. Do not use the
sun visor extension over the rear
view mirror.
The lights beside the mirror come
on only when the parking lights are
on.
Sun Visor
Vanity Mirror
Sun Visor, Vanit y Mirror
Inst rument s and Cont rols116
E EX
X T
TE
EN
NS SIIOON N

Your car has two accessory power
sockets. One is located on the f ront
panel next to the coin box, and the
other is in the console compartment.
To use an accessory power socket,
the ignition switch must be in
ACCESSORY (I) or ON (II).
To open the socket on the f ront
panel, pull the cover down.Tousethesocketintheconsole
compartment, pull the cover up.These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
They will not power an automotive
type cigarette lighter element.
A ccessory Power Socket s
Inst rument s and Cont rols117
A A
C
CCCEES
SS SOOR RYY P
PO
OW WE ER
R S
SOOC CKKEET
T A
A
C
CCCEES
SS SOOR RYY P
PO
OW WE ER
R S
SOOC CKKEET
T
C
CO
OV VE
ER
R
