20-114 Dashboard
Dashboard/Steering Hanger Beam Disassembly/Reassembly
Fastener Locations
:Bolt,5
5x0.8mm
5N·m
(0.5 kgf·m,
4lbf·ft) A
B
B C
D
A D
KTC trim tool set SOJATP2014
NOTE:

Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Take care not to bend the brackets.
 Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
1. Remove the dashboard/steering hanger beam (see page 20-108).
2. Remove these items from the dashboard:  Instrument panel (see page 20-98)
 Gauge control module (speedo) trim (see page20-99)
 Subdisplay visor (see page 20-100)
 Navigation unit, with navigation system – ’06-08 models (see page 23-155)
– ’09 model (see page 23-355)
 Audio unit, without navigation system – ’06-08 models (see page 23-80)
– ’09 model (see page 23-256)
 Passenger’s airbag (see page 24-189)
 Gauge control module (speedo) (see page 22-277)
 Gauge control module (tach) (see page 22- 277)
3. Remove the bolts. 4

. From the back of the dashboard, release the hooks
(A), then remove the center joint duct (B).
5. From the back of the dashboard, disconnect the tweeter connectors (A), the front accessory power
socket connector (B), and the sunlight sensor
connector (C), then detach the harness clips (D).
08/08/21 15:03:00 61SNR030_200_0116
ProCarManuals.com
DYNOMITE -2009-



(#'#






 )
Without navigation 6 CD type
23-80 Audio System
Audio Unit Removal/Installation
A
B
C
B
A
BSRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE: Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
 Eject all the discs before removing the audio unit to prevent damaging the CD player’s load mechanism.
 If you are replacing the audio unit, write down the sudio presets (if possible), and enter them into the
new audio unit.
1. Remove the meter inner visor (see page 20-100). 2. Remove the center pocket hole lid and the bolts,
then pull out the center panel (A).
3. Disconnect the connectors (B), and the air hose (C) then remove the center panel.
4. Remove the screws, and the audio unit (A) from the center panel display (B).
08/08/21 14:05:35 61SNR030_230_0083
ProCarManuals.com
DYNOMITE -2009-

µ
Error Message Table
Screen Error MessageSolution
23-153
Navigation system is unable to acquire a proper
GPS signal.Make sure there is nothing on the dashboard blocking the GPS
antenna. If not, move the vehicle to an open space away from
tall buildings, trees, etc. Aftermarket metallic window tinting
and other aftermarket devices can affect the GPS reception.
Navigation is open or No DVD disc installed.
Please check system. Make sure the correct white-labeled navigation DVD is
installed with the label side up and the navigation display is
closed.
DVD reading error (incorrect DVD disc) place
consult your dealer. Verify correct color (white) DVD installed.
Display temp is too high. System will shut down
until display cools down. This message appears briefly when the display temperature is
too high, and the display turns off until the temperature cools
down. The system turns back on when the display cools down.
Outside temperature is low, system will take a
while to start up. The temperature is below 30 °C and the navigation ECU has
difficulties reading the navigation DVD. The system will start
up when the temperature warms up.
DVD disc reading error (unformatted), please
consult your dealer. Check the navigation DVD source for deep scratches or other
damage. Make sure you are using an official Honda
navigation DVD (white in color). The system cannot read other
mapping databases or video DVDs. Check online for any
service publications to update the navigation system.
Route has not been completed. Please try again
from a different location. Routing to or from a place (new area) that is not in the
database. Try planning a different route to or from a different
location.
No alternate route found. Original route will be
guided. No alternate route method was found. The original route will
be used.
This destination cannot be found in database. The destination was not found in the database. Try another destination nearby, or select the destination with the joystick.
08/08/21 14:08:38 61SNR030_230_0156
ProCarManuals.com
DYNOMITE -2009-


(#'#

 )
23-155

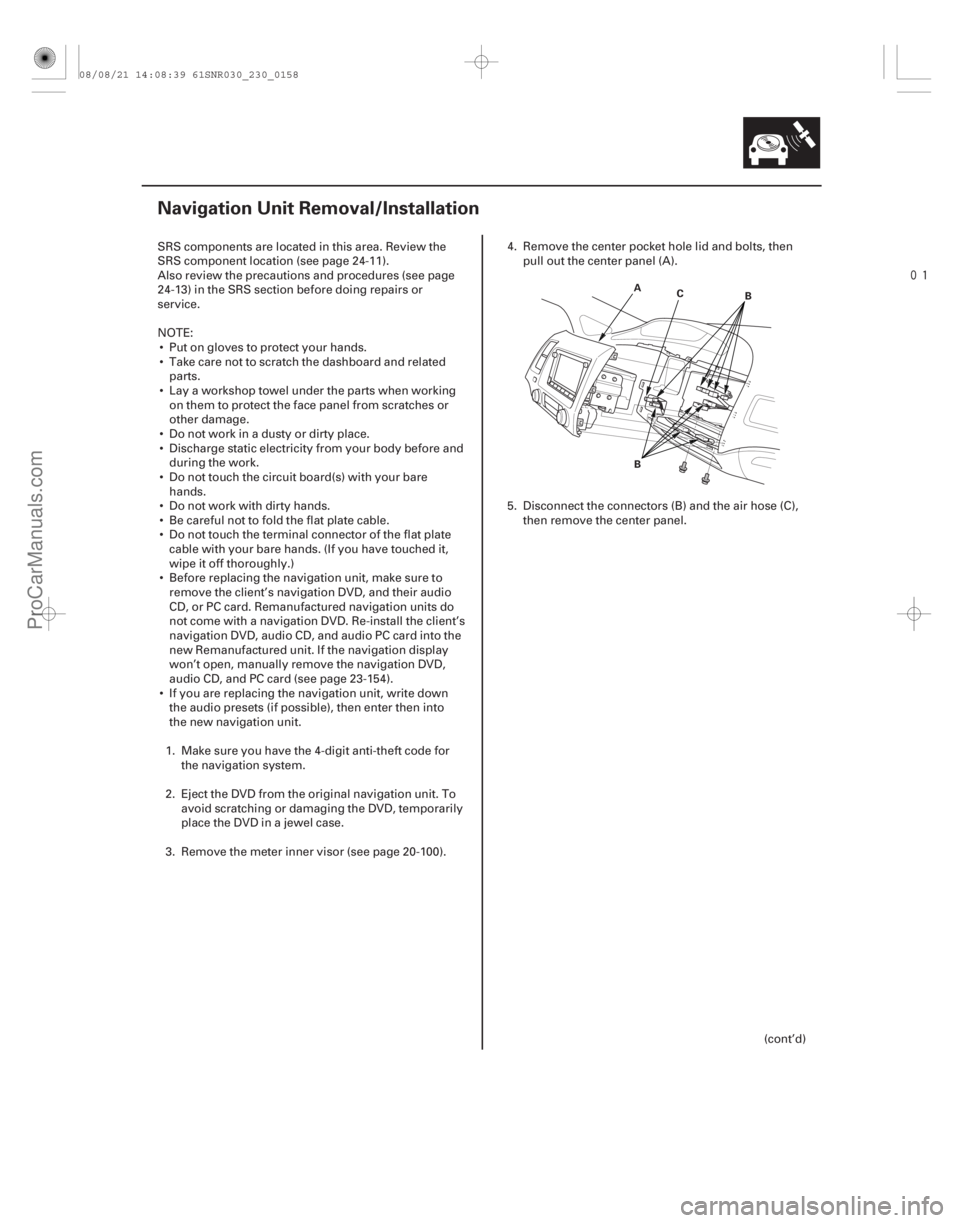

Navigation Unit Removal/Installation
A B B
C
SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
 Before replacing the navigation unit, make sure to remove the client’s navigation DVD, and their audio
CD, or PC card. Remanufactured navigation units do
not come with a navigation DVD. Re-install the client’s
navigation DVD, audio CD, and audio PC card into the
new Remanufactured unit. If the navigation display
won’t open, manually remove the navigation DVD,
audio CD, and PC card (see page 23-154).
 If you are replacing the navigation unit, write down the audio presets (if possible), then enter then into
the new navigation unit.
1. Make sure you have the 4-digit anti-theft code for the navigation system.
2. Eject the DVD from the original navigation unit. To avoid scratching or damaging the DVD, temporarily
place the DVD in a jewel case.
3. Remove the meter inner visor (see page 20-100). 4. Remove the center pocket hole lid and bolts, then
pull out the center panel (A).
5. Disconnect the connectors (B) and the air hose (C), then remove the center panel.
(cont’d)
08/08/21 14:08:39 61SNR030_230_0158
ProCarManuals.com
DYNOMITE -2009-

µ
Error Message Table
Screen Error MessageSolution
23-319
Navigation system is unable to acquire a
proper GPS signal.Make sure there is nothing on the dashboard blocking the GPS
antenna.
If not, move the vehicle to an open space away from tall buildings,
trees, etc.
Aftermarket metallic wi
ndow tinting and other aftermarket devices
can affect the GPS reception.
Navigation unit door is open or No DVD
disc installed. Please check system. Make sure the navigation DVD is the correct color and is not
scratched or damaged. Make sure it is installed with the label side up
and the navigation unit door is snapped fully closed.
No DVD disc, please check system. Check that the navigation DVD is installed with the label side up.
Display temp is too high. System will shut
down until display cools down. This message appears briefly when the display temperature is too
high, and then the display turns off until the temperature cools down.
The system turns back on when the display cools down.
Outside temperature is low, system will
take a while to start up. The temperature is below 30 °C and the navigation unit has
difficulties reading the navigation DVD. The system will start up
when the temperate warms up.
DVD disc reading error (unformatted),
please consult your dealer. Check the navigation DVD for the correct color and software version.
Also check for deep scratches or other damage. Make sure you are
using an official Acura navigation DVD. The system cannot read
other mapping databases or video DVDs. Check any official Acura
service website for more service information about the navigation
system.
Route has not been completed. Please try
again from a different location. Routing to or from a place (new area) that is not in the database. Try
planning a different route to or from a different location that is
clearly displayed on the map (map matched).
No alternate route found. Original route
will be guided. No alternate route method was found. The original route method will
be used.
This destination cannot be found in
database. The destination was not found in the database. Try another
destination nearby, or select the destination with the jog dial.
08/08/21 14:16:45 61SNR030_230_0322
ProCarManuals.com
DYNOMITE -2009-

Î

(#'#

 )
23-35523-355
Navigation Unit Removal/
Installation
AB
C
D

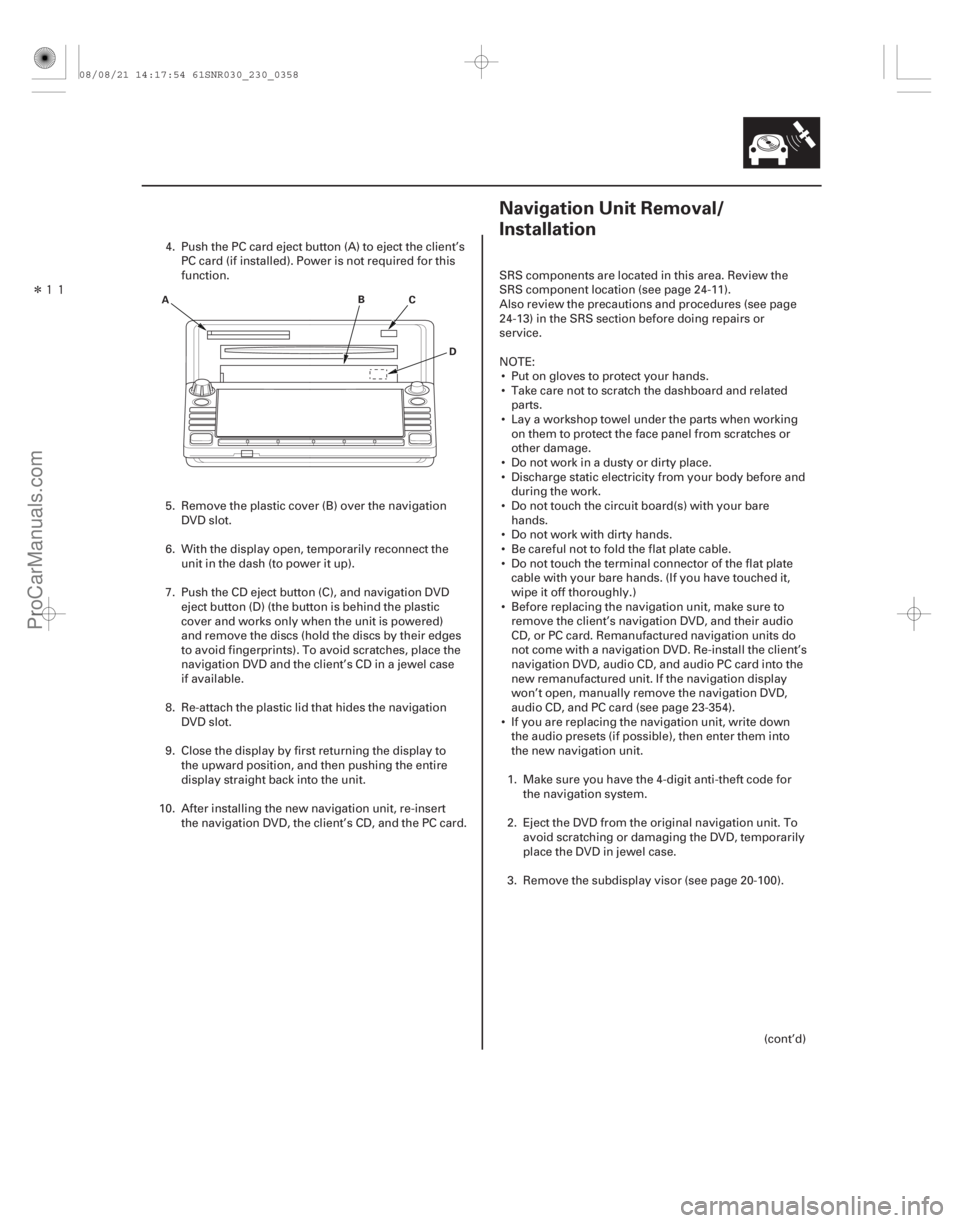

4. Push the PC card eject button (A) to eject the client’sPC card (if installed). Power is not required for this
function.
5. Remove the plastic cover (B) over the navigation DVD slot.
6. With the display open, temporarily reconnect the unit in the dash (to power it up).
7. Push the CD eject button (C), and navigation DVD eject button (D) (the button is behind the plastic
cover and works only when the unit is powered)
and remove the discs (hold the discs by their edges
to avoid fingerprints). To avoid scratches, place the
navigation DVD and the client’s CD in a jewel case
if available.
8. Re-attach the plastic lid that hides the navigation DVD slot.
9. Close the display by first returning the display to the upward position, and then pushing the entire
display straight back into the unit.
10. After installing the new navigation unit, re-insert the navigation DVD, the client’s CD, and the PC card. SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
 Before replacing the navigation unit, make sure to remove the client’s navigation DVD, and their audio
CD, or PC card. Remanufactured navigation units do
not come with a navigation DVD. Re-install the client’s
navigation DVD, audio CD, and audio PC card into the
new remanufactured unit. If the navigation display
won’t open, manually remove the navigation DVD,
audio CD, and PC card (see page 23-354).
 If you are replacing the navigation unit, write down the audio presets (if possible), then enter them into
the new navigation unit.
1. Make sure you have the 4-digit anti-theft code for the navigation system.
2. Eject the DVD from the original navigation unit. To avoid scratching or damaging the DVD, temporarily
place the DVD in jewel case.
3. Remove the subdisplay visor (see page 20-100).
(cont’d)
08/08/21 14:17:54 61SNR030_230_0358
ProCarManuals.com
DYNOMITE -2009-

Î

(#'#

 )
23-35523-355
Navigation Unit Removal/
Installation
AB
C
D
4. Push the PC card eject button (A) to eject the client’sPC card (if installed). Power is not required for this
function.
5. Remove the plastic cover (B) over the navigation DVD slot.
6. With the display open, temporarily reconnect the unit in the dash (to power it up).
7. Push the CD eject button (C), and navigation DVD eject button (D) (the button is behind the plastic
cover and works only when the unit is powered)
and remove the discs (hold the discs by their edges
to avoid fingerprints). To avoid scratches, place the
navigation DVD and the client’s CD in a jewel case
if available.
8. Re-attach the plastic lid that hides the navigation DVD slot.
9. Close the display by first returning the display to the upward position, and then pushing the entire
display straight back into the unit.
10. After installing the new navigation unit, re-insert the navigation DVD, the client’s CD, and the PC card. SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
 Before replacing the navigation unit, make sure to remove the client’s navigation DVD, and their audio
CD, or PC card. Remanufactured navigation units do
not come with a navigation DVD. Re-install the client’s
navigation DVD, audio CD, and audio PC card into the
new remanufactured unit. If the navigation display
won’t open, manually remove the navigation DVD,
audio CD, and PC card (see page 23-354).
 If you are replacing the navigation unit, write down the audio presets (if possible), then enter them into
the new navigation unit.
1. Make sure you have the 4-digit anti-theft code for the navigation system.
2. Eject the DVD from the original navigation unit. To avoid scratching or damaging the DVD, temporarily
place the DVD in jewel case.
3. Remove the subdisplay visor (see page 20-100).
(cont’d)
08/08/21 14:17:54 61SNR030_230_0358
ProCarManuals.com
DYNOMITE -2009-


(#'
)
DTC (Diagnostic Trouble Codes) Reading the DTC
Precautions
24-22SRS
General Troubleshooting Information
A
The self-diagnostic function of the SRS system allows it
to locate the causes of system problems and store this
information in memory. For easier troubleshooting, this
data can be retrieved via a data link circuit.
 When you turn the ignition switch to ON (II), the SRS indicator comes on. If it goes off after 6 seconds, the
system is normal, and is not currently detecting any
abnormality.
 If there is an abnormality, the system locates and defines the problem, stores this information in
memory, and turns on the SRS indicator. The data
remains in memory even if the ignition switch is
turned off or the battery is disconnected.
 The data is stored in memory as a diagnostic trouble code (DTC).
 The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F)
that is displayed on the HDS.
 DTCs are either latching or resetting depending on the malfunction. With resetting DTCs, the SRS
indicator goes off the next time the ignition switch is
turned to ON (II), and the system is normal, but the
DTC is still stored. With latching DTCs, the SRS
indicator does not turn to LOCK (0) until the
malfunction is repaired and the DTC is cleared.
 When you connect the HDS to the data link connector (DLC), you can retrieve a more detailed DTC in the
HDS ‘‘SRS’’ menu.
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus. SWS (ODS unit) DTCs are subcodes
of SRS unit DTCs. Only troubleshoot the
corresponding SRS DTCs.
 After reading and recording the DTC, proceed with the troubleshooting procedure for that code.
 Use only a digital multimeter to check the system. Make sure its output is 10 mA (0.01 A) or less when
switched to the smallest value in the ohmmeter range.
A tester with a higher output could damage the
airbag circuit or cause accidental airbag deployment
and possible injury.  Whenever the ignition switch is in ON (II), or has been
turned to LOCK (0), for less than 3 minutes, be careful
not to bump the SRS unit; the airbags could
accidentally deploy and cause damage or injuries.
 Before removing the dashboard wire harness, floor wire harness, disconnect the driver’s airbag
connector, the front passenger’s airbag connector,
both side airbag connectors, both side curtain airbag
connectors and both seat belt tensioner connectors.
 Make sure the battery is fully charged. If the battery is dead or low, electrical measurements may not be
correct.
 Do not touch a tester probe to the terminals in the SRS unit or harness connectors, and do not connect
the SRS unit terminals or the sensor terminals with a
jumper wire. Use only the backprobe set and the
multimeter. Backprobe spring-loaded lock type
connectors correctly.
1. Make sure the ignition switch is in LOCK (0).
2. Connect the HDS to the data link connector (DLC) (A).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
08/08/21 13:54:21 61SNR030_240_0022
ProCarManuals.com
DYNOMITE -2009-
