K20Z3 engine
10-3
THERMOSTAT
RADIATOR
ENGINE COOLANT TEMPERATURE
(ECT) SENSOR 2
WATER PUMP
A/C CONDENSER FAN ASSEMBLY RADIATOR FAN ASSEMBLY WATER OUTLET
COOLANT SEPARATOR
OIL COOLER
WATER PASSAGE
Test, page 10-5
Replacement, page 10-10
Replacement, page 10-19
Inspection, page 10-6
Replacement, page 10-6
Replacement, page 10-19
Fan Motor Test, page 10-5 Replacement, page 10-19
Fan Motor Test, page 10-5 Replacement, page 10-16
Replacement, page 10-11
08/08/21 14:39:56 61SNR030_100_0003
ProCarManuals.com
DYNOMITE -2009-

ÃŽ ÃŽ
10-21
BA
C
A B
6x1.0mm
10 N·m (1.0 kgf·m, 7.2 lbf·ft)
A
6x1.0mm
10 N·m (1.0 kgf·m, 7.2 lbf·ft) C

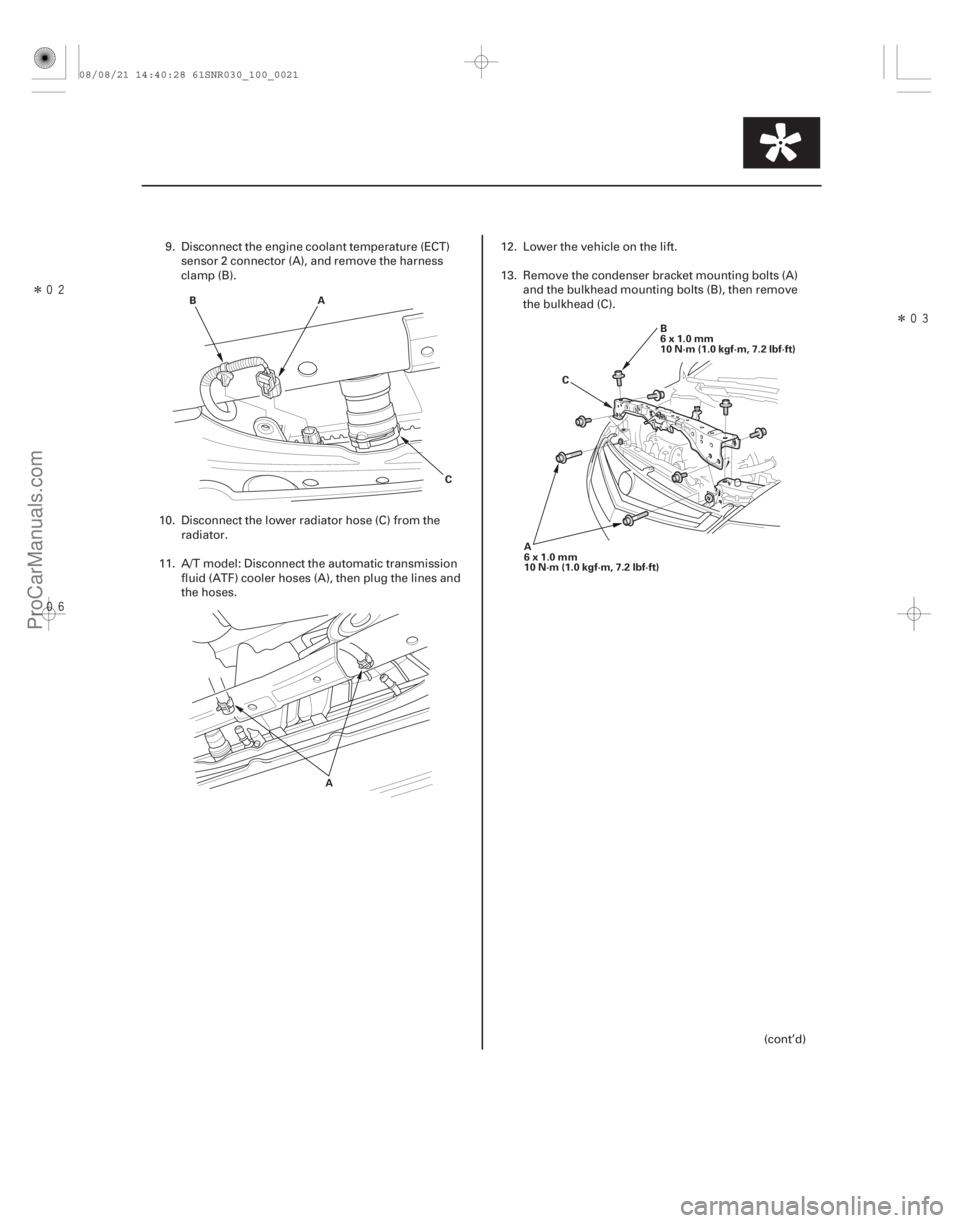

9. Disconnect the engine coolant temperature (ECT)
sensor 2 connector (A), and remove the harness
clamp (B).
10. Disconnect the lower radiator hose (C) from the radiator.
11. A/T model: Disconnect the automatic transmission fluid (ATF) cooler hoses (A), then plug the lines and
the hoses. 12. Lower the vehicle on the lift.
13. Remove the condenser bracket mounting bolts (A)
and the bulkhead mounting bolts (B), then remove
the bulkhead (C).
(cont’d)
08/08/21 14:40:28 61SNR030_100_0021
ProCarManuals.com
DYNOMITE -2009-


10-22Cooling System

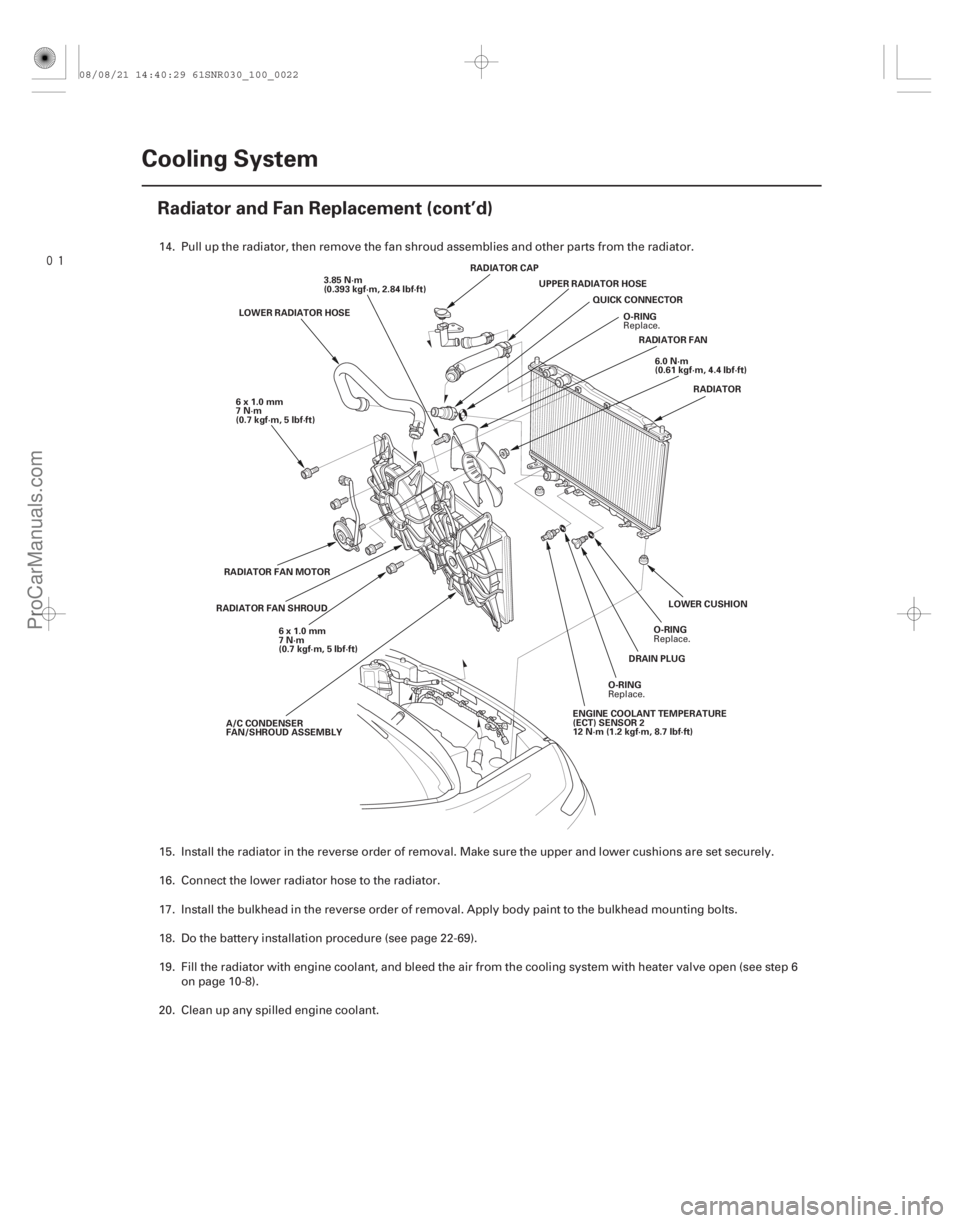

Radiator and Fan Replacement (cont’d)
RADIATOR FAN MOTOR
6x1.0mm
7 N·m
(0.7 kgf·m, 5 lbf·ft) RADIATOR FAN
UPPER RADIATOR HOSE
LOWER RADIATOR HOSE
O-RING
RADIATOR CAP
RADIATOR
O-RING LOWER CUSHION
DRAIN PLUG
6x1.0mm
7 N·m
(0.7 kgf·m, 5 lbf·ft)
A/C CONDENSER
FAN/SHROUD ASSEMBLY
RADIATOR FAN SHROUD
ENGINE COOLANT TEMPERATURE
(ECT) SENSOR 2
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
3.85 N·m
(0.393 kgf·m, 2.84 lbf·ft)
6.0 N·m
(0.61 kgf·m, 4.4 lbf·ft)
QUICK CONNECTOR
O-RING
14. Pull up the radiator, then remove the fan shroud assemblies and other parts from the radiator.
15. Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely.
16. Connect the lower radiator hose to the radiator.
17. Install the bulkhead in the reverse order of removal. Apply body paint to the bulkhead mounting bolts.
18. Do the battery installation procedure (see page 22-69).
19. Fill the radiator with engine coolant, and bleed the air from the cooling system with heater valve open (see step 6 on page 10-8).
20. Clean up any spilled engine coolant.
Replace. Replace.
Replace.
08/08/21 14:40:29 61SNR030_100_0022
ProCarManuals.com
DYNOMITE -2009-

ÃŽ
(#'

)
10-23
Fan Controls
Component Location Index
FAN CONTROL RELAY
UNDER-HOOD FUSE/RELAY BOX
RADIATOR FAN RELAY
A/C CONDENSER FAN ASSEMBLY RADIATOR FAN ASSEMBLY ENGINE COOLANT TEMPERATURE
(ECT) SENSOR 2ENGINE COOLANT TEMPERATURE
(ECT) SENSOR 1
A/C CONDENSER FAN RELAY
Test, page 22-70
Test, page 22-70
Motor Test, page 10-5
Replacement, page 10-19 Motor Test, page 10-5
Replacement, page 10-19 Replacement, page 11-225Replacement, page 11-225
Test, page 22-70
08/08/21 14:40:31 61SNR030_100_0023
ProCarManuals.com
DYNOMITE -2009-

ÃŽ
(#'

)
10-25
Circuit Diagram
ECT2
SG6
SG2
ECT1 FANH
FANL
SUBRLY IG2HOTinON(II)
PNK
5V No. 15 (7.5 A)
A21
PUR
ECM/PCM
2G301
BLK
2
1
No. 11 (15 A)
(10 A) No. 36
B23
RED/WHT GRN/BLK B33
BLU GRY
BRN
A33
BLK GRN A9 IGNITION SWITCH
IG2
BAT
RED
3
2 5
4 1
A4
A5 13
4
2
1 2 23 4
1 No. 2 (50 A)
BLK
UNDER-HOOD FUSE/RELAY BOX
BATTERY
G301No. 1 (100 A)
No. 6 (20 A)
A/C
CONDENSER
FAN RELAY
ENGINE COOLANT
TEMPERATURE
(ECT) SENSOR 1
A/C
CONDENSER
FAN MOTOR
FAN
CONTROL
RELAY
RADIATOR
FAN
MOTOR
ENGINE COOLANT
TEMPERATURE
(ECT) SENSOR 2 RADIATOR
FAN
RELAY
PGM-FI
SUB RELAY
H1
3 4
ORN
G12
D1
F16
F7
F2
F12
F14
F1
F11 No. 7 (20 A)
21
1 UNDER-DASH
FUSE/RELAY
BOX
BRN
WHT
43
12 C3
08/08/21 14:40:32 61SNR030_100_0025
ProCarManuals.com
DYNOMITE -2009-

(#'


/)

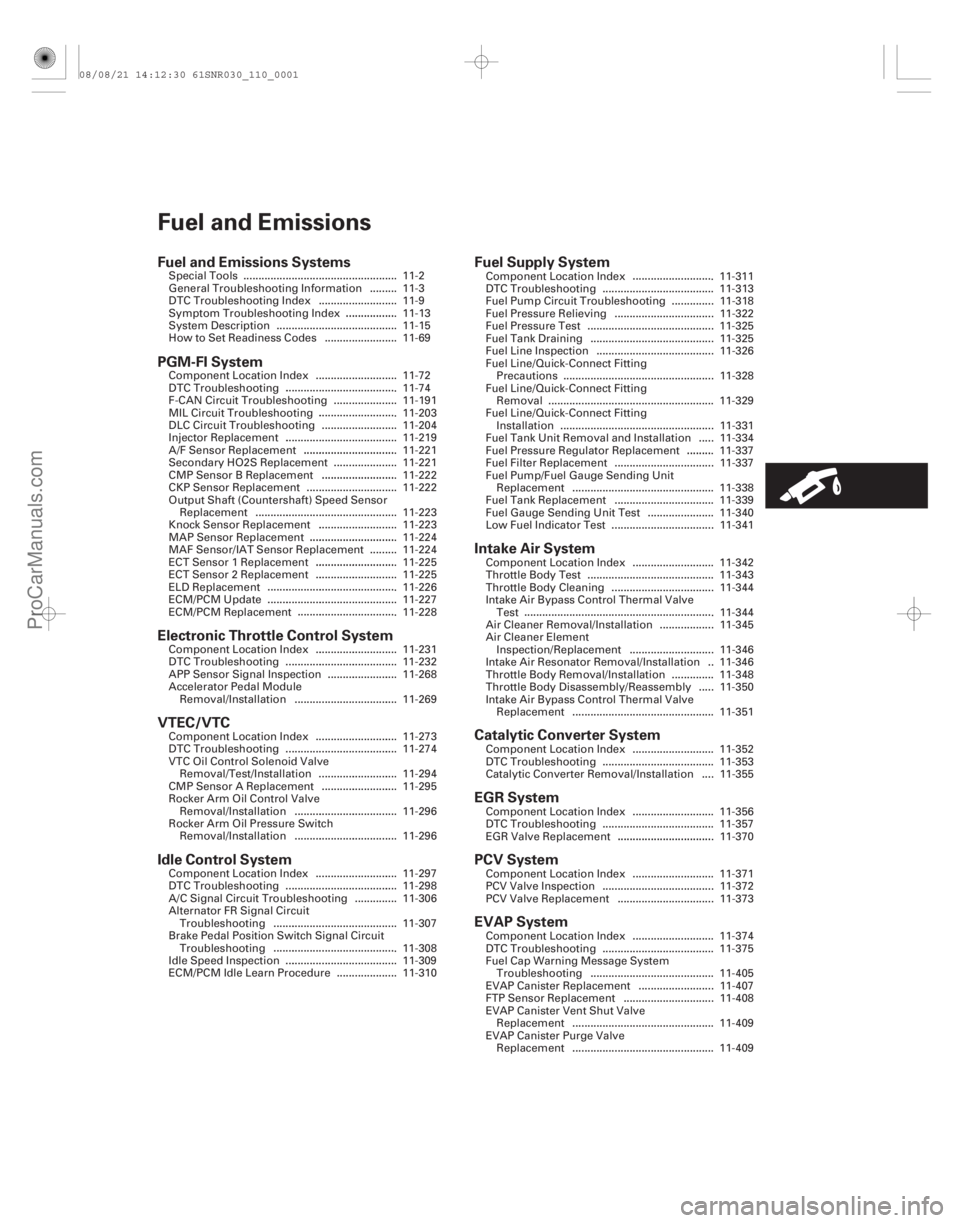

Fuel and Emissions
Fuel and Emissions Systems
PGM-FI System
Electronic Throttle Control System
VTEC/VTC
Idle Control SystemFuel Supply System
Intake Air System
Catalytic Converter System
EGR System
PCV System
EVAP System..................................................
........
......................... ................
....................................... .......................
..................................................
........
......................... ................
....................................... .......................
Special Tools . 11-2
General Troubleshooting Information . 11-3
DTC Troubleshooting Index . 11-9
Symptom Troubleshooting Index . 11-13
System Description . 11-15
How to Set Readiness Codes . 11-69
..........................
.................................... ....................
......................... ........................
.................................... .............................. ....................
........................
.............................
.............................................. .........................
............................ ........
..........................
..........................
..........................................
.......................................... ..........................................................
.................................... ....................
......................... ........................
.................................... .............................. ....................
........................
.............................
.............................................. .........................
............................ ........
..........................
..........................
..........................................
.......................................... ................................
Component Location Index . 11-72
DTC Troubleshooting . 11-74
F-CAN Circuit Troubleshooting . 11-191
MIL Circuit Troubleshooting . 11-203
DLC Circuit Troubleshooting . 11-204
Injector Replacement . 11-219
A/F Sensor Replacement . 11-221
Secondary HO2S Replacement . 11-221
CMP Sensor B Replacement . 11-222
CKP Sensor Replacement . 11-222
Output Shaft (Countershaft) Speed Sensor
Replacement . 11-223
Knock Sensor Replacement . 11-223
MAP Sensor Replacement . 11-224
MAF Sensor/IAT Sensor Replacement . 11-224
ECT Sensor 1 Replacement . 11-225
ECT Sensor 2 Replacement . 11-225
ELD Replacement . 11-226
ECM/PCM Update . 11-227
ECM/PCM Replacement . 11-228
..........................
.................................... ......................
................................. ..........................
.................................... ......................
.................................
Component Location Index . 11-231
DTC Troubleshooting . 11-232
APP Sensor Signal Inspection . 11-268
Accelerator Pedal Module
Removal/Installation . 11-269
..........................
....................................
.................................................
.................................
................................. ..........................
....................................
.................................................
.................................
.................................
Component Location Index
. 11-273
DTC Troubleshooting . 11-274
VTC Oil Control Solenoid Valve Removal/Test/Installation . 11-294
CMP Sensor A Replacement . 11-295
Rocker Arm Oil Control Valve Removal/Installation . 11-296
Rocker Arm Oil Pressure Switch Removal/Installation . 11-296
..........................
.................................... .............
........................................
........................................ .................................... ...................
..........................
.................................... .............
........................................
........................................ .................................... ...................
Component Location Index
. 11-297
DTC Troubleshooting . 11-298
A/C Signal Circuit Troubleshooting . 11-306
Alternator FR Signal Circuit Troubleshooting . 11-307
Brake Pedal Position Switch Signal Circuit Troubleshooting . 11-308
Idle Speed Inspection . 11-309
ECM/PCM Idle Learn Procedure . 11-310 ..........................
.................................... .............
................................
......................................... ........................................ ......................................
.................................................
...................................................... .................................................. ....
........
................................
.............................................. .....................................................
................................. ..........................
.................................... .............
................................
......................................... ........................................ ......................................
.................................................
...................................................... .................................................. ....
........
................................
.............................................. .....................................................
.................................
Component Location Index
. 11-311
DTC Troubleshooting . 11-313
Fuel Pump Circuit Troubleshooting . 11-318
Fuel Pressure Relieving . 11-322
Fuel Pressure Test . 11-325
Fuel Tank Draining . 11-325
Fuel Line Inspection . 11-326
Fuel Line/Quick-Connect Fitting Precautions . 11-328
Fuel Line/Quick-Connect Fitting Removal . 11-329
Fuel Line/Quick-Connect Fitting Installation . 11-331
Fuel Tank Unit Removal and Installation . 11-334
Fuel Pressure Regulator Replacement . 11-337
Fuel Filter Replacement . 11-337
Fuel Pump/Fuel Gauge Sending Unit Replacement . 11-338
Fuel Tank Replacement . 11-339
Fuel Gauge Sending Unit Test . 11-340
Low Fuel Indicator Test . 11-341
..........................
......................................... .................................
.............................................................. .................
........................... .
............. ....
.............................................. ..........................
......................................... .................................
.............................................................. .................
........................... .
............. ....
..............................................
Component Location Index
. 11-342
Throttle Body Test . 11-343
Throttle Body Cleaning . 11-344
Intake Air Bypass Control Thermal Valve Test . 11-344
Air Cleaner Removal/Installation . 11-345
Air Cleaner Element Inspection/Replacement . 11-346
Intake Air Resonator Removal/Installation . 11-346
Throttle Body Removal/Installation . 11-348
Throttle Body Disassembly/Reassembly . 11-350
Intake Air Bypass Control Thermal Valve Replacement . 11-351
..........................
.................................... ...
..........................
.................................... ...
Component Location Index
. 11-352
DTC Troubleshooting . 11-353
Catalytic Converter Removal/Installation . 11-355
..........................
.................................... .........................................................
.................................... ...............................
Component Location Index
. 11-356
DTC Troubleshooting . 11-357
EGR Valve Replacement . 11-370
..........................
.................................... .........................................................
.................................... ...............................
Component Location Index
. 11-371
PCV Valve Inspection . 11-372
PCV Valve Replacement . 11-373
..........................
....................................
........................................ ........................
.............................
..............................................
.............................................. ..........................
....................................
........................................ ........................
.............................
..............................................
..............................................
Component Location Index
. 11-374
DTC Troubleshooting . 11-375
Fuel Cap Warning Message System Troubleshooting . 11-405
EVAP Canister Replacement . 11-407
FTP Sensor Replacement . 11-408
EVAP Canister Vent Shut Valve Replacement . 11-409
EVAP Canister Purge Valve Replacement . 11-409
08/08/21 14:12:30 61SNR030_110_0001
ProCarManuals.com
DYNOMITE -2009-


HDS Clear Command
Scan Tool Clear Command
DTC ClearECM/PCM Reset
CKP Pattern Clear/CKP Pattern Learn
Clear/Learn Procedure (with the HDS)
11-4Fuel and Emissions Systems

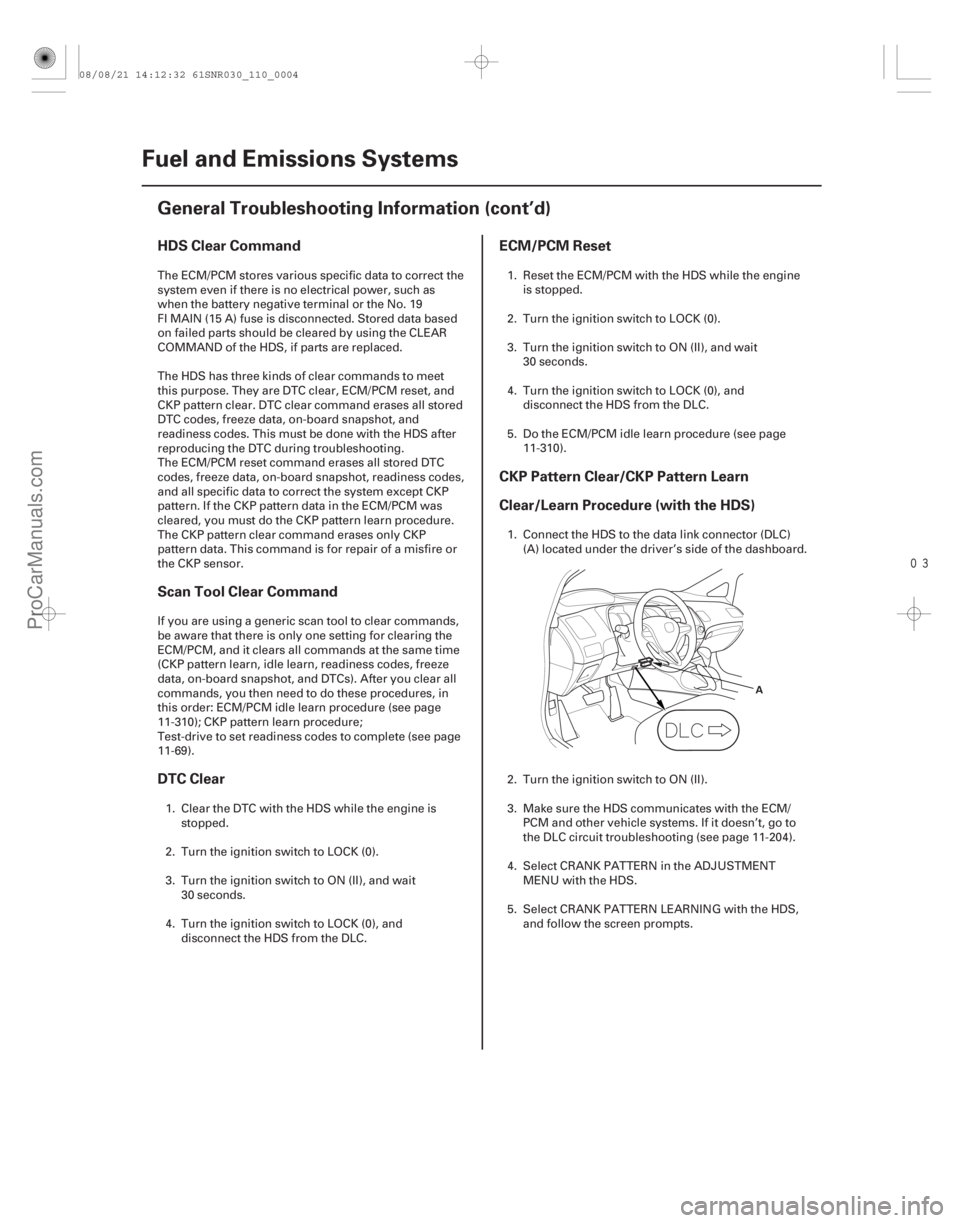

General Troubleshooting Information (cont’d)

A
The ECM/PCM stores various specific data to correct the
system even if there is no electrical power, such as
when the battery negative terminal or the No. 19
FI MAIN (15 A) fuse is disconnected. Stored data based
on failed parts should be cleared by using the CLEAR
COMMAND of the HDS, if parts are replaced.
The HDS has three kinds of clear commands to meet
this purpose. They are DTC clear, ECM/PCM reset, and
CKP pattern clear. DTC clear command erases all stored
DTC codes, freeze data, on-board snapshot, and
readiness codes. This must be done with the HDS after
reproducing the DTC during troubleshooting.
The ECM/PCM reset command erases all stored DTC
codes, freeze data, on-board snapshot, readiness codes,
and all specific data to correct the system except CKP
pattern. If the CKP pattern data in the ECM/PCM was
cleared, you must do the CKP pattern learn procedure.
The CKP pattern clear command erases only CKP
pattern data. This command is for repair of a misfire or
the CKP sensor.
If you are using a generic scan tool to clear commands,
be aware that there is only one setting for clearing the
ECM/PCM, and it clears all commands at the same time
(CKP pattern learn, idle learn, readiness codes, freeze
data, on-board snapshot, and DTCs). After you clear all
commands, you then need to do these procedures, in
this order: ECM/PCM idle learn procedure (see page
11-310); CKP pattern learn procedure;
Test-drive to set readiness codes to complete (see page
11-69).
1. Clear the DTC with the HDS while the engine is stopped.
2. Turn the ignition switch to LOCK (0).
3. Turn the ignition switch to ON (II), and wait 30 seconds.
4. Turn the ignition switch to LOCK (0), and disconnect the HDS from the DLC. 1. Reset the ECM/PCM with the HDS while the engine
is stopped.
2. Turn the ignition switch to LOCK (0).
3. Turn the ignition switch to ON (II), and wait 30 seconds.
4. Turn the ignition switch to LOCK (0), and disconnect the HDS from the DLC.
5. Do the ECM/PCM idle learn procedure (see page 11-310).
1. Connect the HDS to the data link connector (DLC) (A) located under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the ECM/ PCM and other vehicle systems. If it doesn’t, go to
the DLC circuit troubleshooting (see page 11-204).
4. Select CRANK PATTERN in the ADJUSTMENT MENU with the HDS.
5. Select CRANK PATTERN LEAR NING with the HDS,
and follow the screen prompts.
08/08/21 14:12:32 61SNR030_110_0004
ProCarManuals.com
DYNOMITE -2009-

•••Ó
Ó
•••
•••
•••
••• Ó
•••
••• Ó
•••
•••
•••
••• Ó
Ó
Ó
Ó
•••
••• Ó
••• ÓÓ
••• Ó
Ó
•••
••• Ó
Ó
Ó
Ó
Ó
(#')
DTC
(MIL indication ) Two Drive Cycle
Detection Detection Item MIL Note
11-9
DTC Troubleshooting Index
P0010 (56)
Variable Valve Timing Control (VTC) Oil Control Solenoid Valve
Malfunction ON (see page 11-274)
P0011 (56) Variable Valve Timing Control (VTC) System Malfunction ON (see page 11-276)
P0101 (50) Mass Air Flow (MAF) Sensor Circuit Range/Performance Problem ON (see page 11-74)
P0102 (50) Mass Air Flow (MAF) Sensor Circuit Low Voltage ON (see page 11-75)
P0103 (50) Mass Air Flow (MAF) Sensor Circuit High Voltage ON (see page 11-78)
P0107 (3) Manifold Absolute Pressure (MAP) Sensor Circuit Low Voltage ON (see page 11-80)
P0108 (3) Manifold Absolute Pressure (MAP) Sensor Circuit High Voltage ON (see page 11-82)
P0111 (10) Intake Air Temperature (IAT) Sensor Circuit Range/Performance
Problem ON (see page 11-85)
P0112 (10) Intake Air Temperature (IAT) Sensor Circuit Low Voltage ON (see page 11-86)
P0113 (10) Intake Air Temperature (IAT) Sensor Circuit High Voltage ON (see page 11-87)
P0116 (86) Engine Coolant Temperature (ECT) Sensor 1 Circuit Range/
Performance Problem ON (see page 11-90)
P0117 (6) Engine Coolant Temperature (ECT) Sensor 1 Circuit Low Voltage ON (see page 11-91)
P0118 (6) Engine Coolant Temperature (ECT) Sensor 1 Circuit High Voltage ON (see page 11-92)
P0122 (7) Throttle Position (TP) Sensor A Circuit Low Voltage ON (see page 11-232)
P0123 (7) Throttle Position (TP) Sensor A Circuit High Voltage ON (see page 11-234)
P0125 (86) Engine Coolant Temperature (ECT) Sensor 1 Malfunction/Slow
Responce ON (see page 11-95)
P0128 (87) Cooling System Malfunction ON (see page 11-96)
P0133 (61) Air Fuel Ratio (A/F) Sensor (Sensor 1) Malfunction/Slow Response ON (see page 11-97)
P0134 (41) Air Fuel Ratio (A/F) Sensor (Sensor 1) Heater System Malfunction ON (see page 11-98)
P0135 (41) Air Fuel Ratio (A/F) Sensor (Sensor 1) Heater Circuit Malfunction ON (see page 11-99)
P0137 (63) Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2))
Circuit Low Voltage ON (see page 11-104)
P0138 (63) Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2))
Circuit High Voltage ON (see page 11-106)
P0139 (63) Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2))
Slow Response ON (see page 11-109)
P0141 (65) Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2))
Heater Circuit Malfunction ON (see page 11-110)
P0171 (45) Fuel System Too Lean ON (see page 11-113)
P0172 (45) Fuel System Too Rich ON (see page 11-113)
P0222 (7) Throttle Position (TP) Sensor B Circuit Low Voltage ON (see page 11-236)
P0223 (7) Throttle Position (TP) Sensor B Circuit High Voltage ON (see page 11-239)
P0300 (75)
and any
combination of
the following:
P0301 (71)
P0302 (72)
P0303 (73)
P0304 (74) Random Misfire Detected
ON (see page 11-115)
P0301 (71) No. 1 Cylinder Misfire Detected ON (see page 11-118)
P0302 (72) No. 2 Cylinder Misfire Detected ON (see page 11-118)
P0303 (73) No. 3 Cylinder Misfire Detected ON (see page 11-118)
P0304 (74) No. 4 Cylinder Misfire Detected ON (see page 11-118)
NOTE:  The above DTCs are indicated when the PGM-FI system is selected with the HDS.
 Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the A/T system, and check for automatic transmission DTCs.
: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS.
4: K20Z2 engine
5: K20Z3 engine
(cont’d)
4
5 4
5
08/08/21 14:12:35 61SNR030_110_0009
ProCarManuals.com
DYNOMITE -2009-

•••
•••
•••
•••
•••
•••
•••
•••Ó
Ó
••• Ó
•••
Ó
••• Ó
••• ÓÓ
Ó
Ó
•••
•••
•••
••• Ó
Ó
Ó
•••
•••
Ó
Ó
Ó
Ó
•••
•••
•••
•••
•••
•••
DTC
(MIL indication ) Two Drive Cycle
Detection Detection Item MIL Note
11-10Fuel and Emissions Systems
DTC Troubleshooting Index (cont’d)
P0325 (23)
Knock Sensor Circuit Malfunction ON (see page 11-126)
P0335 (4) Crankshaft Position (CKP) Sensor No Signal ON (see page 11-128)
P0339 (4) Crankshaft Position (CKP) Sensor Circuit Intermittent Interruption ON (see page 11-131)
P0340 (57) Camshaft Position (CMP) Sensor A No Signal ON (see page 11-278)
P0341 (57) Camshaft Position (CMP) Sensor A and Crankshaft Position (CKP)
Sensor Incorrect Phase Detected ON (see page 11-281)
P0344 (57) Camshaft Position (CMP) Sensor A Circuit Intermittent Interruption ON (see page 11-282)
P0365 (8) Camshaft Position (CMP) Sensor B No Signal ON (see page 11-132)
P0369 (8) Camshaft Position (CMP) Sensor B Circuit Intermittent Interruption ON (see page 11-134)
P0401 (80) Exhaust Gas Recirculation (EGR) Insufficient Flow ON (see page 11-357)
P0404 (12) Exhaust Gas Recirculation (EGR) Valve Circuit Range/Performance
Problem ON (see page 11-358)
P0406 (12) Exhaust Gas Recirculation (EGR) Valve Position Sensor Circuit High
Voltage ON (see page 11-361)
P0420 (67) Catalyst System Efficiency Below Threshold ON (see page 11-353)
P0443 (92) Evaporative Emission (EVAP) Canister Purge Valve Circuit
Malfunction ON (see page 11-375)
P0451 (91) Fuel Tank Pressure (FTP) Sensor Circuit Range/Performance Problem ON (see page 11-379)
P0452 (91) Fuel Tank Pressure (FTP) Sensor Circuit Low Voltage ON (see page 11-380)
P0453 (91) Fuel Tank Pressure (FTP) Sensor Circuit High Voltage ON (see page 11-383)
P0455 (90) Evaporative Emission (EVAP) System Large Leak Detected ON (see page 11-386)
P0456 (90) Evaporative Emission (EVAP) System Very Small Leak Detected ON (see page 11-386)
P0457 (90) Evaporative Emission (EVAP) System Leak Detected/Fuel Fill Cap
Loose or Missing ON (see page 11-390)
P0457 (90) Evaporative Emission (EVAP) System Leak Detected/Fuel Fill Cap
Loose or Missing OFF (see page 11-390)
P0461 (121) Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Range/
Performance Problem OFF (see page 11-313)
P0462 (121) Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Low Voltage OFF (see page 11-313)
P0463 (121) Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit High Voltage OFF (see page 11-315)
P0496 (92) Evaporative Emission (EVAP) System High Purge Flow Detected ON (see page 11-391)
P0497 (90) Evaporative Emission (EVAP) System Low Purge Flow Detected ON (see page 11-392)
P0497 (90) Evaporative Emission (EVAP) System Low Purge Flow Detected ON (see page 11-395)
P0498 (117) Evaporative Emission (EVAP) Canister Vent Shut Valve Circuit Low
Voltage ON (see page 11-398)
P0499 (117) Evaporative Emission (EVAP) Canister Vent Shut Valve Circuit High
Voltage ON (see page 11-401)
P0506 (14) Idle Control System RPM Lower Than Expected ON (see page 11-298)
P0507 (14) Idle Control System RPM Higher Than Expected ON (see page 11-300)
P050A (167) Cold Start Idle Air Control System Performance Problem ON (see page 11-135)
P050B (167) Cold Start Ignition Timing Control System Performance Problem ON (see page 11-137)
P0532 (191) A/C Pressure Sensor Circuit Low Voltage OFF (see page 11-301)
P0533 (191) A/C Pressure Sensor Circuit High Voltage OFF (see page 11-303)
P0562 (34) Charging System Low Voltage OFF (see page 11-140)
P0563 (34) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Power Source Circuit Unexpected Voltage OFF (see page 11-141)
P0602 (196) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Programming Error ON (see page 11-144)
P0603 (131) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Internal Control Module Keep Alive Memory (KAM) Error ON (see page 11-144)
NOTE:  The above DTCs are indicated when the PGM-FI system is selected with the HDS.
 Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the A/T system, and check for automatic transmission DTCs.
: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS.
4: K20Z2 engine
5: K20Z3 engine
6: ’06 model
7: ’07-09 models
8: ’06-08 models
4
4
4
6
7 6
7
4
5
4
5
8
08/08/21 14:12:35 61SNR030_110_0010
ProCarManuals.com
DYNOMITE -2009-

•••
•••
•••
•••Ó
•••
•••
•••
••• Ó
Ó
Ó
•••
••• Ó
•••
••• Ó
Ó
•••
•••
•••
•••
•••
•••
•••
•••
•••
•••
•••
•••
•••
•••
•••
••• Ó
•••
•••
••• Ó
DTC
(MIL indication ) Two Drive Cycle
Detection Detection Item MIL Note
11-11
P0606 (0)
Engine Control Module (ECM)/Powertrain Control Module (PCM)
Processor Malfunction ON (see page 11-145)
P060A (131) Powertrain Control Module (PCM) (A/T System) Internal Control
Module Malfunction ON (see page 11-145)
P062F (131) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Internal Control Module Keep Alive Memory (KAM) Error ON (see page 11-144)
P0630 (139) VIN Not Programmed or Mismatch ON (see page 11-146)
P0685 (135) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Power Control Circuit/Internal Circuit Malfunction ON (see page 11-147)
P0720 (122) Output Shaft (Countershaft) Speed Sensor Circuit Malfunction ON (see page 11-148)
P0720 (122) Output Shaft (Countershaft) Speed Sensor Circuit Malfunction ON (see page 11-149)
P1009 (56) Variable Valve Timing Control (VTC) Advance Malfunction ON (see page 11-283)
P1109 (13) Barometric Pressure (BARO) Sensor Circuit Out of Range High ON (see page 11-152)
P1116 (86) Engine Coolant Temperature (ECT) Sensor 1 Circuit Range/
Performance Problem ON (see page 11-153)
P1128 (5) Manifold Absolute Pressure (MAP) Sensor Signal Lower Than
Expected ON (see page 11-155)
P1129 (5) Manifold Absolute Pressure (MAP) Sensor Signal Higher Than
Expected ON (see page 11-156)
P1157 (48) Air Fuel Ratio (A/F) Sensor (Sensor 1) AFS Circuit High Voltage ON (see page 11-157)
P1172 (61) Air Fuel Ratio (A/F) Sensor (Sensor 1) Circuit Out of Range High ON (see page 11-159)
P1297 (20) Electrical Load Detector (ELD) Circuit Low Voltage OFF (see page 11-160)
P1298 (20) Electrical Load Detector (ELD) Circuit High Voltage OFF (see page 11-162)
P1454 (91) Fuel Tank Pressure (FTP) Sensor Circuit Range/Performance Problem ON (see page 11-402)
P145C (90) Evaporative Emission (EVAP) System Purge Flow Malfunction ON (see page 11-404)
P1549 (34) Charging System High Voltage OFF (see page 11-164)
P1658 (40) Electronic Throttle Control System (ETCS) Control Relay ON
Malfunction ON (see page 11-241)
P1659 (40) Electronic Throttle Control System (ETCS) Control Relay OFF
Malfunction ON (see page 11-243)
P1683 (40) Throttle Valve Default Position Spring Performance Problem ON (see page 11-247)
P1684 (40) Throttle Valve Return Spring Performance Problem ON (see page 11-248)
P16BB (116) Alternator B Terminal Circuit Low Voltage OFF (see page 11-165)
P16BC (116) Alternator FR Terminal Circuit/IGP Circuit Low Voltage OFF (see page 11-166)
P2101 (40) Electronic Throttle Control System (ETCS) Malfunction ON (see page 11-249)
P2118 (40) Throttle Actuator Current Range/Performance Problem ON (see page 11-251)
P2122 (37) Accelerator Pedal Position (APP) Sensor A (Throttle Position (TP)
Sensor D) Circuit Low Voltage ON (see page 11-253)
P2123 (37) Accelerator Pedal Position (APP) Sensor A (Throttle Position (TP)
Sensor D) Circuit High Voltage ON (see page 11-256)
P2127 (37) Accelerator Pedal Position (APP) Sensor B (Throttle Position (TP)
Sensor E) Circuit Low Voltage ON (see page 11-257)
P2128 (37) Accelerator Pedal Position (APP) Sensor B (Throttle Position (TP)
Sensor E) Circuit High Voltage ON (see page 11-260)
P2135 (7) Throttle Position (TP) Sensor A/B Incorrect Voltage Correlation ON (see page 11-262)
P2138 (37) Accelerator Pedal Position (APP) Sensor A/B (Throttle Position (TP)
Sensor D/E) Incorrect Voltage Correlation ON (see page 11-264)
P2176 (40) Throttle Actuator Control System Idle Position Not Learned ON (see page 11-266)
P2183 (192) Engine Coolant Temperature (ECT) Sensor 2 Circuit Range/
Performance Problem ON (see page 11-168)
P2184 (192) Engine Coolant Temperature (ECT) Sensor 2 Circuit Low Voltage ON (see page 11-170)
P2185 (192) Engine Coolant Temperature (ECT) Sensor 2 Circuit High Voltage ON (see page 11-172)
P2195 (48) Air Fuel Ratio (A/F) Sensor (Sensor 1) Signal Stuck Lean ON (see page 11-174)
NOTE:  The above DTCs are indicated when the PGM-FI system is selected with the HDS.
 Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the A/T system, and check for automatic transmission DTCs.
: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS.
1: A/T
2: The D indicator and the MIL may come on at the same time (A/T).
3: M/T
4: K20Z2 engine
5: K20Z3 engine
9: ’09 model
(cont’d)
1
9
1, 2
3
4
5
5
3
1
