sensor ACURA CSX 2006 Service Repair Manual

(#' 
'
)(#' 
'


)
µ
µ
µ
µ µ
µ
DTC 12-23:
DTC 14-23:
DTC 16-23:
DTC 18-23: DTC 21-11:
DTC 22-11:
DTC 23-11:
DTC 24-11:
YES
NO
DTC Appropriate Wheel Speed Sensor
YES
NO YES
NO

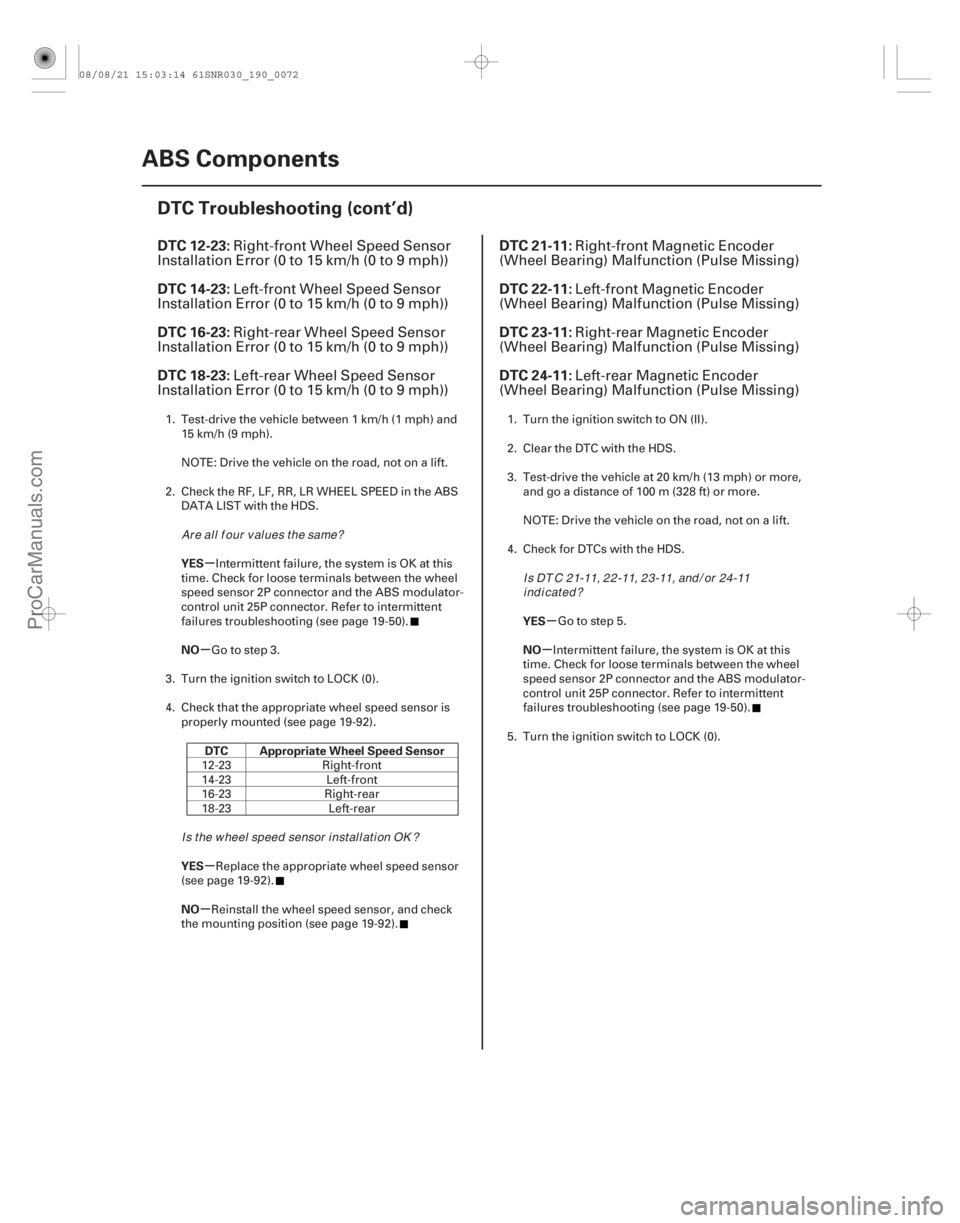

19-7219-72ABS Components
DTC Troubleshooting (cont’d)
Right-front Wheel Speed Sensor
InstallationError(0to15km/h(0to9mph))
Left-front Wheel Speed Sensor
InstallationError(0to15km/h(0to9mph))
Right-rear Wheel Speed Sensor
InstallationError(0to15km/h(0to9mph))
Left-rear Wheel Speed Sensor
InstallationError(0to15km/h(0to9mph)) Right-front Magnetic Encoder
(Wheel Bearing) Malfunction (Pulse Missing)
Left-front Magnetic Encoder
(Wheel Bearing) Malfunction (Pulse Missing)
Right-rear Magnetic Encoder
(Wheel Bearing) Malfunction (Pulse Missing)
Left-rear Magnetic Encoder
(Wheel Bearing) Malfunction (Pulse Missing)
1. Test-drive the vehicle between 1 km/h (1 mph) and
15 km/h (9 mph).
NOTE: Drive the vehicle on the road, not on a lift.
2. Check the RF, LF, RR, LR WHEEL SPEED in the ABS DATA LIST with the HDS.
Intermittent failure, the system is OK at this
time. Check for loose terminals between the wheel
speed sensor 2P connector and the ABS modulator-
control unit 25P connector. Refer to intermittent
failures troubleshooting (see page 19-50).
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check that the appropriate wheel speed sensor is properly mounted (see page 19-92).
12-23 Right-front
14-23 Left-front
16-23 Right-rear
18-23 Left-rear
Replace the appropriate wheel speed sensor
(see page 19-92).
Reinstall the wheel speed sensor, and check
the mounting position (see page 19-92). 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Test-drive the vehicle at 20 km/h (13 mph) or more,
and go a distance of 100 m (328 ft) or more.
NOTE: Drive the vehicle on the road, not on a lift.
4. Check for DTCs with the HDS.
Go to step 5.
Intermittent failure, the system is OK at this
time. Check for loose terminals between the wheel
speed sensor 2P connector and the ABS modulator-
control unit 25P connector. Refer to intermittent
failures troubleshooting (see page 19-50).
5. Turn the ignition switch to LOCK (0).
Are all f our values the same?
Is t he w heel speed sensor i nst al l at i on OK ? I s DT C 2 1-11, 2 2 -11, 2 3-11, and / or 2 4-11
indicated?
08/08/21 15:03:14 61SNR030_190_0072
ProCarManuals.com
DYNOMITE -2009-

(#' 
'

)
µ
µ
µ
µ
µ
µ
YES
NO
DTC Appropriate Wheel
YES
NO
YES
NO
DTC 41-21:
DTC 42-21:
DTC 43-21:
DTC 44-21:

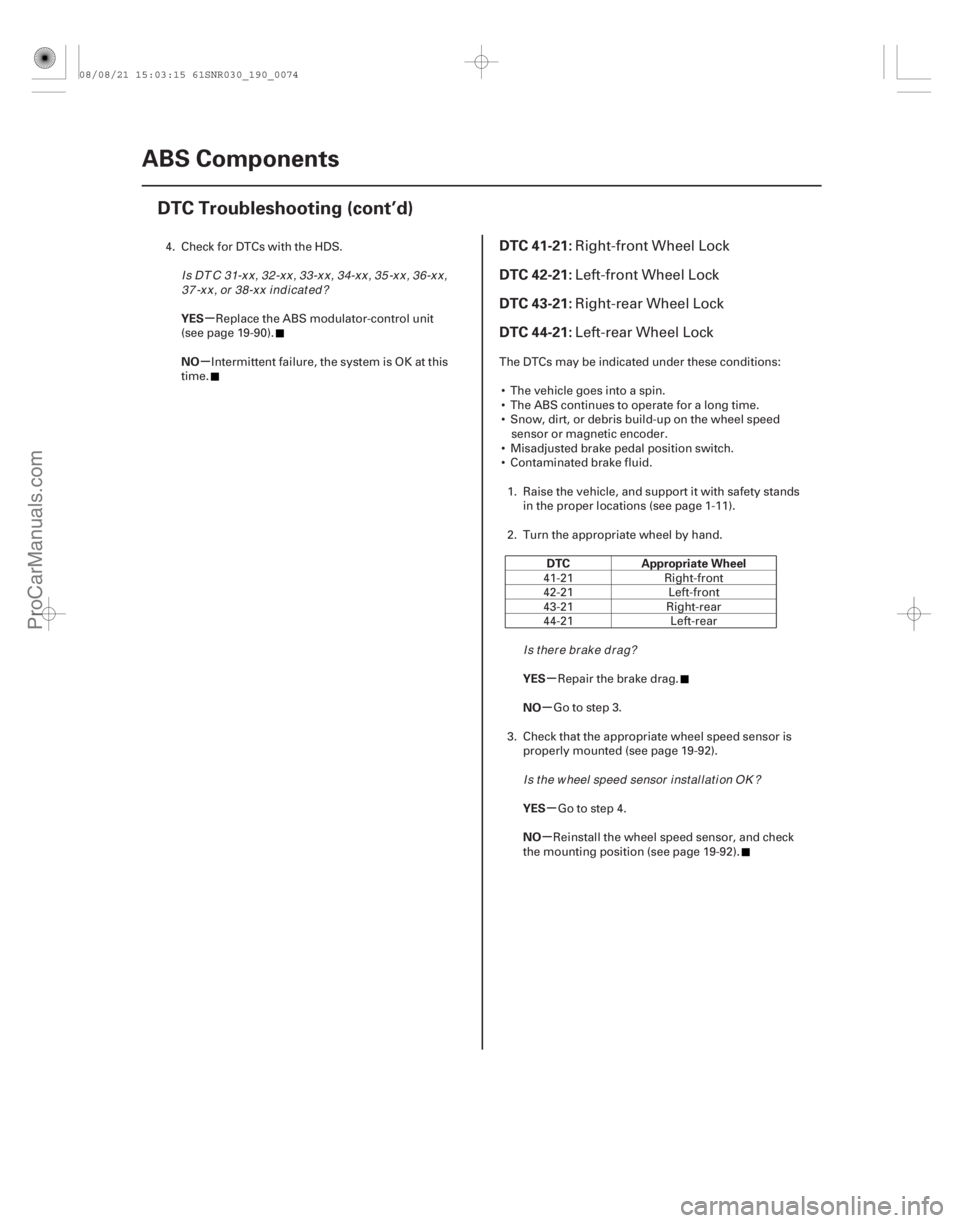

19-7419-74 ABS Components
DTC Troubleshooting (cont’d)
4. Check for DTCs with the HDS.
Replace the ABS modulator-control unit
(see page 19-90).
Intermittent failure, the system is OK at this
time. The DTCs may be indicated under these conditions:
 The vehicle goes into a spin.
 The ABS continues to operate for a long time.
 Snow, dirt, or debris build-up on the wheel speed sensor or magnetic encoder.
 Misadjusted brake pedal position switch.
 Contaminated brake fluid.
1. Raise the vehicle, and support it with safety stands in the proper locations (see page 1-11).
2. Turn the appropriate wheel by hand.
41-21 Right-front
42-21 Left-front
43-21 Right-rear
44-21 Left-rear
Repair the brake drag.
Go to step 3.
3. Check that the appropriate wheel speed sensor is properly mounted (see page 19-92).
Go to step 4.
Reinstall the wheel speed sensor, and check
the mounting position (see page 19-92).Right-front Wheel Lock
Left-front Wheel Lock
Right-rear Wheel Lock
Left-rear Wheel Lock
Is DT C 31-xx, 32-xx, 33-xx, 34-xx, 35-xx, 36-xx, 37 -x x , or 38-x x i nd i cat ed ?
Is there brake drag?Is t he w heel speed sensor i nst al l at i on OK ?
08/08/21 15:03:15 61SNR030_190_0074
ProCarManuals.com
DYNOMITE -2009-

(#' 
'


)
µ
µ µ
µ
YES
NO
YES
NO

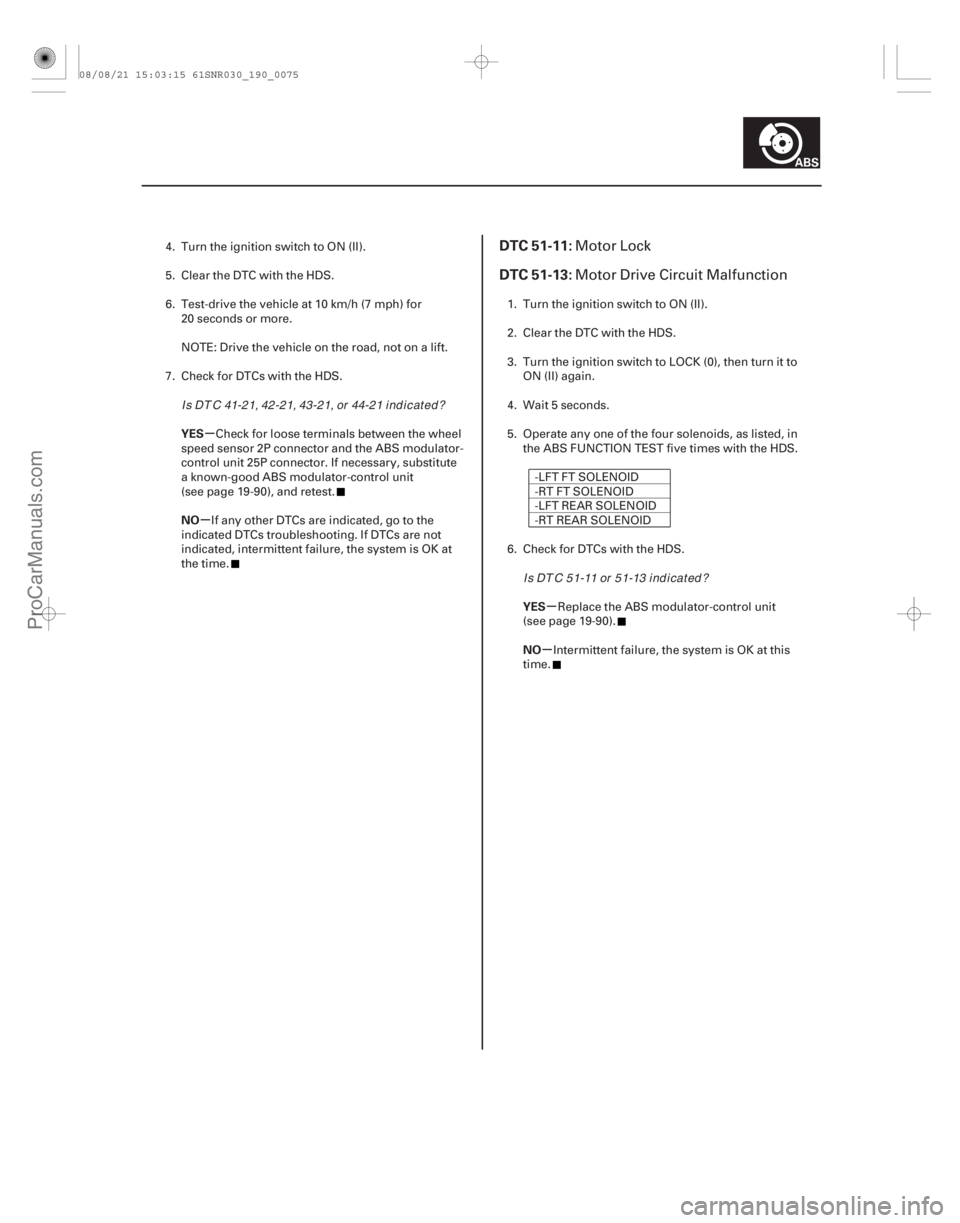

DTC 51-11:
DTC 51-13:
19-7519-75
4. Turn the ignition switch to ON (II).
5. Clear the DTC with the HDS.
6. Test-drive the vehicle at 10 km/h (7 mph) for20 seconds or more.
NOTE: Drive the vehicle on the road, not on a lift.
7. Check for DTCs with the HDS.
Check for loose terminals between the wheel
speed sensor 2P connector and the ABS modulator-
control unit 25P connector. If necessary, substitute
a known-good ABS modulator-control unit
(see page 19-90), and retest.
If any other DTCs are indicated, go to the
indicated DTCs troubleshooting. If DTCs are not
indicated, intermittent failure, the system is OK at
the time. 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then turn it to
ON (II) again.
4. Wait 5 seconds.
5. Operate any one of the four solenoids, as listed, in the ABS FUNCTION TEST five times with the HDS.
-LFT FT SOLENOID
-RT FT SOLENOID
-LFT REAR SOLENOID
-RT REAR SOLENOID
6. Check for DTCs with the HDS.
Replace the ABS modulator-control unit
(see page 19-90).
Intermittent failure, the system is OK at this
time.Motor Lock
Motor Drive Circuit Malfunction
Is DT C 41-21, 42-21, 43-21, or 44-21 indicated?
I s DT C 5 1-11 or 5 1-13 i nd i cat ed ?
08/08/21 15:03:15 61SNR030_190_0075
ProCarManuals.com
DYNOMITE -2009-


(#'

 )
 Special Tools Required
Front

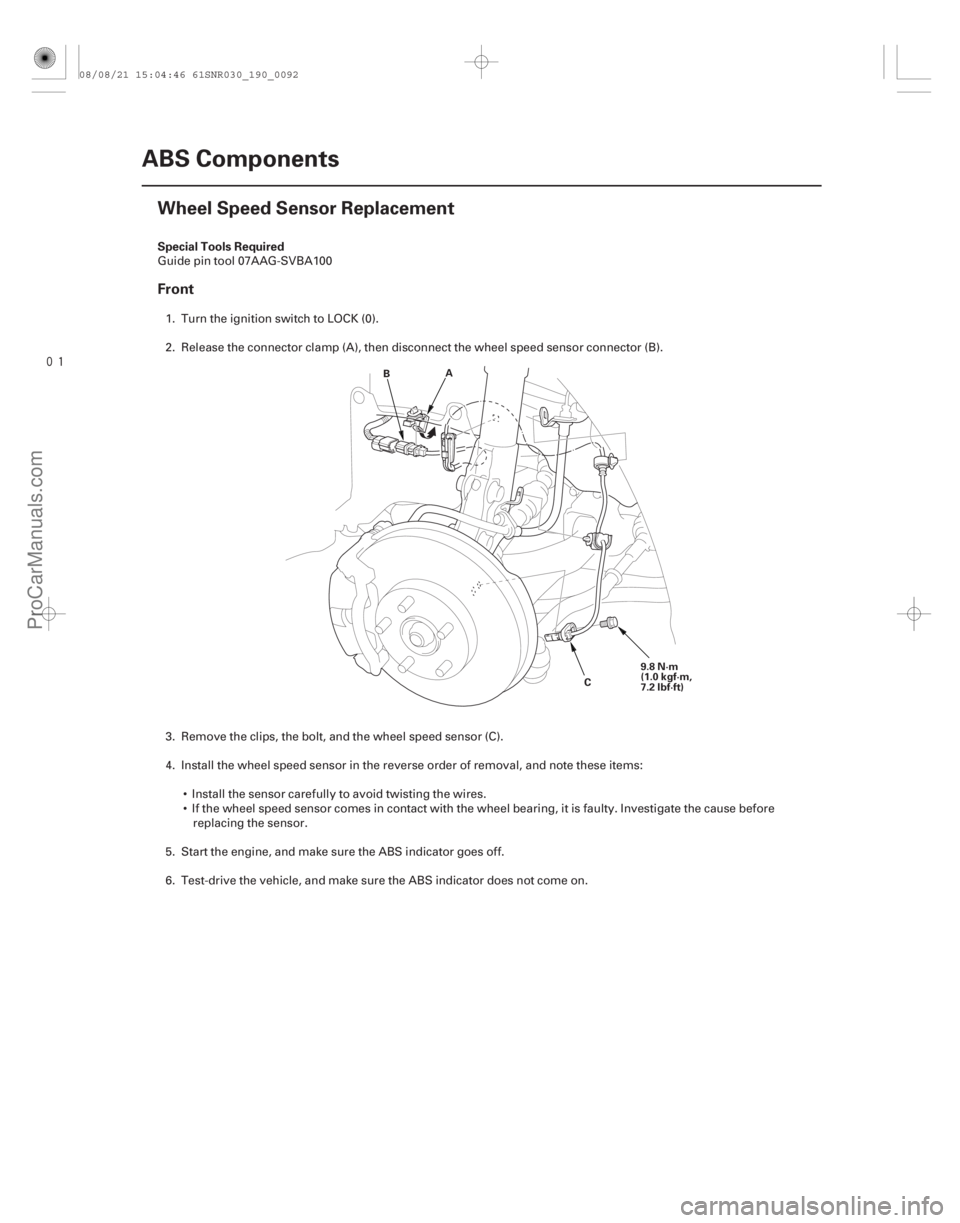

19-92ABS Components
Wheel Speed Sensor Replacement
A
B
C9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
Guide pin tool 07AAG-SVBA100
1. Turn the ignition switch to LOCK (0).
2. Release the connector clamp (A), then disconnect the wheel speed sensor connector (B).
3. Remove the clips, the bolt, and the wheel speed sensor (C).
4. Install the wheel speed sensor in the reverse order of removal, and note these items:  Install the sensor carefully to avoid twisting the wires.
 If the wheel speed sensor comes in contact with the wheel bearing, it is faulty. Investigate the cause beforereplacing the sensor.
5. Start the engine, and make sure the ABS indicator goes off.
6. Test-drive the vehicle, and make sure the ABS indicator does not come on.
08/08/21 15:04:46 61SNR030_190_0092
ProCarManuals.com
DYNOMITE -2009-

Î

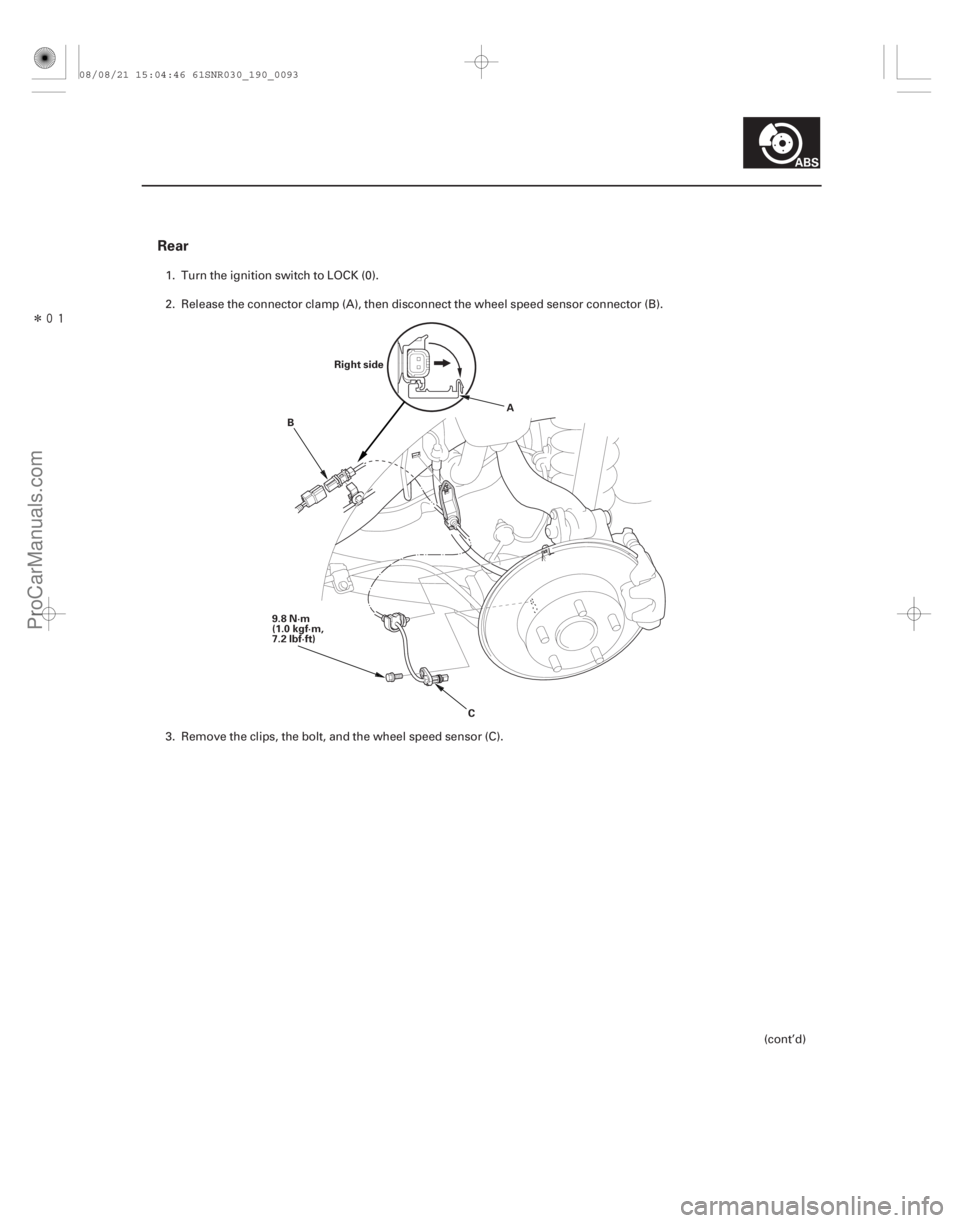

Rear
19-93
Right side
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft) A
B
C
1. Turn the ignition switch to LOCK (0).
2. Release the connector clamp (A), then disconnect the wheel speed sensor connector (B).
3. Remove the clips, the bolt, and the wheel speed sensor (C). (cont’d)
08/08/21 15:04:46 61SNR030_190_0093
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ

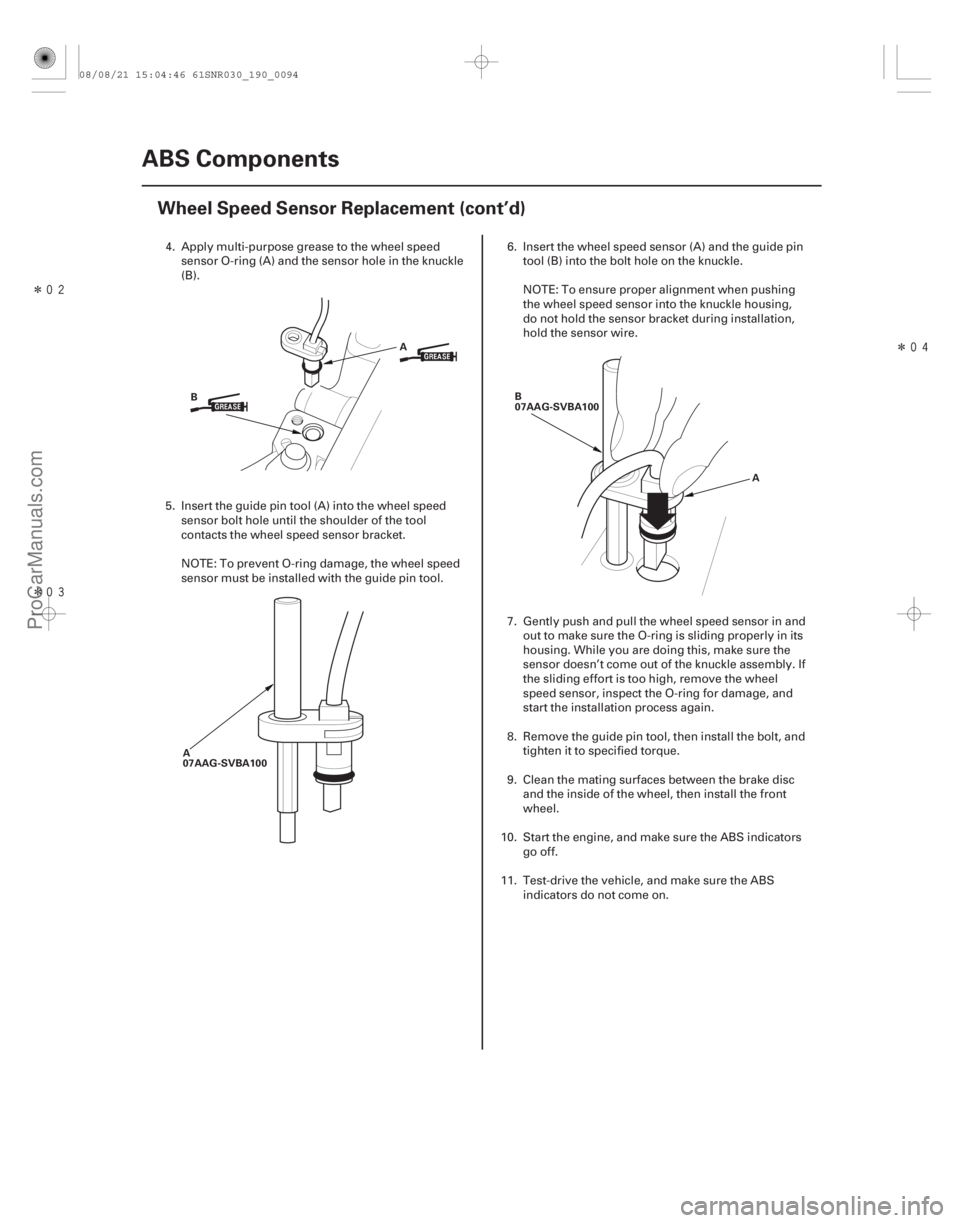

19-94ABS Components
Wheel Speed Sensor Replacement (cont’d)
B
A
A
07AAG-SVBA100 B
07AAG-SVBA100
A
4. Apply multi-purpose grease to the wheel speedsensor O-ring (A) and the sensor hole in the knuckle
(B).
5. Insert the guide pin tool (A) into the wheel speed sensor bolt hole until the shoulder of the tool
contacts the wheel speed sensor bracket.
NOTE: To prevent O-ring damage, the wheel speed
sensor must be installed with the guide pin tool. 6. Insert the wheel speed sensor (A) and the guide pin
tool (B) into the bolt hole on the knuckle.
NOTE: To ensure proper alignment when pushing
the wheel speed sensor into the knuckle housing,
do not hold the sensor bracket during installation,
hold the sensor wire.
7. Gently push and pull the wheel speed sensor in and out to make sure the O-ring is sliding properly in its
housing. While you are doing this, make sure the
sensor doesn’t come out of the knuckle assembly. If
the sliding effort is too high, remove the wheel
speed sensor, inspect the O-ring for damage, and
start the installation process again.
8. Remove the guide pin tool, then install the bolt, and tighten it to specified torque.
9. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheel.
10. Start the engine, and make sure the ABS indicators go off.
11. Test-drive the vehicle, and make sure the ABS indicators do not come on.
08/08/21 15:04:46 61SNR030_190_0094
ProCarManuals.com
DYNOMITE -2009-

Î
(#'
)
19-96VSA System Components
Component Location Index
DATA LINK CONNECTOR (DLC)
UNDER-HOOD FUSE/RELAY BOX
VSA MODULATOR-CONTROL UNIT UNDER-DASH FUSE/RELAY BOX
LEFT-FRONT WHEEL SPEED SENSOR STEERING ANGLE SENSOR
VSA OFF SWITCHRIGHT-REAR WHEEL SPEED SENSOR
YAW RATE-LATERAL
ACCELERATION SENSOR WHEEL BEARING
(MAGNETIC ENCODER) HUB BEARING UNIT
(MAGNETIC ENCODER)
RIGHT-FRONT WHEEL SPEED SENSOR WHEEL BEARING
(MAGNETIC ENCODER) LEFT-REAR WHEEL SPEED SENSOR
HUB BEARING UNIT
(MAGNETIC ENCODER)
Removal and Installation, page 19-171 Replacement, page 19-173Replacement, page 19-168
Test, page 19-170Replacement, page 19-174
Replacement, page 19-169 Replacement, page 18-18 Replacement, page 18-32
Replacement, page 19-173 Replacement, page 18-18 Replacement, page 19-174
Replacement, page 18-32
08/08/21 15:04:50 61SNR030_190_0096
ProCarManuals.com
DYNOMITE -2009-


(#'
)
System IndicatorABS Indicator
Brake System Indicator
VSA Indicator
VSA Activation Indicator
19-97
General Troubleshooting Information
A
D B
C
This system has four indicators:
 ABS indicator (A)
 Brake system indicator (B)
 VSA indicator (C)
 VSA activation indicator (D)
When the system is OK, each indicator comes on for
about 2 seconds after turning the ignition switch to
ON (II), then goes off.
When the system detects a problem, a DTC is set and,
depending upon the failure, the VSA modulator-control
unit determines which indicator(s) are turned on. If the
problem goes away (system returns to normal), the
indicator(s) are controlled in the following way
depending upon the DTC that is set:  The indicator(s) come on and stay on when the ignition switch is ON (II).
 The indicator(s) automatically go off.
 The indicator(s) go off after the vehicle is driven. The ABS indicator comes on when the ABS function is
lost. The brakes still work like a conventional system.
The brake system indicator comes on when the EBD
function is lost, the parking brake is applied, and/or the
brake fluid level is low.
NOTE: If two or more wheel speed sensors fail, the
brake system indicator comes on.
The VSA indicator comes on when the VSA function is
lost.
The VSA activation indicator blinks when the VSA
function is activating. The VSA activation indicator
comes on and stays on when the VSA is turned OFF by
using the VSA OFF switch, or when the VSA function is
lost.
(cont’d)
08/08/21 15:04:50 61SNR030_190_0097
ProCarManuals.com
DYNOMITE -2009-

(#'
)
DTCDetection Item ABS
Indicator Brake
System
Indicator VSA
Indicator VSA
Activation Indicator Note

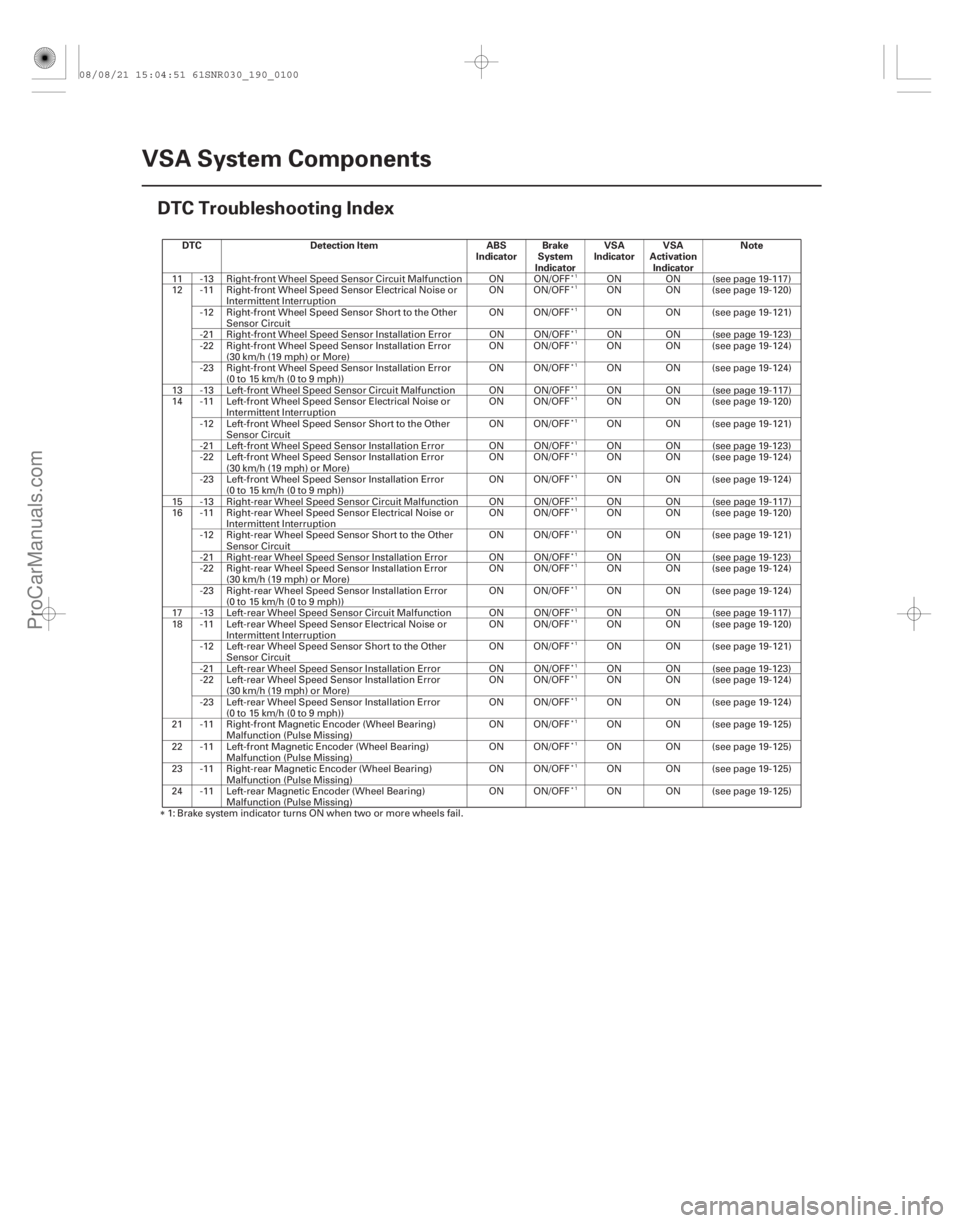

19-100VSA System Components
DTC Troubleshooting Index
11 -13 Right-front Wheel Speed Sensor Circuit Malfunction ON ON/OFF ON ON (see page 19-117)
12 -11 Right-front Wheel Speed Sensor Electrical Noise or
Intermittent Interruption ON ON/OFF ON ON (see page 19-120)
-12 Right-front Wheel Speed Sensor Short to the Other Sensor Circuit ON ON/OFF ON ON (see page 19-121)
-21 Right-front Wheel Speed Sensor Installation Error ON ON/OFF ON ON (see page 19-123)
-22 Right-front Wheel Speed Sensor Installation Error (30 km/h (19 mph) or More) ON ON/OFF ON ON (see page 19-124)
-23 Right-front Wheel Speed Sensor Installation Error (0 to 15 km/h (0 to 9 mph)) ON ON/OFF ON ON (see page 19-124)
13 -13 Left-front Wheel Speed Sensor Circuit Malfunction ON ON/OFF ON ON (see page 19-117)
14 -11 Left-front Wheel Speed Sensor Electrical Noise or Intermittent Interruption ON ON/OFF ON ON (see page 19-120)
-12 Left-front Wheel Speed Sensor Short to the Other Sensor Circuit ON ON/OFF ON ON (see page 19-121)
-21 Left-front Wheel Speed Sensor Installation Error ON ON/OFF ON ON (see page 19-123)
-22 Left-front Wheel Speed Sensor Installation Error (30 km/h (19 mph) or More) ON ON/OFF ON ON (see page 19-124)
-23 Left-front Wheel Speed Sensor Installation Error (0 to 15 km/h (0 to 9 mph)) ON ON/OFF ON ON (see page 19-124)
15 -13 Right-rear Wheel Speed Sensor Circuit Malfunction ON ON/OFF ON ON (see page 19-117)
16 -11 Right-rear Wheel Speed Sensor Electrical Noise or Intermittent Interruption ON ON/OFF ON ON (see page 19-120)
-12 Right-rear Wheel Speed Sensor Short to the Other Sensor Circuit ON ON/OFF ON ON (see page 19-121)
-21 Right-rear Wheel Speed Sensor Installation Error ON ON/OFF ON ON (see page 19-123)
-22 Right-rear Wheel Speed Sensor Installation Error (30 km/h (19 mph) or More) ON ON/OFF ON ON (see page 19-124)
-23 Right-rear Wheel Speed Sensor Installation Error (0 to 15 km/h (0 to 9 mph)) ON ON/OFF ON ON (see page 19-124)
17 -13 Left-rear Wheel Speed Sensor Circuit Malfunction ON ON/OFF ON ON (see page 19-117)
18 -11 Left-rear Wheel Speed Sensor Electrical Noise or Intermittent Interruption ON ON/OFF ON ON (see page 19-120)
-12 Left-rear Wheel Speed Sensor Short to the Other Sensor Circuit ON ON/OFF ON ON (see page 19-121)
-21 Left-rear Wheel Speed Sensor Installation Error ON ON/OFF ON ON (see page 19-123)
-22 Left-rear Wheel Speed Sensor Installation Error (30 km/h (19 mph) or More) ON ON/OFF ON ON (see page 19-124)
-23 Left-rear Wheel Speed Sensor Installation Error (0 to 15 km/h (0 to 9 mph)) ON ON/OFF ON ON (see page 19-124)
21 -11 Right-front Magnetic Encoder (Wheel Bearing) Malfunction (Pulse Missing) ON ON/OFF ON ON (see page 19-125)
22 -11 Left-front Magnetic Encoder (Wheel Bearing) Malfunction (Pulse Missing) ON ON/OFF ON ON (see page 19-125)
23 -11 Right-rear Magnetic Encoder (Wheel Bearing) Malfunction (Pulse Missing) ON ON/OFF ON ON (see page 19-125)
24 -11 Left-rear Magnetic Encoder (Wheel Bearing) Malfunction (Pulse Missing) ON ON/OFF ON ON (see page 19-125)
1: Brake system indicator turns ON when two or more wheels fail.1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
08/08/21 15:04:51 61SNR030_190_0100
ProCarManuals.com
DYNOMITE -2009-

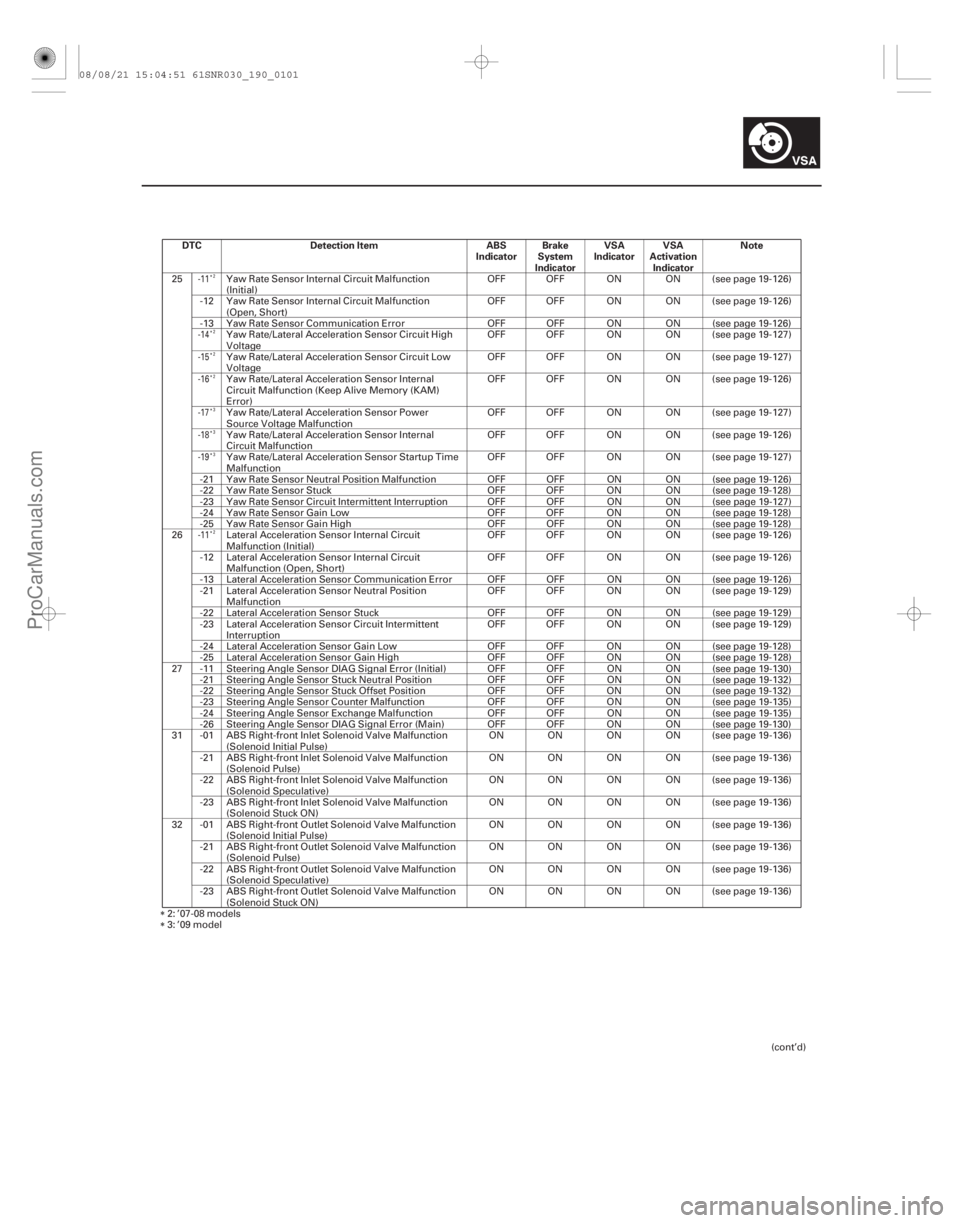

DTCDetection Item ABS
Indicator Brake
System
Indicator VSA
Indicator VSA
Activation Indicator Note
19-101
25 Yaw Rate Sensor Internal Circuit Malfunction
(Initial) OFF OFF ON ON (see page 19-126)
-12 Yaw Rate Sensor Internal Circuit Malfunction (Open, Short) OFF OFF ON ON (see page 19-126)
-13 Yaw Rate Sensor Communication Error OFF OFF ON ON (see page 19-126) Yaw Rate/Lateral Acceleration Sensor Circuit High
Voltage OFF OFF ON ON (see page 19-127)
Yaw Rate/Lateral Acceleration Sensor Circuit Low
Voltage OFF OFF ON ON (see page 19-127)
Yaw Rate/Lateral Acceleration Sensor Internal
Circuit Malfunction (Keep Alive Memory (KAM)
Error) OFF OFF ON ON (see page 19-126)
Yaw Rate/Lateral Acceleration Sensor Power
Source Voltage Malfunction OFF OFF ON ON (see page 19-127)
Yaw Rate/Lateral Acceleration Sensor Internal
Circuit Malfunction OFF OFF ON ON (see page 19-126)
Yaw Rate/Lateral Acceleration Sensor Startup Time
Malfunction OFF OFF ON ON (see page 19-127)
-21 Yaw Rate Sensor Neutral Position Malfunction OFF OFF ON ON (see page 19-126)
-22 Yaw Rate Sensor Stuck OFF OFF ON ON (see page 19-128)
-23 Yaw Rate Sensor Circuit Intermittent Interruption OFF OFF ON ON (see page 19-127)
-24 Yaw Rate Sensor Gain Low OFF OFF ON ON (see page 19-128)
-25 Yaw Rate Sensor Gain High OFF OFF ON ON (see page 19-128)
26 Lateral Acceleration Sensor Internal Circuit Malfunction (Initial) OFF OFF ON ON (see page 19-126)
-12 Lateral Acceleration Sensor Internal Circuit Malfunction (Open, Short) OFF OFF ON ON (see page 19-126)
-13 Lateral Acceleration Sensor Communication Error OFF OFF ON ON (see page 19-126)
-21 Lateral Acceleration Sensor Neutral Position Malfunction OFF OFF ON ON (see page 19-129)
-22 Lateral Acceleration Sensor Stuck OFF OFF ON ON (see page 19-129)
-23 Lateral Acceleration Sensor Circuit Intermittent Interruption OFF OFF ON ON (see page 19-129)
-24 Lateral Acceleration Sensor Gain Low OFF OFF ON ON (see page 19-128)
-25 Lateral Acceleration Sensor Gain High OFF OFF ON ON (see page 19-128)
27 -11 Steering Angle Sensor DIAG Signal Error (Initial) OFF OFF ON ON (see page 19-130) -21 Steering Angle Sensor Stuck Neutral Position OFF OFF ON ON (see page 19-132)
-22 Steering Angle Sensor Stuck Offset Position OFF OFF ON ON (see page 19-132)
-23 Steering Angle Sensor Counter Malfunction OFF OFF ON ON (see page 19-135)
-24 Steering Angle Sensor Exchange Malfunction OFF OFF ON ON (see page 19-135)
-26 Steering Angle Sensor DIAG Signal Error (Main) OFF OFF ON ON (see page 19-130)
31 -01 ABS Right-front Inlet Solenoid Valve Malfunction (Solenoid Initial Pulse) ON ON ON ON (see page 19-136)
-21 ABS Right-front Inlet Solenoid Valve Malfunction (Solenoid Pulse) ON ON ON ON (see page 19-136)
-22 ABS Right-front Inlet Solenoid Valve Malfunction (Solenoid Speculative) ON ON ON ON (see page 19-136)
-23 ABS Right-front Inlet Solenoid Valve Malfunction (Solenoid Stuck ON) ON ON ON ON (see page 19-136)
32 -01 ABS Right-front Outlet Solenoid Valve Malfunction (Solenoid Initial Pulse) ON ON ON ON (see page 19-136)
-21 ABS Right-front Outlet Solenoid Valve Malfunction (Solenoid Pulse) ON ON ON ON (see page 19-136)
-22 ABS Right-front Outlet Solenoid Valve Malfunction (Solenoid Speculative) ON ON ON ON (see page 19-136)
-23 ABS Right-front Outlet Solenoid Valve Malfunction (Solenoid Stuck ON) ON ON ON ON (see page 19-136)
2: ’07-08 models
3: ’09 model
(cont’d)-11
-14
-15
-16
-17
-18
-19
-112
2
2
2
3
3
3
2
08/08/21 15:04:51 61SNR030_190_0101
ProCarManuals.com
DYNOMITE -2009-
