technical data ACURA CSX 2006 Service Repair Manual

Ì
Ï
µ
µ
Î
(#')
µ
µ µ
µ
µ
µ
Special Tools Required
YES
NO YES
NO
YES
NO
4-6Starting System
Starter System Circuit Troubleshooting
OTC3131
Alternator, Regulator, Battery & Starter tester OTC3131
Available through the Honda Canada Inc. Technical
Tools Department; FAX
866-398-8665/e-mail:
ch_technicaltools ch.honda.com
NOTE:  Air temperature must be within 15 38 °C (59 100 °F) during this procedure.
 After this inspection, you must reset the engine control module (ECM)/powertrain control module
(PCM). Otherwise, the ECM/PCM will continue to stop
the fuel injectors from operating.
 The battery must be in good condition and fully charged.
1. Connect the alternator, regulator, battery & starter tester (OTC3131) to the battery as shown.
NOTE: The probe is not used for battery testing.
2. Do the BATTERY TEST. ThebatteryisOK.Gotostep3.
If the display indicates BAD BATTERY, replace
the battery, then retest. If the display indicates
CHARGE & RETEST, charge the battery, then retest. 3. Connect the Honda Diagnostic System (HDS) to the
data link connector (DLC) (see step 2 on page 11-3).
4. Turn the ignition switch to ON (II).
5. Make sure the HDS communicates with the vehicle and the ECM/PCM. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
6. Select ALL INJECTORS STOP in the PGM-FI INSPECTION menu with the HDS.
7. Set the parking brake, then with the shift lever in N or P (A/T model) or the clutch pedal pressed (M/T
model), turn the ignition switch to START (III).
The starting system is OK. Go to step 14.
Go to step 8.
8. Turn the ignition switch to LOCK (0).
9. Check the electrical connections at the battery, the negative battery cable to the body, the engine
ground cables, and the starter for looseness and
corrosion. Then try cranking the engine again.
Repairing the loose connection corrected the
problem. The starting system is OK. Go to step 14.
Based on the following symptoms, take the
appropriate action:
 If the starter does not crank the engine at all, go to step 10.
 If the starter cranks the engine erratically or too slowly,gotostep12.
 If the starter does not disengage from the flywheel ring gear (M/T model) or torque
converter ring gear (A/T model) when you
release the key, replace the starter, or remove
and disassemble it, and check for the following:
– Starter solenoid and switch malfunction
– Dirty drive gear or damaged overrunning clutch
Does the display indicate GOOD or GOOD, LOWCHARGE? Does t he st ar t er cr ank t he engi ne nor mal l y ?
Does t he st ar t er cr ank t he engi ne nor mal l y ?
08/08/21 14:09:22 61SNR030_040_0007
ProCarManuals.com
DYNOMITE -2009-

ÌÏ


Î
(#'


!)
Special Tools Required
18-52
TPMS
Memorizing the Tire Pressure Sensor ID
A
TPMS tool J-48714
TPMS tool J-48714
Bartech Wheelrite Tech300 TPMS tool J-48714
Available through Honda Canada Inc. Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
All four tire pressure sensor IDs must be memorized to
the TPMS control unit whenever you do any of these
actions: Replace the TPMS control unit.
 Replace the tire pressure sensor.
 Substitute a known-good wheel with tire pressure sensor.
NOTE:  To ensure the control unit memorizes the correct ID, the vehicle with the new sensor must be at least 3 m
(10 ft) away from other vehicles that have tire
pressure sensors.
 When doing a tire rotation, memorizing the sensors in not needed.
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11- 204).
4. Select Sensor ID Learning from the mode menu on the HDS. 5. Turn on the TPMS tool by pressing the green select
button. Press the green select button until the
proper light sequence is illuminated as per the tool
user’s manual.
6. Hold the TPMS tool near one wheel, memorize the tire pressure sensor ID by following the screen
prompts on the HDS.
NOTE: If you turn the ignition switch to LOCK (0) before memorizing all four sensor IDs, the memorizing
ID is canceled.
 See the HDS Help menu for specific instructions.
7. Repeat step 6 for each wheel until all four sensor IDs are memorized. When all four IDs are
memorized, the low tire pressure indicator blinks.
08/08/21 14:58:23 61SNR030_180_0052
ProCarManuals.com
DYNOMITE -2009-

ÌÏ

(#'

") Special Tools Required
18-5318-53

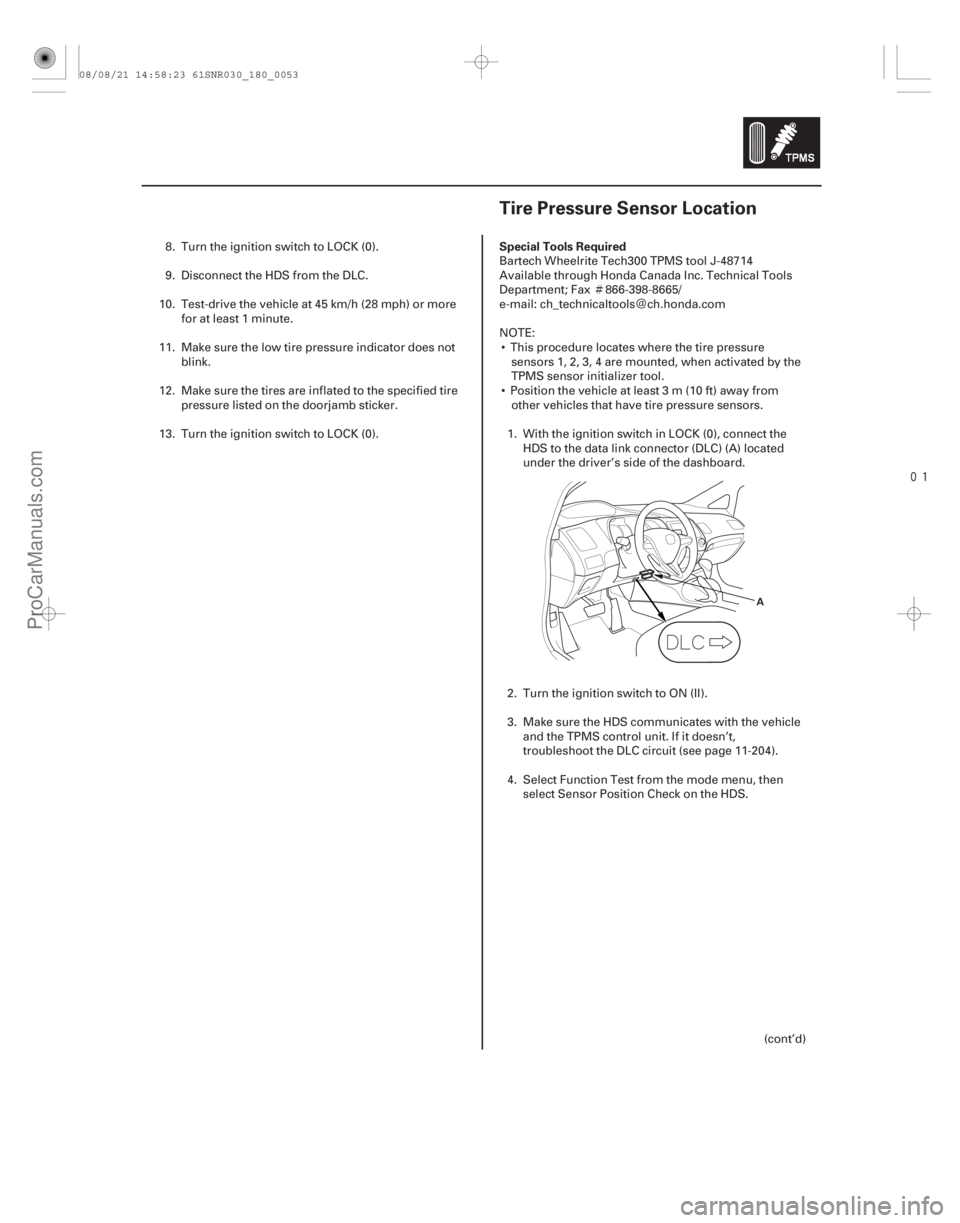

Tire Pressure Sensor Location
A
8. Turn the ignition switch to LOCK (0).
9. Disconnect the HDS from the DLC.
10. Test-drive the vehicle at 45 km/h (28 mph) or more for at least 1 minute.
11. Make sure the low tire pressure indicator does not blink.
12. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb sticker.
13. Turn the ignition switch to LOCK (0). Bartech Wheelrite Tech300 TPMS tool J-48714
Available through Honda Canada Inc. Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
NOTE:
 This procedure locates where the tire pressure sensors 1, 2, 3, 4 are mounted, when activated by the
TPMS sensor initializer tool.
 Position the vehicle at least 3 m (10 ft) away from other vehicles that have tire pressure sensors.
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Select Function Test from the mode menu, then select Sensor Position Check on the HDS.
(cont’d)
08/08/21 14:58:23 61SNR030_180_0053
ProCarManuals.com
DYNOMITE -2009-

ÌÏ

(#'

") Special Tools Required
18-5318-53
Tire Pressure Sensor Location
A
8. Turn the ignition switch to LOCK (0).
9. Disconnect the HDS from the DLC.
10. Test-drive the vehicle at 45 km/h (28 mph) or more for at least 1 minute.
11. Make sure the low tire pressure indicator does not blink.
12. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb sticker.
13. Turn the ignition switch to LOCK (0). Bartech Wheelrite Tech300 TPMS tool J-48714
Available through Honda Canada Inc. Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
NOTE:
 This procedure locates where the tire pressure sensors 1, 2, 3, 4 are mounted, when activated by the
TPMS sensor initializer tool.
 Position the vehicle at least 3 m (10 ft) away from other vehicles that have tire pressure sensors.
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Select Function Test from the mode menu, then select Sensor Position Check on the HDS.
(cont’d)
08/08/21 14:58:23 61SNR030_180_0053
