Navigation System61
Viewing/Saving the Current
LocationWhenever you are on a map screen, you
can always obtain your current location
either by touching the Vehicle Position
icon or by using the voice control
system and saying “Display current
location.” A screen pops up which
shows the address of your current
location, as well as the latitude,
longitude, and elevation.NOTE:
The elevation will not appear when the
system is temporarily lacking proper
GPS information. The system elevation
may not agree with elevations shown on
roadside elevation signs, and may
fluctuate plus or minus 30 metres or
more.
You can store the current location for
later use. It does not change or cancel
your current route.
For example, you are following the
system’s directions to get to a
destination. While sitting at a stoplight
you notice a store on the corner, but do
not have time to visit it right now. You
can save the location to select as a
destination at a later date.To save the location, say “Save current
location.” or select Save on the screen.
When you select “User 1” or “User 2,”
the Edit address book screen with the
current location data will appear. You
can edit the name, phone number, or
category name to be saved in your
personal Address Book.
After the location is saved, select
Return to return to the map screen.
You can then use Address Book from
the Enter destination by screen to
select the saved location and return to
the same spot.
Driving to Your Destination

62
Navigation System
Driving to Your DestinationPop-Ups and DisclaimersWhen you say “OK” in the Calculate
Route to screen, or if you change your
route, the system checks your route and
provides you with pop-up messages for
the following situations:
• Your route takes you into an area that
you previously set as an “Avoid
Area” (see Edit Avoid Area on
page 87).• Your route passes near an unverified
area (see Unverified Area Routing on
page 83).
• Your route includes unverified areas
(see Unverified Area Routing on
page 83).• You are about to enter an unverified
area (see Unverified Area Routing on
page 83).
• You actually entered an unverified
area (see Unverified Area Routing on
page 83).

Navigation System63
Changing the RouteWhile en route, you may wish to alter
your route, add an interim “Waypoint”
(pit stop), choose a different destination,
or cancel your current destination.
To change your present route, you can
do any of the following:
Say “Menu,” or press the MENU button
to view the Change route by screen:
• Search waypoint (page 64)
• Delete waypoint (page 65)
• Avoid streets (page 65)
• Detour (page 65)
• Change routing method (page 65)
• Cancel the current route (page 65)
• Back to the current route (page 65)Choose a different destination (other
methods) by:
• Saying “Find nearest...” to find a POI
(page 66).
• Saying “Go home” (page 66).
• Using the joystick to select a different
POI or address on the map (page 66).
•Pressing the MENU button twice to
get to the Enter destination by
screen (page 67).
Change Route By ScreenPressing the MENU button displays the
Change route by screen:
WaypointsWaypoints allow you to add an interim
“pit stop” while travelling to a
destination. For instance, you may want
to stop for gas or food, and then
continue on to your destination.
Although you can enter up to five
waypoints at a time, typically you may
never use more than one at a time.
Waypoints are routed to in the order
they were entered (number 1 first, etc.),
with your final destination routed to last.
If you wish to create a custom route of
several destinations, and then control
the order of routing, the function
“Today’s Destinations” is probably a
better choice (see By Today’s
Destinations on page 41).Driving to Your Destination

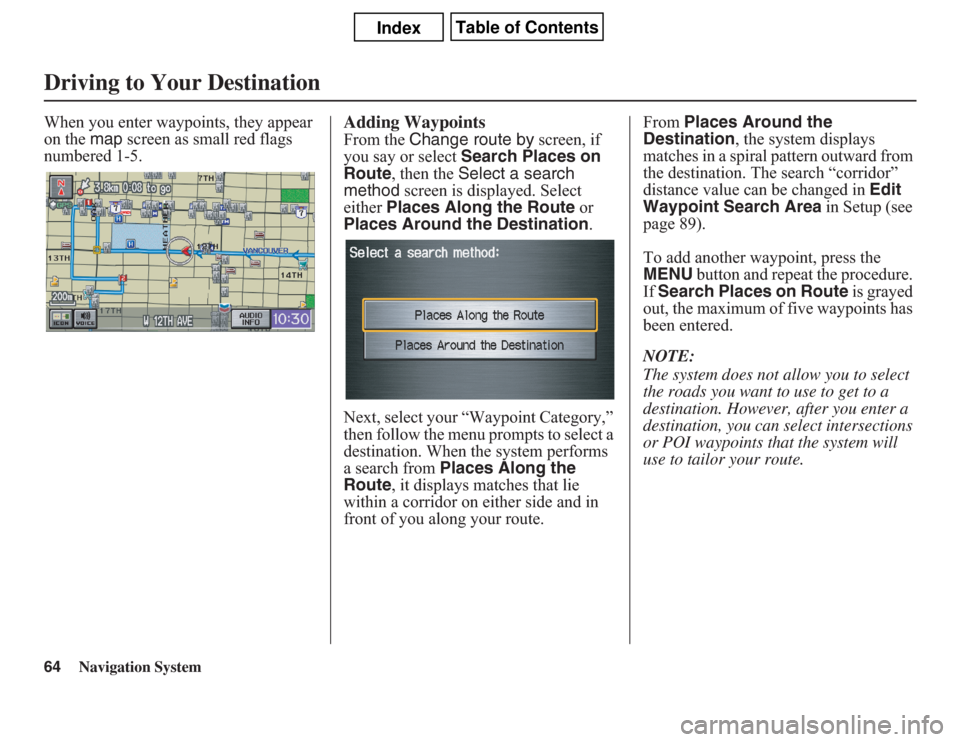

64
Navigation System
Driving to Your DestinationWhen you enter waypoints, they appear
on the map screen as small red flags
numbered 1-5.
Adding WaypointsFrom the Change route by screen, if
you say or select Search Places on
Route, then the Select a search
method screen is displayed. Select
either Places Along the Route or
Places Around the Destination.
Next, select your “Waypoint Category,”
then follow the menu prompts to select a
destination. When the system performs
a search from Places Along the
Route, it displays matches that lie
within a corridor on either side and in
front of you along your route.From Places Around the
Destination, the system displays
matches in a spiral pattern outward from
the destination. The search “corridor”
distance value can be changed in Edit
Waypoint Search Area in Setup (see
page 89).
To add another waypoint, press the
MENU button and repeat the procedure.
If Search Places on Route is grayed
out, the maximum of five waypoints has
been entered.
NOTE:
The system does not allow you to select
the roads you want to use to get to a
destination. However, after you enter a
destination, you can select intersections
or POI waypoints that the system will
use to tailor your route.

Navigation System65
Deleting WaypointsFrom the Change route by screen, if
you say “Delete” or select Delete, then
the Select a waypoint to delete screen
is displayed. Say the line number of the
waypoint(s) you wish to delete, or select
them by using the joystick. Say or select
Done to return to the map screen.
The route is recalculated to reflect the
changes you made to the waypoint(s).
Reroute: Avoid StreetsFrom the Change route by screen, if
you say or select Avoid Streets, the
system displays a list of streets that will
get you to your destination. This feature
allows you to avoid a street or streets
along your route. This is helpful if you
know of road construction, closures, or
excessive traffic along the route. Simply
select the street or streets you wish to
avoid. You cannot avoid your current
street, or the streets of your waypoint(s)
or destination (system beeps if selected).
NOTE:
Although you can choose streets to
avoid, you cannot choose specific
streets you want to use.Reroute: DetourCalculates a detour route for you if you
encounter an unexpected obstacle such
as a closed road or extremely heavy
traffic congestion. If a detour is
selected, the system will attempt to
recalculate a new route, avoiding the
next 3 kilometres (while on a highway)
or 800 metres (while on a surface
street).
Reroute: Change Routing
MethodFrom the Change route by screen, if
you say or select Change Routing
Method, then the Select routing
method screen is displayed. See
Changing the Routing Method on
page 46 for details.Cancel Current RouteCancels the current route (and any
waypoints) and returns you to the map
screen.Back to Current RouteReturns you to the original map screen.Driving to Your Destination

66
Navigation System
Driving to Your DestinationChanging Your DestinationThere are four methods by which you
can change or add a waypoint to your
route. These are:Find Nearest (Voice command)From the map screen, say one of the
“Find Nearest...” voice commands to
locate the nearest gas station, ATM,
restaurant, or other point of interest. See
the “Find Nearest” voice commands
listing on page 133.Go Home (Voice command)From the map screen, say “Go home.”
If you have entered a “Go home”
address, then the system will display a
confirmation screen.
Using Joystick to Change
DestinationWhile following a calculated route, you
can select a new destination with the
map screen and the joystick.
With the map screen displayed, use the
joystick to move the position icon. It
will change to crosshairs. Use the
joystick to position the crosshairs on
your desired new destination, street, or
icon, then push in on the joystick.
The
Select a place
screen or the address of
the location will be displayed.
NOTE:The
Select a place
screen will be
displayed when the crosshairs are
positioned near multiple icons or
locations. The address of the location will
be displayed at the top of the screen when
the crosshairs are positioned on a
particular street, icon, or location.
If this is not your desired new destination,
press the
CANCEL
button or the
NAVI
BACK
button on the steering wheel to
return to the
map
screen. Reposition the
crosshairs with the joystick, then push in
on the joystick again to see the new
address.
When the Select a place screen is
displayed, select an item from the list,
and the Calculate route to screen is
displayed. After select OK, you can
select either Set as New Destination
or Set as Waypoint for your specified
position.

Navigation System67
When the address of the location is
displayed at the top of the screen, push
in on the joystick, and the Calculate
route to screen will be displayed. After
you select OK, you can select either Set
as New Destination or Set as
Waypoint for your specified position.
The system will return to the map
screen and recalculate the route to your
new destination or waypoint.
NOTE:
When you scroll through the map
screen while en route to a destination,
some voice controls will not function.
These include:
• Display “Heading up”
• Display “North up”
Entering a Destination from the
Menu Screen (while en route)If you say “Menu” or press the MENU
button twice, the system displays the
Enter destination by screen. Follow
the procedure described in Entering a
Destination, which begins on page 22.
After selecting OK to the Calculate
route to screen, your new location can
be used either as a waypoint or as a
replacement destination.
Continue Trip ScreenIf you restart the vehicle without having
completed your prior trip, you will see
the following screen:
• To continue to your destination or
other waypoints, say or select OK.
• To cancel your destination, press the
CANCEL button or the NAVI
BACK button on the steering wheel,
or using the voice control system, say
“Cancel” or “Back.”
• If you wish to change the route
method, say or select CHANGE
METHOD.
• For additional information on
changing the routing method, see
Changing the Routing Method on
page 46.Driving to Your Destination

Navigation System
Information FeaturesInformation ScreenWhen you say “Information” or press
theINFO button, the display changes to:
NOTE:
If some items appear to be grayed out,
and cannot be selected, it is because you
did not select OK on the initial
Disclaimer screen (see System Start-up
on page 16), or there is no phone paired
to the system (see Bluetooth®
HandsFreeLink® on page 18).
Cellular PhonebookTheCellular Phonebook option
allows you to store up to 1,000 names
and 10,000 phone numbers in the
phonebook of Bluetooth®
HandsFreeLink® from your cellular
phonebook. With HFL, you can then
automatically dial any name or number
in the phonebook.
Say or select Cellular Phonebook
from the Information screen, and the
display changes to:
NOTE:
• For more information on this feature,
see your Owner’s Manual.
• For questions about the HFL Cellular
Phonebook, call HandsFreeLink
customer support at 1-888-528-7876
or visit www.handsfreelink.ca.
Voice Command HelpWhen you say or select Voice
Command Help, you will see the
following screen:
NOTE:
You can select an item by saying either
the line number or the item name.
68

Navigation System69
Information Features
There is a tutorial available for the voice
command help. Say or select Getting
started, and the display changes to:
Select the line number of the desired
tutorial you want to view, and the
tutorial will automatically be read. Press
Stop to stop the reading, or press the
CANCEL button.When you make a command help
selection under any of the help screens,
you will see the help commands that can
be used with the voice control. You can
say or select Read List, and the system
will read the list to you.
For a listing of all voice commands, see
Voice Command Index on page 131.
Map LegendYou can use the Map legend screens to
learn the meaning of map features,
icons, colours, etc. used in this system.
When you say or select Map Legend,
the display changes to:
Say or select the desired item or item
number to view each section of the map
legend.

70
Navigation System
Information FeaturesCalendarThe Calendar option allows you to
enter events and be reminded of them in
the future. When you say or select
Calendar, the system shows the
calendar with the current calendar day
highlighted.
Dates with an icon indicate there is a
scheduled entry for that date.You can scroll through the calendar day
by day by moving the joystick, or select
the day by voice. To change the month,
say “Next” or “Previous,” use the
ZOOM buttons, or touch the triangles at
the top of the screen.
If you say or select List, your entries are
listed. Press the CANCEL button to
return to the Calendar screen.
Entering Your ScheduleSet your schedule by selecting the day
on the calendar, and the display changes
to:ReminderThe default for Reminder is On. This
allows the system to remind you of the
calendar item the next time you start the
vehicle. See System Start-up on page 16.Edit DateThis allows you to move your calendar
entry to a different date. If you say or
select Edit Date, the Calendar screen
is displayed with existing entries grayed
out. Select a new day and the display
returns to the Edit schedule screen
with a new date.
