ContentsThis owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
2Safe Driving P. 21For Safe Driving P. 22 Seat Belts P. 26 Airbags P. 332Instrument Panel P. 63Indicators P. 64 Gauges and Multi-Information Display P. 782Controls P. 91Setting the Clock P. 92 Locking and Unlocking the Doors P. 93
Opening and Closing the Moonroof P. 111
Adjusting the Seats P. 1232Features P. 141Audio System P. 142 Audio System Basic Operation P. 145
HomeLink® Universal Transceiver
* P. 177
2Driving P. 209Before Driving P. 210 Towing a Trailer P. 215
Multi-View Rear Camera
* P. 242 Refueling P. 243
2Maintenance P. 247Before Performing Maintenance P. 248 Maintenance Minder
TM P. 251
Checking and Maintaining Wiper Blades P. 284
Climate Control System Maintenance P. 297
2Handling the Unexpected P. 303Tools P. 304 If a Tire Goes Flat P. 305
Overheating P. 318 Indicator, Coming On/Blinking P. 3202Information P. 329Specifications P. 330 Identification Numbers P. 334
Emissions Testing P. 337 Warranty Coverages P. 339
Page 2 of 351
Contents
Child Safety P. 48 Exhaust Gas Hazard P. 60 Safety Labels P. 61Opening and Closing the Trunk P. 102 Security System P. 106 Opening and Closing the Windows P. 108
Operating the Switches Around the Steering Wheel P. 112 Adjusting the Mirrors P. 121
Interior Lights/Interior Convenience Items P. 131 Climate Control System P. 136Audio Error Messages
* P. 170 General Information on the Audio System P. 173
Bluetooth® HandsFreeLink® P. 179
When Driving P. 216 Braking P. 237 Parking Your Vehicle P. 241
Fuel Economy P. 245 Accessories and Modifications P. 246Maintenance Under the Hood P. 256 Replacing Light Bulbs P. 274
Checking and Maintaining Tires P. 286 Battery P. 295 Remote Transmitter Care P. 296
Cleaning P. 298Engine Does Not Start P. 311 Jump Starting P. 314 Shift Lever Does Not Move P. 317
Fuses P. 324 Emergency Towing P. 327Devices that Emit Radio Waves P. 335 Reporting Safety Defects P. 336
Authorized Manuals P. 341 Client Service Information P. 342
Quick Reference Guide
P. 2
Safe Driving
P. 21
Instrument Panel
P. 63
Controls
P. 91
Features
P. 141
Driving
P. 209
Maintenance
P. 247
Handling the Unexpected
P. 303
Information
P. 329
Index
P. 343
Page 10 of 351
9Quick Reference Guide
Controls
(P 91)
ENGINE START/STOP
Button
(P 112)
Press the button to changes the vehicle's
power mode.
Turn Signals
(P 114)
Lights
(P 114)Turn Signal Control Lever
Right
Left
Light Control Switches
Low BeamHigh Beam
Flashing
Wipers and Washers (P 118)
Wiper/Washer Control Lever
Adjustment Ring
: Long Delay
: Short DelayMIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipePull toward
you to spray
washer fluid.
* Not available on all models
Page 11 of 351
10Quick Reference Guide
Steering Wheel
(P 120)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside (P 99)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk
(P 102)
●To unlock and open the trunk:
•Pull the trunk release.
•Press the trunk release button on the
keyless access remote.
•Press the trunk release button on the
trunk lid.Power Door Mirrors (P 122)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.Trunk Release
Selector Switch
Adjustment Switch
Power Windows
(P 108)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window Switch
Indicator
Page 17 of 351
16Quick Reference Guide

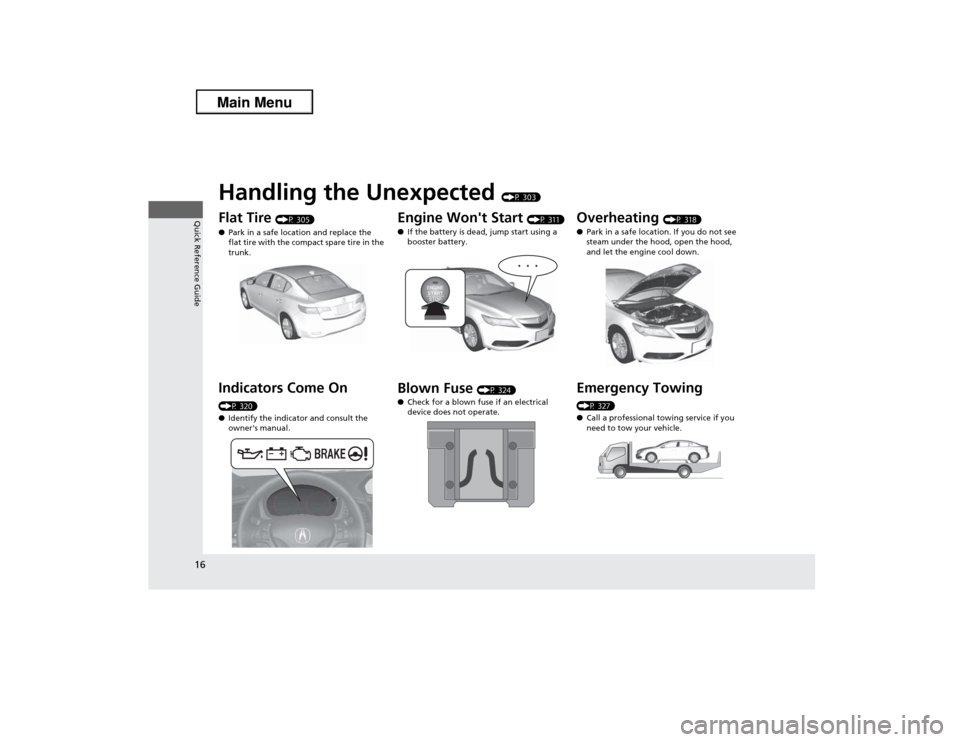

Handling the Unexpected
(P 303)
Flat Tire
(P 305)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On (P 320)
●Identify the indicator and consult the
owner's manual.
Engine Won't Start
(P 311)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse
(P 324)
●Check for a blown fuse if an electrical
device does not operate.
Overheating
(P 318)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P 327)
●Call a professional towing service if you
need to tow your vehicle.
Page 39 of 351
38
uuAirbagsuFront Airbags (SRS)
Safe Driving
■When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help save lives, not to prevent minor scrapes, or even broken bones that might occur
during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or front passenger to move towards the front of the vehicle. Side
airbags and side curtain airbags have been specifically designed to help reduce the
severity of injuries that can occur during a moderate-to-severe side impact which
can cause the driver or passenger to move towards the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any significant protection and are not designed
to deploy in such collisions.
Rollovers: Seat belts and, in vehicles equipped with a rollover sensor, side airbags
and side curtain airbags offer the best protection in a rollover. Because front airbags
could provide little if any protection, they are not designed to deploy during a
rollover.■When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in the vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.■When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
Page 42 of 351
41
uuAirbagsuSide Airbags
Continued
Safe Driving
■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle's framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.■When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was towards
the far front or rear of the vehicle, or when the vehicle's crushable body parts
absorbed most of the crash energy. In either case, the side airbag would not have
been needed nor provided protection even if it had deployed.
Page 119 of 351
118
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.■MIST
The wipers run at high speed until you release
the lever.■Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to
the amount of rain.■Adjusting the delay
Turn the adjustment ring to adjust the wiper
delay.■Washer
Sprays while you pull the lever toward you.
When you release the lever, the wipers make
two or three more sweeps before stopping.
1Wipers and WashersNOTICEDo not use the wipers when the windshield is dry.
The windshield will get scratched, or the rubber
blades will get damaged.NOTICEIn cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in this condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle starts moving, the wipers make a
single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor is equipped with a breaker that may
stop motor operation temporarily to prevent an
overload. Wiper operation will return to normal
within a few minutes, once the circuit has returned to
normal.
Intermittent Time
Adjustment Ring
a MIST
c INT: Low speed with
intermittent b OFF
d LO: Low speed wipe
e HI: High speed wipePull to
use
washer.
a
b
c
d
e
Long delay
Short delay
Page 210 of 351
209
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 210
Maximum Load Limit........................ 213
Towing a Trailer
Towing Your Vehicle ........................ 215
When Driving
Starting the Engine .......................... 216
Precautions While Driving................. 220
Automatic Transmission ................... 221
Shifting .......................................... 222
Shifting .......................................... 226Automatic transmission modelsManual transmission models
Cruise Control ................................. 229VSA
® (Vehicle Stability Assist), aka ESC
(Electronic Stability Control), System ...... 232
TPMS (Tire Pressure Monitoring System) ... 234
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 235
Braking
Brake System ................................... 237
ABS (Anti-lock Brake System) ........... 239
Brake Assist System.......................... 240
Parking Your Vehicle
When Stopped................................. 241Parking Your Vehicle........................ 241
Multi-View Rear Camera
*................ 242
Refueling
Fuel Information .............................. 243
How to Refuel ................................. 244
Fuel Economy.................................... 245
Improving Fuel Economy .................. 245
Accessories and Modifications
Accessories ...................................... 246
Modifications................................... 246
* Not available on all models
Page 214 of 351
213
uuBefore DrivinguMaximum Load Limit
Continued
Driving
Maximum Load LimitThe maximum load for your vehicle is 850 lbs (385 kg).
See Tire and Loading Information label attached to the driver's doorjamb.
This figure includes the total weight of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1)Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle's placard.
(2)Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3)Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4)The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the amount of available cargo and luggage load
capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accessories, and all cargo.
2Specifications P. 330, 332
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle.
2Specifications P. 330, 332
3
WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
