display Acura ILX 2015 User Guide

75
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while pressing the
brake pedal and manually start the engine.
Have the vehicle checked by a dealer.
●Appears if the keyless access remote battery is too weak
to start the engine or the key is not within operating
range to start the engine.
A beeper sounds six times.
2 If the Keyless Access Remote Battery is Weak P. 312
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal (automatic transmission) or the
clutch pedal (manual transmission) to change the power
mode to VEHICLE OFF (LOCK).
U.S.
Canada
15 ACURA ILX-31TX66200.book 75 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

76
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the power mode is in ACCESSORY.
—
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 113
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 296
●Appears three seconds after the TO START ENGINE
message appears.
2 Starting the Engine P. 216
15 ACURA ILX-31TX66200.book 76 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

77
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears after you unlock and open the driver’s door.
2 Starting the Engine P. 216
●Appears when the steering wheel is locked.●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
●Appears if you push the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
15 ACURA ILX-31TX66200.book 77 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

78
Instrument Panel

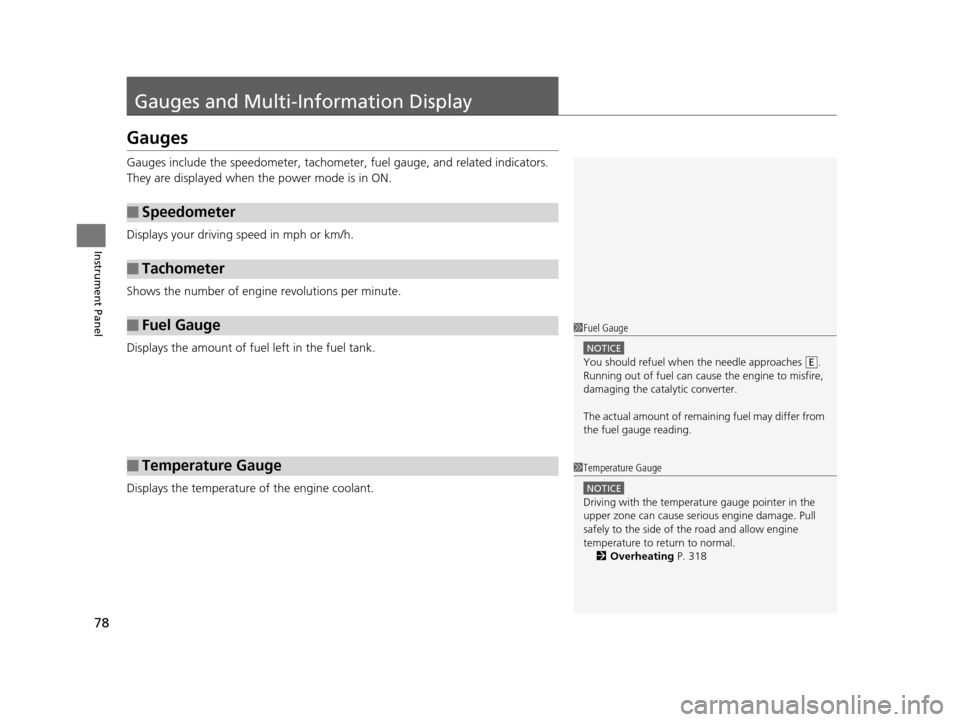

Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 318
15 ACURA ILX-31TX66200.book 78 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

79
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

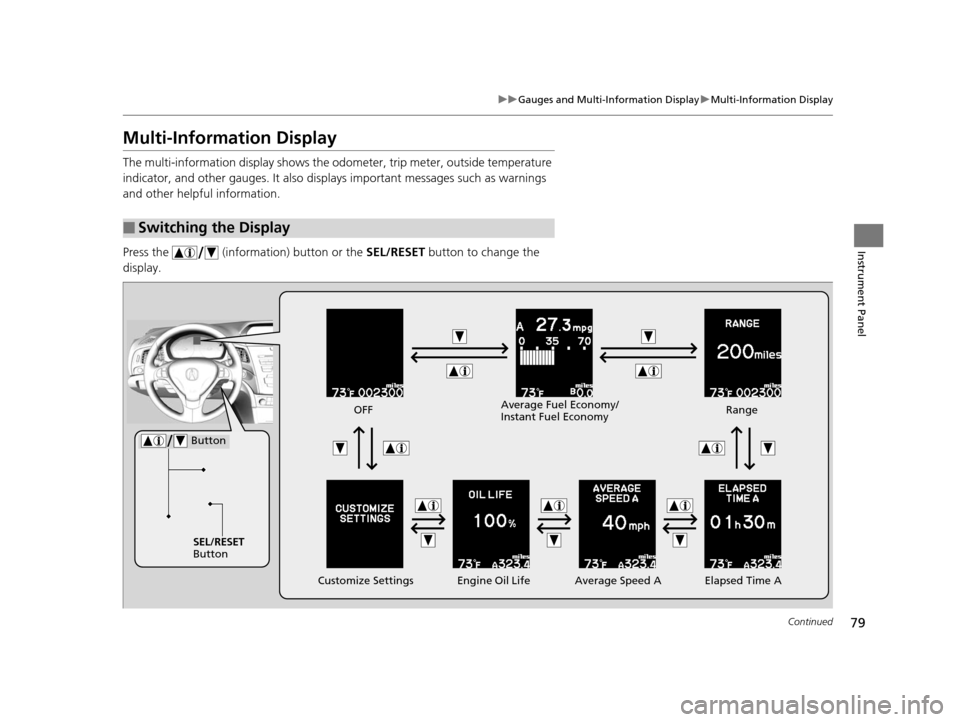

Multi-Information Display
The multi-information displa y shows the odometer, trip meter, outside temperature
indicator, and other gauges. It also displa ys important messages such as warnings
and other helpful information.
Press the (information) button or the SEL/RESET button to change the
display.
■Switching the Display
SEL/RESET
Button
Engine Oil Life
Customize Settings Elapsed Time A
Button
OFF
Average Speed ARange
Average Fuel Economy/
Instant Fuel Economy
15 ACURA ILX-31TX66200.book 79 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

uuGauges and Multi-Information Display uMulti-Information Display
80
Instrument Panel

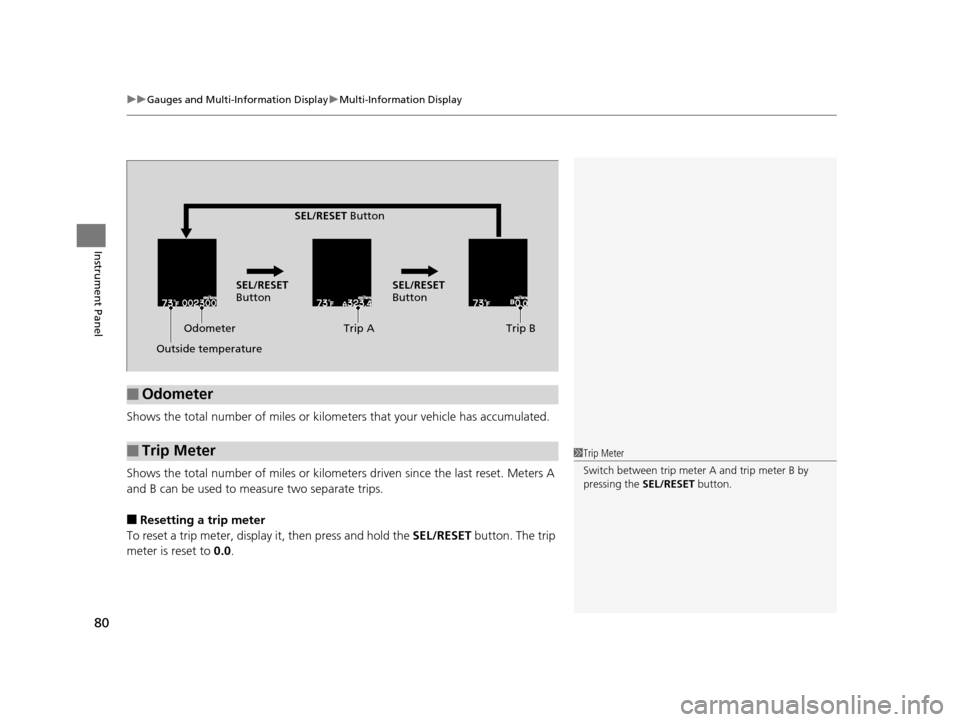

Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip A Trip B
SEL/RESET

Button
SEL/RESET Button
SEL/RESET
Button
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
15 ACURA ILX-31TX66200.book 80 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Continued81
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
■Outside Temperature
■Average Fuel Economy
■Instant Fuel Economy
■Range
■Elapsed Time
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display's customized
features to correct the temperature.
2 Customized Features P. 83
1Average Fuel Economy
You can change when to reset the average fuel
economy is reset.
2 Customized Features P. 83
1Elapsed Time
You can change when to reset the elapsed time.
15 ACURA ILX-31TX66200.book 81 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

uuGauges and Multi-Information Display uMulti-Information Display
82
Instrument Panel

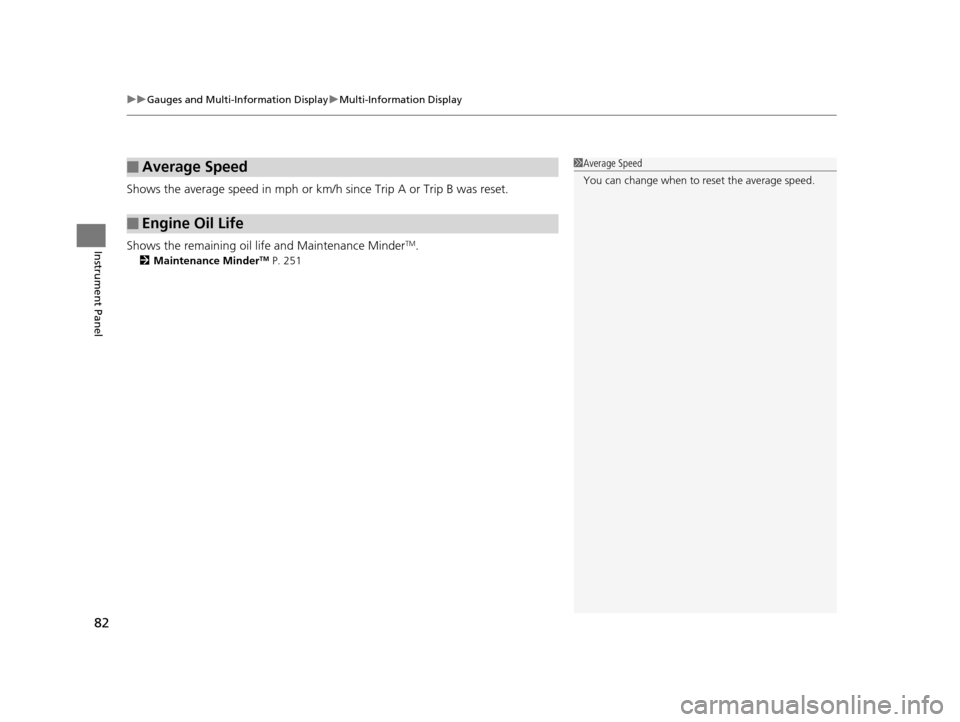

Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 251
■Average Speed
■Engine Oil Life
1Average Speed
You can change when to reset the average speed.
15 ACURA ILX-31TX66200.book 82 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Continued83
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

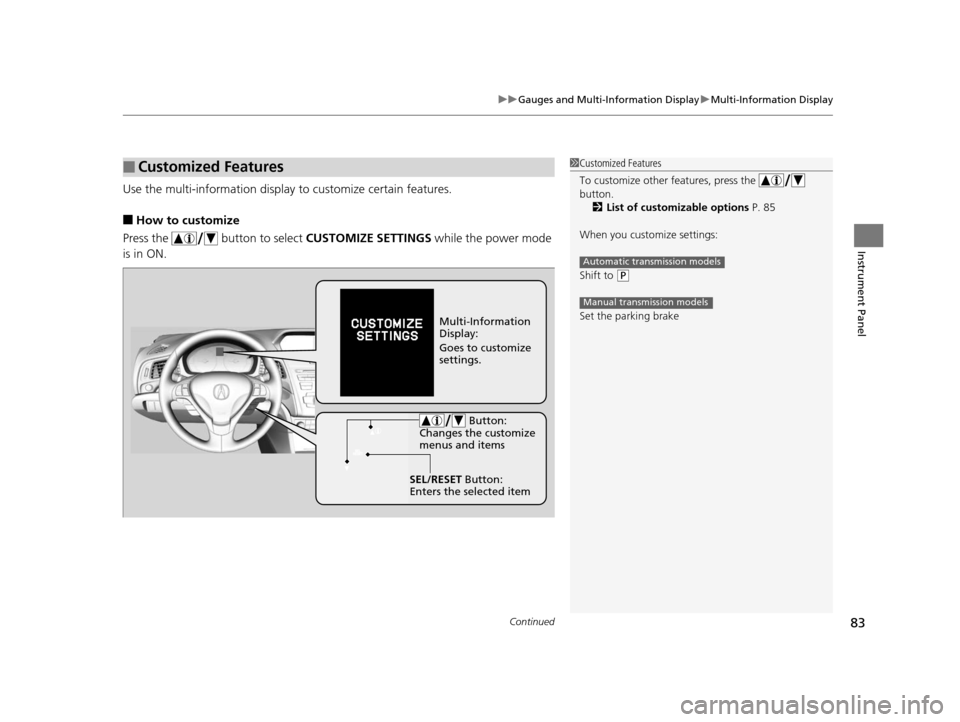

Use the multi-information display to customize certain features.
■How to customize
Press the button to select CUSTOMIZE SETTINGS while the power mode
is in ON.
■Customized Features1 Customized Features
To customize other features, press the
button.
2 List of customizable options P. 85
When you customize settings:
Shift to
( P
Set the parking brake
Automatic transmission models
Manual transmission models
Multi-Information
Display:
Goes to customize
settings.
SEL/RESET Button:
Enters the selected item Button:
Changes the customize
menus and items
15 ACURA ILX-31TX66200.book 83 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

84
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

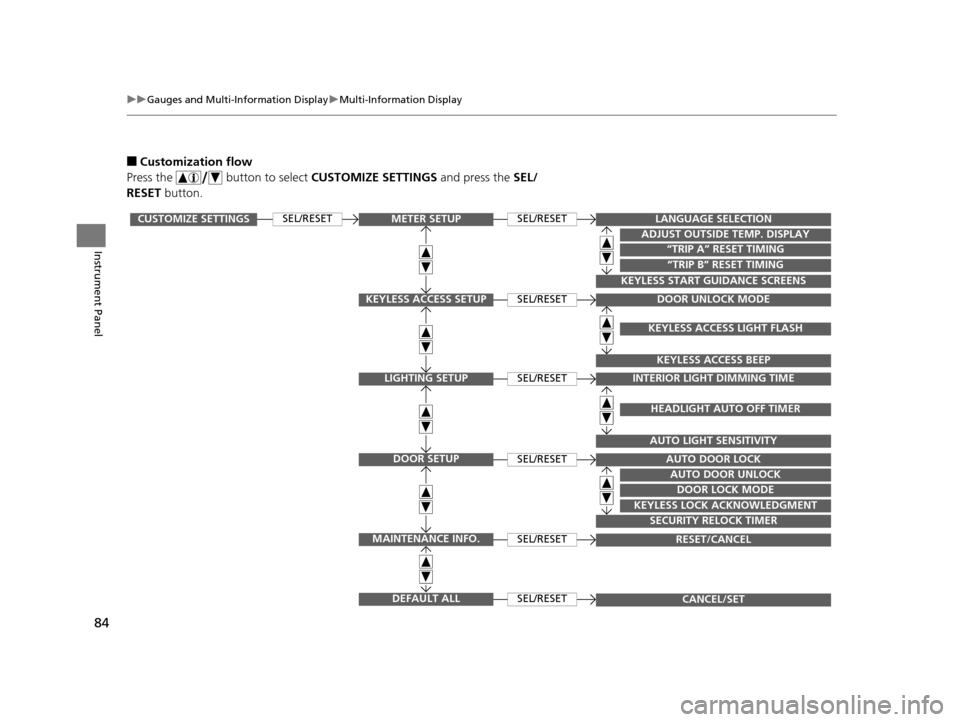

■Customization flow
Press the button to select CUSTOMIZE SETTINGS and press the SEL/
RESET button.
SEL/RESETSEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
CUSTOMIZE SETTINGSMETER SETUP
KEYLESS ACCESS SETUP
LIGHTING SETUP
DOOR SETUP
MAINTENANCE INFO.
DEFAULT ALL
LANGUAGE SELECTION
ADJUST OUTSIDE TEMP. DISPLAY
“TRIP A” RESET TIMING
“TRIP B” RESET TIMING
KEYLESS START GUIDANCE SCREENS
DOOR UNLOCK MODE
KEYLESS ACCESS LIGHT FLASH
KEYLESS ACCESS BEEP
INTERIOR LIGHT DIMMING TIME
HEADLIGHT AUTO OFF TIMER
AUTO LIGHT SENSITIVITY
AUTO DOOR LOCK
AUTO DOOR UNLOCK
DOOR LOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
RESET/CANCEL
CANCEL/SET
15 ACURA ILX-31TX66200.book 84 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
