85
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group
Customizable
Features Description Selectable settings
METER
SETUP
LANGUAGE
SELECTIONChanges the displayed language.ENGLISH*1/
FRENCH /
SPANISH
ADJUST OUTSIDE
TEMP. DISPLAYAdjusts the temperature r eading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C
(Canada)
“TRIP A” RESET
TIMINGChanges the setting of how to reset trip meter A, average
fuel economy A, average speed A, and elapsed time A.WITH REFUEL /IGN OFF /
MANUALLY RESET*1
“TRIP B” RESET
TIMINGChanges the setting of how to reset trip meter B, average
fuel economy B, average sp eed B, and elapsed time B.WITH REFUEL/IGN OFF /
MANUALLY RESET*1
KEYLESS START
GUIDANCE SCREENSChanges the display of the key less start guidance screens.ON*1/OFF
KEYLESS
ACCESS
SETUP DOOR UNLOCK
MODE
Changes which doors unlock when you grab the driver’s
door handle. DRIVER DOOR ONLY
*1/
ALL
DOORS
KEYLESS ACCESS
LIGHT FLASH Causes some exterior lights to blink when you unlock/lock
the doors.
ON
*1/
OFF
KEYLESS ACCESS
BEEP Causes the beeper to sound when you unlock/lock the doors.
ON
*1/OFF
15 ACURA ILX-31TX66200.book 85 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

86
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

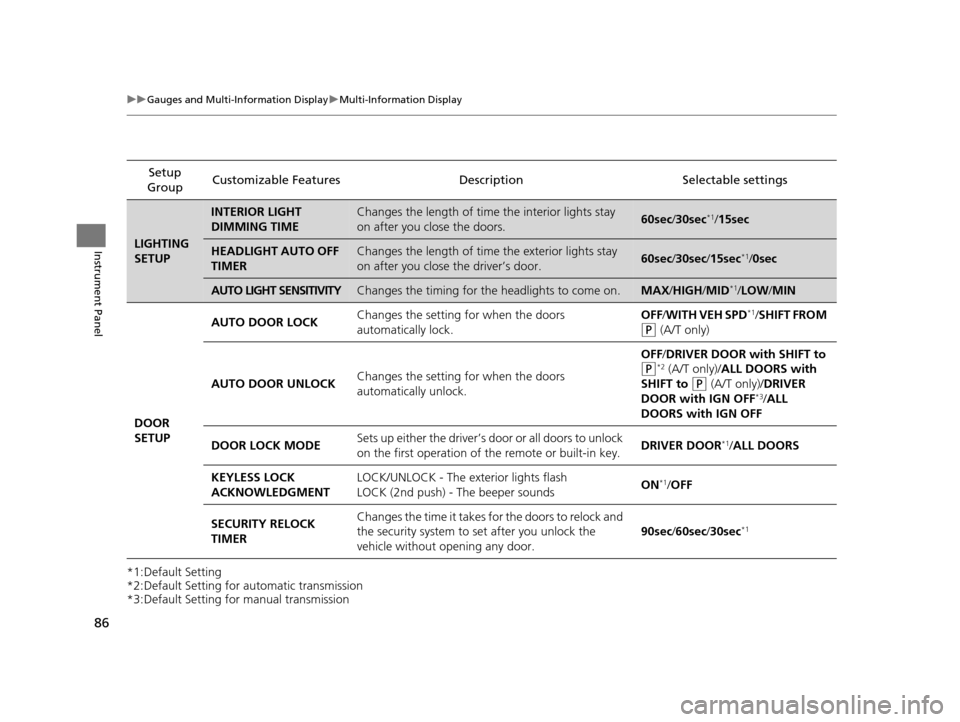

*1:Default Setting
*2:Default Setting for automatic transmission
*3:Default Setting for manual transmission Setup
Group Customizable Features
DescriptionSelectable settings
LIGHTING
SETUP
INTERIOR LIGHT
DIMMING TIMEChanges the length of time the interior lights stay
on after you close the doors.60sec/30sec*1/ 15sec
HEADLIGHT AUTO OFF
TIMERChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/0sec
AUTO LIGHT SENSITIVITYChanges the timing for the headlights to come on.MAX /HIGH/ MID*1/LOW /MIN
DOOR
SETUP AUTO DOOR LOCK
Changes the setting for when the doors
automatically lock. OFF
/WITH VEH SPD
*1/SHIFT FROM
(P (A/T only)
AUTO DOOR UNLOCK Changes the setting for when the doors
automatically unlock. OFF
/DRIVER DOOR with SHIFT to
(P*2 (A/T only)/ALL DOORS with
SHIFT to
(P (A/T only)/ DRIVER
DOOR with IGN OFF*3/ ALL
DOORS with IGN OFF
DOOR LOCK MODE Sets up either the driver’s d
oor or all doors to unlock
on the first operation of the remote or built-in key. DRIVER DOOR
*1/
ALL DOORS
KEYLESS LOCK
ACKNOWLEDGMENT LOCK/UNLOCK - The exterior lights flash
LOCK (2nd push) - The beeper sounds
ON
*1/
OFF
SECURITY RELOCK
TIMER Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec
/60sec /30sec
*1
15 ACURA ILX-31TX66200.book 86 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

87
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

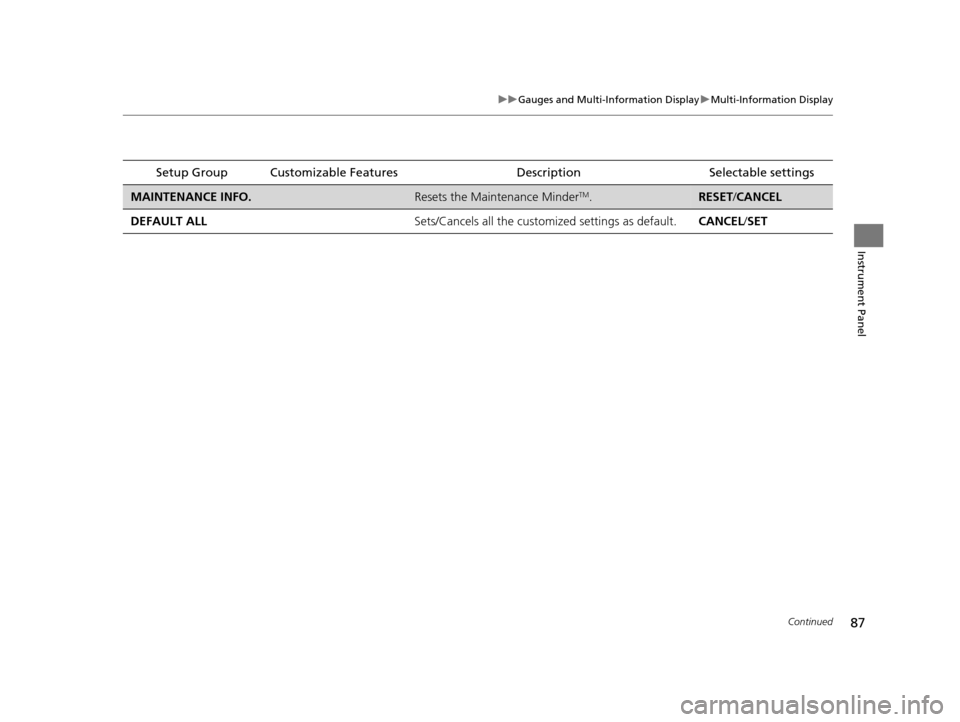

Setup Group Customizable Features Description Selectable settings
MAINTENANCE INFO.Resets the Maintenance MinderTM.RESET/CANCEL
DEFAULT ALL Sets/Cancels all the customized settings as default.CANCEL/SET
15 ACURA ILX-31TX66200.book 87 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

88
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

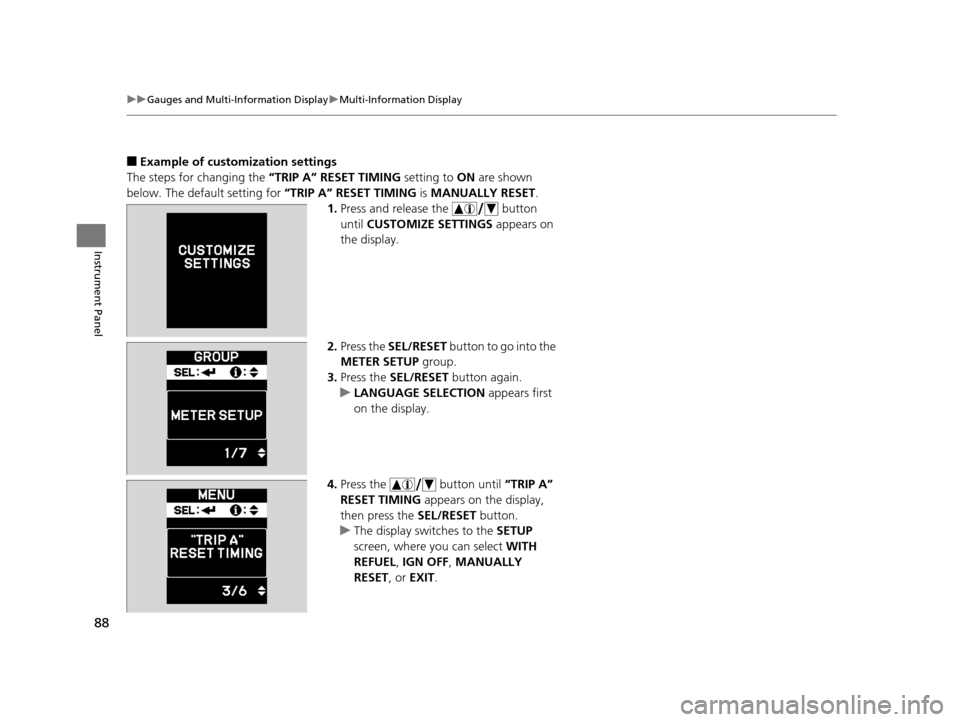

■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to ON are shown
below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET .
1. Press and release the button
until CUSTOMIZE SETTINGS appears on
the display.
2. Press the SEL/RESET button to go into the
METER SETUP group.
3. Press the SEL/RESET button again.
u LANGUAGE SELECTION appears first
on the display.
4. Press the button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
u The display switches to the SETUP
screen, where you can select WITH
REFUEL , IGN OFF , MANUALLY
RESET , or EXIT .
15 ACURA ILX-31TX66200.book 88 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

89
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

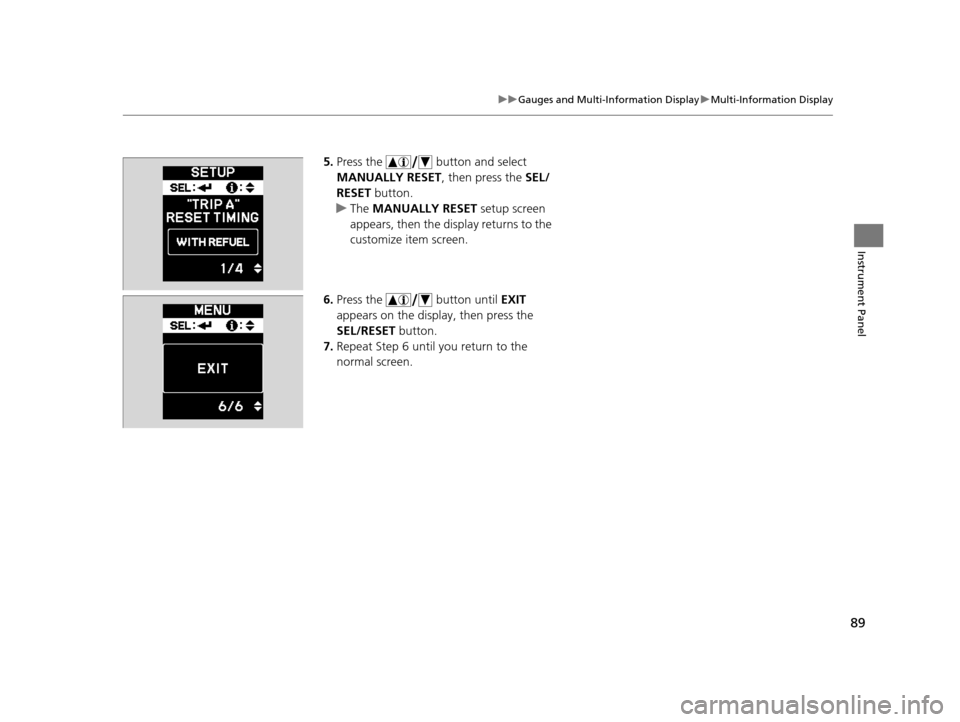

5. Press the button and select
MANUALLY RESET , then press the SEL/
RESET button.
u The MANUALLY RESET setup screen
appears, then the di splay returns to the
customize item screen.
6. Press the button until EXIT
appears on the display, then press the
SEL/RESET button.
7. Repeat Step 6 until you return to the
normal screen.
15 ACURA ILX-31TX66200.book 89 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

92
Controls
Setting the Clock
Clock
You can adjust the time in the clock display, with the power mode in ON.1.Press the SETUP button.
2. Rotate to select Adjust Clock on the
screen.
3. Press . Adjust Clock appears.
4. Rotate to select the item you want to
adjust (12/24 hour mode, hour, minute).
Then press .
5. Rotate to make the adjustment.
6. Press to enter your selection. The display
returns to Adjust Clock . Repeat steps 4 to
6 to adjust other items.
7. To enter the selection, rotate and select
Set , then press .
1Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
SETUP Button
15 ACURA ILX-31TX66200.book 92 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Continued97
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

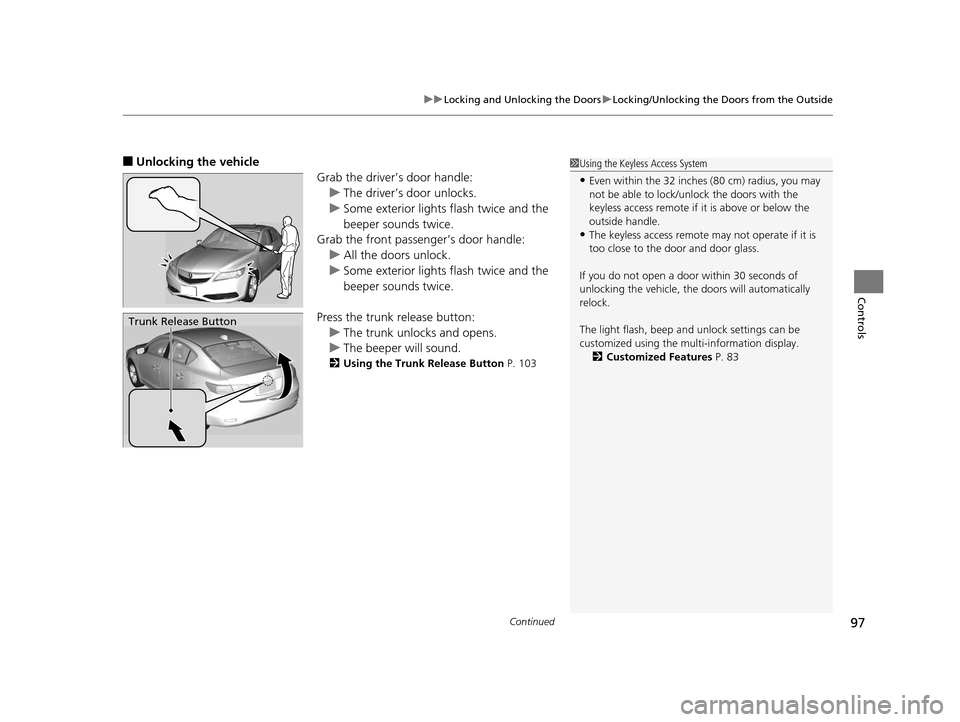

■Unlocking the vehicle
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u The beeper will sound.
2 Using the Trunk Release Button P. 103
Trunk Release Button
1Using the Keyless Access System
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless access remote if it is above or below the
outside handle.
•The keyless access remote may not operate if it is
too close to the door and door glass.
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
The light flash, beep a nd unlock settings can be
customized using the mu lti-information display.
2 Customized Features P. 83
15 ACURA ILX-31TX66200.book 97 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

101
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

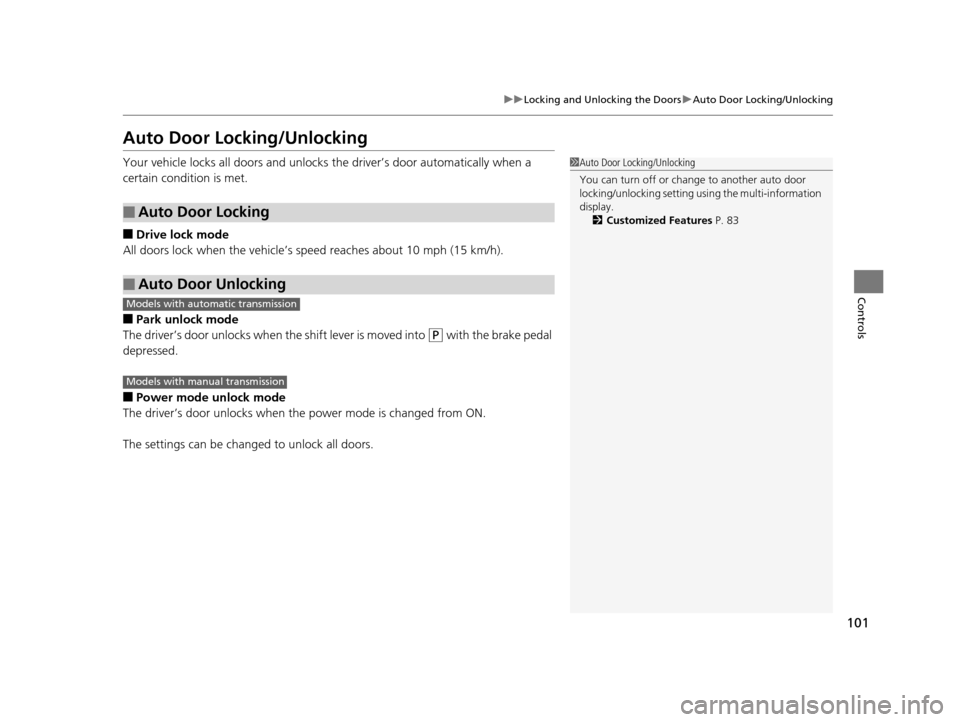

Auto Door Locking/Unlocking
Your vehicle locks all doors and unlocks the driver’s door automatically when a
certain condition is met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Park unlock mode
The driver’s door unlocks when the shift lever is moved into
(P with the brake pedal
depressed.
■Power mode unlock mode
The driver’s door unlocks when the power mode is changed from ON.
The settings can be changed to unlock all doors.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the multi-information
display. 2 Customized Features P. 83
Models with automatic transmission
Models with manual transmission
15 ACURA ILX-31TX66200.book 101 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

112
Controls
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button
■Changing the Power Mode1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine when the keyless access
remote is inside the vehicle.
The engine may also run if the keyless access remote
is close to the door or window, even if it is outside the
vehicle.
ON mode:
Indicator in the button is of f, if the engine is running.
If the keyless access remote battery is weak, beeper
sounds and the TO START, HOLD REMOTE NEAR
START BUTTON message appears on the multi-
information display. 2 If the Keyless Access Remote Battery is
Weak P. 312
Operating RangeAutomatic Transmission Manual Transmission
VEHICLE OFF (LOCK)
Indicator in th e button is off.
The steering wheel is locked. The
power to all electrical
components is turned off.
Press the button without the shift
lever in
( P.
Shift to
( P then press the button. Press the button.Without pressing
the clutch pedal
Without pressing
the brake pedal ACCESSORY
Indicator in the button is on.
Indicator in th
e button blinks
(from ON to ACCESSORY).
Operate the audio system and
other accessories in this position.
ON
Indicator in the button is on.
All electrical components can be
used.
Indicator
Indicator
15 ACURA ILX-31TX66200.book 112 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

113
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
buzzer sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
keyless access remote is out of the vehicle. If
the buzzer continues even after the remote is
put back inside, place it to be within its
operational range.
■When the power mode is in ON
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the multi-information display notifies the
driver inside that the remote is out.
■When the power mode is in
ACCESSORY or in VEHICLE OFF (LOCK)
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from outside the
vehicle.
■Power Mode Reminder
■Keyless Access Remote Reminder1 Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and the driver’s door is
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go of f. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational
range.
