70
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the message
again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-information display does not return
to the normal screen unless the warning is
canceled, or the button is pressed.
—
Turn Signal
Indicators
●Blink when you operate the turn
signal lever.
●Blink along with all turn signals if you
press the hazard warning button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2 Replacing Light Bulbs P. 278, 280
—
High-Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver's door is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
* Not available on all models
15 ACURA ILX-31TX66200.book 70 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

114
uuOperating the Switches Around the Steering Wheel uTurn Signals
Controls
Turn Signals
The turn signals can be used when the power
mode is in ON.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indica tor blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
Right Turn
Left Turn
■Manual Operation
1 Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
with the lights on, a light on reminder chime will
sound when you open the driver’s door.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 70
Repeatedly turning the headlights on and off reduces
the life of the HI D headlight bulbs.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
Your vehicle is equipped with the automatic
headlight adjusting system that automatically adjusts
the vertical angle of the low beam headlights. If you
find a significant change in the vertical angle of the
headlights, there may be a problem with the system.
Have your vehicle checked by a dealer.
Models with high voltage discharge tube bulbHigh Beams
Flashing the high beams
Low Beams
Turns on side marker, tail, and
rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
15 ACURA ILX-31TX66200.book 114 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

274
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the engine compartment cover.
2 Engine Compartment Cover P. 259
2.Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the headlight
assembly and turn it to the right.
5. Insert the coupler into the connector of the
bulb.
High voltage can remain in the circuit for a long period of time after the light is
switched off. Do not attemp t to inspect or replace the high voltage discharge type
bulbs yourself. Ask a dealer to insp ect and replace low beam headlights.
High beam headlight:60 W (HB3)
Low beam headlight:55 W (H11 for halogen bulb Type)
35 W (D2S for high voltage discharge type)
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk or tow a trailer, have the
aiming readjusted at a de aler or by a qualified
technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Bulb
Tab
Coupler
Driver side
All models
■Low Beam Headlights
High Voltage Discharge Types
15 ACURA ILX-31TX66200.book 274 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Continued275
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 259
2.Unlock the holding clips (B). Push up the
tab, and remove the cover of the air intake
duct and its upper part.
3. Remove the holding clip (C) using a flat-tip
screwdriver, then remo ve the upper part of
the windshield washer reservoir.
4. Rotate the cover to the left, and remove.
■Low Beam Headlights
Halogen Types
Cover
Clip (B)
Air
Intake
Duct
Tab
Driver side
1
Low Beam Headlights
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Holding clip (C-type)
Center Pin
Push until the
pin is flat.
Clip (C)
Passenger side
All models
Cover
15 ACURA ILX-31TX66200.book 275 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

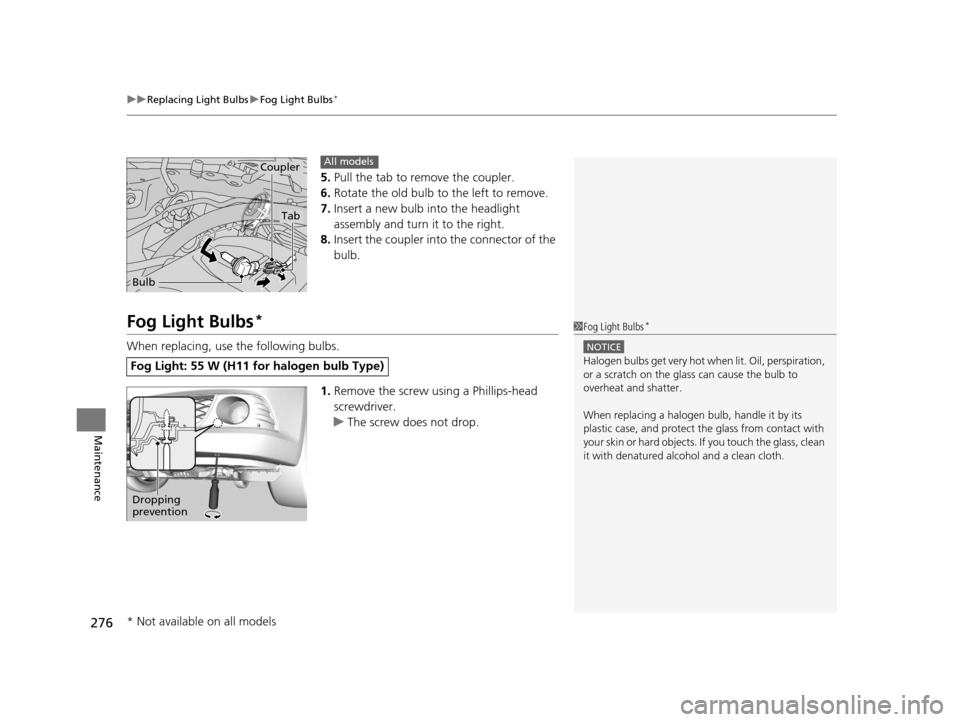

uuReplacing Light Bulbs uFog Light Bulbs*
276
Maintenance
5. Pull the tab to remove the coupler.
6. Rotate the old bulb to the left to remove.
7. Insert a new bulb into the headlight
assembly and turn it to the right.
8. Insert the coupler into the connector of the
bulb.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the screw using a Phillips-head
screwdriver.
u The screw does not drop.
Coupler
Bulb
Tab
All models
Fog Light: 55 W (H11 for halogen bulb Type)
1Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Dropping
prevention
* Not available on all models
15 ACURA ILX-31TX66200.book 276 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

324
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA Motor30 A
ABS/VSA FSR30 A
WIPER30 A
Main Fuse100 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
ST/MG SW30 A
Rear Defogger 30 A −−
Blower 40 A −−
Sub Fan Motor 20 A
Main Fan Motor 20 A
3−−
4− −
5Starter DIAG, ST MG7.5 A
6− −
7−−
8− −
9−−
10 − −
*1:Models with halogen bulb low beam headlights
*2:Models with discharge headlights
11Oil Level7.5 A
12 Fog Lights*(20 A)
13−−
14 Hazard 10 A
15FI Sub15 A
16 IG Coil 15 A
17Stop15 A
18 Horn 10 A
19−−
20
Right Headlight Low Beam*1
Right Headlight Low Beam (HID)*210 A
15 A
21IGP15 A
22 DBW 15 A
23Left Headlight Low Beam*1
Left Headlight Low Beam (HID)*210 A
15 A
24 − −
25MG Clutch7.5 A
26 WASHER 15 A
27SMALL20 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
15 ACURA ILX-31TX66200.book 324 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

330
Information
Specifications
■Vehicle Specifications
ModelAcura ILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 3,968 lbs (1,800 kg)
Gross Axle Weight
Rating (Front)2,138 lbs (970 kg)
Gross Axle Weight
Rating (Rear)1,874 lbs (850 kg)
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.0 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement122 cu-in (1,997 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlights
*3: Not available on all models
Headlights (Low Beam)35W (D2S)*1
55W (H11)*2
Headlights (High Beam) 60W (HB3)Fog Lights*355W (H11)
Front Turn Signal Lights 21W
Parking/Side Marker Lights5W
Brake/Rear Side Marker/Taillight 21/5W
Back-Up Lights16W
Rear Turn Signal Lights 21W
High-Mount Brake LightLED
Rear License Plate Light 5W
Trunk Light5W
Interior Lights Map Lights LED
Ceiling Light 8W
Foot light1.4W
Glove Box light LED
Vanity Mirror light2W
15 ACURA ILX-31TX66200.book 330 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

332
uuSpecifications u
Information
■Vehicle Specifications
ModelAcura ILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 3,968 lbs (1,800 kg)
Gross Axle Weight
Rating (Front)2,138 lbs (970 kg)
Gross Axle Weight
Rating (Rear)1,918 lbs (870 kg)
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (Low Beam)35W (D2S)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal Lights 21W
Parking/Side Marker Lights5W
Brake/Rear Side Marker/Taillight 21/5W
Back-Up Lights16W
Rear Turn Signal Lights 21W
High-Mount Brake LightLED
Rear License Plate Light 5W
Trunk Light5W
Interior Lights Map Lights LED
Ceiling Light 8W
Foot light1.4W
Glove Box light LED
Vanity Mirror light2W
15 ACURA ILX-31TX66200.book 332 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

344
Index
Brake System............................................. 237
Anti-lock Brake System (ABS) ................... 239
Brake Assist System ................................. 240
Fluid ........................................................ 272
Foot Brake ............................................... 238
Indicator ............................................ 64, 322
Parking Brake .......................................... 237
Brightness Control (Instrument Panel) .... 119
Bulb Replacement ..................................... 274
Back-Up Light Bulbs ................................. 282
Brake Light, Taillight, Rear Turn Signal
Light and Rear Side Ma rker Light Bulbs .. 280
Fog Lights ................................................ 276
Front Turn Signal Light Bulbs ................... 278
Headlights ............................................... 274
High-Mount Brake Light .......................... 283
Parking/Side Marker Light Bulbs ............... 279
Rear License Plate Light............................ 283
Bulb Specifications ............................ 330, 332
C
Carbon Monoxide Gas ................................ 60
Carrying Cargo .................................. 211, 213
CD Player ........................................... 153, 155
Certification Label .................................... 334
Changing Bulbs ......................................... 274
Charging System Indicator ................. 65, 320
Child Safety ................................................. 48
Childproof Door Locks ............................. 100 Child Seat
.................................................... 48
Booster Seats ............................................ 59
Child Seat for Infants................................. 50
Child Seat for Small Children ..................... 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 55
Larger Children ......................................... 58
Rear-facing Child Seat ............................... 50
Selecting a Child Seat ................................ 52
Using a Tether ........................................... 57
Childproof Door Locks ............................. 100
Cleaning the Exterior ............................... 300
Cleaning the Interior ................................ 298
Client Service Information ....................... 342
Climate Control System ............................ 136
Changing the Mode ................................ 136
Defrosting the Windshield and
Windows ............................................... 137
Dust and Pollen Filter............................... 297
Recirculation/Fresh Air Mode ................... 136
Sensors ................................................... 139
Synchronized Mode................................. 138
Using Automatic Climate Control ............ 136
Clock ............................................................ 92
Clutch Fluid ............................................... 272
Coat Hook ................................................. 134
Compact Spare Tire .................. 305, 331, 333
Console Compartment ............................. 132
Controls ....................................................... 91
Coolant (Engine) ...................................... 268
Adding to the Radiator ............................ 269 Adding to the Reserve Tank .................... 268
Overheating ............................................ 318
Creeping (Automatic Transmission) ........ 221
Cruise Control .......................................... 229
Indicator ................................................... 72
Cup Holders .............................................. 133
Customized Features ................................. 83
D
Daytime Running Lights .......................... 117
Dead Battery ............................................ 314
Defrosting the Windshield and
Windows ................................................. 137
Devices that Emit Radio Waves ............... 335
Dimming
Headlights .............................................. 114
Rearview Mirror ...................................... 121
Dipstick (Engine Oil) ................................ 262
Directional Signals (Turn Signal) ............. 114
Door Mirrors ............................................. 122
Doors .......................................................... 93
Auto Door Locking.................................. 101
Auto Door Unlocking .............................. 101
Door Open Indicator ........................... 25, 69
Keys.......................................................... 93
Locking/Unlocking the Doors from the
Inside ...................................................... 99
Locking/Unlocking the Doors from the Outside ................................................... 95
Lockout Prevention System ....................... 98
15 ACURA ILX-31TX66200.book 344 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

346
Index
Glass (care)................................................ 301
Glove Box .................................................. 132
H
Halogen Bulbs ................................... 274, 276
Handling the Unexpected ........................ 303
HandsFreeLink® (HFL)............................... 179
Automatic Import of Cellular Phonebook
and Call History ..................................... 195
Automatic Transferring ............................ 193
Caller’s ID Information ............................. 193
HFL Buttons ............................................. 179
HFL Menus .............................................. 181
HFL Status Display.................................... 180
Making a Call .......................................... 198
Options During a Call .............................. 202
Phone Setup ............................................ 186
Receiving a Call ....................................... 201
Speed Dial ............................................... 196
Text Message................................... 191, 203
To Clear the System ................................. 194
To Create a Security PIN........................... 192
Hazard Warning Button ............................... 4
Head Restraints ......................................... 126
Headlights ................................................. 114
Aiming .................................................... 274
Automatic Operation ............................... 115
Dimming ......................................... 114, 117
Operating ................................................ 114
Heaters (Seat) ............................................ 135 HFL (HandsFreeLink
®)............................... 179
High-Beam Indicator .................................. 70
Hill Start Assist System ............................. 219
HomeLink ® Universal Transceiver ............ 177I
Identification Numbers ............................ 334
Engine and Transmission ......................... 334
Vehicle Identification ............................... 334
Illumination Control ................................. 119
Knob ....................................................... 119
Immobilizer System .................................. 106
Indicator.................................................... 71
Indicators .................................................... 64
Anti-lock Brake System (ABS)..................... 67
Charging System ............................... 65, 320
CRUISE CONTROL ............................. 72, 230
CRUISE MAIN .................................... 72, 229
Door and Trunk Open ......................... 25, 69
Electric Power Steering (EPS) System .. 68, 322
Fog Light ................................................... 70
High-Beam ................................................ 70
Immobilizer System ................................... 71
Keyless Access System ............................... 72
Lights On .................................................. 70
Low Fuel ................................................... 67
Low Oil Pressure ................................ 64, 320
Low Tire Pressure/TPMS ............. 69, 234, 235
Maintenance Minder ............................... 251
Malfunction Indicator Lamp............... 65, 321 Parking Brake and Brak
e System ....... 64, 322
Seat Belt Reminder .............................. 27, 66
Security System Alarm............................... 72
Shift Lever Position.................................... 65
Side Airbag Off ................................... 46, 71
Supplemental Restraint System ........... 44, 67
System Message ....................................... 70
Transmission ............................................. 66
Turn Signal ............................................... 70
Vehicle Stability Assist (VSA® )
System ............................................ 68, 232
VSA ® OFF .......................................... 68, 233
Information .............................................. 329
Information Buttons ............................ 79, 83
Instant Fuel Economy ................................ 81
Instrument Panel ........................................ 63
Brightness Control .................................. 119
Interior Lights ........................................... 131
Interior Rearview Mirror ......................... 121
Internet Radio .......................................... 161
iPhone ....................................................... 176
iPod ........................................................... 158
J
Jack (Wheel Nut Wrench) ........................ 308
Jump Starting ........................................... 314
K
Key Number Tag ........................................ 94
15 ACURA ILX-31TX66200.book 346 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
