211
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Continued
Features

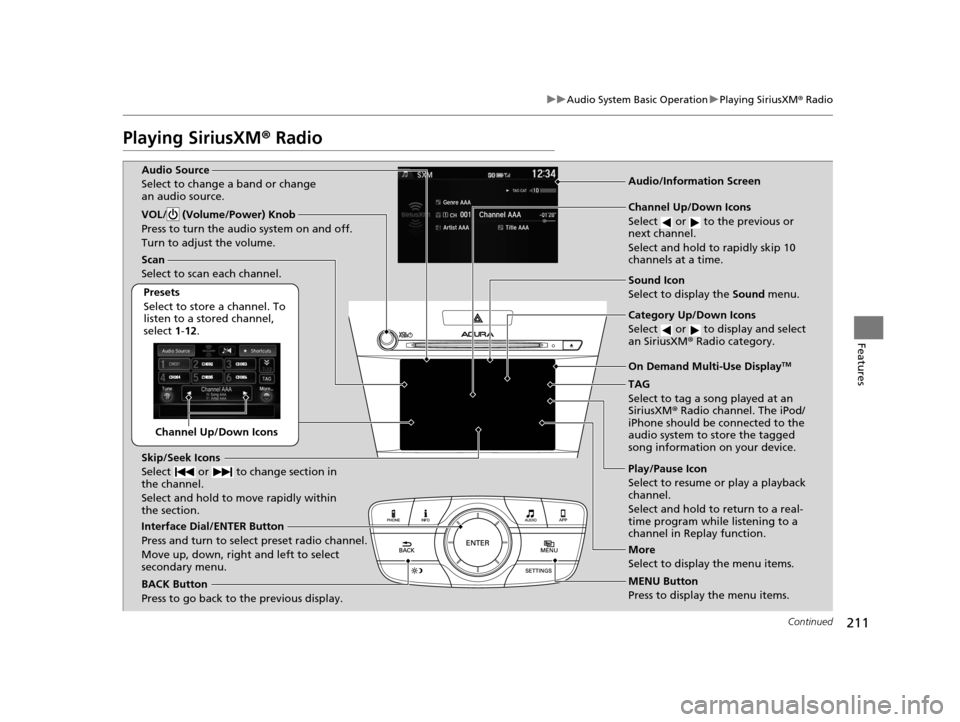

Playing SiriusXM® Radio
Channel Up/Down Icons
Scan
Select to scan each channel.
Presets
Select to store a channel. To
listen to a stored channel,
select 1-12.
Skip/Seek Icons
Select or to change section in
the channel.
Select and hold to move rapidly within
the section.
Interface Dial/ENTER Button
Press and turn to select preset radio channel.
Move up, down, right and left to select
secondary menu.
BACK Button
Press to go back to the previous display. Channel Up/Down Icons
Select or to the previous or
next channel.
Select and hold to rapidly skip 10
channels at a time.
Category Up/Down Icons
Select or to display and select
an SiriusXM
® Radio category.
TAG
Select to tag a song played at an
SiriusXM ® Radio channel. The iPod/
iPhone should be connected to the
audio system to store the tagged
song information on your device.
Play/Pause Icon
Select to resume or play a playback
channel.
Select and hold to return to a real-
time program while listening to a
channel in Replay function.
MENU Button
Press to display the menu items.
VOL/ (Volume/Power) Knob
Press to turn the audio system on and off.
Turn to adjust the volume.
More
Select to display the menu items.
Audio/Information ScreenAudio Source
Select to change a band or change
an audio source.
Sound Icon
Select to display the
Sound menu.
On Demand Multi-Use DisplayTM
16 ACURA ILX-31TX66300.book 211 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
212
Features

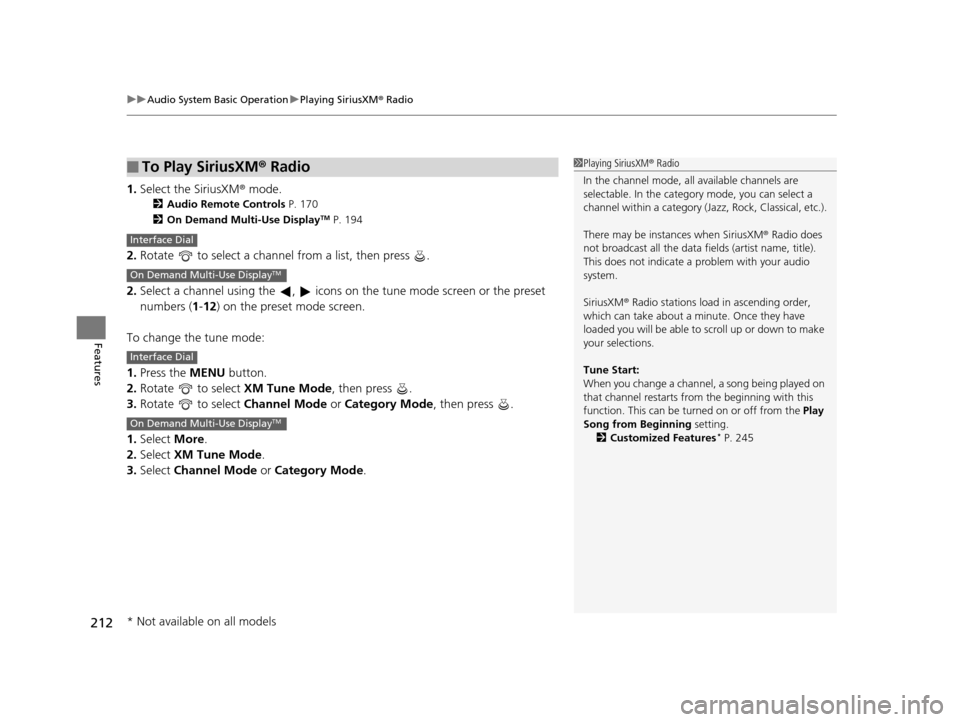

1. Select the SiriusXM® mode.
2 Audio Remote Controls P. 170
2 On Demand Multi-Use DisplayTM P. 194
2.Rotate to select a channel from a list, then press .
2. Select a channel using the , icons on the tune mode screen or the preset
numbers ( 1-12 ) on the preset mode screen.
To change the tune mode:
1. Press the MENU button.
2. Rotate to select XM Tune Mode, then press .
3. Rotate to select Channel Mode or Category Mode , then press .
1. Select More.
2. Select XM Tune Mode .
3. Select Channel Mode or Category Mode .
■To Play SiriusXM ® Radio1 Playing SiriusXM ® Radio
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM ® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Tune Start:
When you change a channel, a song being played on
that channel restarts from the beginning with this
function. This can be turned on or off from the Play
Song from Beginning setting. 2 Customized Features
* P. 245
Interface Dial
On Demand Multi-Use DisplayTM
Interface Dial
On Demand Multi-Use DisplayTM
* Not available on all models
16 ACURA ILX-31TX66300.book 212 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

Continued213
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features

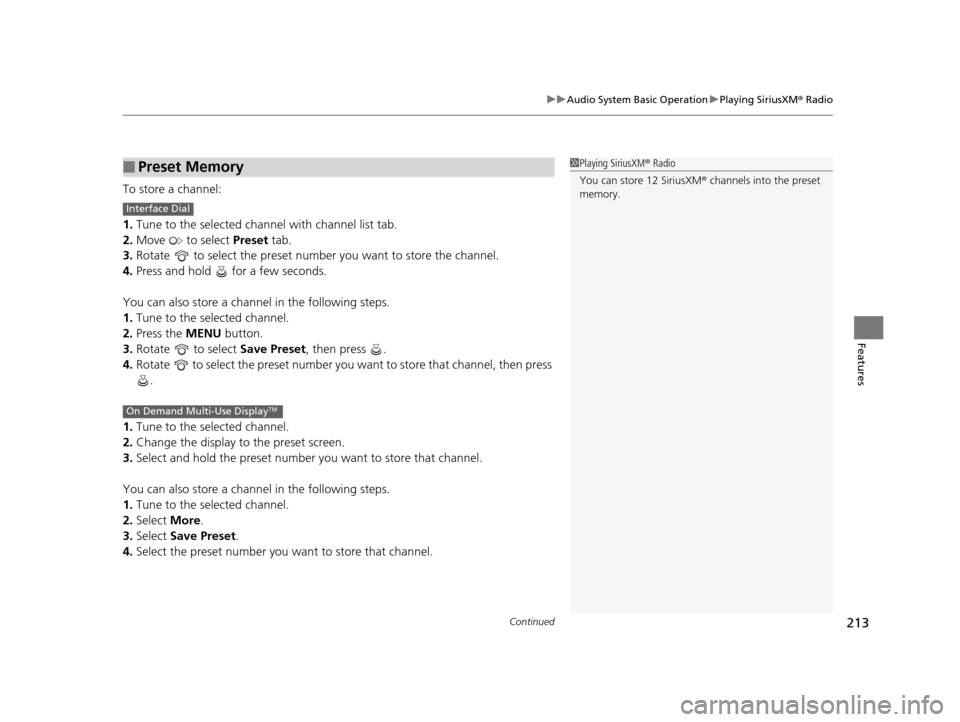

To store a channel:
1. Tune to the selected channel with channel list tab.
2. Move to select Preset tab.
3. Rotate to select the preset number you want to store the channel.
4. Press and hold for a few seconds.
You can also store a channel in the following steps.
1. Tune to the selected channel.
2. Press the MENU button.
3. Rotate to select Save Preset, then press .
4. Rotate to select the preset number you want to store that channel, then press
.
1. Tune to the selected channel.
2. Change the display to the preset screen.
3. Select and hold the preset number you want to store that channel.
You can also store a channel in the following steps.
1. Tune to the selected channel.
2. Select More.
3. Select Save Preset .
4. Select the preset number you want to store that channel.
■Preset Memory1Playing SiriusXM ® Radio
You can store 12 SiriusXM ® channels into the preset
memory.
Interface Dial
On Demand Multi-Use DisplayTM
16 ACURA ILX-31TX66300.book 213 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
214
Features

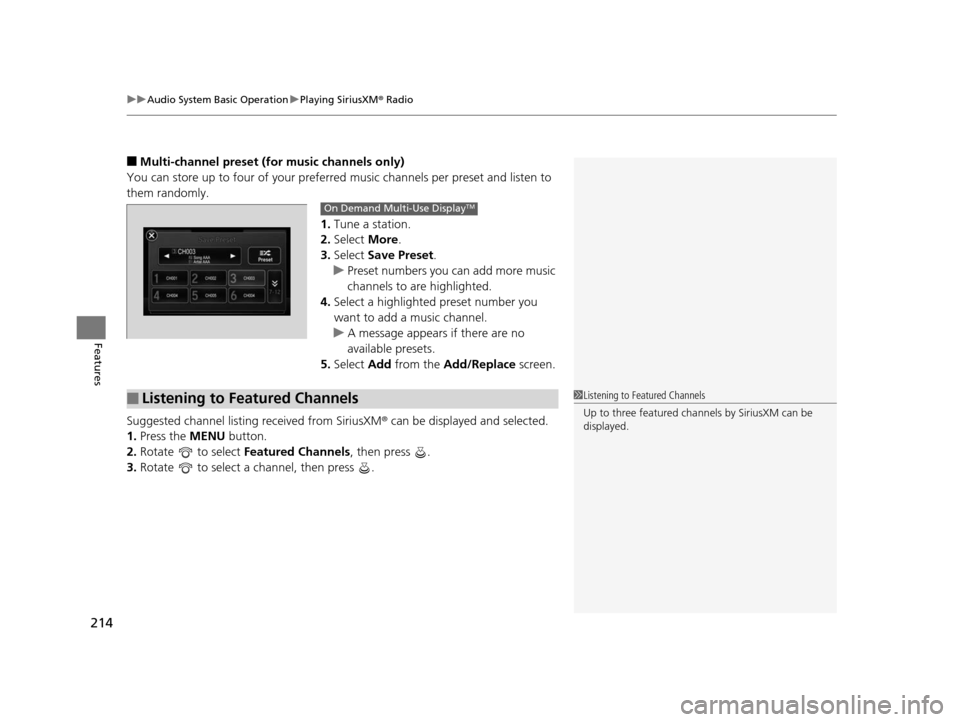

■Multi-channel preset (for music channels only)
You can store up to four of your preferred music channels per preset and listen to
them randomly.
1.Tune a station.
2. Select More.
3. Select Save Preset.
u Preset numbers you can add more music
channels to are highlighted.
4. Select a highlighted preset number you
want to add a music channel.
u A message appears if there are no
available presets.
5. Select Add from the Add/Replace screen.
Suggested channel listing received from SiriusXM ® can be displayed and selected.
1. Press the MENU button.
2. Rotate to select Featured Channels , then press .
3. Rotate to select a channel, then press .
On Demand Multi-Use DisplayTM
■Listening to Featured Channels1Listening to Featured Channels
Up to three featured cha nnels by SiriusXM can be
displayed.
16 ACURA ILX-31TX66300.book 214 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

Continued215
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features

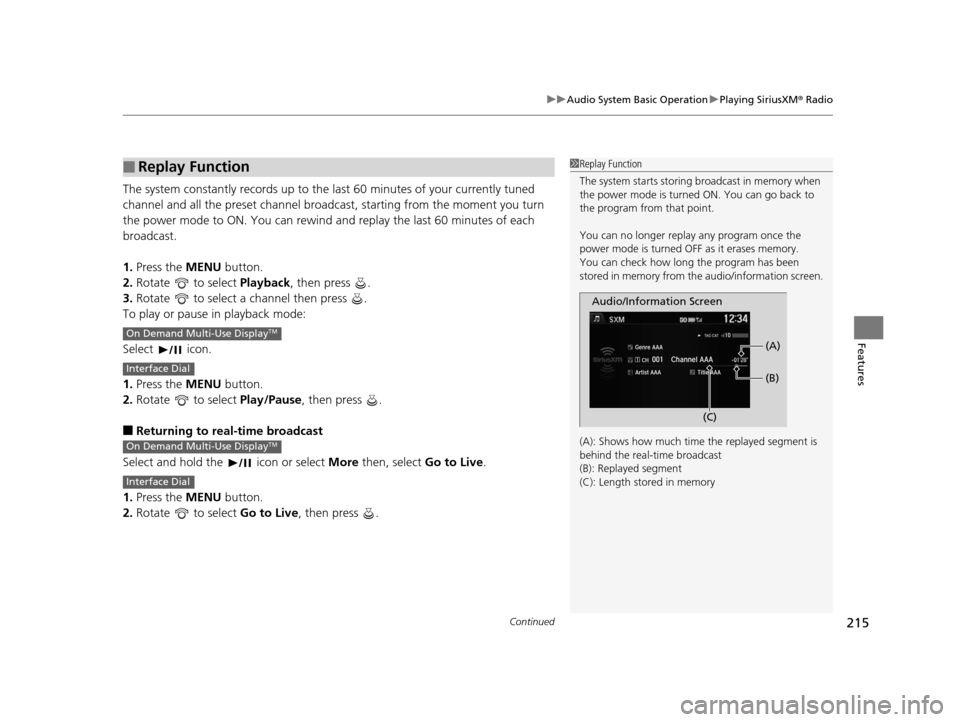

The system constantly records up to the last 60 minutes of your currently tuned
channel and all the preset channel broadc ast, starting from the moment you turn
the power mode to ON. You can rewind and replay the last 60 minutes of each
broadcast.
1. Press the MENU button.
2. Rotate to select Playback, then press .
3. Rotate to select a channel then press .
To play or pause in playback mode:
Select icon.
1. Press the MENU button.
2. Rotate to select Play/Pause, then press .
■Returning to real-time broadcast
Select and hold the icon or select More then, select Go to Live.
1. Press the MENU button.
2. Rotate to select Go to Live, then press .
■Replay Function1Replay Function
The system starts storing broadcast in memory when
the power mode is turned ON. You can go back to
the program from that point.
You can no longer repl ay any program once the
power mode is turned OFF as it erases memory.
You can check how long the program has been
stored in memory from th e audio/information screen.
(A): Shows how much time the replayed segment is
behind the real-time broadcast
(B): Replayed segment
(C): Length stored in memory
Audio/Information Screen (C)(B) (A)
On Demand Multi-Use DisplayTM
Interface Dial
On Demand Multi-Use DisplayTM
Interface Dial
16 ACURA ILX-31TX66300.book 215 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

217
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features

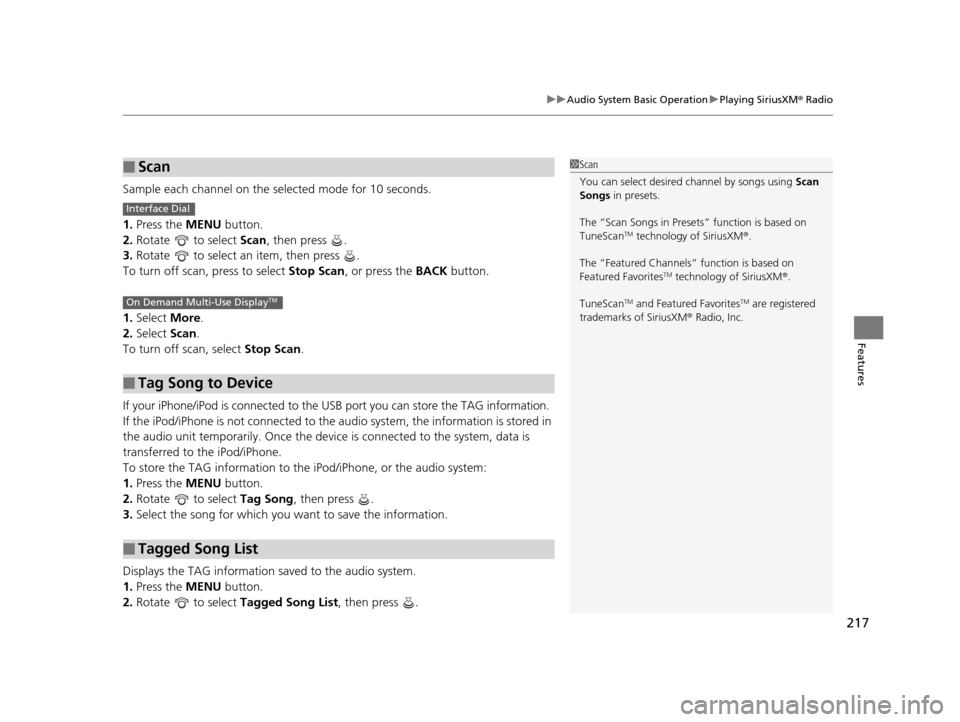

Sample each channel on the selected mode for 10 seconds.
1. Press the MENU button.
2. Rotate to select Scan, then press .
3. Rotate to select an item, then press .
To turn off scan, press to select Stop Scan, or press the BACK button.
1. Select More.
2. Select Scan.
To turn off scan, select Stop Scan.
If your iPhone/iPod is connected to the USB port you can store the TAG information.
If the iPod/iPhone is not connected to the audio system, the information is stored in
the audio unit temporarily. Once the device is connected to the system, data is
transferred to the iPod/iPhone.
To store the TAG information to th e iPod/iPhone, or the audio system:
1. Press the MENU button.
2. Rotate to select Tag Song, then press .
3. Select the song for which you wa nt to save the information.
Displays the TAG information saved to the audio system.
1. Press the MENU button.
2. Rotate to select Tagged Song List, then press .
■Scan
■Tag Song to Device
■Tagged Song List
1Scan
You can select desired channel by songs using Scan
Songs in presets.
The “Scan Songs in Preset s” function is based on
TuneScan
TM technology of SiriusXM ®.
The “Featured Channels ” function is based on
Featured Favorites
TM technology of SiriusXM ®.
TuneScan
TM and Featured FavoritesTM are registered
trademarks of SiriusXM ® Radio, Inc.
Interface Dial
On Demand Multi-Use DisplayTM
16 ACURA ILX-31TX66300.book 217 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

218
uuAudio System Basic Operation uPlaying a CD
Features

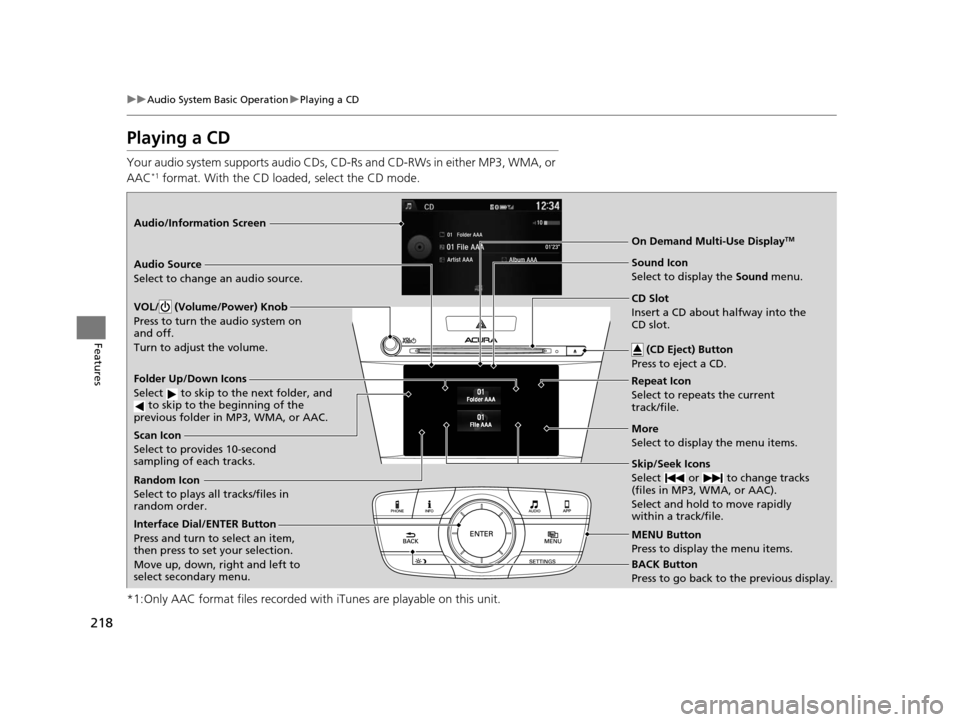

Playing a CD
Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or
AAC*1 format. With the CD load ed, select the CD mode.
*1:Only AAC format files recorded with iTunes are playable on this unit.
Audio/Information Screen
MENU Button
Press to display the menu items. CD Slot
Insert a CD about halfway into the
CD slot. (CD Eject) Button
Press to eject a CD.
Folder Up/Down Icons
Select to skip to the next folder, and to skip to the beginning of the
previous folder in MP3, WMA, or AAC.
Audio Source
Select to change an audio source.
Skip/Seek Icons
Select or to change tracks
(files in MP3, WMA, or AAC).
Select and hold to move rapidly
within a track/file.
More
Select to display the menu items.
BACK Button
Press to go back to the previous display.
Interface Dial/ENTER Button
Press and turn to select an item,
then press to set your selection.
Move up, down, right and left to
select secondary menu. On Demand Multi-Use Display
TM
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Repeat Icon
Select to repeats the current
track/file.
Scan Icon
Select to provides 10-second
sampling of each tracks.
Random Icon
Select to plays all tracks/files in
random order.
Sound Icon
Select to display the
Sound menu.
16 ACURA ILX-31TX66300.book 218 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

Continued219
uuAudio System Basic Operation uPlaying a CD
Features

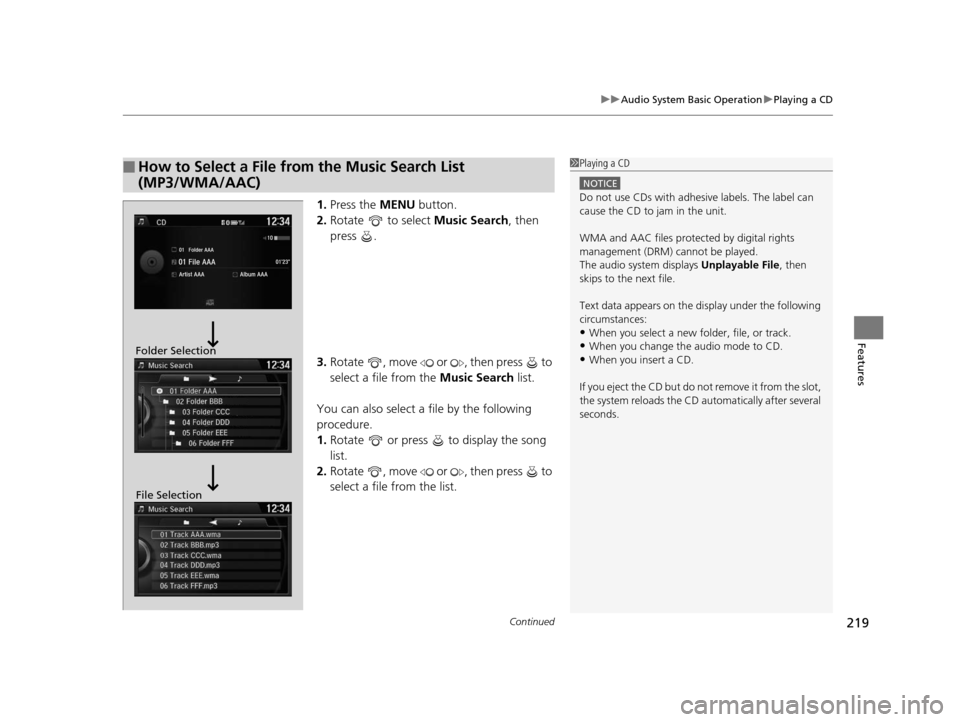

1. Press the MENU button.
2. Rotate to select Music Search, then
press .
3. Rotate , move or , then press to
select a file from the Music Search list.
You can also select a file by the following
procedure.
1. Rotate or press to display the song
list.
2. Rotate , move or , then press to
select a file from the list.
■How to Select a File from the Music Search List
(MP3/WMA/AAC)1Playing a CD
NOTICE
Do not use CDs with adhesive labels. The label can
cause the CD to jam in the unit.
WMA and AAC files protected by digital rights
management (DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
Text data appears on the di splay under the following
circumstances:
•When you select a new folder, file, or track.
•When you change the audio mode to CD.
•When you insert a CD.
If you eject the CD but do not remove it from the slot,
the system reloads the CD automatically after several
seconds.Folder Selection
File Selection
16 ACURA ILX-31TX66300.book 219 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

uuAudio System Basic Operation uPlaying a CD
220
Features
You can select scan, repeat, and random modes when playing a track or file.
1. Press the MENU button.
2. Rotate to select Scan or Random/
Repeat, then press .
3. Rotate to select a mode, then press .
1. Select More.
2. Select Scan or Random/Repeat .
3. Select a mode.
■To turn off a play mode
1. Press the MENU button.
2. Rotate to select the mode you want to turn off, then press .
1. Select More.
2. Select the mode you want to turn off.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders (MP3/WMA/AAC): Provides a 10-
second sampling of the first f ile in each of the main
folders.
Scan Tracks : Provides a 10-second sampling of all
tracks on the CD (all files in the current folder in MP3,
WMA, or AAC).
Random/Repeat
Repeat Folder (MP3/WMA/AAC): Repeats all files in
the current folder.
Repeat Track: Repeats the current track/file.
Random in Folder (MP3/WMA/AAC): Plays all files
in the current folder in random order.
Random All Tracks : Plays all tracks/files in random
order.
Random/Repeat is selected.
Interface Dial
Random/Repeat is selected.
On Demand Multi-Use DisplayTM
Interface Dial
On Demand Multi-Use DisplayTM
16 ACURA ILX-31TX66300.book 220 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

221
uuAudio System Basic Operation uPlaying an iPod
Continued
Features
Playing an iPod
Connect the iPod using your USB connector to the USB port, then select the iPod
mode.
2 USB Port* P. 168
Audio/Information Screen
MENU Button
Press to display the menu items.
Album Bar
Select to search for an album.
Audio Source
Select to change an audio source.
Skip/Seek Icons
Select or to change songs.
Select and hold to move rapidly
within a song.
More
Select to display the menu items.
BACK Button
Press to go back to the previous display.
Interface Dial/ENTER Button
Press and turn to select an item,
then press to set your selection.
Move up, down, right and left to
select secondary menu. USB Indicator
Appears when an iPod is connected.
Album Art
On Demand Multi-Use DisplayTM
Album Art Icon
Pause/Pause Icon
Select to resume or play a song.
VOL/ (Volume/Power) Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
Repeat Icon
Select to repeats the current song.
Shuffle Icon
Select to change a play mode in
album shuffle or shuffle all songs.
Sound Icon
Select to display the Sound menu.
* Not available on all models
16 ACURA ILX-31TX66300.book 221 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分
