display Acura ILX 2016 Owner's Guide

73
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO when
the exterior lights are on.●If you set the power mode to
ACCESSORY or VEHICLE OFF (LOCK)
while the exterior lights are on, a chime
sounds when the driver's door is
opened.
——
Fog Light
Indicator*
●Comes on when the fog lights
are on.———
Immobilizer
System
Indicator
●Comes on briefly when you
set the power mode to ON,
then goes off.
●Comes on if the immobilizer
system cannot recognize the
key information.
●Blinks - You cannot start the engine.
Set the power mode to VEHICLE OFF
(LOCK), then select the ON mode
again.
●Repeatedly blinks - The system may
be malfunctioning. Have the vehicle
checked by a dealer.
●Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
——
* Not available on all models
16 ACURA ILX-31TX66300.book 73 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

74
uuIndicators u
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Security
System Alarm
Indicator●Blinks when the Security
System Alarm has been set.
2Security System Alarm P. 126——
Keyless
Access
System
Indicator
●Comes on for a few seconds
when you set the power mode
to ON, then goes off.
●Comes on as soon as a
problem is detected in the
keyless access system or
keyless starting system.
●Have your vehicle checked by a dealer.
CRUISE
MAIN
Indicator
*
●Comes on when you press the
CRUISE button.
2Cruise Control* P. 349——
CRUISE
CONTROL
Indicator
*
●Comes on when you have set
a speed for cruise control.
2 Cruise Control* P. 349——
Indicator
* Not available on all models
16 ACURA ILX-31TX66300.book 74 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

78
uuIndicators u
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Blind Spot
Information
(BSI)
Indicator
*
●Comes on for a few seconds
when you change the power
mode to ON, then goes off.
●Stays on while BSI is turned
off.
——
●Comes on when mud, snow,
or ice accumulates in the
vicinity of sensor.●Comes on while driving - Remove
the obstacle in the vicinity of sensor.
2Blind Spot Information (BSI)
System* P. 382
●Comes on if there is a problem
with the system.●Comes on while driving - Have your
vehicle checked by a dealer.
* Not available on all models
16 ACURA ILX-31TX66300.book 78 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation Braking
System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 392
Models with CMBSTM
* Not available on all models
16 ACURA ILX-31TX66300.book 79 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

81
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Press the (information) button to see the message again
with the system message indicator on.
*1:On the left: Models wi thout full color display
On the right: Models with full color display
Message*1ConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Check/Tighten Fuel Cap Message P. 492
—
●Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 430
●Appears when the scheduled maintenance is
due soon.
●Consequently, SERVICE DUE NOW /
Maintenance Due Now and SERVICE PAST
DUE /Maintenance Past Due follow.2Maintenance Minder Messages on the
Multi-Information Display P. 417
Canadian models
16 ACURA ILX-31TX66300.book 81 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

82
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
Message*1ConditionExplanation
●Appears when the engine coolant temperature
gets abnormally high.
2Overheating P. 489
●Appears when there is a problem with the
sensor on the battery.
●Appears when the battery is not charging.
●Have your vehicle checked by a dealer.
2 Checking the Battery P. 451●Appears along with the battery charging
system indicator - Turn off the climate
control system and rear defogger to reduce
electricity consumption.
2 If the Charging System Indicator Comes
On P. 491
16 ACURA ILX-31TX66300.book 82 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

83
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
Message*1ConditionExplanation
—
●Appears when the starter system has a
problem.●As a temporary measure, press and hold the
ENGINE START/STOP button for 15 seconds
while pressing the brake pedal and manually
start the engine.
Have the vehicle checked by a dealer.
●Appears if the keyless access remote battery is
too weak to start the engine or the key is not
within operating range to start the engine.
A beeper sounds six times.
2 If the Keyless Access Remote Battery is
Weak P. 483
●Appears after the driver’s door is opened when
the power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice
with your foot off the brake pedal to change
the power mode to VEHICLE OFF (LOCK).
●Appears when the power mode is in
ACCESSORY.
—
U.S.
Canada
U.S.
Canada
16 ACURA ILX-31TX66300.book 83 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

84
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
Message*1ConditionExplanation
●Appears when you close the door with the
power mode in ON without the keyless access
remote inside the vehicle.●Disappears when you bring the keyless access
remote back inside the vehicle and close the
door.
2Keyless Access Remote Reminder P. 135
●Appears when the keyless access remote
battery becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 452
●Appears after you unlock and open the driver’s
door.
2Starting the Engine P. 338
●Appears three seconds after the TO START
ENGINE message appears.
2Starting the Engine P. 338
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift
lever in
(P.
●Move the shift lever to (P. The power mode
changes to VEHICLE OFF.
16 ACURA ILX-31TX66300.book 84 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

85
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
Message*1ConditionExplanation
—
●Appears when you unlock and open the
driver’s door while the engine is running by
two-way keyless access remote
*.
2 Remote Engine Start with Vehicle
Feedback* P. 340
●Appears when the transmission system
temperature is too high. The vehicle no longer
moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message
disappears.
—
●Appears if any door or the trunk is not
completely closed.
●Appears if any door is opened while driving.
The beeper sounds.
●Goes off when all doors and the trunk are
closed.
●Appears when there is a problem with the
headlights.●Appears while driving - The low beam
headlights may not be on. When conditions
allow you to drive safely, have your vehicle
checked by a dealer as soon as possible.
* Not available on all models
16 ACURA ILX-31TX66300.book 85 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

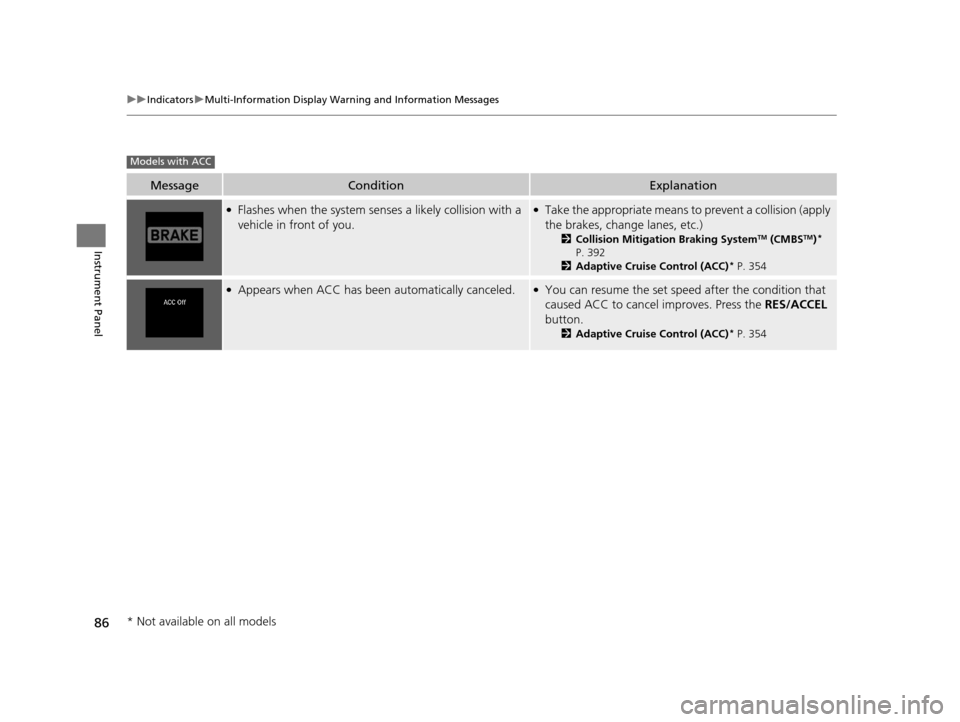

86
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Flashes when the system senses a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 392
2 Adaptive Cruise Control (ACC)
* P. 354
●Appears when ACC has been automatically canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/ACCEL
button.
2 Adaptive Cruise Control (ACC)* P. 354
Models with ACC
* Not available on all models
