102
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Driving
Position
Setup
*Memory Position LinkTurns the driving position memory system on and
off.On*1/
Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you
unlock/lock the doors.
On
*1/
Off
Keyless Access Beep Causes the beeper to sound when you unlock/lock
the doors. On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
* Not available on all models
17 ACURA ILX-31TX66400.book 102 ページ ２０１６年３月１５日　火曜日　午後５時０分

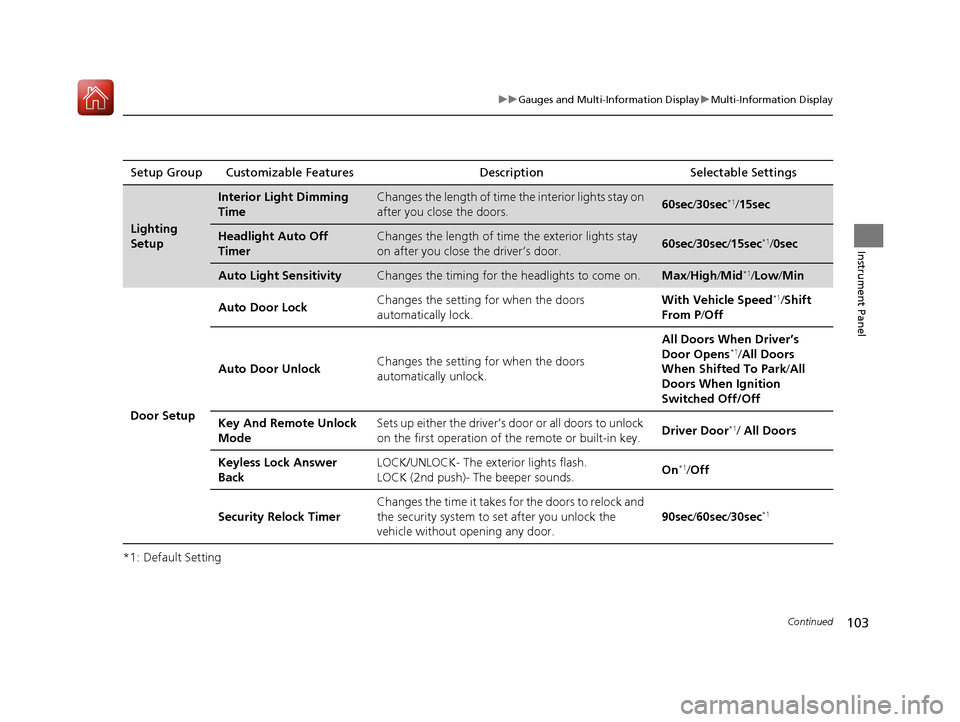

103
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec/30sec*1/15sec
Headlight Auto Off
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift
From P /Off
Auto Door Unlock Changes the setting for when the doors
automatically unlock. All Doors When Driver’s
Door Opens
*1/
All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off/Off
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of
the remote or built-in key. Driver Door
*1/
All Doors
Keyless Lock Answer
Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without op
ening any door. 90sec
/60sec /30sec
*1
17 ACURA ILX-31TX66400.book 103 ページ ２０１６年３月１５日　火曜日　午後５時０分

107
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 108
Locking and Unlocking the Doors
Key Types and Functions .................. 110
Low Keyless Access Remote Signal Strength ......................................... 112
Locking/Unlocking the Doors from the Outside .......................................... 113
Locking/Unlocking the Doors from the
Inside ............................................. 118
Childproof Door Locks ..................... 120
Auto Door Locking/Unlocking .......... 121
Opening and Closing the Trunk ....... 122
Security System ................................ 126
Immobilizer System .......................... 126 Security System Alarm...................... 126Opening and Closing the Windows
.... 129Opening and Closing the Moonroof....... 132Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 133
Turn Signals ..................................... 136
Light Switches.................................. 136
Fog Lights
*...................................... 139
Daytime Running Lights ................... 139
Wipers and Washers ........................ 140
Brightness Control ........................... 142
Rear Defogger/Heated Door Mirror Button...143
Adjusting the Steering Wheel........... 143 Driving Position Memory System
*.... 144
Adjusting the Mirrors ....................... 146
Interior Rearview Mirror ................... 146
Power Door Mirrors ......................... 147
Adjusting the Seats .......................... 148
Adjusting the Seat Positions ............. 148
Interior Lights/Interior Convenience Items ................................................ 156
Interior Lights .................................. 156
Interior Convenience Items .............. 157
Climate Control System ................... 161
Using Automatic Climate Control .... 161
Synchronized Mode ......................... 163
Automatic Climate Control Sensors......164
* Not available on all models
17 ACURA ILX-31TX66400.book 107 ページ ２０１６年３月１５日　火曜日　午後５時０分

110
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
■Keyless access remoteUse the keyless access remote to start and
stop the engine, to lock and unlock the doors
and to open the trunk.
■Keys
1Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 126
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the keyless access system may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the two-way
keyless access remote.
2 Remote Engine Start with Vehicle
Feedback
* P. 340
Models with two-way keyless access remote
Models without two-way keyless
access remote
Models with two-way keyless access
remote
* Not available on all models
17 ACURA ILX-31TX66400.book 110 ページ ２０１６年３月１５日　火曜日　午後５時０分

111
uuLocking and Unlocking the Doors uKey Types and Functions
Continued
Controls
The built-in key can be used to lock or unlock
the doors when the keyless access remote
battery becomes weak and the power door
lock/unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless access remote until it clicks.
Built-in Key Release Knob
Models without two-way keyless
access remote
Models with two-way keyless access
remote
Release Knob
Built-in Key
17 ACURA ILX-31TX66400.book 111 ページ ２０１６年３月１５日　火曜日　午後５時０分

uuLocking and Unlocking the Doors uLow Keyless Access Remote Signal Strength
112
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Keyless Access Remo te Signal Strength
The vehicle transmits radio waves to loca te the keyless access remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the keyless access remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or co vering the keyless access remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1 Low Keyless Access Remote Signal Strength
Communication between the keyless access remote
and the vehicle consumes the keyless access remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless access
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
17 ACURA ILX-31TX66400.book 112 ページ ２０１６年３月１５日　火曜日　午後５時０分

113
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless access remote,
you can lock/unlock the doors and open the
trunk.
You can lock/unlock the doors and trunk
within a radius of about 32 inches (80 cm) of
the outside door handle or trunk release
button.
■Locking the doors and the trunk
Press the door lock button on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Keyless Access System1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 156
Door Lock Button
1Using the Keyless Access System
If you do not open a door within 30 seconds of
unlocking the vehicle with the keyless access system,
the doors will auto matically relock.
You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.
17 ACURA ILX-31TX66400.book 113 ページ ２０１６年３月１５日　火曜日　午後５時０分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
114
Controls
■Unlocking the doors and the trunk
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u The beeper will sound.
2 Using the Trunk Release Button P. 123
Trunk Release Button
1Using the Keyless Access System
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•After locking the door, wait at least two seconds
before unlocking it by gripping the handle.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless access remote if it is above or below the
outside handle.
•The keyless access remote may not operate if it is
too close to the door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen or multi-information display.
2 Customized Features P. 97, 245
17 ACURA ILX-31TX66400.book 114 ページ ２０１６年３月１５日　火曜日　午後５時０分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
116
Controls
If the keyless access remote battery or the ve hicle battery is dead, use the key instead
of the keyless access remote.
2 Replacing the Button Battery P. 452
Fully insert the key and turn it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the key less access remote is inside the vehicle.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver's door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
If you unlock the doors with the key, the alarm goes
off when you open the hood or move the shift lever
out of
( P before the power mode is set to ON.
You can customize the door unlock mode setting. 2 Customized Features P. 97, 245
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver's door, all the other doors
lock at the same time.
Make sure you have the key in your hand when you
lock the driver’s door, any of the other doors,
otherwise you may end up lo cking the key inside the
vehicle.
17 ACURA ILX-31TX66400.book 116 ページ ２０１６年３月１５日　火曜日　午後５時０分

117
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless access remote from extended
distances.
Press the lock button, the Am ber (LEFT) LED blinks once. Then after three seconds
one of the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range of
unlock, all doors, and panic functions are the same as
the standard keyless access remote. 2 Customized Features P. 97, 245
When checking the door lock status, you can also
start or stop the engine. 2 Remote Engine Start with Vehicle
Feedback
* P. 340
Red
Green
Amber
Lock Button
* Not available on all models
17 ACURA ILX-31TX66400.book 117 ページ ２０１６年３月１５日　火曜日　午後５時０分
