Page 13 of 521

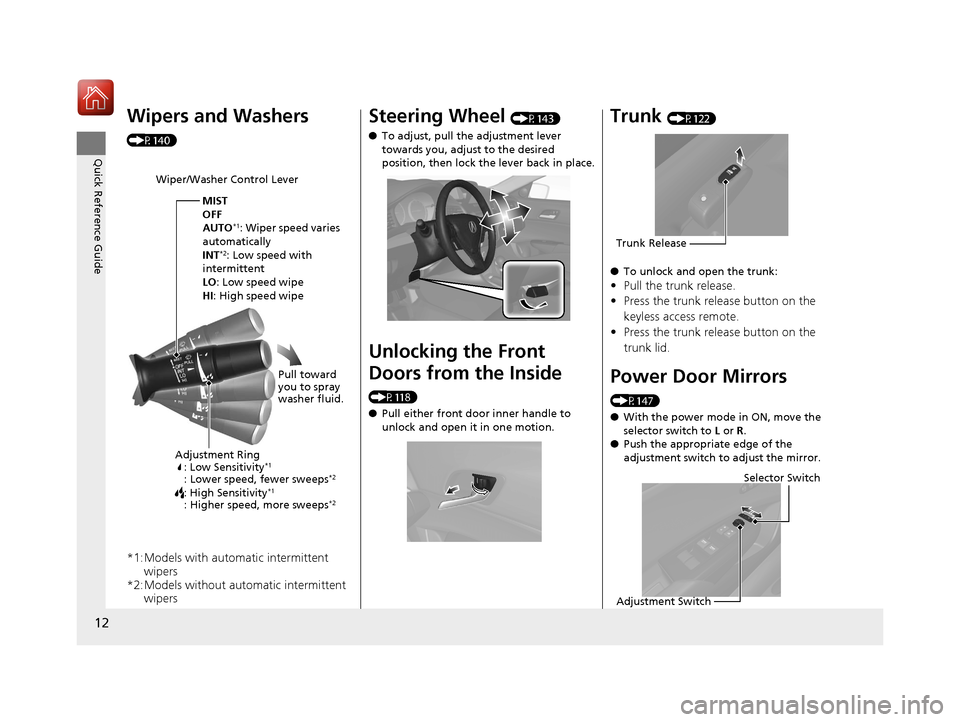

12
Quick Reference Guide
Wipers and Washers
(P140)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring: Low Sensitivity
*1
: Lower speed, fewer sweeps*2
: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Steering Wheel (P143)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P118)
●Pull either front door inner handle to
unlock and open it in one motion.
Trunk (P122)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Power Door Mirrors
(P147)
● With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
17 ACURA ILX-31TX66400.book 12 ページ 2016年3月15日 火曜日 午後5時0分
Page 19 of 521
18
Quick Reference Guide
Maintenance (P411)
Under the Hood (P420)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, slide the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P431)
● Inspect all lights regularly.
Wiper Blades (P440)
● Replace blades if they leave streaks
across the windshield.
Tires (P442)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 ACURA ILX-31TX66400.book 18 ページ 2016年3月15日 火曜日 午後5時0分

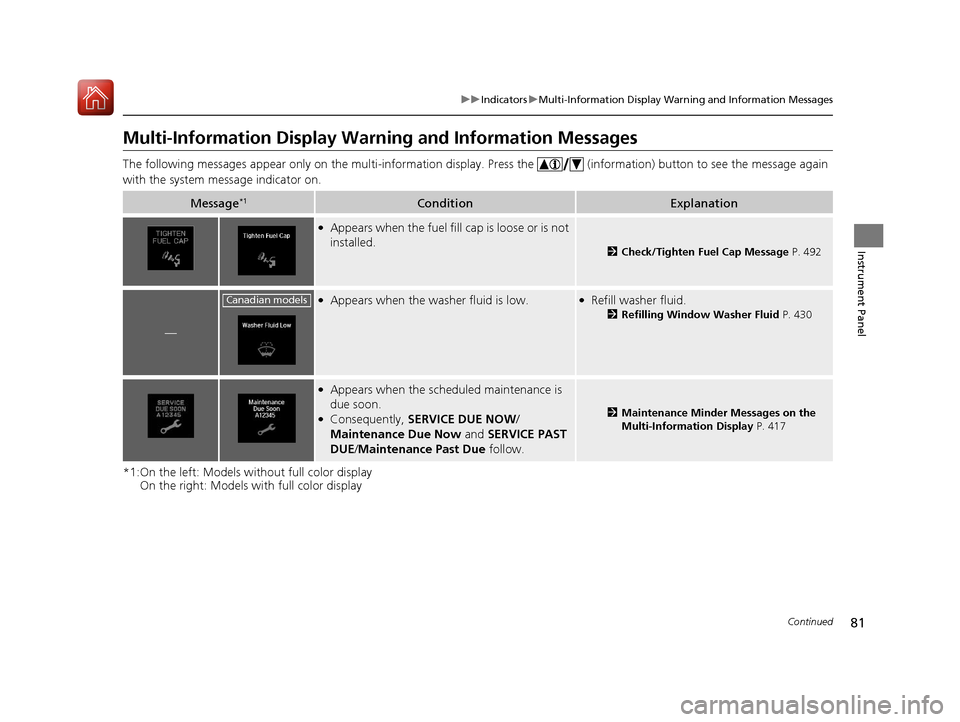

Page 82 of 521
81
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Press the (information) button to see the message again
with the system message indicator on.
*1:On the left: Models wi thout full color display
On the right: Models with full color display
Message*1ConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Check/Tighten Fuel Cap Message P. 492
—
●Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 430
●Appears when the scheduled maintenance is
due soon.
●Consequently, SERVICE DUE NOW /
Maintenance Due Now and SERVICE PAST
DUE /Maintenance Past Due follow.2Maintenance Minder Messages on the
Multi-Information Display P. 417
Canadian models
17 ACURA ILX-31TX66400.book 81 ページ 2016年3月15日 火曜日 午後5時0分

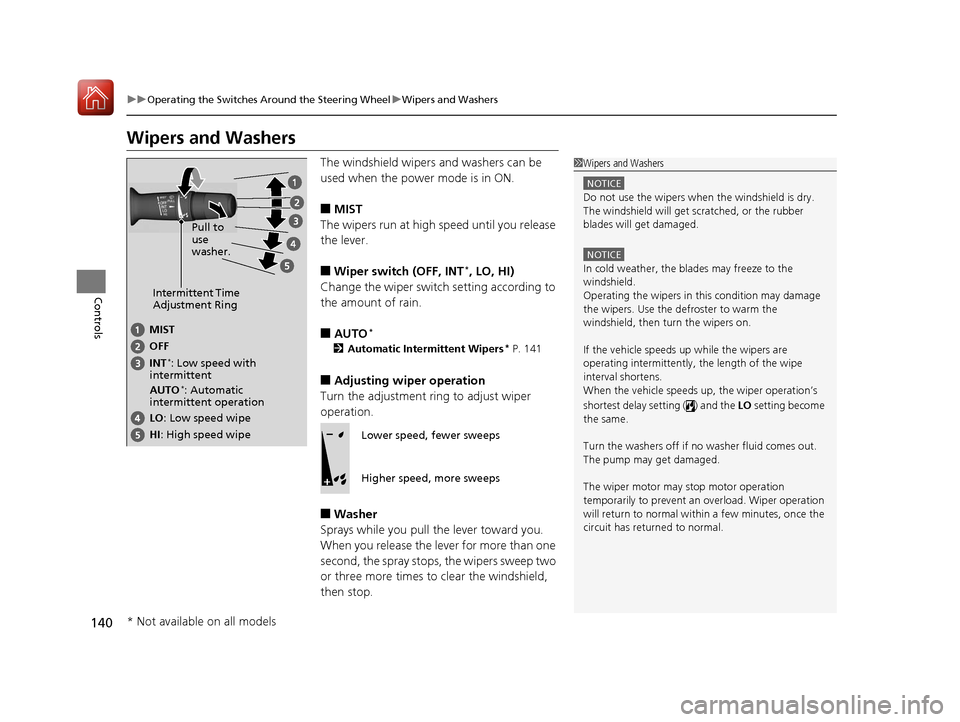

Page 141 of 521
140
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■AUTO*
2 Automatic Intermittent Wipers* P. 141
■Adjusting wiper operation
Turn the adjustment ri ng to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Intermittent Time
Adjustment Ring
MIST
INT
*: Low speed with
intermittent OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
AUTO*: Automatic
intermittent operation
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
17 ACURA ILX-31TX66400.book 140 ページ 2016年3月15日 火曜日 午後5時0分

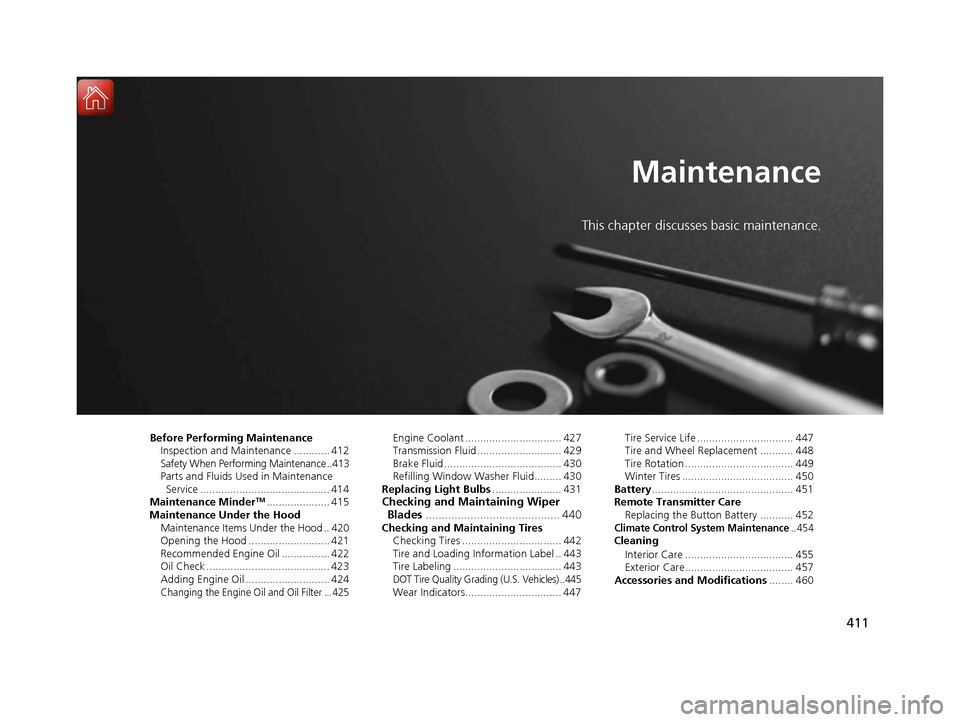

Page 412 of 521
411
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 412
Safety When Performing Maintenance ..413
Parts and Fluids Used in Maintenance Service ........................................... 414
Maintenance Minder
TM..................... 415
Maintenance Under the Hood Maintenance Items Under the Hood .. 420
Opening the Hood ........................... 421
Recommended Engine Oil ................ 422
Oil Check ......................................... 423
Adding Engine Oil ............................ 424
Changing the Engine Oil and Oil Filter ...425
Engine Coolant ................................ 427
Transmission Fluid ............................ 429
Brake Fluid ....................................... 430
Refilling Window Washer Fluid......... 430
Replacing Light Bulbs ....................... 431
Checking and Maintaining Wiper
Blades .......................................... 440
Checking and Maintaining Tires
Checking Tires ................................. 442
Tire and Loading Information Label .. 443
Tire Labeling .................................... 443
DOT Tire Quality Grading (U.S. Vehicles) ..445Wear Indicators................................ 447 Tire Service Life ................................ 447
Tire and Wheel Replacement ........... 448
Tire Rotation .................................... 449
Winter Tires ..................................... 450
Battery ............................................... 451
Remote Transmitter Care
Replacing the Button Battery ........... 452
Climate Control System Maintenance.. 454Cleaning
Interior Care .................................... 455
Exterior Care.................................... 457
Accessories and Modifications ........ 460
17 ACURA ILX-31TX66400.book 411 ページ 2016年3月15日 火曜日 午後5時0分

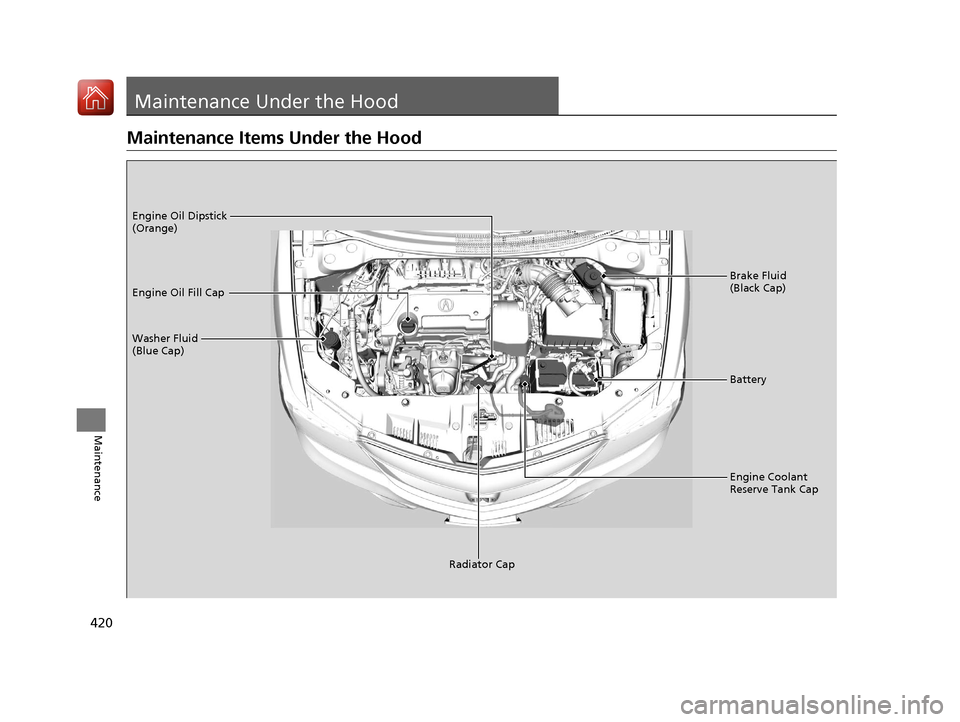

Page 421 of 521
420
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
Engine Coolant
Reserve Tank Cap
Radiator Cap
17 ACURA ILX-31TX66400.book 420 ページ 2016年3月15日 火曜日 午後5時0分

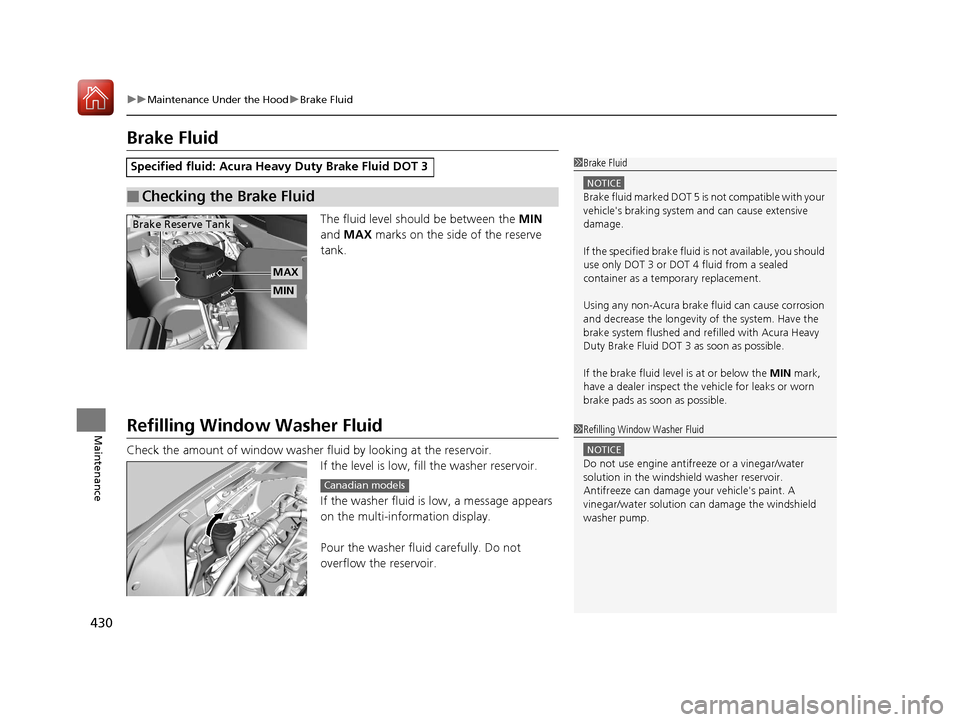

Page 431 of 521
430
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the multi-information display.
Pour the washer fluid carefully. Do not
overflow the reservoir.
Specified fluid: Acura He avy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle's braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
MIN
MAX
Brake Reserve Tank
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle's paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Canadian models
17 ACURA ILX-31TX66400.book 430 ページ 2016年3月15日 火曜日 午後5時0分

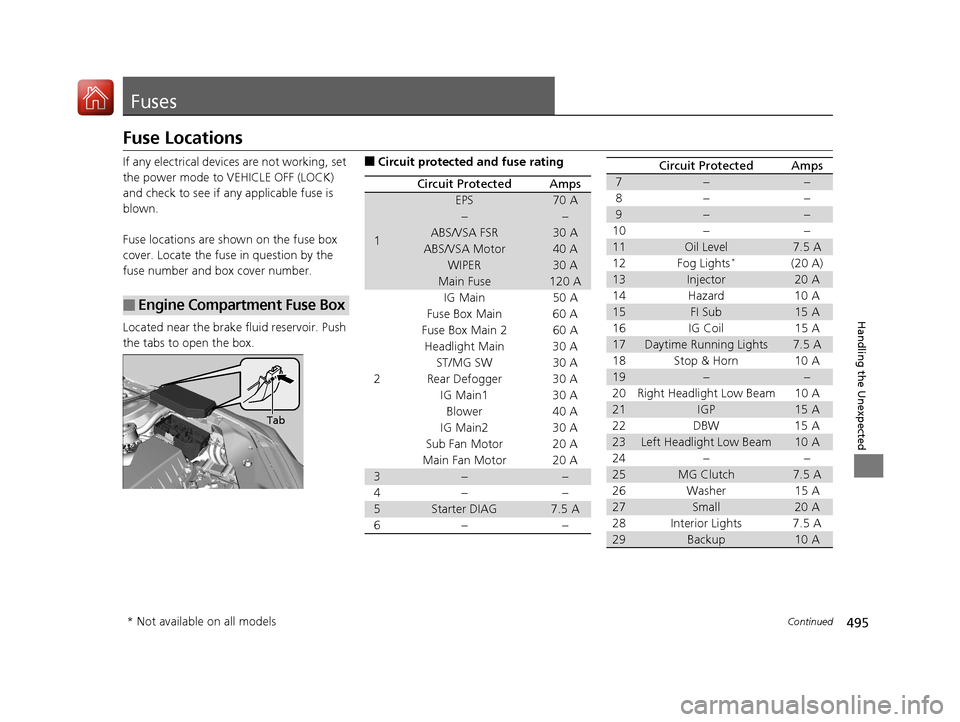

Page 496 of 521
495Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA FSR30 A
ABS/VSA Motor40 A
WIPER30 A
Main Fuse120 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
ST/MG SW30 A
Rear Defogger 30 A IG Main1 30 ABlower 40 A
IG Main2 30 A
Sub Fan Motor 20 A
Main Fan Motor 20 A
3−−
4− −
5Starter DIAG7.5 A
6− −
7−−
8− −
9−−
10 − −
11Oil Level7.5 A
12 Fog Lights*(20 A)
13Injector20 A
14 Hazard 10 A
15FI Sub15 A
16 IG Coil 15 A
17Daytime Running Lights7.5 A
18 Stop & Horn 10 A
19−−
20 Right Headlight Low Beam 10 A
21IGP15 A
22 DBW 15 A
23Left Headlight Low Beam10 A
24 − −
25MG Clutch7.5 A
26 Washer 15 A
27Small20 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
17 ACURA ILX-31TX66400.book 495 ページ 2016年3月15日 火曜日 午後5時0分

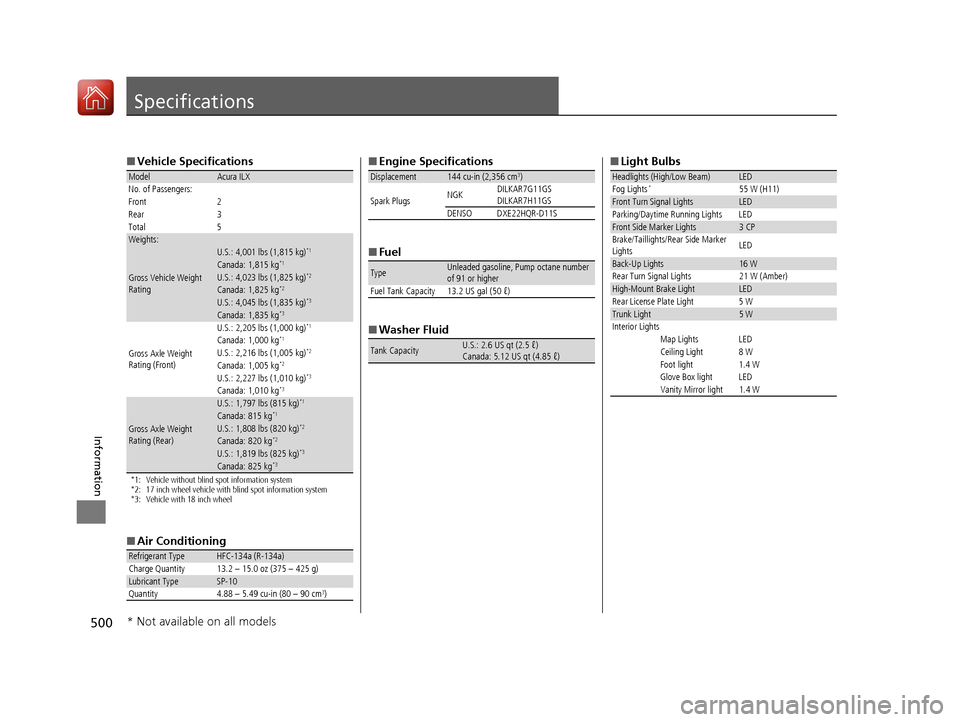

Page 501 of 521
500
Information
Specifications
■Vehicle Specifications
*1: Vehicle without blind spot information system
*2: 17 inch wheel vehicle with blind spot information system
*3: Vehicle with 18 inch wheel
■Air Conditioning
ModelAcura ILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle Weight
Rating
U.S.: 4,001 lbs (1,815 kg)*1
Canada: 1,815 kg*1
U.S.: 4,023 lbs (1,825 kg)*2
Canada: 1,825 kg*2
U.S.: 4,045 lbs (1,835 kg)*3
Canada: 1,835 kg*3
Gross Axle Weight
Rating (Front) U.S.: 2,205 lbs (1,000 kg)
*1
Canada: 1,000 kg*1
U.S.: 2,216 lbs (1,005 kg)*2
Canada: 1,005 kg*2
U.S.: 2,227 lbs (1,010 kg)*3
Canada: 1,010 kg*3
Gross Axle Weight
Rating (Rear)
U.S.: 1,797 lbs (815 kg)*1
Canada: 815 kg*1
U.S.: 1,808 lbs (820 kg)*2
Canada: 820 kg*2
U.S.: 1,819 lbs (825 kg)*3
Canada: 825 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeSP-10
Quantity 4.88 – 5.49 cu-in (80 – 90 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*55 W (H11)Front Turn Signal LightsLED
Parking/Daytime Running Lights LED
Front Side Marker Lights3 CP
Brake/Taillights/Rear Side Marker
Lights LED
Back-Up Lights16 W
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5 W
Trunk Light5 W
Interior Lights Map Lights LED
Ceiling Light 8 W
Foot light 1.4 W
Glove Box light LED
Vanity Mirror light 1.4 W
* Not available on all models
17 ACURA ILX-31TX66400.book 500 ページ 2016年3月15日 火曜日 午後5時0分
Page 513 of 521

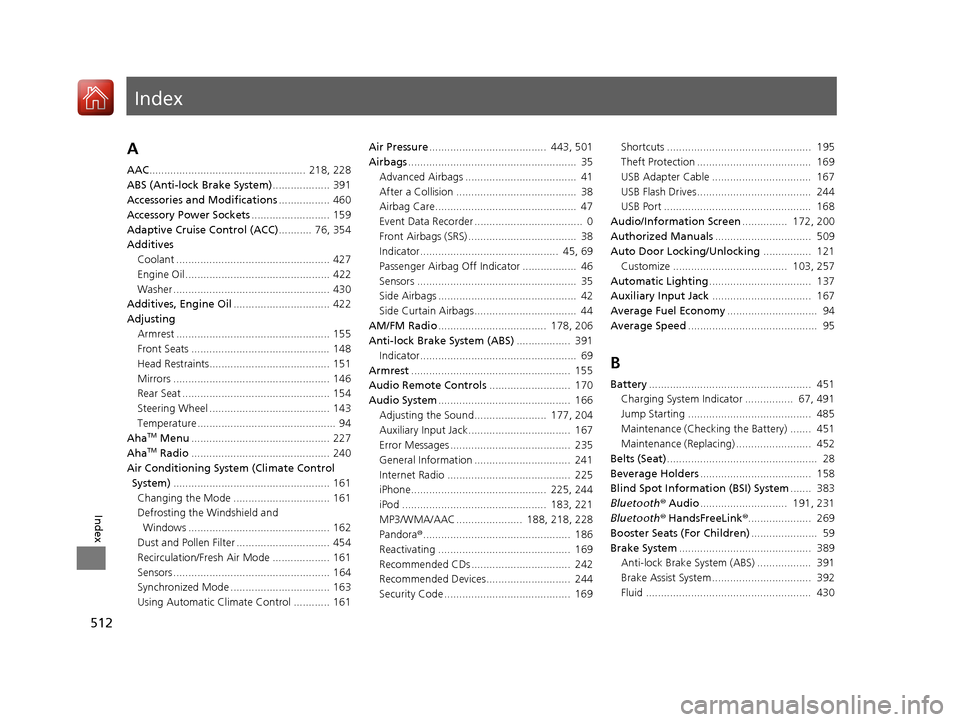

Index
512
Index
Index
A
AAC.................................................... 218, 228
ABS (Anti-lock Brake System) ................... 391
Accessories and Modifications ................. 460
Accessory Power Sockets .......................... 159
Adaptive Cruise Control (ACC) ........... 76, 354
Additives Coolant ................................................... 427
Engine Oil ................................................ 422
Washer .................................................... 430
Additives, Engine Oil ................................ 422
Adjusting Armrest ................................................... 155
Front Seats .............................................. 148
Head Restraints........................................ 151
Mirrors .................................................... 146
Rear Seat ................................................. 154
Steering Wheel ........................................ 143
Temperature .............................................. 94
Aha
TM Menu .............................................. 227
AhaTM Radio .............................................. 240
Air Conditioning System (Climate Control
System) .................................................... 161
Changing the Mode ................................ 161
Defrosting the Windshield and
Windows ............................................... 162
Dust and Pollen Filter ............................... 454
Recirculation/Fresh Air Mode ................... 161
Sensors .................................................... 164
Synchronized Mode ................................. 163
Using Automatic Climate Control ............ 161 Air Pressure
....................................... 443, 501
Airbags ........................................................ 35
Advanced Airbags ..................................... 41
After a Collision ........................................ 38
Airbag Care............................................... 47
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 38
Indicator.............................................. 45, 69
Passenger Airbag Off Indicator .................. 46
Sensors ..................................................... 35
Side Airbags .............................................. 42
Side Curtain Airbags.................................. 44
AM/FM Radio .................................... 178, 206
Anti-lock Brake System (ABS) .................. 391
Indicator.................................................... 69
Armrest ..................................................... 155
Audio Remote Controls ........................... 170
Audio System ............................................ 166
Adjusting the Sound........................ 177, 204
Auxiliary Input Jack.................................. 167
Error Messages ........................................ 235
General Information ................................ 241
Internet Radio ......................................... 225
iPhone............................................. 225, 244
iPod ................................................ 183, 221
MP3/WMA/AAC ...................... 188, 218, 228
Pandora ®................................................. 186
Reactivating ............................................ 169
Recommended CDs ................................. 242
Recommended Devices............................ 244
Security Code .......................................... 169 Shortcuts ................................................ 195
Theft Protection ...................................... 169
USB Adapter Cable ................................. 167
USB Flash Drives...................................... 244
USB Port ................................................. 168
Audio/Information Screen ............... 172, 200
Authorized Manuals ................................ 509
Auto Door Locking/Unlocking ................ 121
Customize ...................................... 103, 257
Automatic Lighting .................................. 137
Auxiliary Input Jack ................................. 167
Average Fuel Economy .............................. 94
Average Speed ........................................... 95
B
Battery...................................................... 451
Charging System Indicator ................ 67, 491
Jump Starting ......................................... 485
Maintenance (Checking the Battery) ....... 451
Maintenance (Replacing) ......................... 452
Belts (Seat) .................................................. 28
Beverage Holders ..................................... 158
Blind Spot Information (BSI) System ....... 383
Bluetooth ® Audio ............................. 191, 231
Bluetooth ® HandsFreeLink ®..................... 269
Booster Seats (For Children) ...................... 59
Brake System ............................................ 389
Anti-lock Brake System (ABS) .................. 391
Brake Assist System................................. 392
Fluid ....................................................... 430
17 ACURA ILX-31TX66400.book 512 ページ 2016年3月15日 火曜日 午後5時0分
