305
uuCustomized Features u
Continued
Features
■Customization Flow
Sound SettingsBAr
RDS Information*1
Adjust Clock
TRE
FAD
BAL
SVC
Display Setup
Select
Brightness
Wallpaper
Import
Delete
Blue Color Theme
Red
Gray
Language Selection
Press the SETUP button.
*1 : Appears only when you select the FM mode.
19 ACURA ILX-31TX66610.book 305 ページ ２０２０年４月１７日　金曜日　午前８時５２分

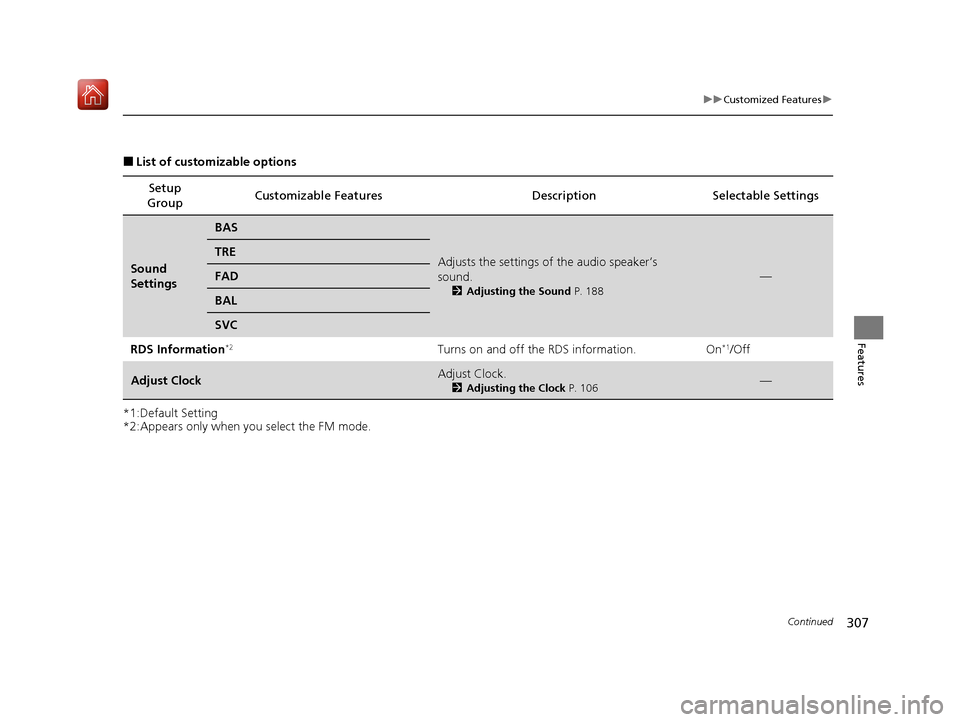

307
uuCustomized Features u
Continued
Features
■List of customizable options
*1:Default Setting
*2:Appears only when you select the FM mode. Setup
Group Customizable Features
Description Selectable Settings
Sound
Settings
BAS
Adjusts the settings of the audio speaker’s
sound.
2Adjusting the Sound P. 188
—
TRE
FAD
BAL
SVC
RDS Information
*2Turns on and off the RDS information. On*1/Off
Adjust ClockAdjust Clock.
2Adjusting the Clock P. 106—
19 ACURA ILX-31TX66610.book 307 ページ ２０２０年４月１７日　金曜日　午前８時５２分

308
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Display
Setup Brightness
Changes the brightness of the audio/information
screen. —
Wallpaper Select
Changes the wallpaper type. Clock
*1/
Image 1 /
Image 2 /Image 3
Import Imports an image file for a new wallpaper.
2
Wallpaper Setup P. 186—
Delete Deletes an image file for a wallpaper. Image 1
/Image 2 /
Image 3
Color Theme Changes the background color of the audio/
information screen. Blue
*1/
Red /Gray
Language SelectionChange the display language.English*1/ Français /
Español
19 ACURA ILX-31TX66610.book 308 ページ ２０２０年４月１７日　金曜日　午前８時５２分

314
uuCustomized Features u
Features
Auto Time Zone*

Clock/Wallpaper Type
Clock Adjustment
Clock
Settings
Clock Format
Default
Auto Daylight*
Clock Reset

AcuraLink Msg Notice
Delete AcuraLink Messages
AcuraLink Settings*
AcuraLink Subscription Status
Default
* Not available on all models
19 ACURA ILX-31TX66610.book 314 ページ ２０２０年４月１７日　金曜日　午前８時５２分

315
uuCustomized Features u
Continued
Features

Voice Prompt
Brightness
Contrast
Black Level


Default
Display
System
Settings
Voice Reco.
Sync Display Brightness
System Device Information*Header Clock Display

Language
Operation Restriction Tips*
Others

Default
Apple CarPlay Device List
Android Auto Device List
Smartphone
Settings
Smartphone Volume


Factory Data Reset
Units*
Song By Voice*
Song By Voice Phonetic Modification*
Phonebook Phonet ic Modification*
Guidance Volume*

Feedback*Guidance Volume
Verbal Reminder
* Not available on all models
19 ACURA ILX-31TX66610.book 315 ページ ２０２０年４月１７日　金曜日　午前８時５２分

324
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Clock
Settings Default
Cancels/Resets all cust
omized items in the Clock
Settings group as default. Yes
/No
Clock/
Wallpaper
Type Clock
Changes the clock display type. Analog
/Digital
*1/
Small Digital /Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
2 Wallpaper Setup P. 214
Blank/Galaxy*1/
Metallic /Options...
Clock Adjustment Adjusts Clock.
2
Wallpaper Setup P. 214—
Clock Format Selects the digital clock display from 12H to 24H. 12H
*1/24H
Auto Time Zone
*Sets the audio system to automatically adjust the
clock when driving through different time zones. On*1/
Off
Auto Daylight
*Sets the audio system to automatically adjust the
clock (“spring ahead” or “fall back” by one hour)
when a daylight saving time change occurs. On*1/
Off
Clock Reset Resets the clock settings to the factory default. Yes/No
* Not available on all models
19 ACURA ILX-31TX66610.book 324 ページ ２０２０年４月１７日　金曜日　午前８時５２分

328
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
System
Settings OthersUnits
*Changes the distance unit on the navigation map
screen.
mile*1/
km (U.S.)
mile /km*1 (Canada)
Language Changes the display language. English
*1/
Français /
Español
Operation Restriction
Tips
*
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available. On*1/
Off
Header Clock Display Selects whether the clock display comes on. On
*1/Off
System Device
Information
*Displays the system/device information. —
Factory Data Reset Resets all the settings to their factory default.
2
Defaulting All the Settings P. 335—
Smartphone
Settings
DefaultCancels/Resets all customized items in the
Smartphone Settings group as default.Yes/No
Apple CarPlay Device ListSets up the Apple CarPlay connection.—
Android Auto Device ListSets up the Android Auto connection.—
Smartphone VolumeAdjusts the volume of the smartphone function.1 ~8*1~11
VersionShows software version of Apple CarPlay and
Android Auto unit.—
* Not available on all models
19 ACURA ILX-31TX66610.book 328 ページ ２０２０年４月１７日　金曜日　午前８時５２分

541
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display will display a
warning message. If this happens, have you
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 180
•The clock resets.
2 Clock P. 106
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
19 ACURA ILX-31TX66610.book 541 ページ ２０２０年４月１７日　金曜日　午前８時５２分

616
Index
RDS (Radio Data System).................. 191, 222
Readiness Codes (Emissions Testing) ....... 601
Rear Defogger/Heated Door Mirror Button ...................................................... 149
Rear Seat (Folding Down) ........................ 162
Rearview Mirror ........................................ 152
Refueling ................................................... 502
Fuel Gauge ................................................ 88
Gasoline .......................................... 502, 596
Low Fuel Indicator ..................................... 71
Regulations ............................... 444, 535, 599
Remote Engine Start with Vehicle Feedback ................................................. 428
Remote Transmitter .................................. 116
Replacement Battery..................................................... 542
Bulbs ....................................................... 525
Fuses ............................................... 590, 591
Tires ........................................................ 538
Wiper Blade Rubber ................................. 530
Reporting Safety Defects ......................... 600
Resetting a Trip Meter ............................... 92
Road Departure Mitigation (RDM) .......... 483
On and Off .............................................. 485
S
Safe Driving ................................................. 27
Safety Labels ............................................... 66
Safety Message ............................................. 1 Seat Belts
.................................................... 32
Adjusting the Shoulder Anchor.................. 36
Automatic Seat Belt Tensioners ................. 34
Checking................................................... 38
Fastening .................................................. 35
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Pregnant Women ...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 71
Seat Heaters .............................................. 170
Seats .......................................................... 154
Adjusting ................................................ 154
Front Seats .............................................. 154
Rear Seat................................................. 162
Seat Heaters ............................................ 170
Security System ......................................... 128
Immobilizer System Indicator ..................... 75
Security System Alarm Indicator................. 75
Select Lever ......................................... 18, 433
Operation.......................................... 18, 434
Releasing................................................. 583
Won’t Move ............................................ 583
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 183
Sequential Mode ...................................... 435
Sequential Mode Operation .................... 436
Setting the Clock ...................................... 106
Shift Lever ........................................... 18, 433
Shift Lever Position Indicator ............ 69, 434
Shifting (Transmission) ............................. 433 Shoulder Anchor
........................................ 36
Side Airbags ............................................... 46
Side Curtain Airbags .................................. 48
SiriusXM ® Radio ....................................... 224
SMS Text Message ............................ 351, 363
Snow Tires ................................................ 540
Spare Tire ................................................. 597
Spark Plugs ............................................... 596
Specifications ........................................... 596
Specified Fuel ................................... 502, 596
SRS Airbags (Airbags) ................................ 42
Starting the Engine .................................. 426
Does Not Start ........................................ 577
Engine Switch Buzzer .............................. 135
Jump Starting ......................................... 580
Remote Engine Start ............................... 428
Steering Wheel ........................................ 149
Adjusting ................................................ 149
Stopping ................................................... 495
Summer Tires ............................................ 540
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering Wheel) .. 4, 5
Synchronization Mode ............................ 173
System Message Indicator ......................... 73
T
Temperature Sensor................................ 174
Temporary Tire Repair Kit ....................... 556
Text Message .................... 351, 363, 403, 405
Time (Setting) ........................................... 106
19 ACURA ILX-31TX66610.book 616 ページ ２０２０年４月１７日　金曜日　午前８時５２分
