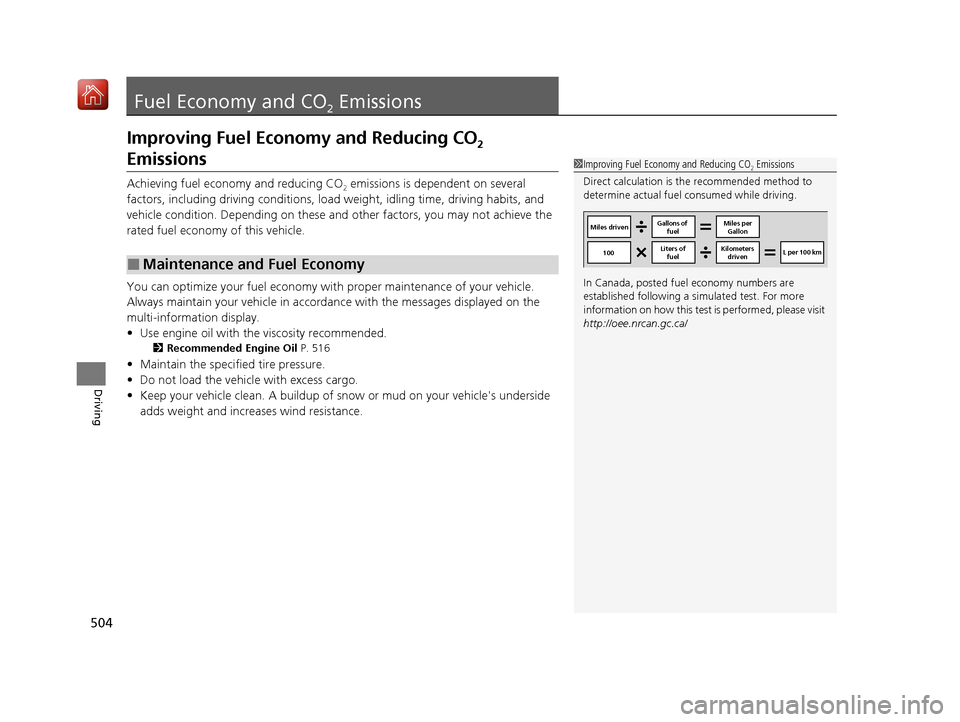

Page 505 of 621
504
Driving
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2
Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
multi-information display.
• Use engine oil with the viscosity recommended.
2 Recommended Engine Oil P. 516
•Maintain the specified tire pressure.
• Do not load the vehicl e with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel Miles per
Gallon
100 L per 100 km
Kilometers
driven
Liters of
fuel
19 ACURA ILX-31TX66610.book 504 ページ 2020年4月17日 金曜日 午前8時52分
Page 506 of 621
505
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 506
Safety When Performing Maintenance ..507
Parts and Fluids Used in Maintenance Service ........................................... 508
Maintenance Minder
TM..................... 509
Maintenance Under the Hood Maintenance Items Under the Hood .. 514
Opening the Hood ........................... 515
Recommended Engine Oil ................ 516
Oil Check ......................................... 517
Adding Engine Oil ............................ 518
Changing the Engine Oil and Oil Filter ...519
Engine Coolant ................................ 521
Transmission Fluid ............................ 523
Brake Fluid ....................................... 524
Refilling Window Washer Fluid......... 524
Replacing Light Bulbs ....................... 525
Checking and Maintaining Wiper
Blades .......................................... 530
Checking and Maintaining Tires
Checking Tires ................................. 532
Tire and Loading Information Label .. 533
Tire Labeling .................................... 533
DOT Tire Quality Grading (U.S. Vehicles) ..535Wear Indicators................................ 537 Tire Service Life ................................ 537
Tire and Wheel Replacement ........... 538
Tire Rotation .................................... 539
Winter Tires ..................................... 540
Battery ............................................... 541
Remote Transmitter Care
Replacing the Button Battery ........... 542
Climate Control System Maintenance.. 544Cleaning
Interior Care .................................... 545
Exterior Care.................................... 548
Accessories and Modifications ........ 551
19 ACURA ILX-31TX66610.book 505 ページ 2020年4月17日 金曜日 午前8時52分
Page 513 of 621
512
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Main Item
Sub Items
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 40,000 miles (64,000 km), then every 30,000 miles (48,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
19 ACURA ILX-31TX66610.book 512 ページ 2020年4月17日 金曜日 午前8時52分

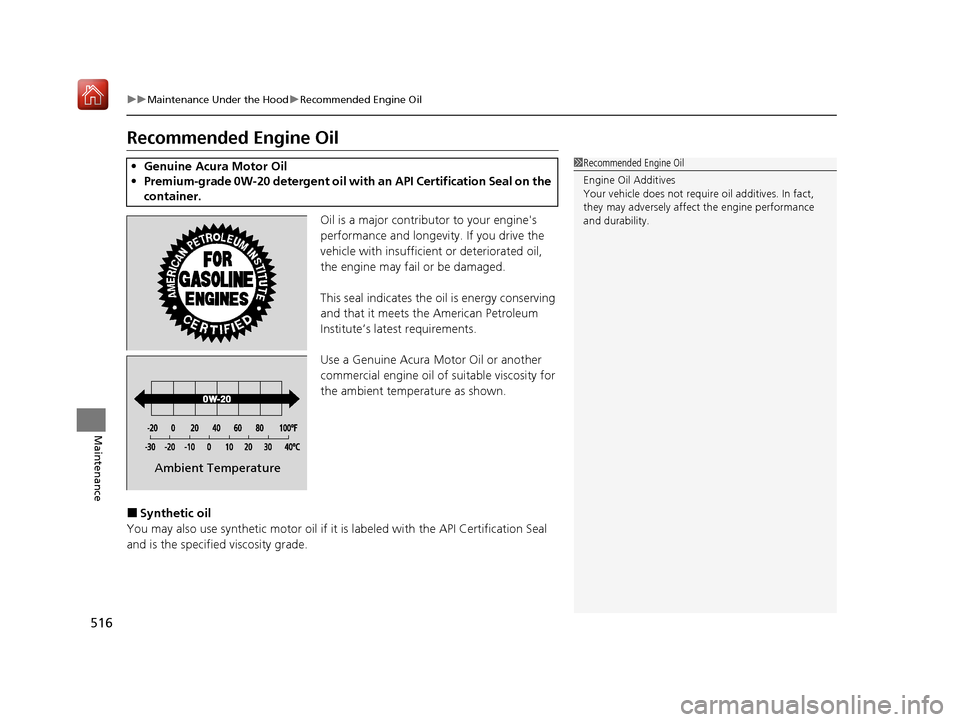

Page 517 of 621
516
uuMaintenance Under the Hood uRecommended Engine Oil
Maintenance
Recommended Engine Oil
Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use a Genuine Acura Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
• Genuine Acura Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container.1Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
19 ACURA ILX-31TX66610.book 516 ページ 2020年4月17日 金曜日 午前8時52分
Page 521 of 621
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
520
Maintenance
5. Remove the screws and remove the rid.
6. Remove the oil filter and dispose of the
remaining oil.
7. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
8. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
9. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
10. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
4.6 US qt (4.4 L)
11. Reinstall the engine oi l fill cap securely and
start the engine.
12. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
13. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Screw
Rid
Oil Filter
19 ACURA ILX-31TX66610.book 520 ページ 2020年4月17日 金曜日 午前8時52分

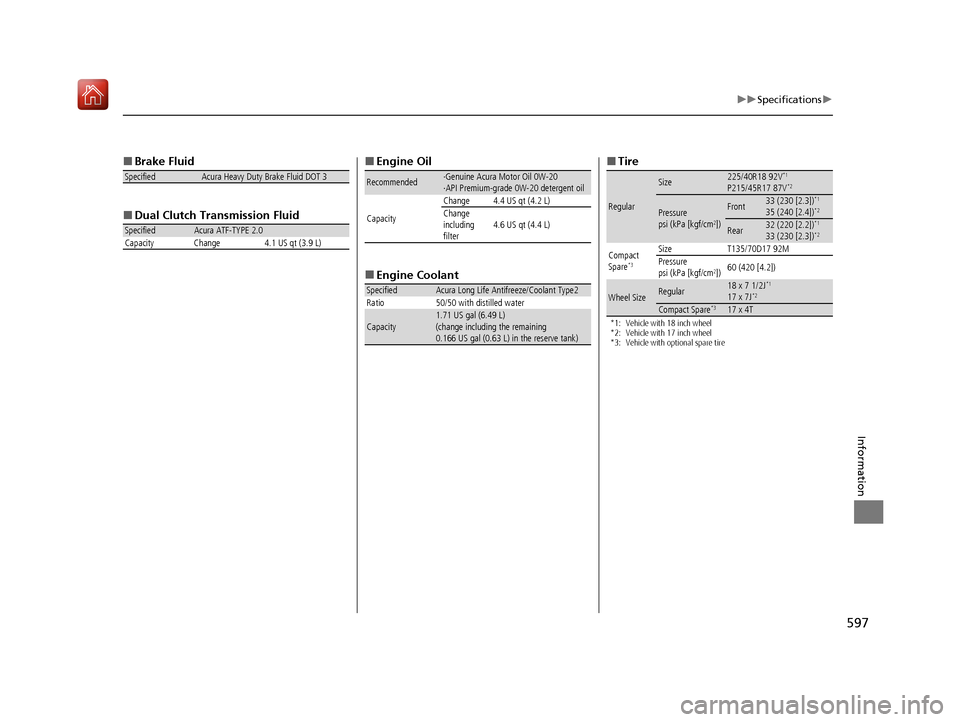

Page 598 of 621
597
uuSpecifications u
Information
■
Brake Fluid
■ Dual Clutch Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF-TYPE 2.0
Capacity Change 4.1 US qt (3.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.4 US qt (4.2 L)
Change
including
filter
4.6 US qt (4.4 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.71 US gal (6.49 L)
(change including the remaining
0.166 US gal (0.63 L) in the reserve tank)
■ Tire
*1: Vehicle with 18 inch wheel
*2: Vehicle with 17 inch wheel
*3: Vehicle with optional spare tire
Regular
Size225/40R18 92V*1
P215/45R17 87V*2
Pressure
psi (kPa [kgf/cm2])
Front33 (230 [2.3])*1
35 (240 [2.4])*2
Rear32 (220 [2.2])*1
33 (230 [2.3])*2
Compact
Spare*3
Size T135/70D17 92M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
17 x 7J*2
Compact Spare*317 x 4T
19 ACURA ILX-31TX66610.book 597 ページ 2020年4月17日 金曜日 午前8時52分
Page 611 of 621
Index
610
Index
Index
A
AAC.................................................... 235, 260
ABS (Anti-lock Brake System) ................... 493
Accessories and Modifications ................. 551
Accessory Power Sockets .......................... 169
AcuraLink .................................................. 410
AcuraWatch
TM..................................... 20, 446
Adaptive Cruise Control (ACC) ........... 76, 459
Additives Coolant ................................................... 521
Engine Oil ................................................ 516
Washer .................................................... 524
Additives, Engine Oil ................................ 516
Adjusting
Armrest ................................................... 163
Front Seats .............................................. 154
Head Restraints........................................ 158
Mirrors .................................................... 152
Rear Seat ................................................. 162
Steering Wheel ........................................ 149
Temperature .............................................. 92
Air Conditioning System (Climate Control
System) .................................................... 171
Changing the Mode ................................ 171
Defrosting the Windshield and
Windows ............................................... 172
Maintenance ........................................... 544
Recirculation/Fresh Air Mode ................... 171
Sensors .................................................... 174
Synchronization Mode ............................. 173
Using Automatic Climate Control ............ 171 Air Pressure
....................................... 533, 597
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio .................................... 190, 221
Android Auto ........................................... 270
Anti-lock Brake System (ABS) .................. 493
Indicator.................................................... 71
Apple CarPlay ........................................... 266
Armrest ..................................................... 163
Audio Remote Controls ........................... 181
Audio System ............................................ 176
Adjusting the Sound........................ 188, 216
Auxiliary Input Jack.................................. 177
Bluetooth ® Audio ............................ 204, 263
CD .................................................. 192, 235
Display Setup .................................. 189, 217
Error Messages ........................................ 275
General Information ................................ 286
HDD ........................................................ 238
iPhone............................................. 258, 289
iPod ................................................ 195, 251
MP3/WMA/AAC ...................... 201, 235, 260 Pandora
®...................................... 198, 258
Reactivating ............................................ 180
Recommended CDs ................................ 287
Recommended Devices ........................... 289
Security Code ......................................... 180
Siri Eyes Free ........................................... 265
SiriusXM ® Radio ...................................... 224
Song By VoiceTM (SBV) ............................. 254
Theft Protection ...................................... 180
USB Adapter Cable ................................. 178
USB Flash Drives...................... 201, 260, 289
USB Port ................................................. 179
Audio/Information Screen ....................... 184
Authorized Manuals ................................ 605
Auto Door Locking/Unlocking ................ 123
Customize ...................................... 101, 323
Auto High-Beam ...................................... 143
Automatic Lighting .................................. 140
Auxiliary Input Jack ................................. 177
Average Fuel Economy .............................. 92
Average Speed ........................................... 93
B
Battery...................................................... 541
Charging System Indicator ................ 70, 586
Jump Starting ......................................... 580
Maintenance (Checking the Battery) ....... 541
Maintenance (Replacing) ......................... 542
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 168
19 ACURA ILX-31TX66610.book 610 ページ 2020年4月17日 金曜日 午前8時52分
Page 613 of 621
612
Index
Doors......................................................... 108
Auto Door Locking .................................. 123
Auto Door Unlocking ............................... 123
Door Open Indicator .................................. 31
Door Open Message .................................. 83
Keys ........................................................ 108
Locking/Unlocking the Doors from the Inside ..................................................... 120
Locking/Unlocking the Doors from the Outside .................................................. 111
Lockout Prevention System ...................... 118
DOT Tire Quality Grading ........................ 535
Driving ....................................................... 419
Braking .................................................... 491
Dual Clutch Transmission ......................... 432
Shifting Gear ........................................... 433
Starting the Engine .................................. 426
Driving Position Memory System ............. 150
Dual Clutch Transmission ......................... 432
Creeping ................................................. 432
Fluid ................................................ 523, 597
Kickdown ................................................ 432
Operating the Shift Lever ................... 18, 433
Shift Lever Does Not Move....................... 583
Shifting.................................................... 433
E
Elapsed Time ............................................... 93
Electric Power Steering System (EPS)
Indicator ............................................ 72, 588 Electronic Stability Control (ESC)
............. 437
Emergency ................................................ 593
Emissions Testing (Readiness Codes) ....... 601
Engine ....................................................... 598
Coolant ................................................... 521
Jump Starting .......................................... 580
Oil ........................................................... 516
Remote Engine Start................................ 428
Starting ................................................... 426
Switch Buzzer.......................................... 135
Engine Coolant ......................................... 521
Adding to the Radiator ............................ 522
Adding to the Reserve Tank..................... 521
Overheating ............................................ 584
Temperature Gauge .................................. 88
Engine Oil ................................................. 516
Adding .................................................... 518
Checking................................................. 517
Displaying Oil Life .................................... 510
Low Oil Pressure Indicator ................. 69, 586
Recommended Engine Oil ....................... 516
ENGINE START/STOP Button .................... 135
EPS (Electric Power Steering) System ............................................... 72, 588
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 548
Exterior Mirrors ........................................ 153F
Features.................................................... 175 Filters
Oil .......................................................... 519
Flat Tire ..................................................... 555
Floor Mats ................................................ 546
Fluids
Brake ...................................................... 524
Dual Clutch Transmission ........................ 523
Engine Coolant ....................................... 521
Windshield Washer ................................. 524
Fog Light Indicator .................................... 74
Folding Down the Rear Seat ................... 162
Foot Brake ................................................ 492
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 154
Adjusting ................................................ 154
Front Sensor Camera ............................... 488
Fuel ..................................................... 19, 502
Fuel Economy and CO
2 Emissions ............ 504
Gauge ...................................................... 88
Instant Fuel Economy ................................ 93
Low Fuel Indicator ..................................... 71
Range ....................................................... 93
Recommendation.................................... 502
Refueling ................................................ 502
Fuel Economy and CO
2 Emissions ............ 504
Fuel Fill Cap ........................................ 19, 503
Message ................................................. 587
Fuel Fill Door ...................................... 19, 503
Fuses ......................................................... 590
Inspecting and Changing ........................ 592
Locations ........................................ 590, 591
19 ACURA ILX-31TX66610.book 612 ページ 2020年4月17日 金曜日 午前8時52分
Page 616 of 621
615
Index
Low Keyless Access Remote Signal Strength .................................................. 110
Low Oil Pressure Indicator ................. 69, 586
Lower Anchors ........................................... 57
Luggage (Maximum Load Limit) ............. 423
M
Maintenance............................................ 505
Battery .................................................... 541
Brake Fluid .............................................. 524
Cleaning ................................................. 545
Climate Control System .......................... 544
Coolant .................................................. 521
Maintenance Minder
TM............................ 509
Oil .......................................................... 517
Precautions ............................................. 506
Radiator .................................................. 522
Remote Transmitter ................................ 542
Replacing Light Bulbs .............................. 525
Safety ..................................................... 507
Service Items ........................................... 512
Tires........................................................ 532
Transmission Fluid ................................... 523
Under the Hood ...................................... 514
Malfunction Indicator Lamp ............. 70, 587
Map Lights ................................................ 165
Maximum Load Limit ............................... 423
Meters, Gauges .......................................... 88
Mirrors ...................................................... 152
Adjusting ................................................ 152 Door ........................................................ 153
Exterior .................................................... 153
Interior Rearview ..................................... 152
Modifications (and Accessories) .............. 551
Moonroof .................................................. 134
MP3 ................................... 192, 201, 235, 260
Multi-Information Display ......................... 89
Multi-View Rear Camera .......................... 500
N
Numbers (Identification).......................... 598
O
Odometer.................................................... 92
Oil (Engine) ............................................... 516
Adding .................................................... 518
Checking ................................................. 517
Displaying Oil Life .................................... 510
Low Oil Pressure Indicator .................. 69, 586
Recommended Engine Oil ........................ 516
Viscosity .................................................. 516
On Demand Multi-Use Display
TM............. 207
Open Source Licenses ............................... 302
Opening/Closing
Hood ....................................................... 515
Moonroof ................................................ 134
Power Windows ...................................... 131
Trunk ...................................................... 124 Operating the Switches Around the
Steering Wheel ....................................... 135
Outside Temperature ................................. 92
Adjusting .................................................. 92
Overheating .............................................. 584
P
Paddle Shifters (Sequential Mode) ............ 18
Pandora ®......................................... 198, 258
Panic Mode ............................................... 130
Parking ...................................................... 495
Parking Brake ........................................... 491
Parking Brake and Brake System Indicator ............................................ 68, 588
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 139
Power Windows ....................................... 131
Precautions While Driving ....................... 431
Rain ........................................................ 431
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 555
R
Radar Sensor............................................. 490
Radiator .................................................... 522
Radio (AM/FM) ................................. 190, 221
Radio (SiriusXM ®) ..................................... 224
Radio Data System (RDS) ................. 191, 222
Range .......................................................... 93
19 ACURA ILX-31TX66610.book 615 ページ 2020年4月17日 金曜日 午前8時52分
