clock ACURA ILX 2022 Owner's Manual

uuMaintenance Under the Hood uEngine Coolant
532
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator Cap
22 ACURA ILX-31TX66900.book 532 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

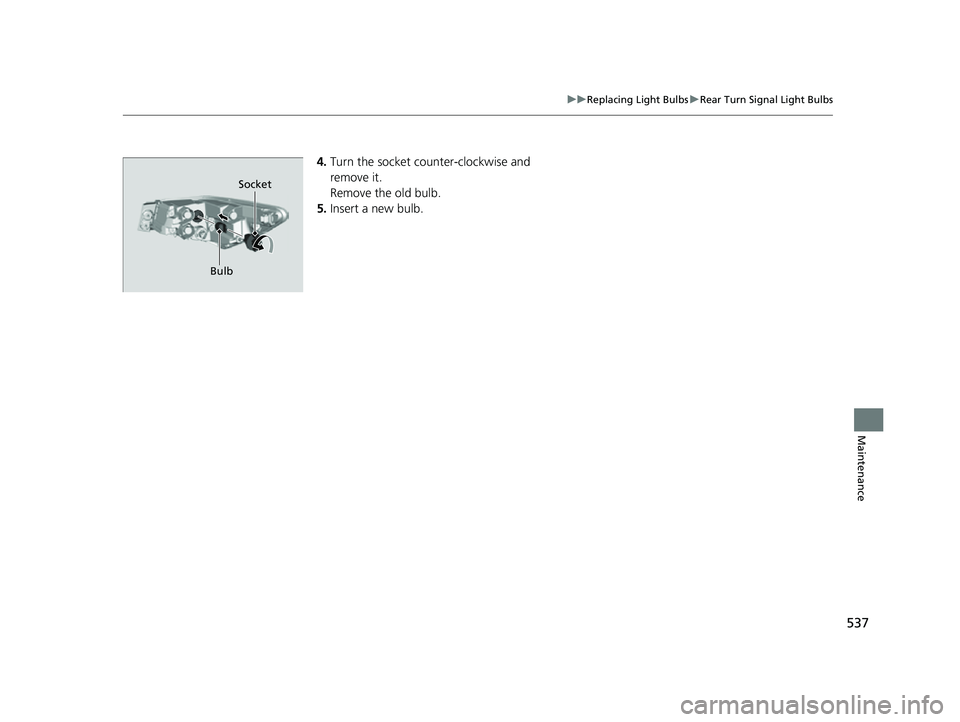

537
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
4. Turn the socket counter-clockwise and
remove it.
Remove the old bulb.
5. Insert a new bulb.
Socket
Bulb
22 ACURA ILX-31TX66900.book 537 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

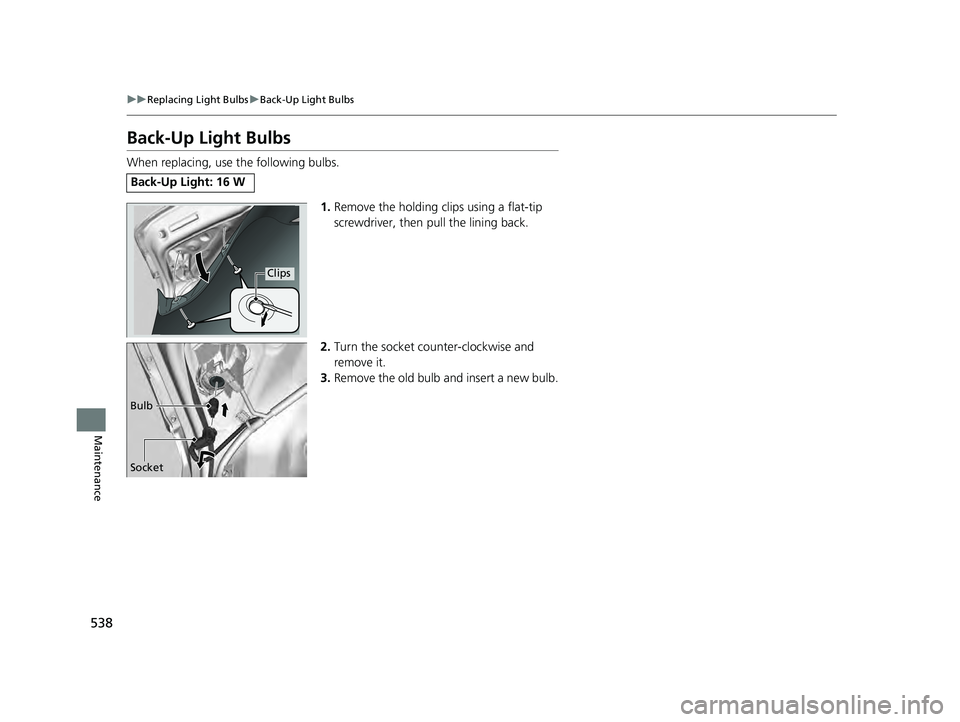

538
uuReplacing Light Bulbs uBack-Up Light Bulbs
Maintenance
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 16 W
Clips
Socket Bulb
22 ACURA ILX-31TX66900.book 538 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

551
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termi nals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 184
•The clock resets.
2 Clock P. 110
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
22 ACURA ILX-31TX66900.book 551 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

622
Index
Blind spot information System................ 445
Bluetooth ® Audio ............................. 208, 267
Bluetooth ® HandsFreeLink ®........... 345, 374
Booster Seats (For Children) ....................... 68
Brake System ............................................. 499
Anti-lock Brake System (ABS) ................... 501
Brake Assist System ................................. 502
Fluid ........................................................ 534
Foot Brake ............................................... 500
Indicator ............................................ 72, 598
Parking Brake .......................................... 499
Brake System (Amber) Indicator .................................................... 72
Brightness Control (Instrument Panel) .... 152
Built-in Key ................................................ 113
Bulb Replacement ..................................... 535
Back-Up Light .......................................... 538
Fog Lights ................................................ 535
Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights.... 535
Headlights ............................................... 535
High-Mount Brake Light .......................... 539
Rear License Plate Light............................ 539
Rear Turn Signal Light .............................. 536
Taillights, Brake and Rear Side Marker
Lights..................................................... 536
Bulb Specifications .................................... 606
C
Carbon Monoxide Gas ................................ 69 Carrying Cargo
................................. 427, 429
CD Player ........................................... 196, 239
Center Pocket ........................................... 171
Certification Label .................................... 608
Changing Bulbs ........................................ 535
Charging System Indicator ................. 74, 596
Child Safety ................................................. 56
Childproof Door Locks............................. 126
Child Seat .................................................... 56
Booster Seats ............................................ 68
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 63
Larger Children ......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Using a Tether ........................................... 65
Childproof Door Locks ............................. 126
Cleaning the Exterior ............................... 558
Cleaning the Interior ................................ 555
Client Service Information ....................... 617
Climate Control System ............................ 175
Changing the Mode ................................ 175
Defrosting the Windshield and
Windows ............................................... 176
Maintenance ........................................... 554
Recirculation/Fresh Air Mode ................... 175
Sensors ................................................... 178
Using Automatic Climate Control ............ 175
Clock .......................................................... 110 CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 455
Coat Hook ................................................ 173
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 455
Compact Spare Tire .......................... 580, 607
Compass ...................................................... 97
Console Compartment ............................. 170
Controls .................................................... 109
Coolant (Engine) ...................................... 531
Adding to the Radiator ........................... 532
Adding to the Reserve Tank .................... 531
Overheating ............................................ 594
Creeping ................................................... 438
Cross Traffic Monitor ............................... 505
Cup Holders .............................................. 172
Customized Features ................. 99, 310, 316
D
Daytime Running Lights .......................... 146
Dead Battery ............................................ 590
Defrosting the Windshield and Windows ................................................. 176
Devices that Emit Radio Waves ............... 609
Dimming Headlights .............................................. 143
Rearview Mirror ...................................... 156
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 142
Door Mirrors ............................................. 157
22 ACURA ILX-31TX66900.book 622 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

627
Index
Low Fuel Indicator..................................... 75
Regulations .............................. 450, 545, 609
Remote Engine Start ................................ 434
Remote Transmitter ................................. 120
Replacement
Battery .................................................... 552
Bulbs ...................................................... 535
Fuses .............................................. 600, 601
Tires........................................................ 548
Wiper Blade Rubber ................................ 540
Reporting Safety Defects ......................... 610
Resetting a Trip Meter ............................... 96
Road Departure Mitigation (RDM) ......... 491
On and Off ............................................. 493
S
Safe Driving ................................................ 29
Safety Labels .............................................. 70
Safety Message ............................................ 3
Seat Belts .................................................... 34
Adjusting the Shoulder Anchor ................. 38
Automatic Seat Belt Tensioners ................. 36
Checking .................................................. 40
Fastening .................................................. 37
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 63
Pregnant Women...................................... 39
Reminder .................................................. 35
Warning Indicator ............................... 35, 75
Seat Heaters ............................................. 174 Seats
.......................................................... 158
Adjusting ................................................. 158
Front Seats .............................................. 158
Rear Seat ................................................. 166
Seat Heaters ............................................ 174
Security System ......................................... 132
Immobilizer System Indicator ..................... 79
Security System Alarm Indicator ................. 79
Select Lever ......................................... 20, 439
Operation .......................................... 20, 440
Releasing ................................................. 593
Won’t Move ............................................ 593
Selecting a Child Seat ................................. 60
Selector Knob (Audio) .............................. 187
Sequential Mode ...................................... 441
Sequential Mode Operation .................... 442
Setting the Clock ...................................... 110
Shift Lever ........................................... 20, 439
Shift Lever Position Indicator ............. 73, 440
Shift Lever Positions ................................. 439
Shifting (Transmission) ............................. 439
Shoulder Anchor ......................................... 38
Side Airbags ................................................ 49
Side Curtain Airbags ................................... 51
SiriusXM ® Radio ........................................ 228
SMS Text Message ............................ 357, 369
Snow Tires ................................................. 550
Spare Tire .................................................. 607
Spark Plugs ................................................ 606
Specifications ............................................ 606
Specified Fuel .................................... 510, 606 SRS Airbags (Airbags)
................................. 44
Starting the Engine .................................. 432
Does Not Start......................................... 587
Engine Switch Buzzer .............................. 139
If the Battery Is Dead ............................... 590
Remote Engine Start................................ 434
Steering Wheel ......................................... 153
Adjusting ................................................ 153
Stopping ................................................... 503
Summer Tires ............................................ 550
Supplemental Restraint System (SRS) ........ 44
Switches (Around the Steering Wheel) ... 6, 7
Synchronization Mode ............................. 177
System Message Indicator .......................... 77
T
Temperature Sensor................................. 178
Temporary Tire Repair Kit ....................... 566
Text Message .................... 357, 369, 409, 411
Time (Setting) ........................................... 110
Tire Pressure Monitoring System (TPMS) ..................................................... 448
Indicator............................................ 77, 599
22 ACURA ILX-31TX66900.book 627 ページ ２０２１年４月２６日　月曜日　午前１１時２７分
