engine Acura ILX Hybrid 2013 Owner's Manual

345
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 346
Identification Numbers
Vehicle Identification Number (VIN) .. 348Engine Number and Transmission
Number...................................... 348Devices that Emit Radio Waves....... 349
Reporting Safety Defects................. 350Emissions Testing
Testing of Readiness Codes.............. 351
Warranty Coverages........................ 353
Authorized Manuals......................... 355
Client Service Information............... 356

346Information
Specifications■Vehicle SpecificationsModel
Acura ILX Hybrid
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
3,968 lbs (1,800 kg)
Gross Axle Weight
Rating (Front)
2,138 lbs (970 kg)
Gross Axle Weight
Rating (Rear)
1,962 lbs (890 kg)
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SE-10Y
■Engine Specifications
■Fuel
■12 Volt Battery
■Washer FluidDisplacement
91 cu-in (1,497 cm
3)
Spark Plugs NGK DILFR6J11
Fuel:
Type
Premium unleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Capacity/Type
32AH(5)/40AH(20)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■Light Bulbs*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlightsHeadlights (Low Beam)
35W (D2S)
*1
55W (H11)
*2
Headlights (High Beam) 60W (HB3)Fog Lights
55W (H11)
Front Turn Signal Lights 21W
Parking/Side Marker Lights
5W
Brake/Rear Side Marker/Taillight 21/5W
Back-Up Lights
16W
Rear Turn Signal Lights 21W
High-Mount Brake Light
LED
Rear License Plate Light 5W
Trunk Light
5W
Interior Lights
Map Light LED
Ceiling Light 8W
Foot light
1.4W
Glove Box light LED
Vanity Mirror light
2W

347
uuSpecificationsu
Information
■Brake Fluid
■Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Acura CVTF
(continuously variable transmission fluid)
Capacity Change 3.0 US qt (2.8 ℓ)
■Engine Oil
■Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
CapacityChange 3.6 US qt (3.4 ℓ)
Change
including
filter3.8 US qt (3.6 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.37 US gal (5.18 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■Tire*1: Vehicles with optional spare tire kitRegular
Size
P205/55R16 89H
Pressure
psi (kPa [kgf/cm
2])
32 (220 [2.2])
Compact
Spare
*1
Size T135/80D15 99M
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
16 x 6 1/2J
Compact Spare
*1
15 x 4T

348Information
Identification NumbersVehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle's engine number and
transmission number.

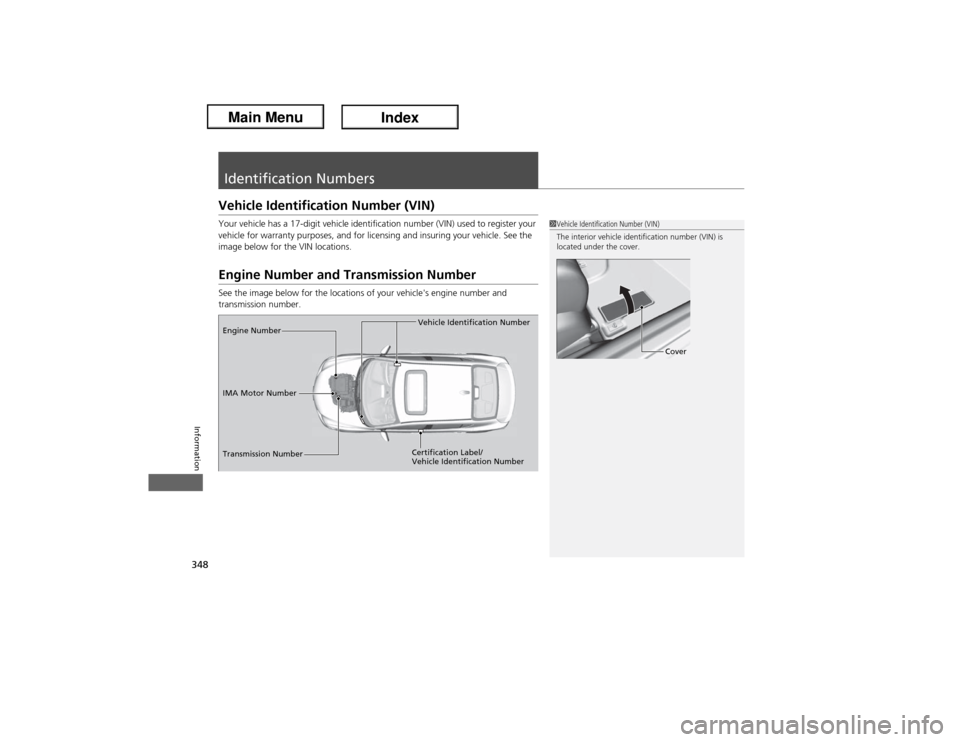

1Vehicle Identification Number (VIN)
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number Transmission Number IMA Motor Number

351
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle's emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1.Fill the gas tank to approximately 3/4 full.
2.Park the vehicle and leave the engine off for 6 hours or more.
3.Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35 °C).
4.Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5.Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6.Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the 12 volt
battery is disconnected, and set again only after
several days of driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

352
uuEmissions TestinguTesting of Readiness Codes
Information
7.Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in (D. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8.Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9.Park the vehicle and leave the engine off for 30 minutes.
