Acura ILX Hybrid 2015 Owner's Manual

100
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to ON are shown
below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET .
1. Press and release the button
until CUSTOMIZE SETTINGS appears on
the display.
2. Press the SEL/RESET button to go into the
METER SETUP group.
3. Press the SEL/RESET button again.
u LANGUAGE SELECTION appears first
on the display.
4. Press the button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
u The display switches to the SETUP
screen, where you can select WITH
REFUEL , IGN OFF , MANUALLY
RESET , or EXIT .

101
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
5. Press the button and select
MANUALLY RESET , then press the SEL/
RESET button.
u The MANUALLY RESET setup screen
appears, then the display returns to the
customize item screen.
6. Press the button until EXIT
appears on the display, then press the
SEL/RESET button.
7. Repeat Step 6 until you return to the
normal screen.

102

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock.............................. 104
Locking and Unlocking the Doors
Key Types and Functions .................. 105
Low Keyless Access Remote Signal Strength ......................................... 106
Locking/Unlocking the Doors from the Outside .......................................... 107
Locking/Unlocking the Doors from the
Inside ............................................. 111
Childproof Door Locks ..................... 112
Auto Door Locking/Unlocking .......... 113
Opening and Closing the Trunk....... 114
Security System Immobilizer System .......................... 118 Security System Alarm...................... 118
Opening and Closing the Windows
.... 120
Opening and Closing the Moonroof ... 123Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 124
Turn Signals ..................................... 126
Light Switches.................................. 126
Fog Lights ........................................ 129
Daytime Running Lights ................... 129
Wipers and Washers ........................ 130
Brightness Control ........................... 131
Rear Defogger/Heated Door Mirror Button...132
Adjusting the Steering Wheel........... 132 Adjusting the Mirrors
Interior Rearview Mirror ................... 133
Power Door Mirrors ......................... 134
Adjusting the Seats Adjusting the Seat Positions ............. 135
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 141
Interior Convenience Items .............. 142
Climate Control System Using Automatic Climate Control .... 146
Synchronized Mode .............................. 148
Automatic Climate Control Sensors ...... 149

104Controls
Setting the ClockClockYou can adjust the time in the clock display, with the power mode in ON.1.Press the SETUP button.
2. Rotate to select Adjust Clock on the
screen.
3. Press . Adjust Clock appears.
4. Rotate to select the item you want to
adjust (12/24 hour mode, hour, minute).
Then press .
5. Rotate to make the adjustment.
6. Press to enter your selection. The display
returns to Adjust Clock. Repeat steps 4 to
6 to adjust other items.
7. To enter the selection, rotate and select
Set , then press .
1Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.Models with navigation system
Models without navigation system
SETUP Button

105
Continued
Controls
Locking and Unlocking the DoorsKey Types and FunctionsThis vehicle comes with the following keys:■Keyless access remoteUse the keyless access remote to start and
stop the engine, to lock and unlock the doors
and to open the trunk.
There is a PANIC button in the remote
transmitter.
The built-in key can be used to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
pressing the release button. To reinstall the
built-in key, push the built-in key into the
keyless access remote until it clicks.■
Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2 Immobilizer System P. 118
The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids.•Do not take the keys apa rt except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the keyless access system may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Built-in Key
Release Button

uuLocking and Unlocking the Doors uLow Keyless Access Remote Signal Strength
106Controls

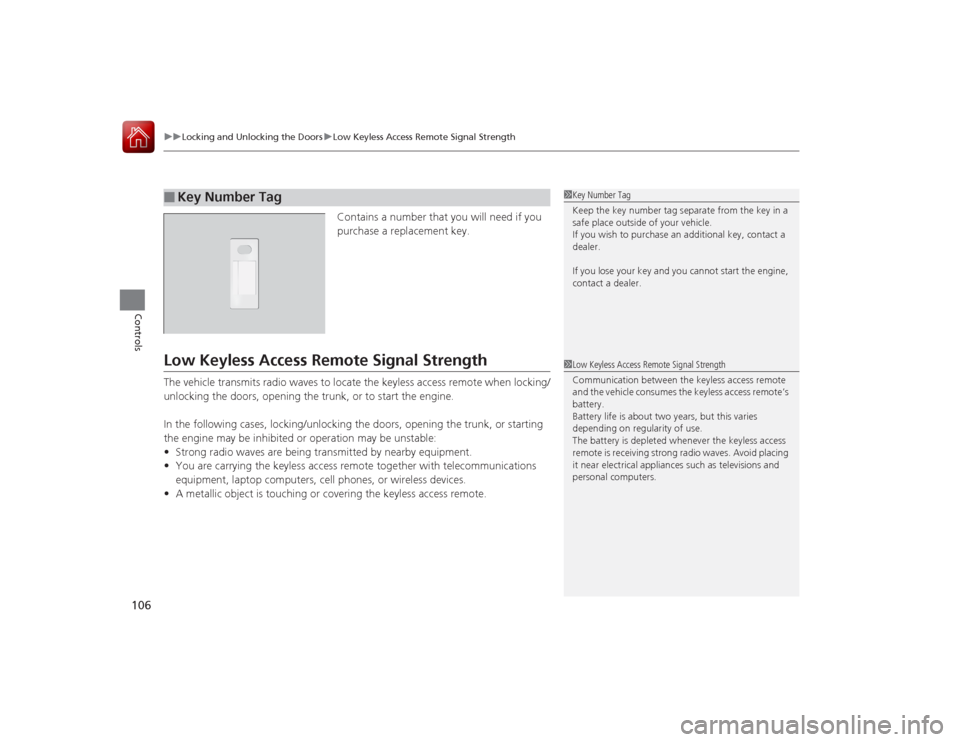

Contains a number that you will need if you
purchase a replacement key.
Low Keyless Access Remote Signal StrengthThe vehicle transmits radio waves to locate the keyless access remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the keyless access remote together with telecommunications
equipment, laptop computers, cell phones, or wireless devices.
• A metallic object is touching or covering the keyless access remote.■
Key Number Tag
1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.1Low Keyless Access Remote Signal Strength
Communication between the keyless access remote
and the vehicle consumes the keyless access remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is depleted whenever the keyless access
remote is receiving strong radio waves. Avoid placing
it near electrica l appliances such as televisions and
personal computers.

107
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

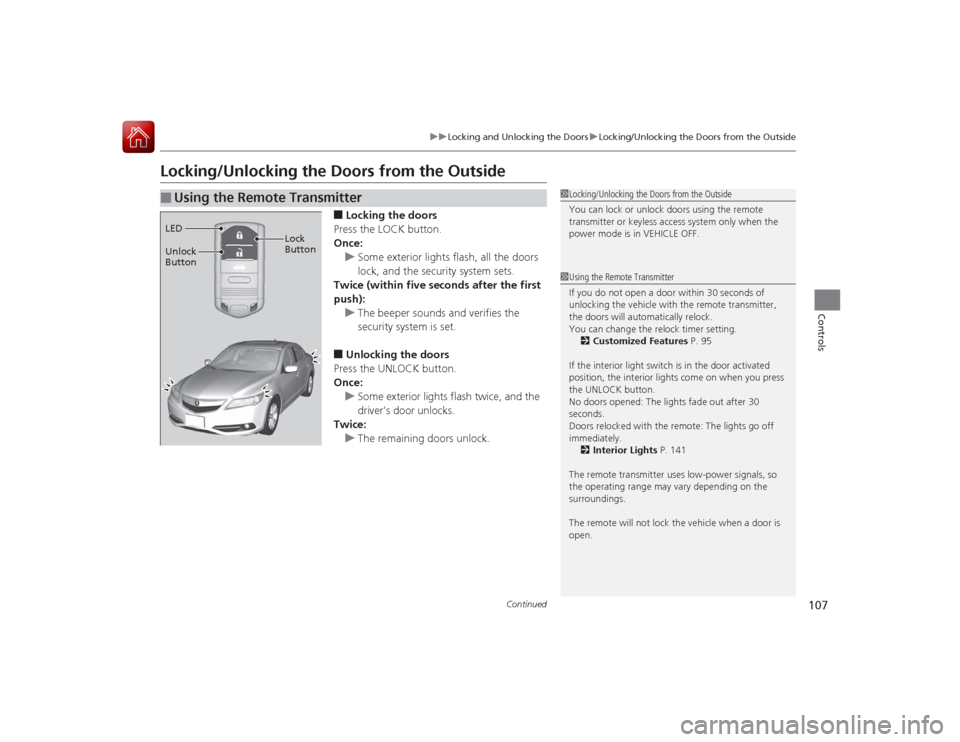

Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the LOCK button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five seconds after the first
push): u The beeper sounds and verifies the
security system is set.■Unlocking the doors
Press the UNLOCK button.
Once:
u Some exterior lights flash twice, and the
driver's door unlocks.
Twice:
u The remaining doors unlock.
■
Using the Remote Transmitter
1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.
2 Customized Features P. 95
If the interior light switch is in the door activated
position, the interior lights come on when you press
the UNLOCK button.
No doors opened: The lights fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 141
The remote transmitter uses low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock the vehicle when a door is
open.1 Locking/Unlocking the Doors from the Outside
You can lock or unlock doors using the remote
transmitter or keyless access system only when the
power mode is in VEHICLE OFF.
LED
Unlock
Button Lock
Button

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
108Controls

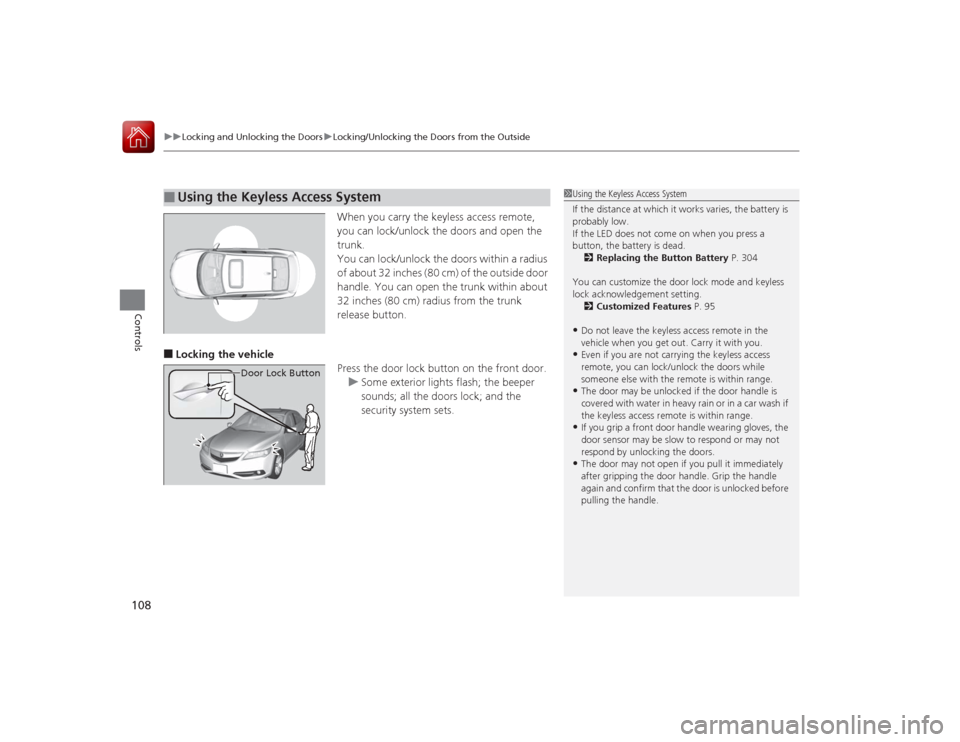

When you carry the keyless access remote,
you can lock/unlock the doors and open the
trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the vehicle
Press the door lock button on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.■
Using the Keyless Access System
Door Lock Button
1Using the Keyless Access System
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 304
You can customize the door lock mode and keyless
lock acknowledgement setting. 2 Customized Features P. 95•Do not leave the keyless access remote in the
vehicle when you get out. Carry it with you.•Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the re mote is within range.•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.•The door may not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.

Continued
109
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Unlocking the vehicle
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u The beeper will sound.
2 Using the Trunk Release Button P. 115
Trunk Release Button
1Using the Keyless Access System•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the
keyless access remote if it is above or below the
outside handle.•The keyless access remote may not operate if it is
too close to the door and door glass.
If you do not open a door within 30 seconds of
unlocking the vehicle, the doors will automatically
relock.
The light flash, beep and unlock settings can be
customized using the multi-information display. 2 Customized Features P. 95
