TPMS Acura ILX Hybrid 2015 User Guide

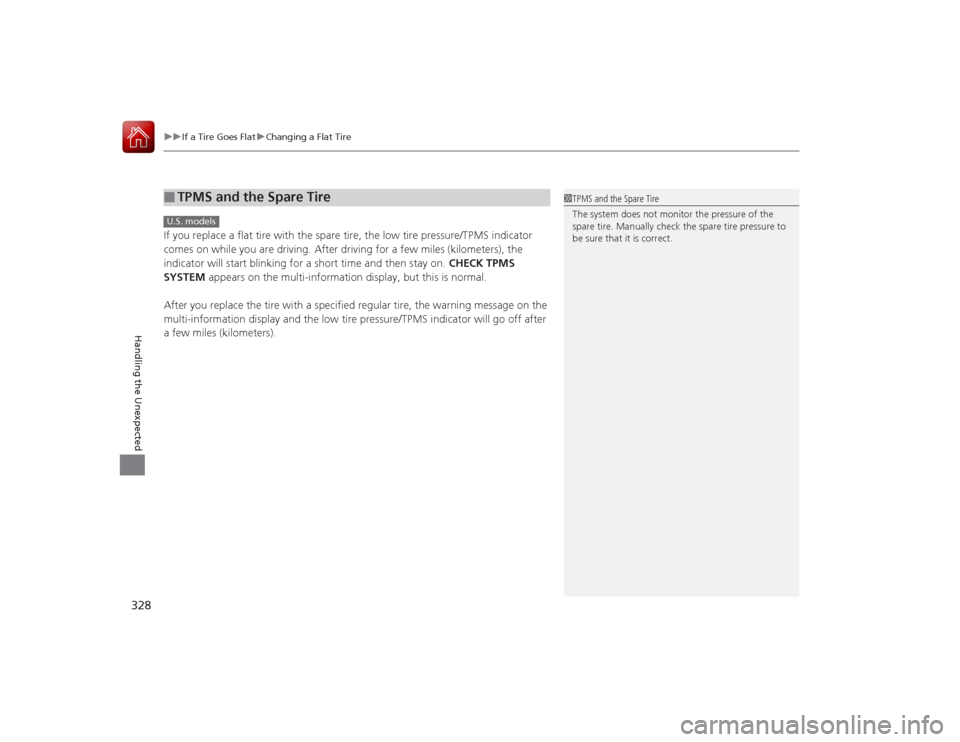

uuIf a Tire Goes Flat uChanging a Flat Tire
328Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
After you replace the tire with a specified regular tire, the warning message on the
multi-information display and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).■
TPMS and the Spare TireU.S. models
1 TPMS and the Spare Tire
The system does not monitor the pressure of the
spare tire. Manually check the spare tire pressure to
be sure that it is correct.

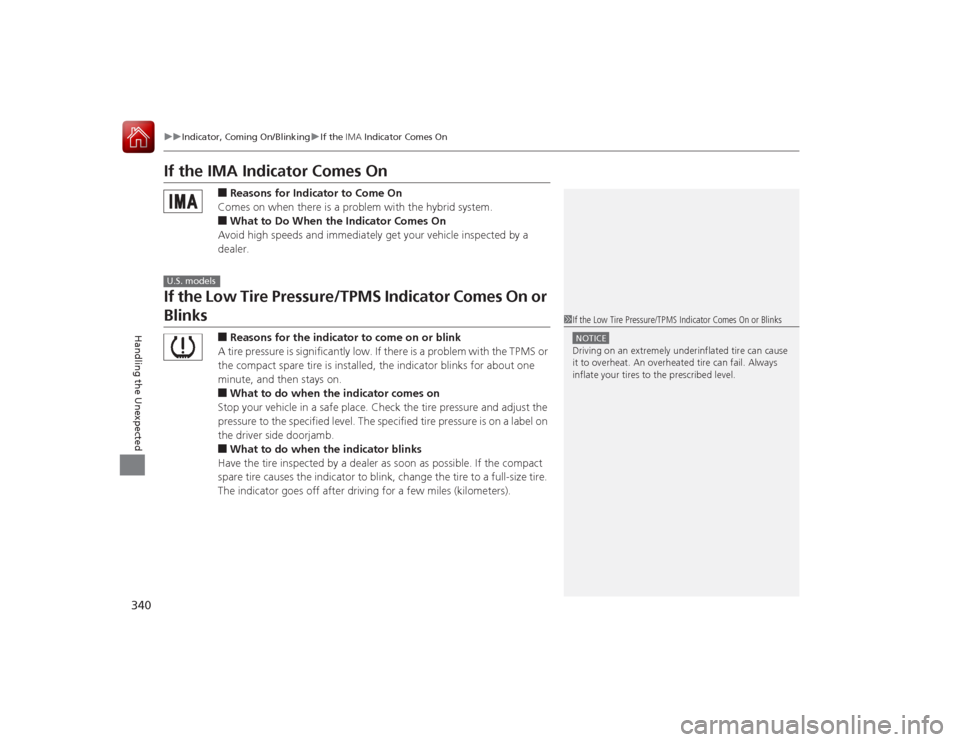

340
uuIndicator, Coming On/Blinking uIf the IMA Indicator Comes On
Handling the Unexpected
If the IMA Indicator Comes On
■Reasons for Indicator to Come On
Comes on when there is a problem with the hybrid system.■What to Do When the Indicator Comes On
Avoid high speeds and immediately get your vehicle inspected by a
dealer.
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire is installed, the indicator blinks for about one
minute, and then stays on.■What to do when the indicator comes on
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
U.S. models
1 If the Low Tire Pressure/TPMS Indicator Comes On or BlinksNOTICEDriving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

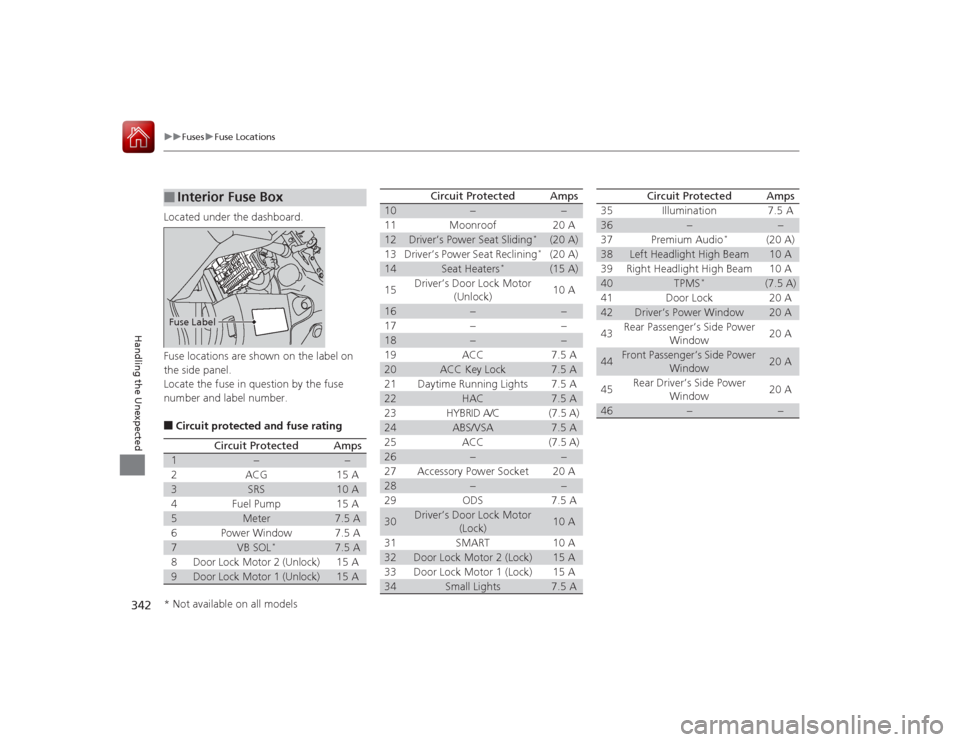

342
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■Circuit protected and fuse rating■
Interior Fuse BoxFuse Label
Circuit Protected
Amps
1
−
−
2
ACG
15 A
3
SRS
10 A
4
Fuel Pump
15 A
5
Meter
7.5 A
6
Power Window
7.5 A
7
VB SOL
*
7.5 A
8
Door Lock Motor 2 (Unlock)
15 A
9
Door Lock Motor 1 (Unlock)
15 A
10
−
−
11 Moonroof 20 A
12
Driver’s Power Seat Sliding
*
(20 A)
13 Driver’s Power Seat Reclining*(20 A)
14
Seat Heaters
*
(15 A)
15 Driver’s Door Lock Motor
(Unlock) 10 A
16
−
−
17 − −
18
−
−
19 ACC 7.5 A
20
ACC Key Lock
7.5 A
21 Daytime Running Lights 7.5 A
22
HAC
7.5 A
23 HYBRID A/C (7.5 A)
24
ABS/VSA
7.5 A
25 ACC (7.5 A)
26
−
−
27 Accessory Power Socket 20 A
28
−
−
29 ODS 7.5 A
30
Driver’s Door Lock Motor (Lock)
10 A
31 SMART 10 A
32
Door Lock Motor 2 (Lock)
15 A
33 Door Lock Motor 1 (Lock) 15 A
34
Small Lights
7.5 A
Circuit Protected
Amps
35 Illumination 7.5 A36
−
−
37 Premium Audio
*
(20 A)
38
Left Headlight High Beam
10 A
39 Right Headlight High Beam 10 A
40
TPMS
*
(7.5 A)
41 Door Lock 20 A
42
Driver’s Power Window
20 A
43 Rear Passenger’s Side Power
Window 20 A
44
Front Passenger’s Side Power
Window
20 A
45 Rear Driver’s Side Power
Window 20 A
46
−
−
Circuit Protected
Amps
* Not available on all models

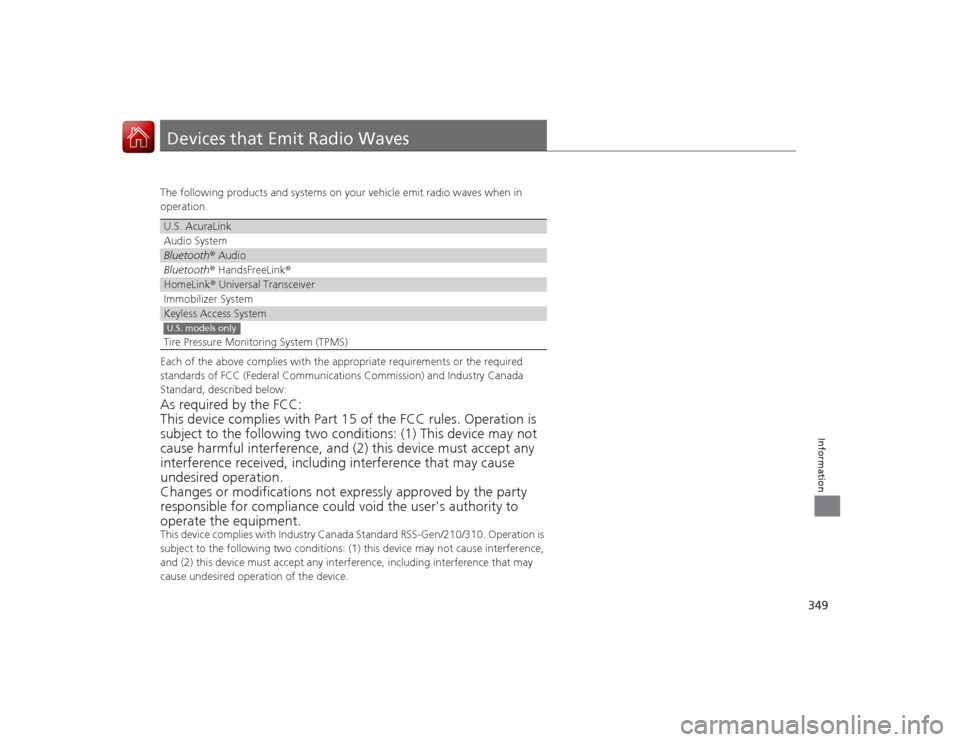

349Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.U.S. AcuraLinkAudio SystemBluetooth ® AudioBluetooth® HandsFreeLink ®HomeLink® Universal TransceiverImmobilizer SystemKeyless Access SystemTire Pressure Monitoring System (TPMS)U.S. models only

360Index
Fuses.......................................................... 341
Inspecting and Changing ......................... 343
Locations ......................................... 341, 342GGasoline (Fuel)
Economy ................................................. 256
Gauge ....................................................... 86
Information ............................................. 254
Instant Fuel Economy ................................. 91
Low Fuel Indicator ..................................... 73
Refueling ................................................. 254
Gauges ......................................................... 86
Glass (care) ................................................ 308
Glove Box .................................................. 142HHalogen Bulbs ................................... 282, 283
Handling the Unexpected ........................ 311
HandsFreeLink® (HFL)............................... 189
Automatic Import of Cellular Phonebook
and Call History ..................................... 205
Automatic Transferring ............................ 203
Caller’s ID Information ............................. 203
HFL Buttons ............................................. 189
HFL Menus .............................................. 191
HFL Status Display.................................... 190
Making a Call .......................................... 208
Options During a Call .............................. 212 Phone Setup............................................ 196
Receiving a Call ....................................... 211
Speed Dial ............................................... 206
Text Message .................................. 201, 213
To Clear the System ................................ 204
To Create a Security PIN .......................... 202
Hazard Warning Button .............................. 4
Head Restraints ........................................ 138
Headlights ................................................. 126
Aiming .................................................... 282
Automatic Operation............................... 127
Dimming ......................................... 126, 129
Operating................................................ 126
Heaters (Seat) ........................................... 145
HFL (HandsFreeLink® )............................... 189
High-Beam Indicator .................................. 77
Hill Start Assist System ............................. 228
HomeLink ® Universal Transceiver ............ 187
IIdentification Numbers ............................ 348
Engine and Transmission ......................... 348
Vehicle Identification ............................... 348
Illumination Control ................................. 131
Knob ....................................................... 131
IMA Battery Charge Level Indicator/Power
Flow Monitor ............................................ 93
IMA System Indicator ................................. 77
Immobilizer System .................................. 118
Indicator.................................................... 78 Indicators
.................................................... 70
Anti-lock Brake System (ABS) .................... 73
Auto Idle Stop........................................... 75
Brake System ............................................ 71
Charging System............................... 72, 337
CRUISE CONTROL ............................. 80, 241
CRUISE MAIN.................................... 80, 240
Door and Trunk Open ......................... 31, 75
Door Open................................................ 31
ECON Mode ..................................... 80, 239
Electric Power Steering (EPS)
System ............................................ 75, 339
Fog Light .................................................. 77
High-Beam................................................ 77
IMA System .............................................. 77
Immobilizer System ................................... 78
Keyless Access System............................... 79
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ............................... 75, 337
Low Temperature...................................... 79
Low Tire Pressure/TPMS .................... 76, 245
Maintenance Minder............................... 263
Malfunction Indicator Lamp .............. 71, 338
Parking Brake and Brake System ....... 70, 339
Seat Belt Reminder.............................. 33, 73
Security System Alarm............................... 79
Shift Lever Position.................................... 72
Side Airbag Off ................................... 52, 78
Supplemental Restraint System ........... 50, 74
System Message ....................................... 76

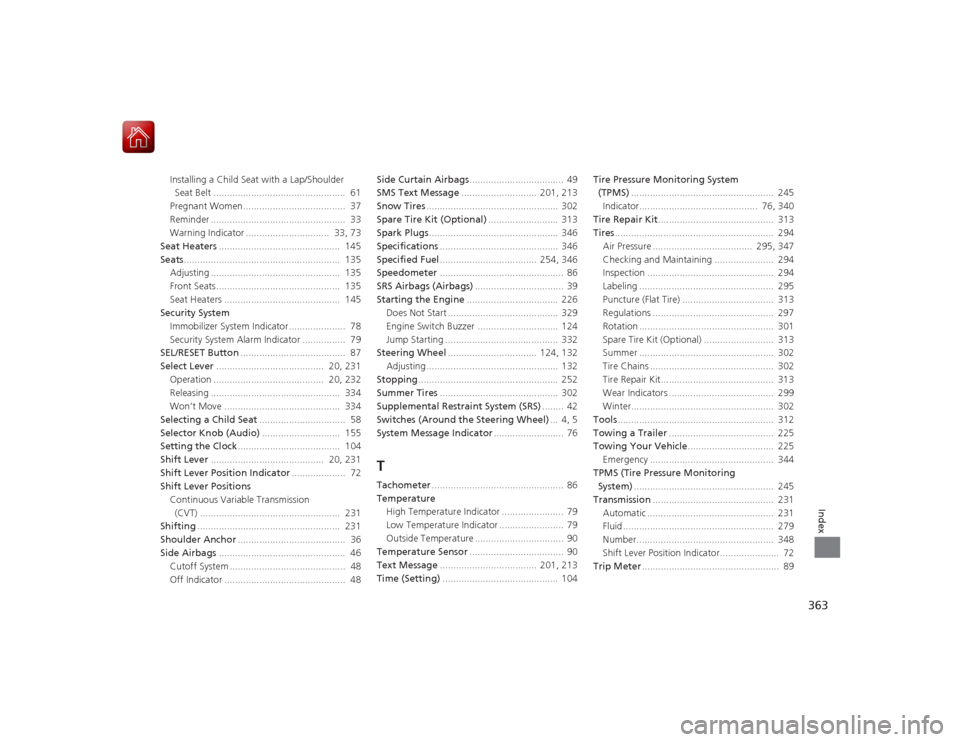

363Index
Installing a Child Seat with a Lap/Shoulder Seat Belt ................................................. 61
Pregnant Women...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 73
Seat Heaters ............................................. 145
Seats .......................................................... 135
Adjusting ................................................ 135
Front Seats.............................................. 135
Seat Heaters ........................................... 145
Security System
Immobilizer System Indicator..................... 78
Security System Alarm Indicator ................ 79
SEL/RESET Button ....................................... 87
Select Lever ........................................ 20, 231
Operation ......................................... 20, 232
Releasing ................................................ 334
Won’t Move ........................................... 334
Selecting a Child Seat ................................ 58
Selector Knob (Audio) ............................. 155
Setting the Clock ...................................... 104
Shift Lever .......................................... 20, 231
Shift Lever Position Indicator .................... 72
Shift Lever Positions Continuous Variable Transmission
(CVT) .................................................... 231
Shifting ..................................................... 231
Shoulder Anchor ........................................ 36
Side Airbags ............................................... 46
Cutoff System ........................................... 48
Off Indicator ............................................. 48 Side Curtain Airbags
................................... 49
SMS Text Message ............................ 201, 213
Snow Tires ................................................. 302
Spare Tire Kit (Optional) .......................... 313
Spark Plugs ................................................ 346
Specifications ............................................ 346
Specified Fuel .................................... 254, 346
Speedometer .............................................. 86
SRS Airbags (Airbags) ................................. 39
Starting the Engine .................................. 226
Does Not Start ......................................... 329
Engine Switch Buzzer .............................. 124
Jump Starting .......................................... 332
Steering Wheel ................................. 124, 132
Adjusting ................................................. 132
Stopping .................................................... 252
Summer Tires ............................................ 302
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering Wheel) ... 4, 5
System Message Indicator .......................... 76
TTachometer................................................. 86
Temperature High Temperature Indicator ....................... 79
Low Temperature Indicator ........................ 79
Outside Temperature ................................. 90
Temperature Sensor ................................... 90
Text Message .................................... 201, 213
Time (Setting) ........................................... 104 Tire Pressure Monitoring System
(TPMS) ..................................................... 245
Indicator............................................ 76, 340
Tire Repair Kit ........................................... 313
Tires ........................................................... 294
Air Pressure ..................................... 295, 347
Checking and Maintaining ...................... 294
Inspection ............................................... 294
Labeling .................................................. 295
Puncture (Flat Tire) .................................. 313
Regulations ............................................. 297
Rotation .................................................. 301
Spare Tire Kit (Optional) .......................... 313
Summer .................................................. 302
Tire Chains .............................................. 302
Tire Repair Kit.......................................... 313
Wear Indicators ....................................... 299
Winter..................................................... 302
Tools .......................................................... 312
Towing a Trailer ....................................... 225
Towing Your Vehicle ................................ 225
Emergency .............................................. 344
TPMS (Tire Pressure Monitoring System) .................................................... 245
Transmission ............................................. 231
Automatic ............................................... 231
Fluid ........................................................ 279
Number................................................... 348
Shift Lever Position Indicator...................... 72
Trip Meter ................................................... 89
