Contents
Child Safety P. 54Exhaust Gas Hazard P. 66Safety Labels P. 67Opening and Closing the Trunk P. 114 Security System P. 118 Opening and Closing the Windows P. 120
Operating the Switches Around the Steering Wheel P. 124 Adjusting the Mirrors P. 133
Climate Control System P. 146Audio Error Messages
* P. 180 General Information on the Audio System P. 183
Bluetooth ® HandsFreeLink ® P. 189
When Driving P. 226 Braking P. 248Parking Your Vehicle P. 252
Fuel Economy P. 256 Accessories and Modifications P. 257Maintenance Under the Hood P. 268 Replacing Light Bulbs P. 282
Checking and Maintaining Tires P. 294 12 Volt Battery P. 303 Remote Transmitter Care P. 304
Cleaning P. 306Engine Does Not Start P. 329 Jump Starting P. 332Shift Lever Does Not Move P. 334
Fuses P. 341 Emergency Towing P. 344Devices that Emit Radio Waves P. 349 Reporting Safety Defects P. 350
Authorized Manuals P. 355 Client Service Information P. 356
Quick Reference Guide
P. 4
Safe Driving
P. 27
Instrument Panel
P. 69
Controls
P. 103
Features
P. 151
Driving
P. 219
Maintenance
P. 259
Handling the Unexpected
P. 311
Information
P. 345
Index
P. 357

5Quick Reference Guide
❙Wipers/Washers
(P 130)
❙Cruise Control Buttons
(P 240)
❙Paddle Shifter (Shift down)
(P 234)
❙Remote Audio Control Buttons
(P 159)
❙Paddle Shifter (Shift up)
(P 234)
❙SEL/RESET Button
(P 87)
❙
(Information) Button
(P 87)
❙Brightness Control
(P 131)
❙Headlights/Turn Signals
(P 126)
❙Fog Lights
(P 129)
❙Horn (Press an area around .)❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 189)
❙Navigation System Voice Control Buttons
*
() See the Navigation System Manual
* Not available on all models

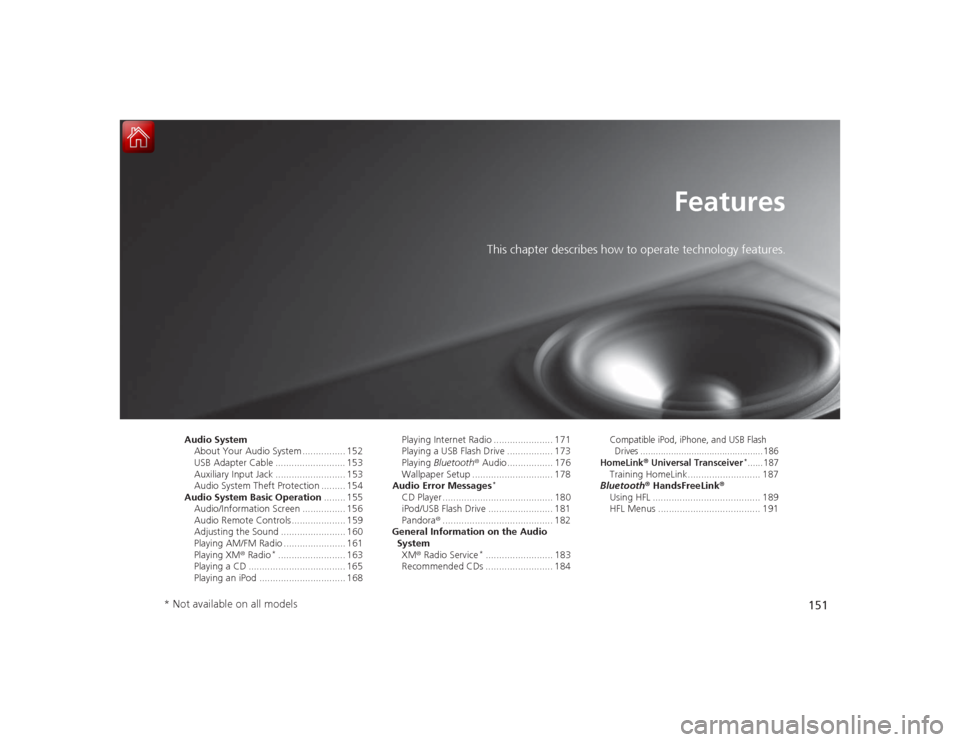

151
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 152
USB Adapter Cable .......................... 153
Auxiliary Input Jack .......................... 153
Audio System Theft Protection ......... 154
Audio System Basic Operation ........ 155
Audio/Information Screen ................ 156
Audio Remote Controls .................... 159
Adjusting the Sound ........................ 160
Playing AM/FM Radio ....................... 161
Playing XM® Radio
*......................... 163
Playing a CD .................................... 165
Playing an iPod ................................ 168 Playing Internet Radio ...................... 171
Playing a USB Flash Drive ................. 173
Playing
Bluetooth ® Audio................. 176
Wallpaper Setup .............................. 178
Audio Error Messages
*
CD Player ......................................... 180
iPod/USB Flash Drive ........................ 181
Pandora ®......................................... 182
General Information on the Audio
System XM ® Radio Service
*......................... 183
Recommended CDs ......................... 184
Compatible iPod, iPhone, and USB Flash Drives ................................................186HomeLink
® Universal Transceiver
*......187
Training HomeLink........................... 187
Bluetooth ® HandsFreeLink ®
Using HFL ........................................ 189
HFL Menus ...................................... 191
* Not available on all models

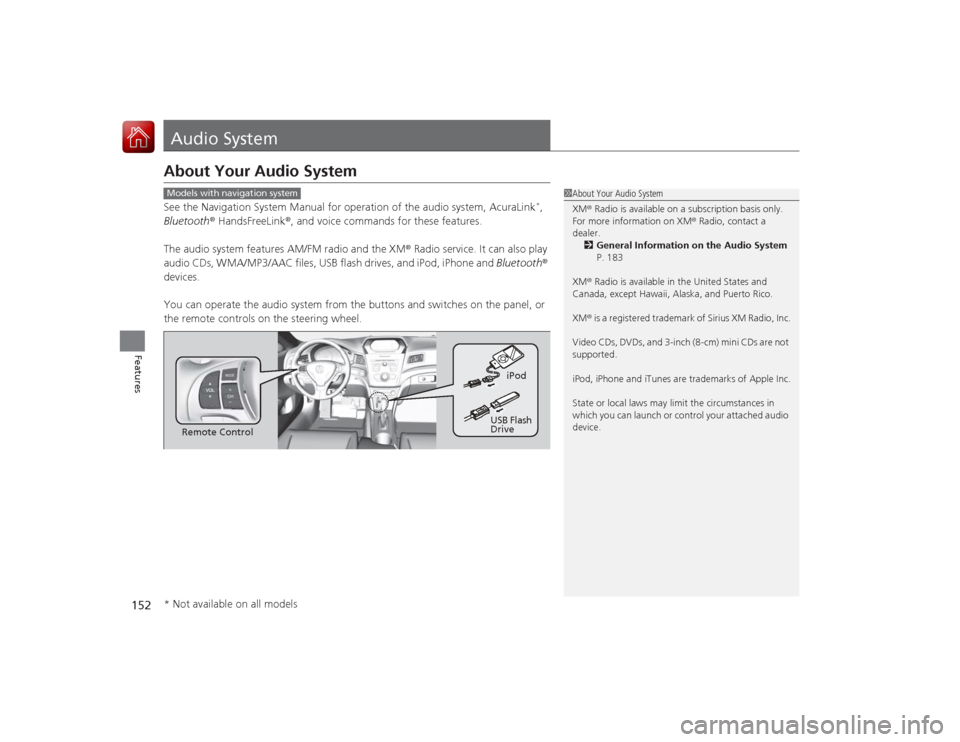

152Features
Audio SystemAbout Your Audio SystemSee the Navigation System Manual for operation of the audio system, AcuraLink
*,
Bluetooth ® HandsFreeLink ®, and voice commands for these features.
The audio system features AM/FM radio and the XM ® Radio service. It can also play
audio CDs, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and Bluetooth ®
devices.
You can operate the audio system from the buttons and switches on the panel, or
the remote controls on the steering wheel.
1 About Your Audio System
XM ® Radio is available on a subscription basis only.
For more information on XM ® Radio, contact a
dealer.
2 General Information on the Audio System
P. 183
XM ® Radio is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.
XM ® is a registered trademark of Sirius XM Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may limit the circumstances in
which you can launch or control your attached audio
device.
Models with navigation system
Remote Control iPod
USB Flash
Drive
* Not available on all models

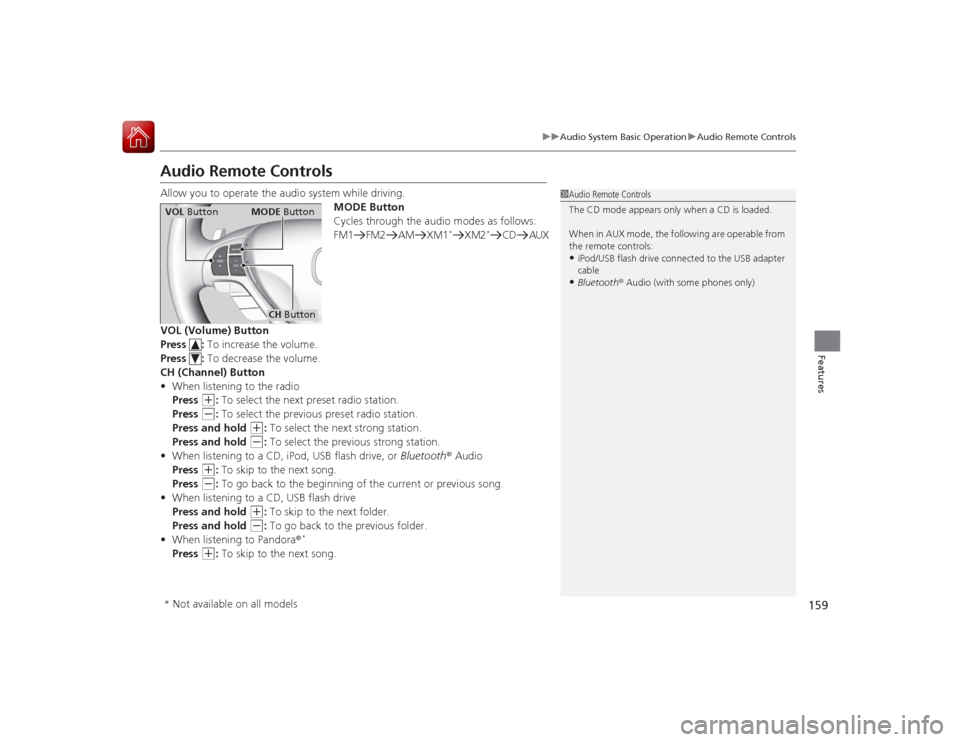

159
uuAudio System Basic Operation uAudio Remote Controls
Features
Audio Remote ControlsAllow you to operate the audio system while driving.
MODE Button
Cycles through the audio modes as follows:
FM1 FM2 AM XM1
*
XM2
*
CD AUX
VOL (Volume) Button
Press : To increase the volume.
Press : To decrease the volume.
CH (Channel) Button
• When listening to the radio
Press
(+
: To select the next preset radio station.
Press
(-
: To select the previous preset radio station.
Press and hold
(+
: To select the next strong station.
Press and hold
(-
: To select the previous strong station.
• When listening to a CD, iPod, USB flash drive, or Bluetooth® Audio
Press
(+
: To skip to the next song.
Press
(-
: To go back to the beginning of the current or previous song.
• When listening to a CD, USB flash drive
Press and hold
(+
: To skip to the next folder.
Press and hold
(-
: To go back to the previous folder.
• When listening to Pandora®
*
Press
(+
: To skip to the next song.
1 Audio Remote Controls
The CD mode appears only when a CD is loaded.
When in AUX mode, the following are operable from
the remote controls:•iPod/USB flash drive connected to the USB adapter
cable•Bluetooth ® Audio (with some phones only)
VOL Button MODE Button
CH Button
* Not available on all models

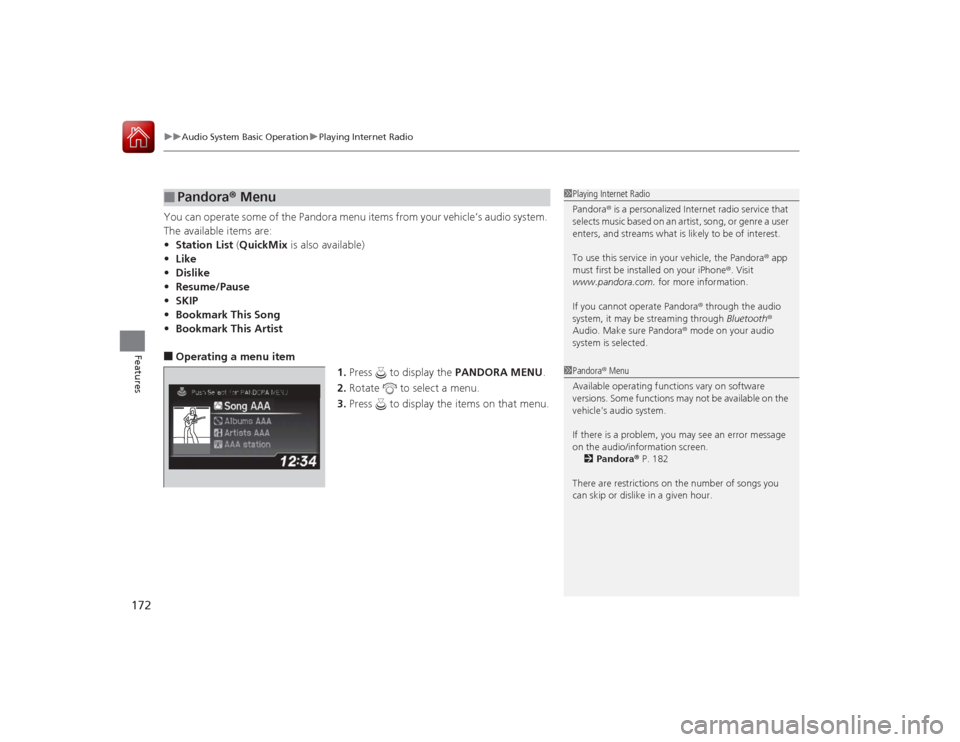

uuAudio System Basic Operation uPlaying Internet Radio
172Features
You can operate some of the Pandora menu items from your vehicle’s audio system.
The available items are:
• Station List (QuickMix is also available)
• Like
• Dislike
• Resume/Pause
• SKIP
• Bookmark This Song
• Bookmark This Artist■Operating a menu item
1.Press to display the PANDORA MENU.
2. Rotate to select a menu.
3. Press to display the items on that menu.■
Pandora® Menu
1Playing Internet Radio
Pandora ® is a personalized Internet radio service that
selects music based on an artist, song, or genre a user
enters, and streams what is likely to be of interest.
To use this service in your vehicle, the Pandora ® app
must first be installed on your iPhone ®. Visit
www.pandora.com. for more information.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora ® mode on your audio
system is selected.1 Pandora ® Menu
Available operating functions vary on software
versions. Some functions may not be available on the
vehicle's audio system.
If there is a problem, you may see an error message
on the audio/information screen. 2 Pandora ® P. 182
There are restrictions on the number of songs you
can skip or dislike in a given hour.

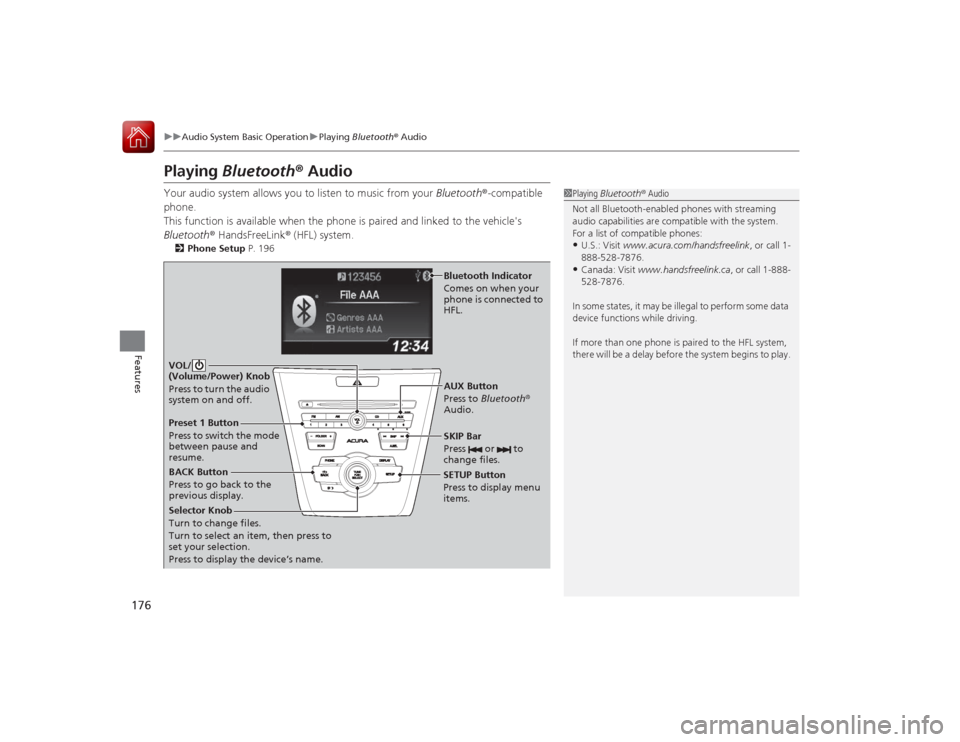

176
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features
Playing Bluetooth ® AudioYour audio system allows you to listen to music from your Bluetooth®-compatible
phone.
This function is available when the phone is paired and linked to the vehicle's
Bluetooth ® HandsFreeLink ® (HFL) system.2 Phone Setup P. 196
1Playing Bluetooth ® Audio
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:•U.S.: Visit www.acura.com/handsfreelink , or call 1-
888-528-7876.•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
In some states, it may be illegal to perform some data
device functions while driving.
If more than one phone is paired to the HFL system,
there will be a delay before the system begins to play.
BACK Button
Press to go back to the
previous display. SETUP Button
Press to display menu
items.SKIP Bar
Press or to
change files.
AUX Button
Press to
Bluetooth®
Audio.
VOL/
(Volume/Power) Knob
Press to turn the audio
system on and off.
Selector Knob
Turn to change files.
Turn to select an item, then press to
set your selection.
Press to display the device’s name.
Bluetooth Indicator
Comes on when your
phone is connected to
HFL.
Preset 1 Button
Press to switch the mode
between pause and
resume.

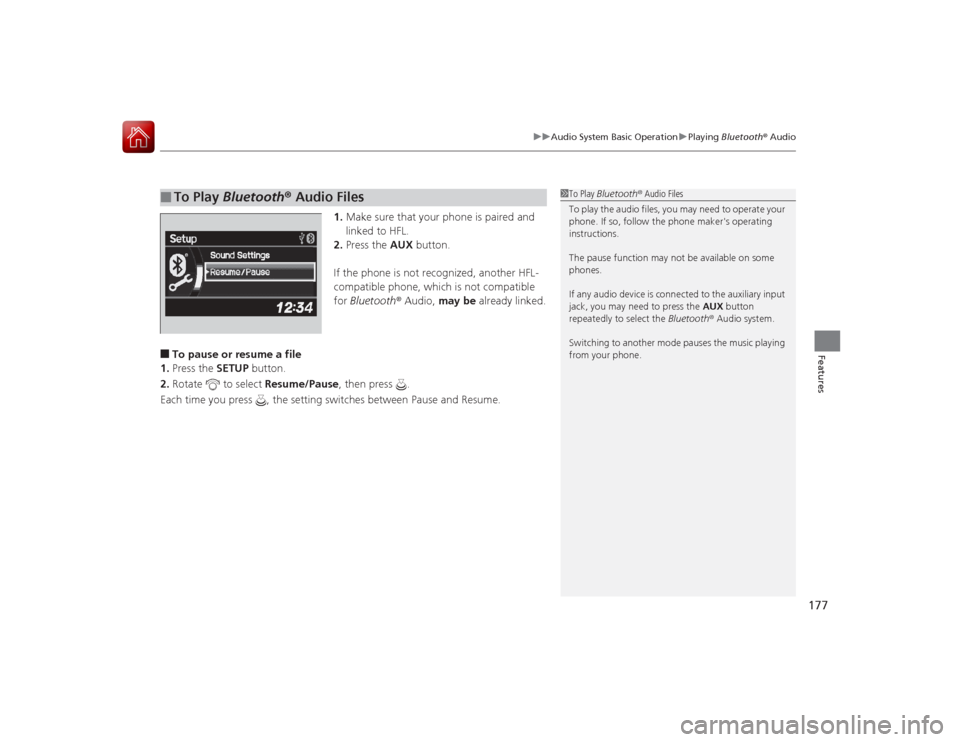

177
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features
1. Make sure that your phone is paired and
linked to HFL.
2. Press the AUX button.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may be already linked.
■To pause or resume a file
1. Press the SETUP button.
2. Rotate to select Resume/Pause, then press .
Each time you press , the setting switches between Pause and Resume.■
To Play Bluetooth ® Audio Files
1 To Play Bluetooth ® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.
The pause function may not be available on some
phones.
If any audio device is connected to the auxiliary input
jack, you may need to press the AUX button
repeatedly to select the Bluetooth® Audio system.
Switching to another mode pauses the music playing
from your phone.

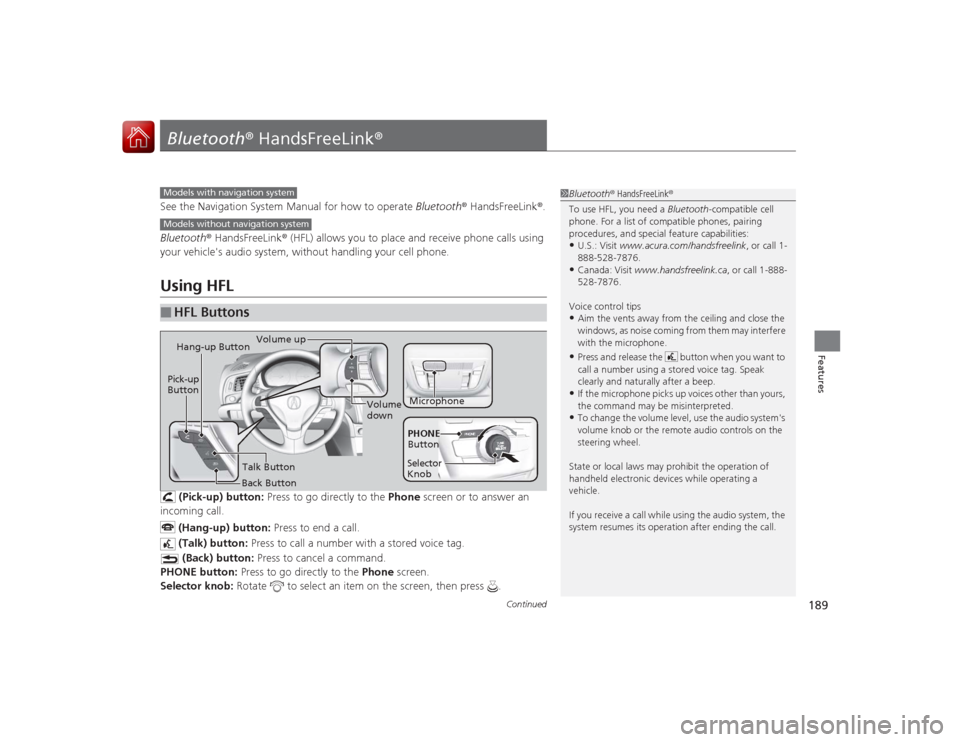

189
Continued
Features
Bluetooth® HandsFreeLink ®See the Navigation System Manual for how to operate Bluetooth® HandsFreeLink ®.
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up) button: Press to end a call.
(Talk) button: Press to call a number with a stored voice tag.
(Back) button: Press to cancel a command.
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■
HFL Buttons
1Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:•U.S.: Visit www.acura.com/handsfreelink , or call 1-
888-528-7876.•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
Voice control tips•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.•Press and release the button when you want to
call a number using a stored voice tag. Speak
clearly and naturally after a beep.•If the microphone picks up voices other than yours,
the command may be misinterpreted.•To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.
State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.
If you receive a call while using the audio system, the
system resumes its operation after ending the call.
Models with navigation systemModels without navigation system
Microphone
Pick-up
Button
Selector
KnobPHONE

Button
Hang-up Button
Volume up
Volume
down
Back Button Talk Button

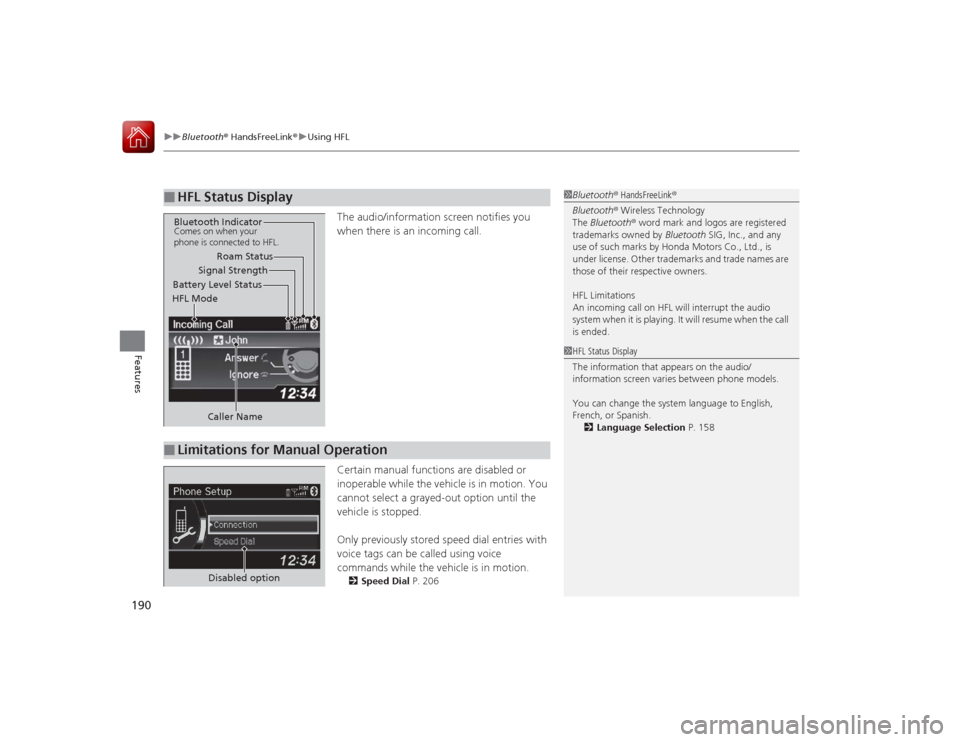

uuBluetooth ® HandsFreeLink ®u Using HFL
190Features
The audio/information screen notifies you
when there is an incoming call.
Certain manual functions are disabled or
inoperable while the vehicle is in motion. You
cannot select a grayed-out option until the
vehicle is stopped.
Only previously st ored speed dial entries with
voice tags can be called using voice
commands while the vehicle is in motion.2 Speed Dial P. 206
■
HFL Status Display
1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motors Co., Ltd., is
under license. Other trademarks and trade names are
those of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s te m wh e n it is p la y i n g . It wi ll re s u m e w h en t h e c a l l
is ended.
Signal Strength
HFL Mode Battery Level Status Roam Status
Caller Name
Bluetooth IndicatorComes on when your
phone is connected to HFL.■
Limitations for Manual Operation
1 HFL Status Display
The information that appears on the audio/
information screen varies between phone models.
You can change the system language to English,
French, or Spanish.
2 Language Selection P. 158
Disabled option
