E Position
As the engine turns, the oil pump also starts to operate. Automatic transmission fluid (ATF) is drawn from (99) and dis-
charged into (1 ). Then, ATF pressure is controlled by the regulator valve and becomes line pressure ( 1 ). The torque con-
verter inlet pressure (92) enters (94) of torque converter through the orifice and discharges into {90}.
The torque converter check valve prevents the torque converter pressure from rising'
Under this condition, the hydraulic pressure is not applied to the clutches.
NOTE:. When used, "left" or "right" indicates direction on the llowchart
. SOL-@: Shift Control Solenoid Valve A
' SOL{D:Shift Control Solenoid Valve B
. SOL@: Lock-up Control Solenoid Valve A
. SOL-@: Lock-up Control Solenoid Valve B
(cont'd)
14-29

Description
Hydraulic Flow (cont'd)

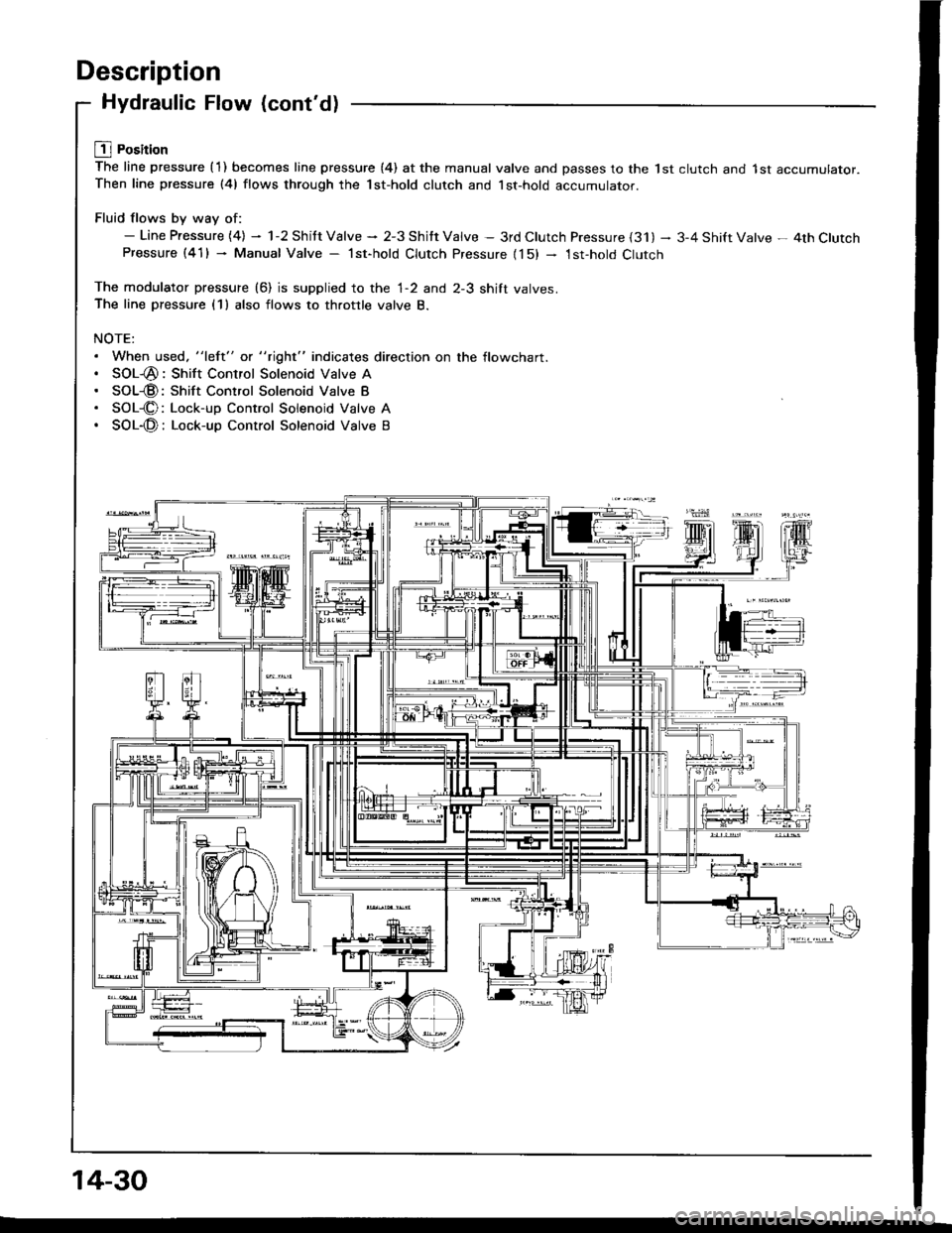

L1l Position
The line pressure {1) becomes line pressure (4) at the manual valve and passes to the lst clutch and 1st accumulator.Then line pressure (41 flows through the 1st-hold clutch and lst-hold accumulator.
Fluid flows by way of:- Line Pressure {4} - 1-2 Shitt Valve * 2-3 Shitt Valve - 3rd Clutch Pressure {31) - 3-4 Shift Valve - 4th ClutchPressure (41) - Manual Valve - lst-hold Clutch Pressure {15) - 1st-hold Clutch
The modulator pressure (6) is supplied to the 1-2 and 2-3 shift valves.The line pressure (1) also flows to throttle valve B.
NOTE:. When used. "left" or "right" indicates direction on the flowchart.. SOL-@: Shift Control Solenoid Valve A. SOL@: Shift Control Solenoid Valve B. SOL-@: Lock-up Control Solenoid Valve A. SOL-@: Lock-up Control Solenoid Valve B
14-30

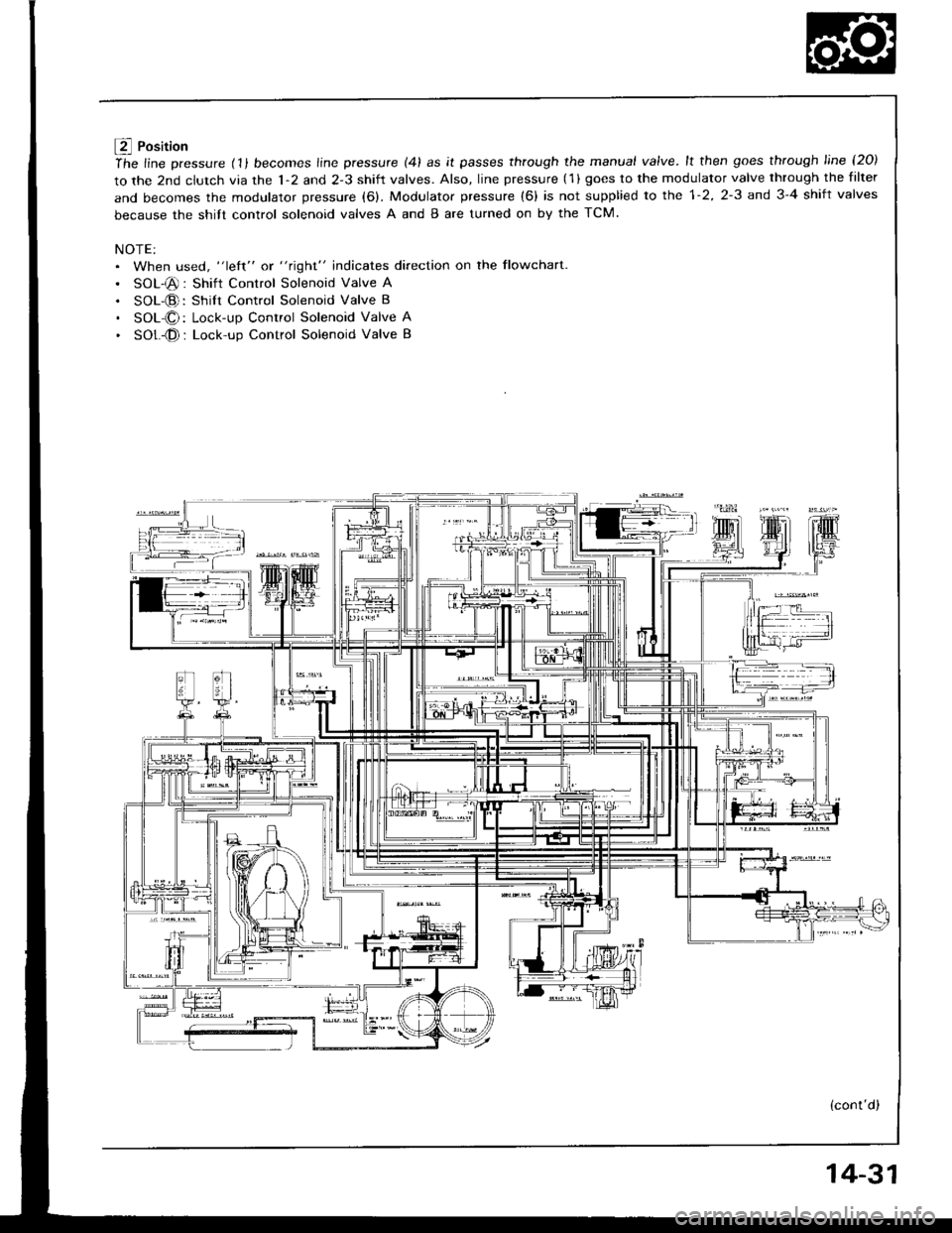

f4 Position
ihe line pressure (11 becomes line pressure (41 as it passes through the manual valve.lt then goes through line l2O)
to the 2nd clutch via the 1-2 and 2-3 shift valves. Also, line pressure (1 ) goes to the modulator valve through the filter
and becomes the modulator pressure (6). Modulator pressure (6) is not supplied to the 1-2, 2-3 and 3-4 shift valves
because the shitt control solenoid valves A and B are turned on by the TCM.
NOTE:. When used, "left" or "right" indicates direction on the flowchart
. SOL-@: Shift Control Solenoid Valve A
. SOL-@: Shilt Control Solenoid Valve B
. SOL-O: Lock-up Control Solenoid Valve A
. SOt -@ : Lock-up Control Solenoid Valve B
(cont'd)
14-31

Description
Hydraulic Flow (cont'dl

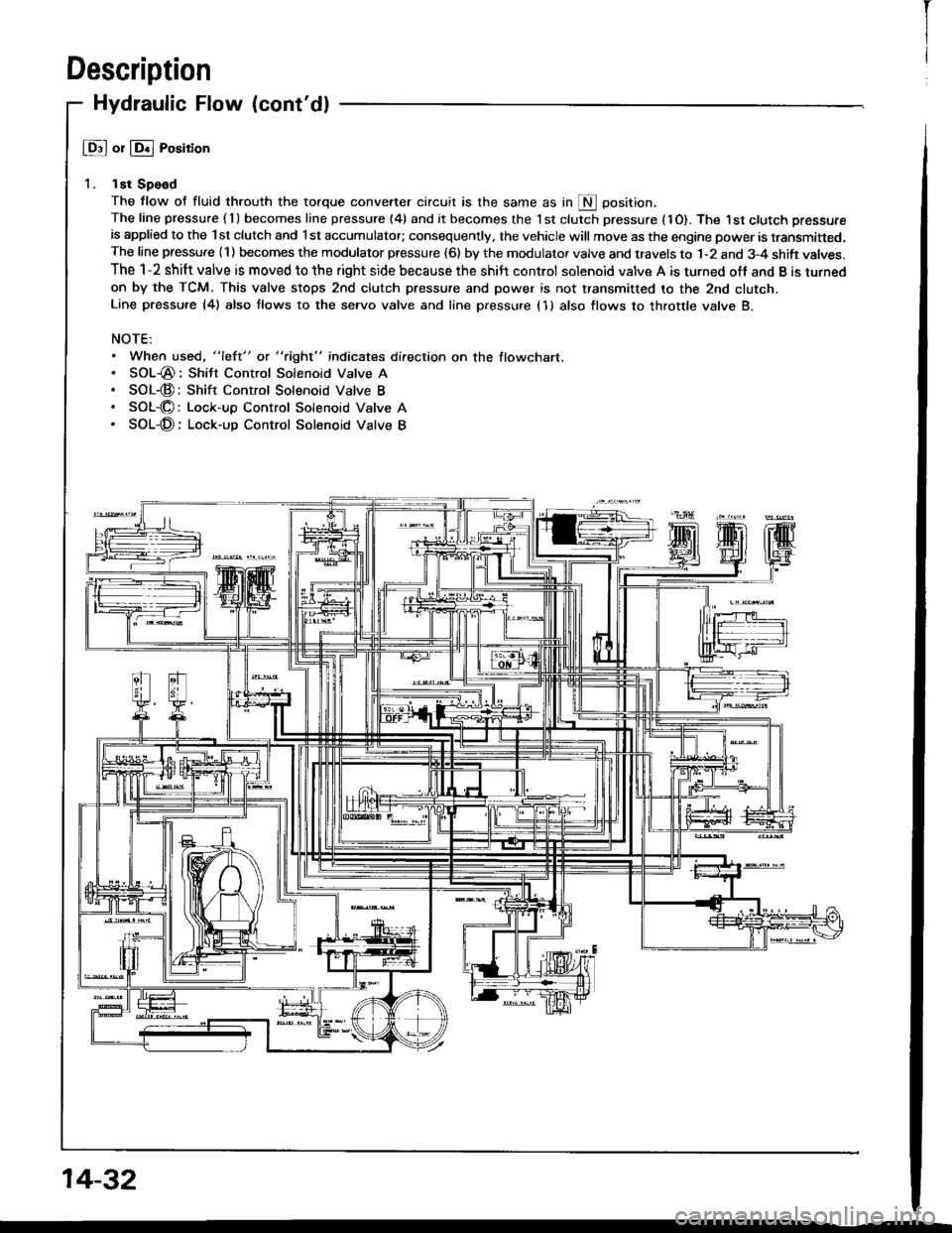

@ or @ Position
1. lst Spe€d
The flow of fluid throuth the torque convener circuit is the same as in S Oosition.The line pressure ( 1 ) becomes line pressure (4) and it becomes the 1 st clutch pressure (1O). The I st ctutch pressure
is applied to the lst clutch and l st accumulator; consequently, the vehicle will move as the engine power is transmitted.The line pressure (1) becomes the modulator pressure (6) by the modulator valve and travels to 1-2 and 3-4 shift valves.
The 1-2 shift valve is moved to the right side because the shilt control solenoid valve A is turned off and B is turned
on by the TCM. This valve stops 2nd clutch pressure and power is not transmitted to the 2nd clutcn.Line pressu.e {4) also tlows to the seryo valve and line pressure (1 } also flows to throttle valve B.
NOTE:. When used, "left" or "right" indicates direction on the flowchart.. SOL-@: Shitt Control Solenoid Valve A. SOL-@:Shift Control Solenoid Valve B. SOL-O: Lock-up Control Solenoid Valve A. SOL-@: Lock-up Control Solenoid Valve B
14-32
I

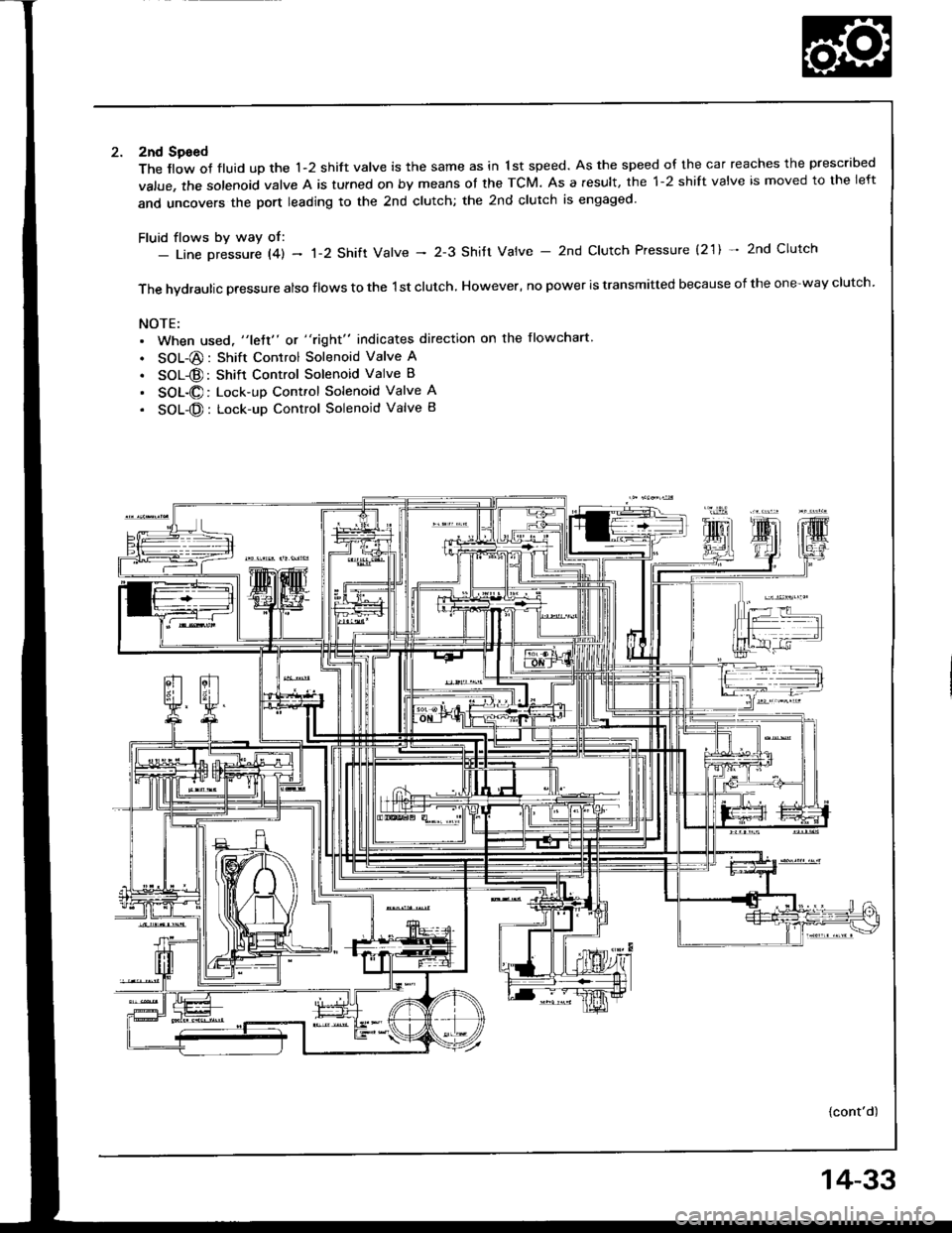

2nd Sgeed
The llow of fluid up the 1-2 shift valve is the same as in 1st speed. As the speed of the car reaches the prescribed
value, the solenoid valve A is tulned on by means ot the TCM. As a result, the 1-2 shift valve is moved to the left
and uncovers the port leading to the 2nd clutch; the 2nd clutch is engaged'
Fluid flows by way of:- Line Dressure l4l - 'l-2 Shift Valve - 2-3 Shitt Valve - 2nd Clutch Pressure (2'1) * 2nd Clutch
The hvdraulic pressure also flows to the 1st clutch, However, no power is transmitted because of the one-way clutch.
NOTE:. When used, "lett" or "right" indicates direction on the flowchart
. SOL-@: Shift Control Solenoid Valve A
. SOL@: Shift Control Solenoid Valve B
. SOL-@: Lock-up Control Solenoid Valve A
. SOL-@: Lock-up Control Solenoid Valve B
{cont'd)
14-33

Description
Hydraulic Flow (cont'd)

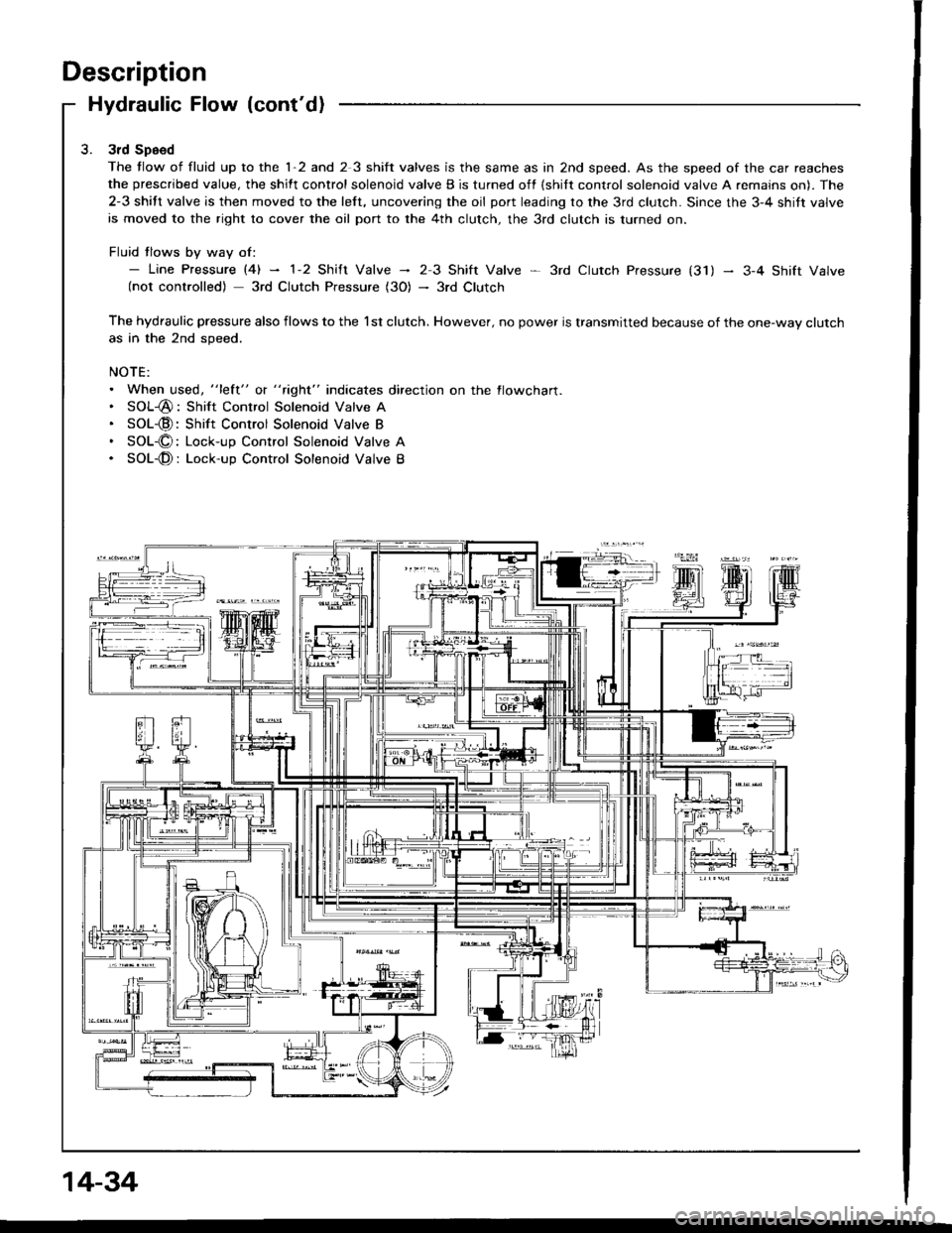

3rd Speed
The tlow of fluid up to the 1-2 and 2 3 shift valves is the same as in 2nd speed. As the speed of the car reaches
the prescribed value, the shift control solenoid valve B is turned off {shilt control solenoid valve A remains on). The
2-3 shift valve is then moved to the left, uncovering the oil port leading to the 3rd clutch. Since the 3-4 shitt valve
is moved to the right to cover the oil port to the 4th clutch, the 3rd clutch is turned on.
Fluid tlows by way of:- Line pressure l4l - 1-2 shift valve - 23 Shift Valve * 3rd ctutch pressure (31) - 3-4 shift valve(not controlled) 3rd Clutch Pressure (3O) - 3rd Clutch
The hydraulic pressure also flows to the l st clutch. However, no power is transmitted because of the one-way clutchas in the 2nd speed.
NOTE:. When used, "lett" o( " tight" indicates direction on the flowcharl.. SOL-@: Shift Control Solenoid Valve A. SOL-@:Shift Control Solenoid Valve B. SOL-O: Lock-up Control Solenoid Valve A. SOL-@: Lock-up Control Solenoid Valve B
14-34

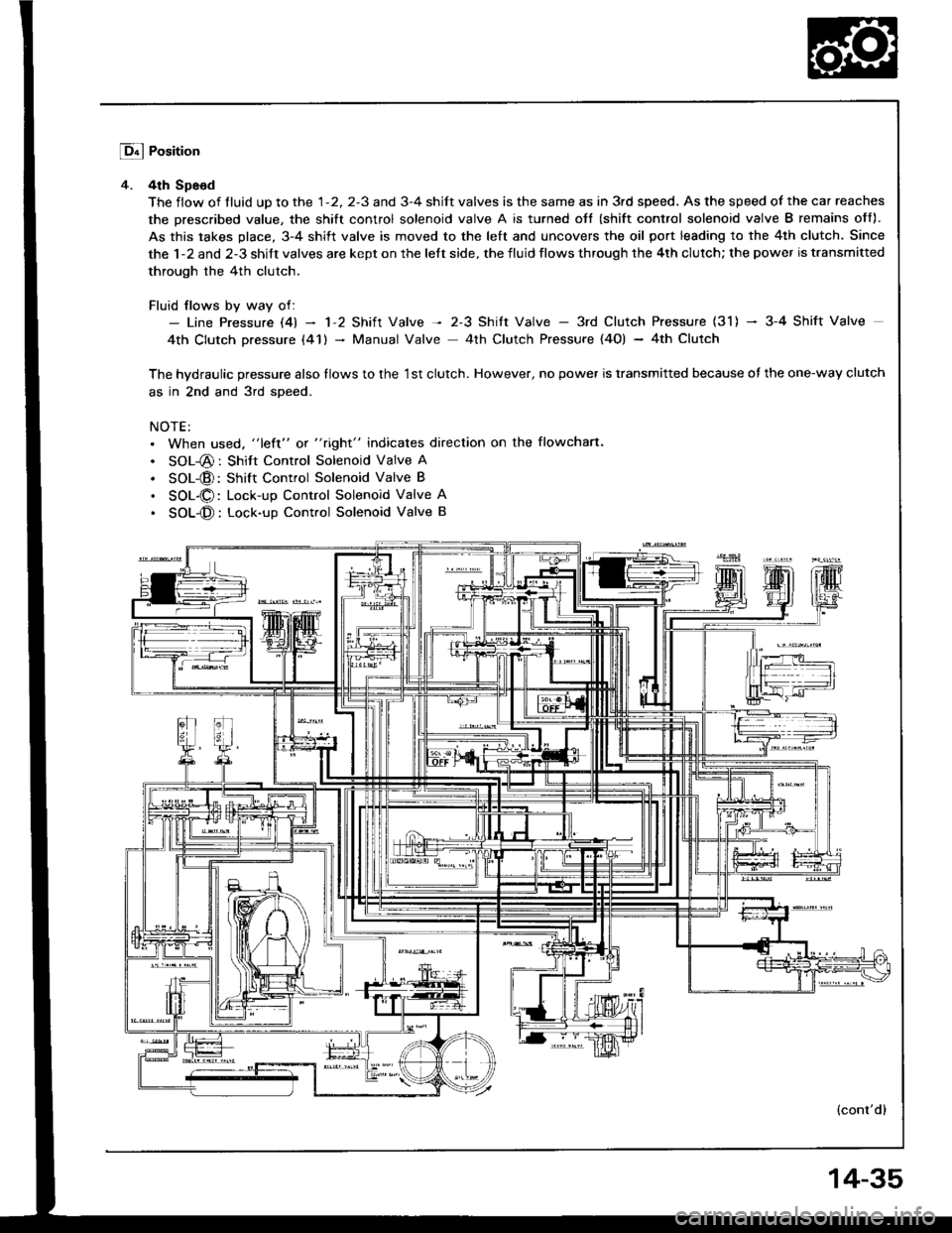

Lq4 Position
4. 4th Spe6d
The flow of tluid up to the 1-2, 2-3 and 3-4 shift valves is the same as in 3rd speed. As the speed of the car reaches
the prescribed value, the shift control solenoid valve A is turned oJt (shift control solenoid valve B remains off).
As this takes place, 3-4 shift valve is moved to the left and uncovers the oil port leading to the 4th clutch. Since
the 1-2 and 2-3 shift valves are kept on the left side, the fluid flows through the 4th clutch; the power is transmitted
through the 4th clutch.
Fluid flows by way of:- Line Pressure l4l - 'l'2 Shift Valve -t 2-3 Shitt Valve - 3rd Clutch Pressure (31) - 3-4 Shift Valve
4th Clutch pressure (41) - Manual Valve 4th Clutch Pressure {4O) - 4th Clutch
The hvdraulic pressure also tlows to the '1st clutch. However, no power is transmitted because of the one-way clutch
as in 2nd and 3rd soeed.
NOTE:. When used, "left" or "right" indicates direction on the flowchan.
. SOL-@: Shitt Control Solenoid Valve A
. SOL-@: Shift Control Solenoid Valve B
. SOL-O: Lock-up Control Solenoid Valve A
. SOL-@: Lock-up Conttol Solenoid Valve B
(cont'dl
14-35

Description
Hydraulic Flow (cont'd)

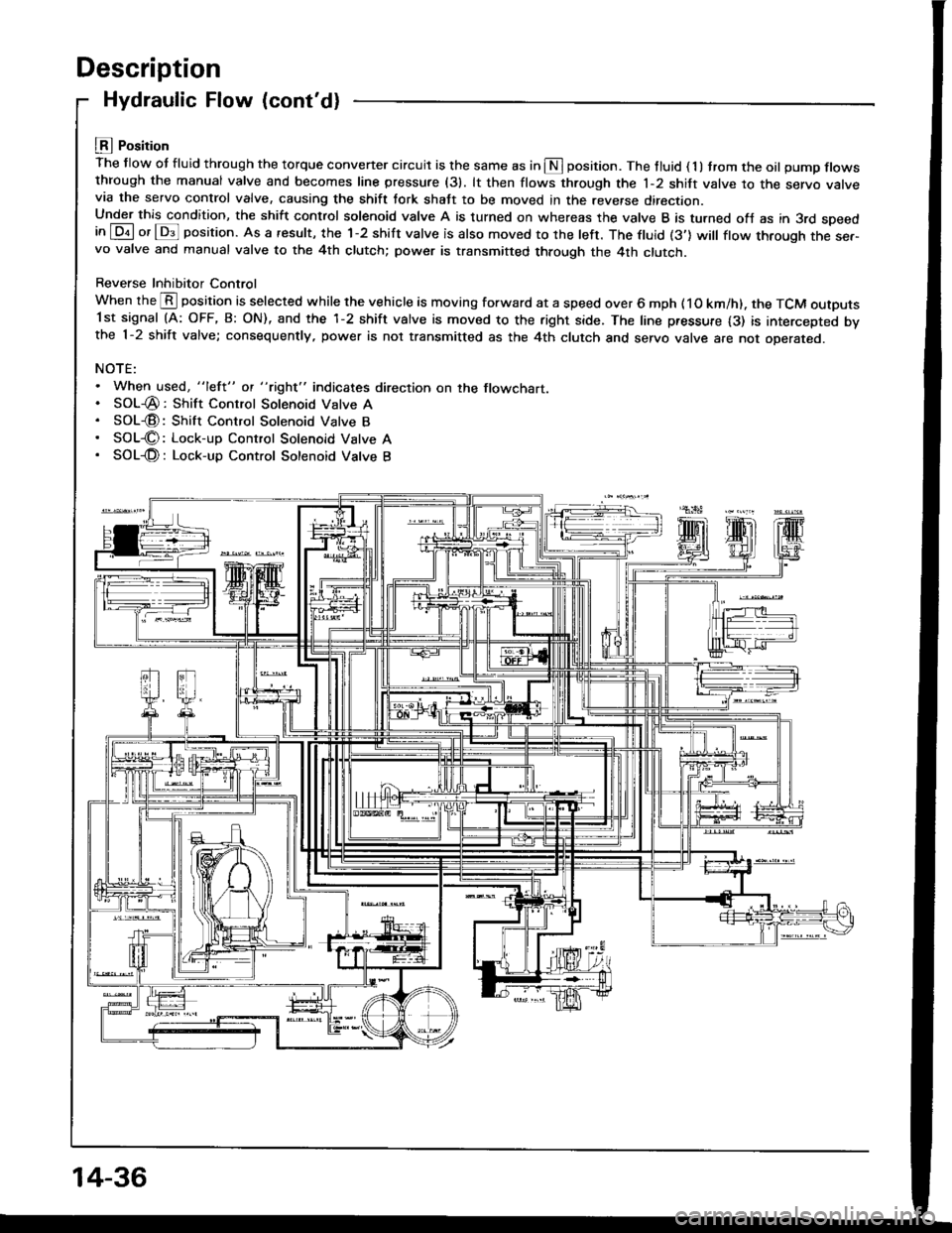

LEI Position
The flow ot fluid through the torque convener circuit is the same as in S position. The tluid ( 1 ) trom the oil pump flowsthrough the manual valve and becomes line pressure (31. lt then flows through the 1-2 shift valve to the servo varvevia the servo control valve, causing the shift tork shatt to be moved in the reverse direction.Under this condition, the shift control solenoid valve A is turned on whereas the valve B is turned ofJ as in 3rd speedin [Dil or lDs]l position. As a result, the 1-2 shift valve is also moved to the left. The ftuid (3'] will ftow through the ser-vo valve and manual valve to the 4th clutch; power is transmitted through the 4th clutch.
Reverse Inhibitor Control
When the @ position is selected while the vehicle is moving forward at a speed over 6 mph ( 1O km/h). the TCM outputs1st signal (A: OFF, B: ON), and the 1-2 shift valve is moved to the right side. The line pressure {3) is intercepted bvthe 1-2 shift valve; consequently, power is not transmitted as the 4th clutch and servo valve are not oDerareo.
NOTE:. When used, "lefl" ot "tight" indicates direction on the flowchart.. SOL-@: Shift Control Solenoid Valve A. SOL€: Shift Control Solenoid Valve B. SOL€: Lock-up Control Solenoid Vatve A. SOL-@: Lock-up Control Sotenoid Vatve B
14-36

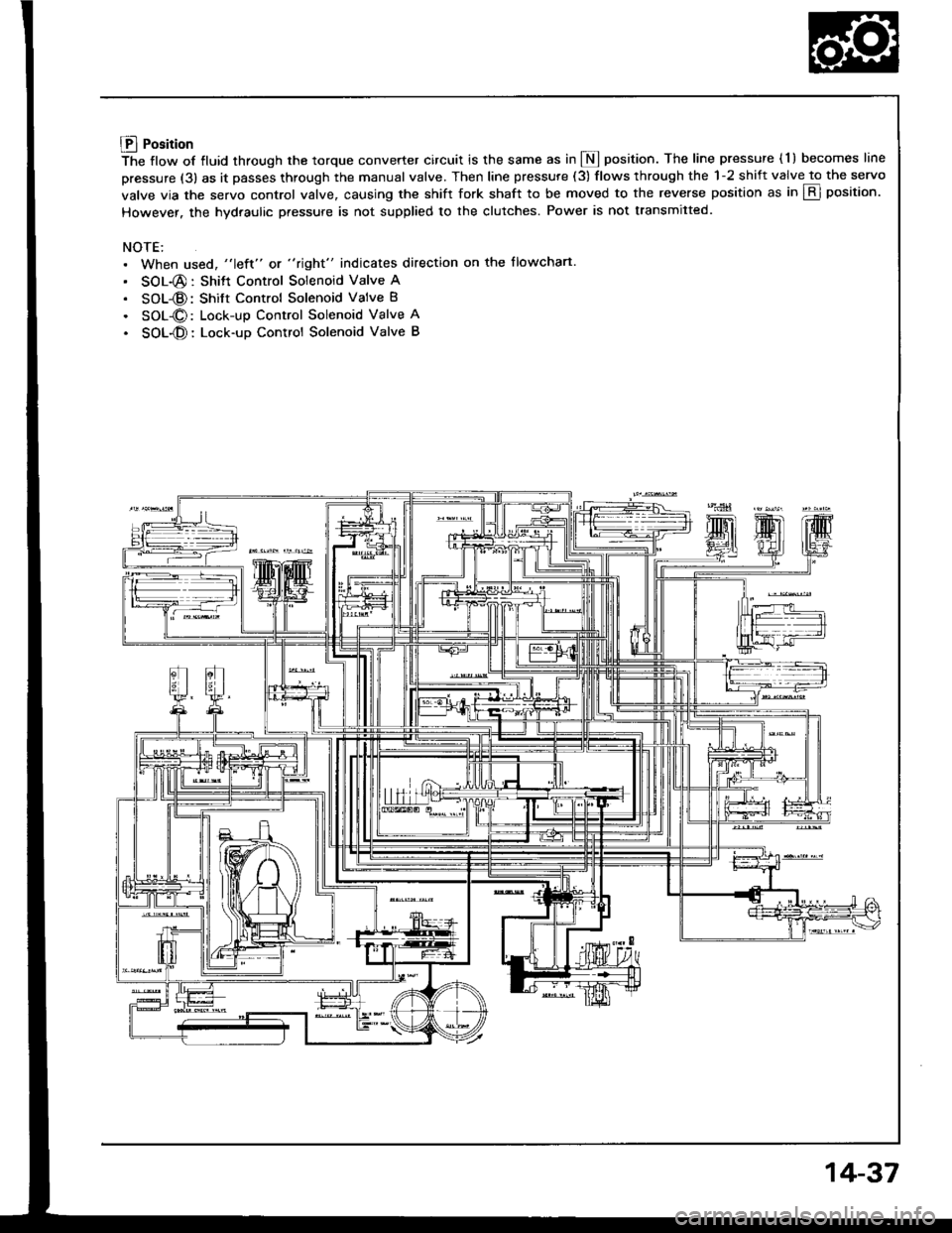

Lll Position
The flow of fluid through the torque converter circuit is the same as in I position. The line pressure ( l ) becomes line
pressure (3) as it passes through the manual valve. Then line pressure (3) flows through the 1-2 shift valve to the servo
valve via the servo control valve. causing the shift fork shaft to be moved to the reverse position as in E position.
However. the hydraulic pressure is not supplied to the clutches. Power is not transmitted.
NOTE:. When used, "left" or "right" indicates direction on the flowchart.
. SOL-@: Shitt Control Solenoid Valve A
. SOL-@: Shift Control Solenoid Valve B
. SOL-O: Lock-up Control Solenoid Valve A
. SOL-O: Lock-up Control Solenoid Valve B
14-37

Description

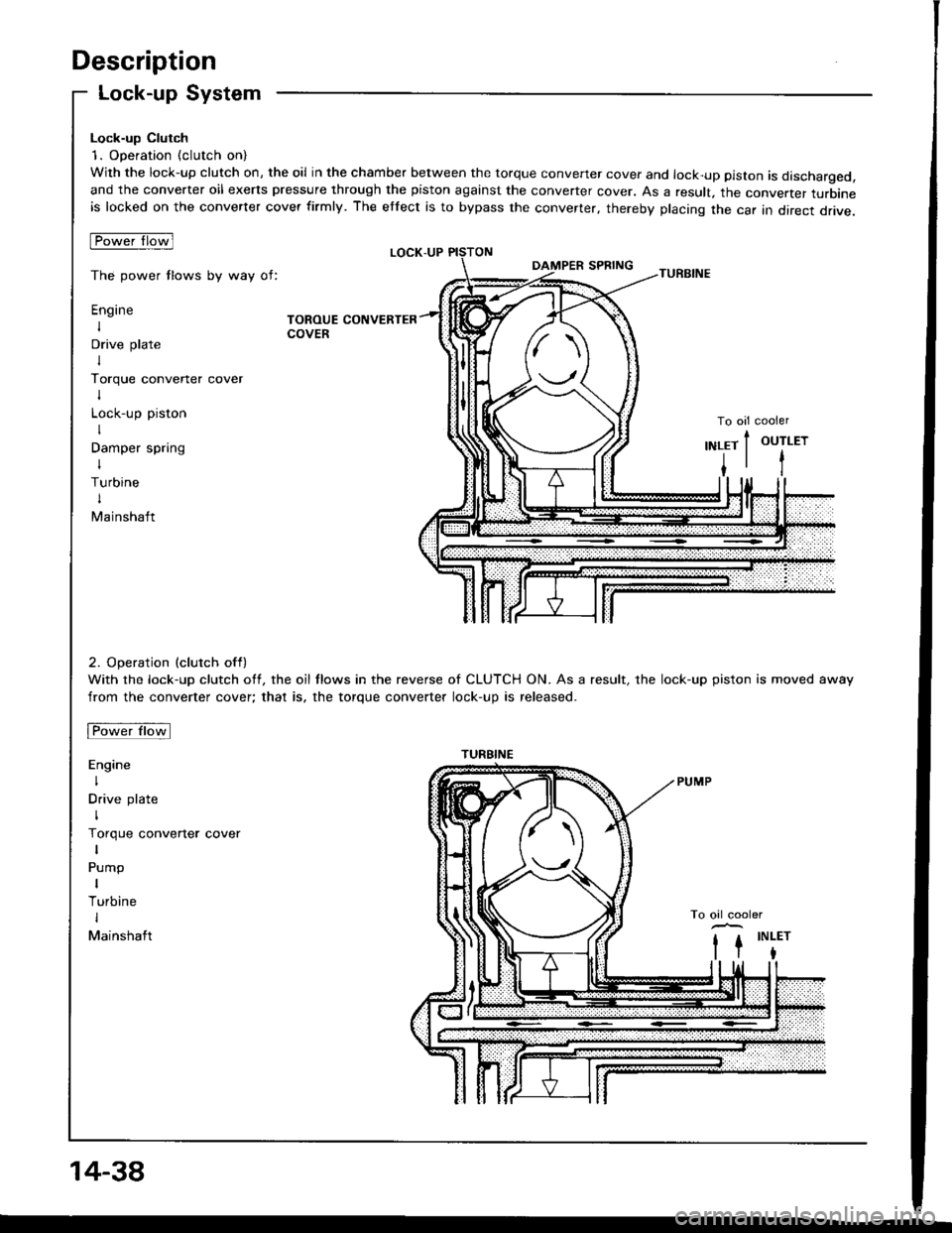

Lock-up System
Lock-up Clutch
1. Operation (clutch on)
With the lock-up clutch on, the oil in the chamber between the torque convener cover and lock-up piston is discharged,and the converter oil exerts pressure through the piston against the converter cover. As a result, the converter turbineis locked on the converter cover firmly. The etfect is to bypass the converter, thereby placing the car in direct drive.
tpowefJlo-wl
The power tlows by way of:
Engine
I
Drive plate
I
Torque convener cover
I
Lock-up piston
I
Damper spring
I
Turbine
t
Mainshaft
TOROUE CONVERTERCOVER
LOCK-UP
TURBINE
To oil cooler
2. Operation (clutch off)
With the lock-up clutch off, the oil tlows in the reverse of CLUTCH ON. As a result, the lock-up piston is moved away
from the converter cover; that is, the torque converter lock-up is released.
Fowtttowl
Engine
I
Drive plate
I
Torque converter cover
Pump
I
Turbine
I
Mainshaft
OUTLET
t
,\
TURBINE
14-38
