ACURA INTEGRA 1994 Service Repair Manual

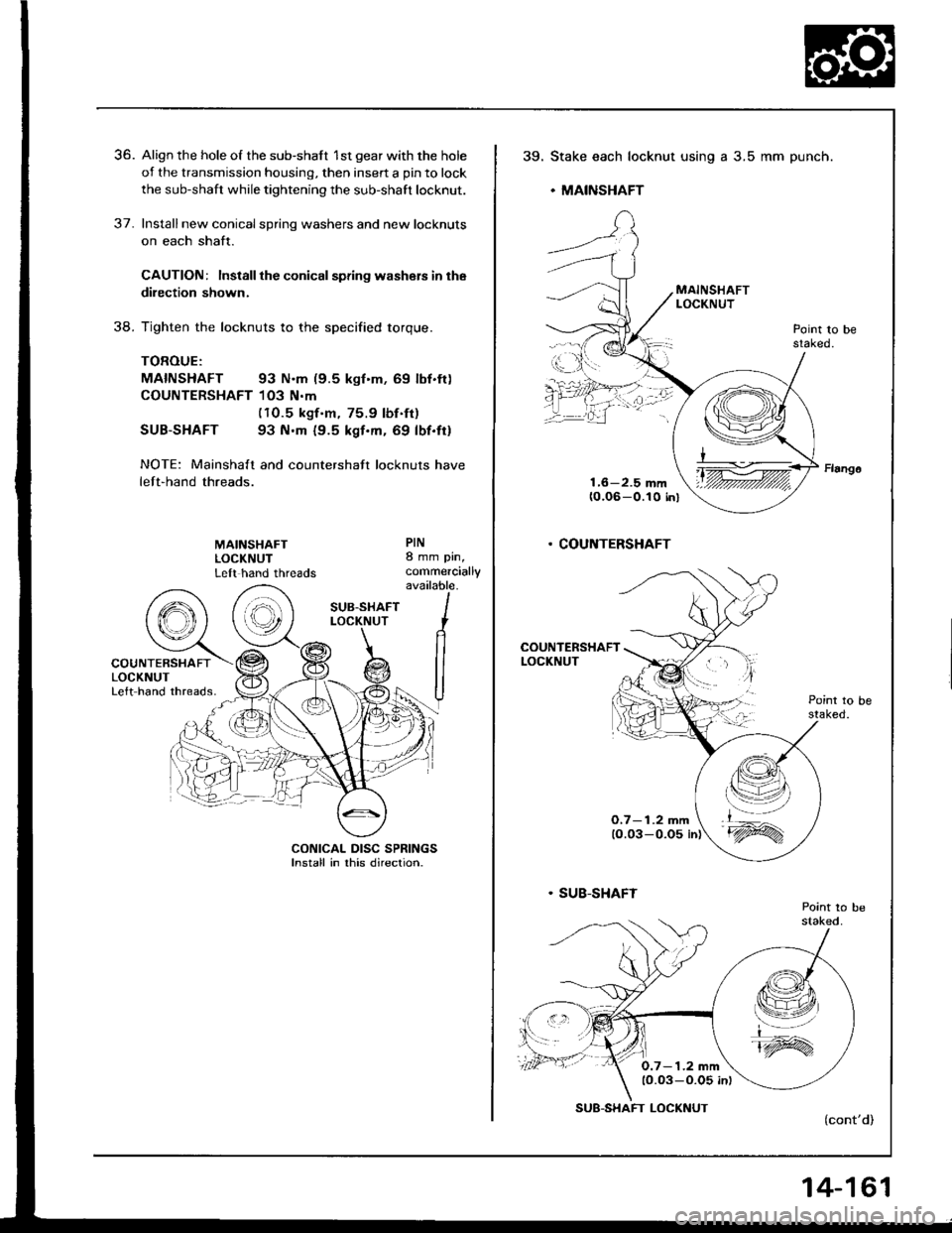

36. Align the hole of the sub-shaft 1st gear with the hole
of the transmission housing, then insert a pin to lock
the sub-shaft while tightening the sub-shaft locknut.
37. Installnew conicalspring washers and new locknuts
on each shaft.
CAUTION: Install the conical spdng washers in the
dilection shown.
38. Tighten the locknuts to the specified torque.
TOROUE:
MAINSHAFT 93 N.m (9.5 kgf'm, 69 lbf.ft)
COUNTERSHAFT 103 N.m(1O.5 kgf.m, 75.9 lbf.ft)
SUB-SHAFT 93 N.m (9.5 kgf.m. 69 lbf.fi)
NOTE: Mainshalt and countershaft locknuts have
left-hand threads.
CONICAL DISC SPRINGSlnstall in rhis direcrion.
39.Stake each locknut using
. MAINSHAFT
a 3.5 mm punch.
. COUNTERSHAFT
O,7- 1.2 mm
0.7- 1.2 mm1O.03-O.05 in)
SUB-SHAFT LOCKNUT
14-161

Transmission
Reassembly (cont'dl

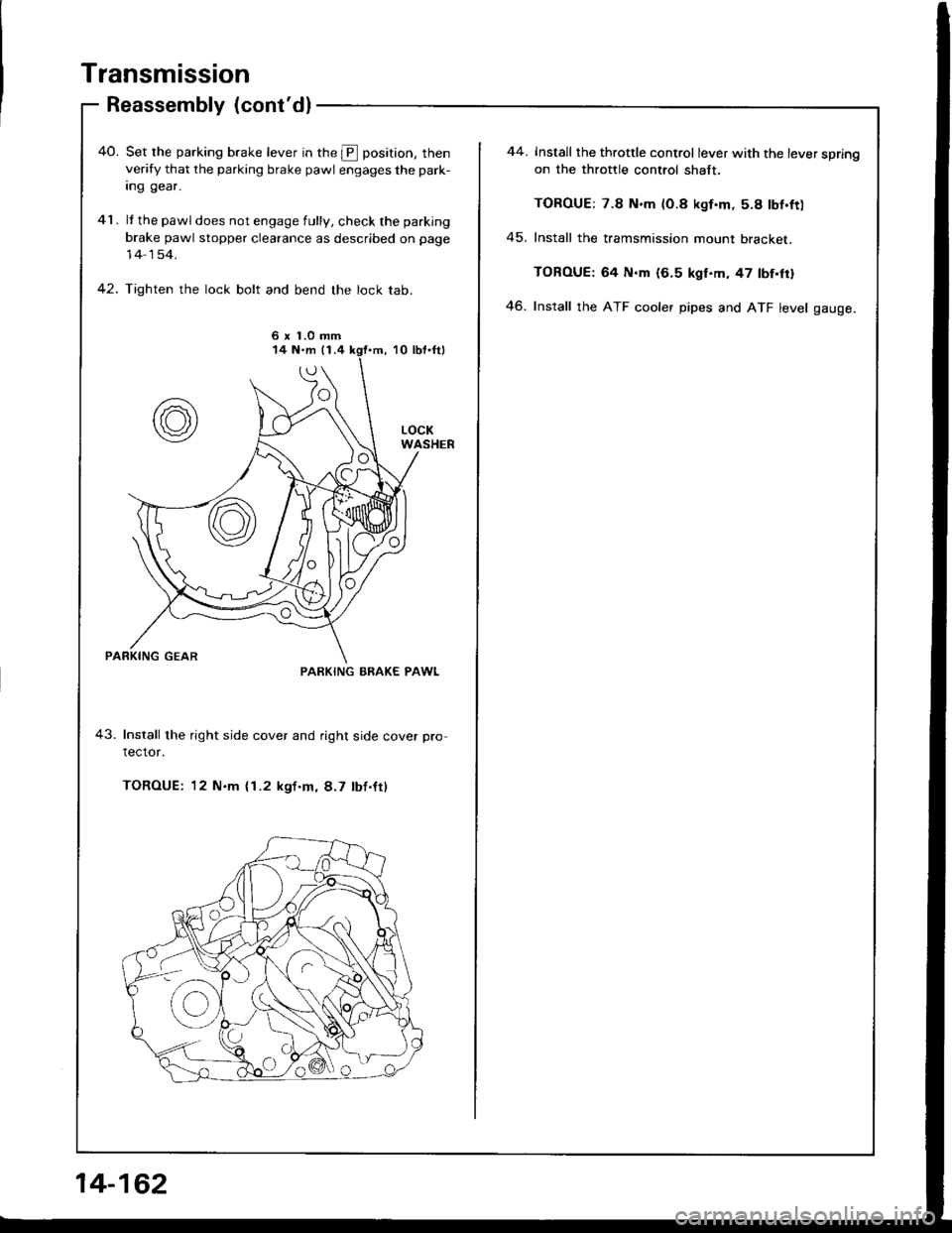

40. Set rhe parking brake lever in the E position, thenverify that the parking brake pawl engages the park-
Ing gear.
41. lf thepawldoes notengagefully, checkthe parking
brake pawl stopper clearance as described on page
14-1 54.
42. Tighten the lock bolt and bend the lock tab.
10 tbf.frl
PARKING GEAR
Install the right side cover and right side cover pro
lecror.
TOROUE: 12 N.m {1.2 kgf.m, 8.7 lbf.ftl
6x 1.0 mm
PARKING BRAKE PAWL
14-162
44. Install the throttle control leverwiththe lever springon the throttle control shaft.
TOROUE: 7.8 N.m (O.8 kgf.m, 5.8 tbf.ft)
45. Install the tramsmission mount bracket.
TOROUE: 64 N.m (6.5 kgf.m, 47 lbf.trl
46. Install the ATF cooler pipes and ATF level gauge.

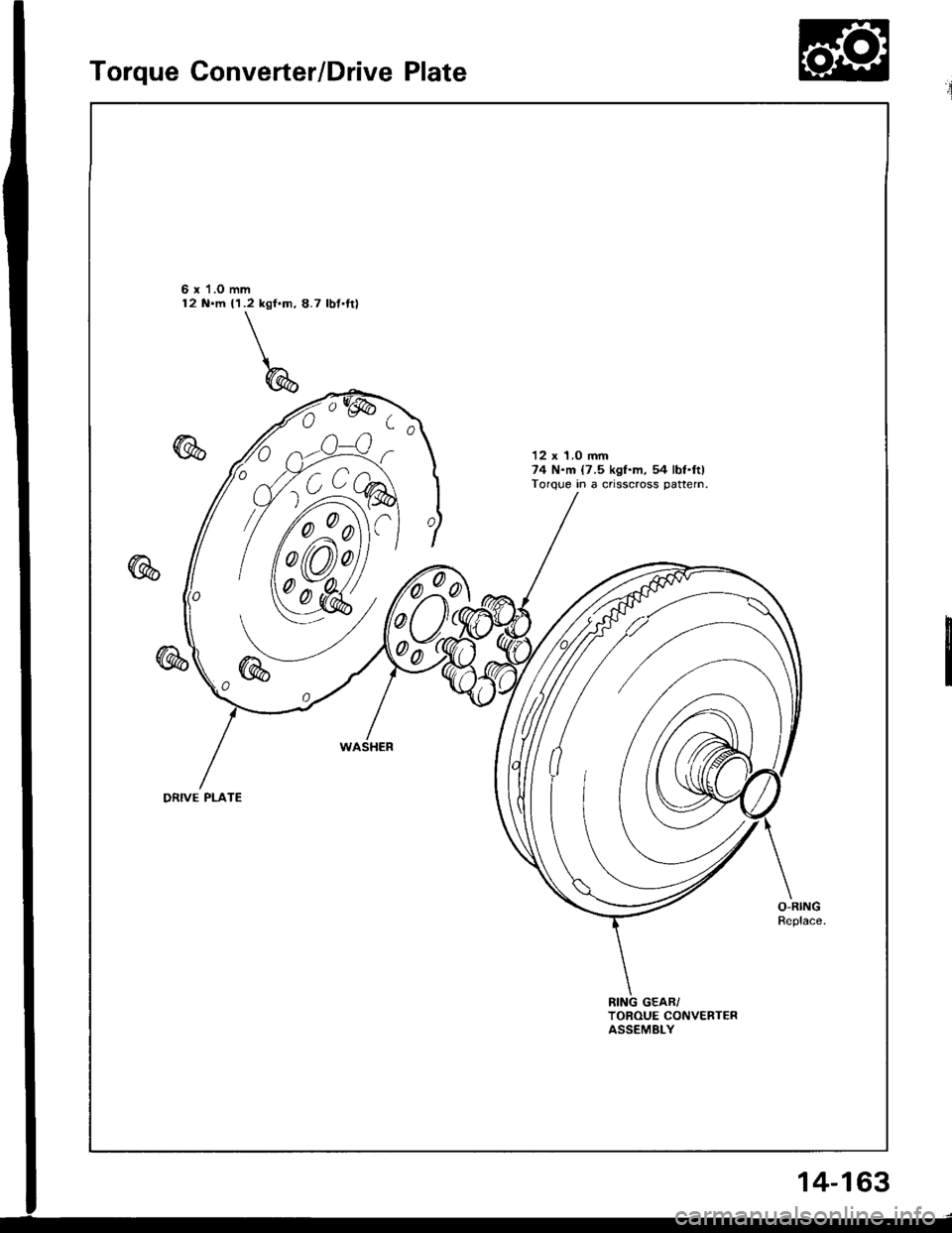

Torque Converter/Drive Plate
6 x'l.O mm12 N.m {1.2 kgf.m, 8.7 lbf'tt)
12 x 1.0 mm74 N.m {7.5 kgf.m, 54 lbl.ftlTorque in a crisscross pattern.
0
0d
DRIVE PLATE
TOROUE CONVERTERASSEMELY
14-163

Transmission

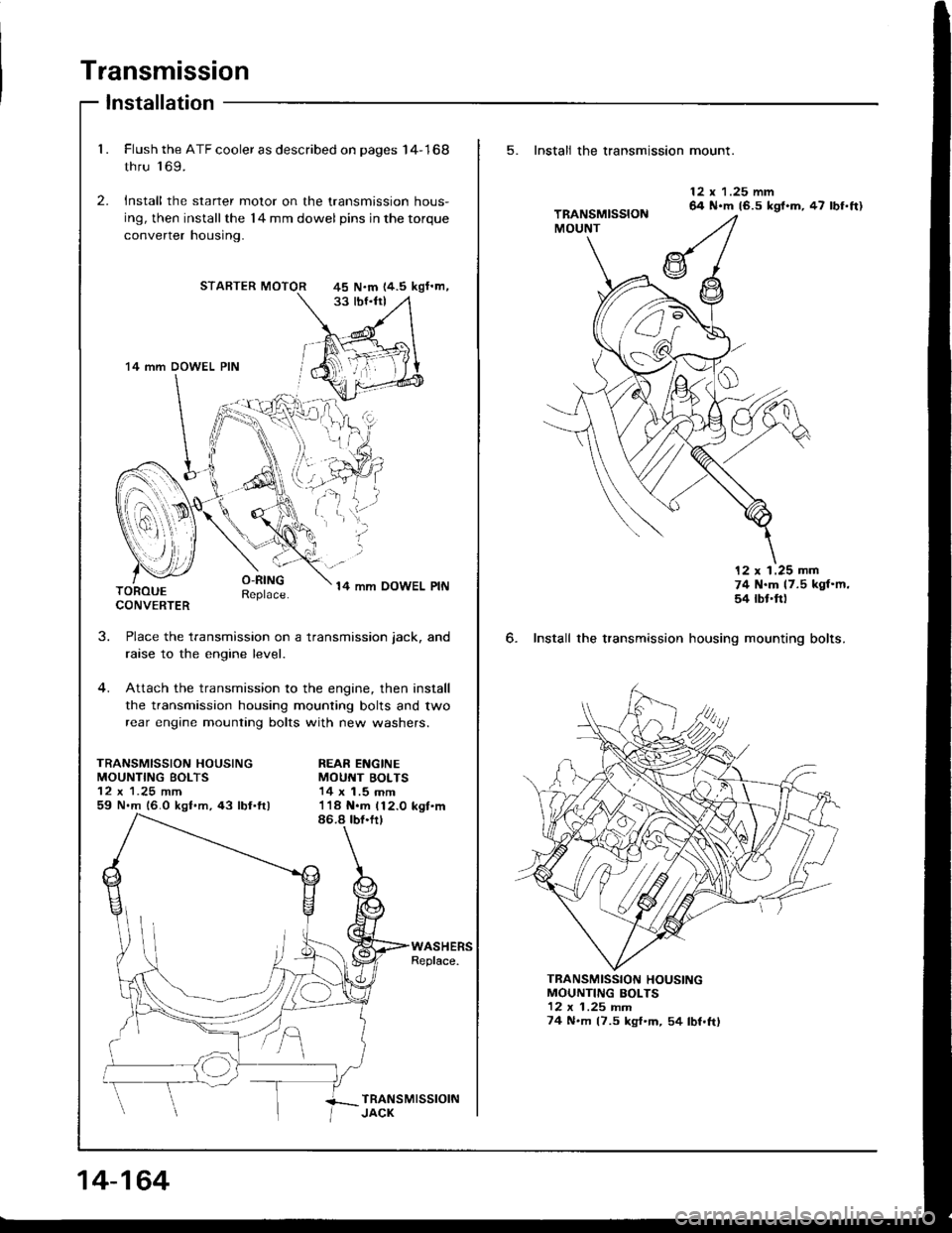

Installation
1. Flush the ATF cooler as described on pages I4-168
thru 'l 69.
2. Install the starter motor on the transmission hous-
ing, then installthe l4 mm dowel pins in the torque
converrer nousrng.
STARTER MOTOR
O-RINGReplace.14 mm OOWEL PINTOROUECONVERTER
J.
TRANSMISSION HOUSINGMOUNTING BOLTS
59 N.m 16.0 kgf.m,43 lbl.ftl
Place the transmission on a transmission jack, and
raise to the engine level.
Attach the transmission to the engine, then install
the transmission housing mounting bolts and two
rear engine mounting bolts with new washers.
REAR ENGINEMOUNT BOLTS14 x 1.5 mm
45 N.m 14.5 kgf'm,
'14 mm DOWEL PIN
I
i.'l,i;
14-164
5. Install the transmission mount.
6. Install the transmission
12 x 1.25 mm64 N.m 16.5 kgl.m, 47 lbf.ft)
12 x 1.25 mm74 N.m 17.5 kgf'm,54 rbt'ft)
housing mounting bolts.
MOUNTING BOLTS12 x 1 .25 rnm74 N.m (7.5 kgf'm, 54 lbf.ftl
TRANSMISSION HOUSING

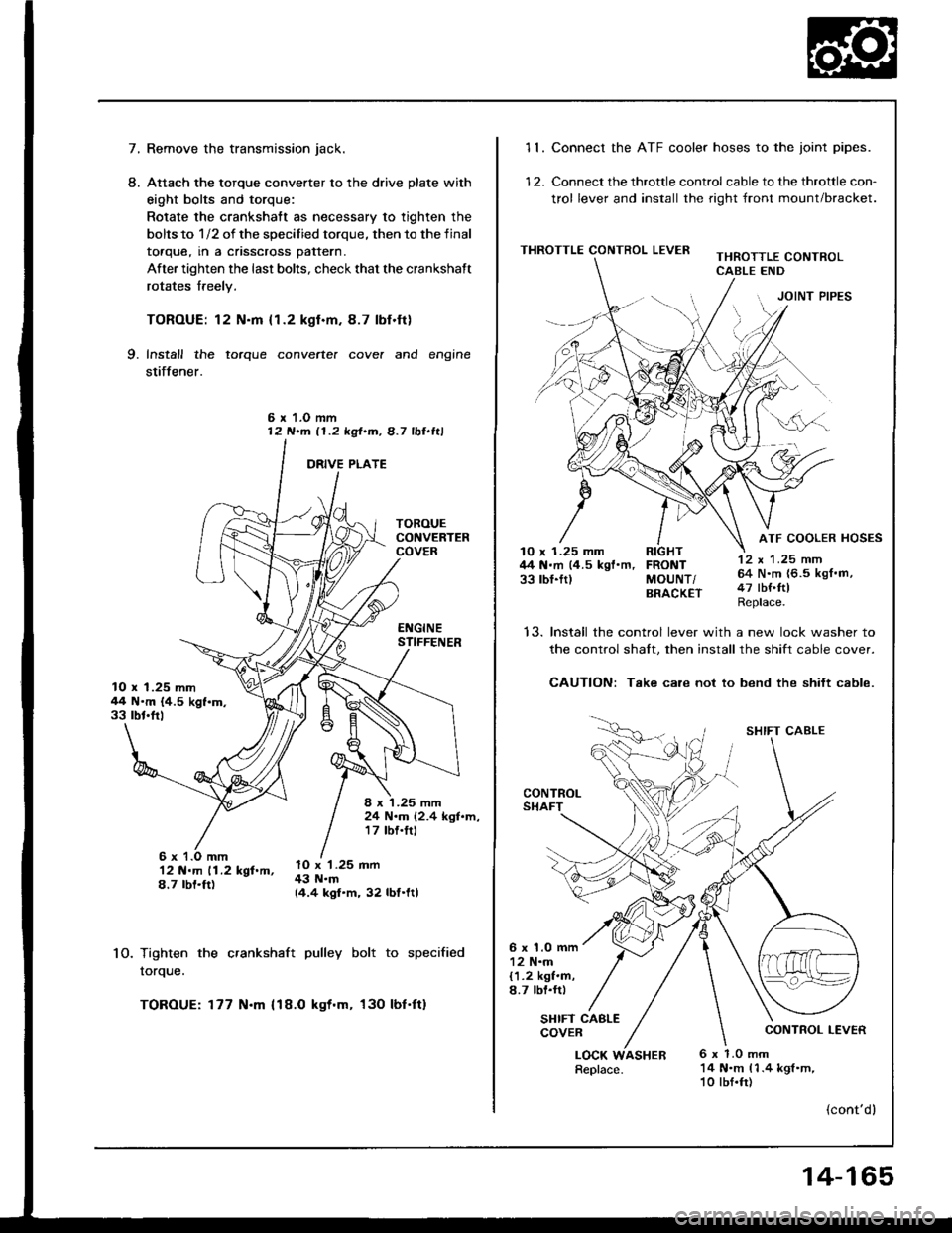

7.Remove the transmission jack.
Attach the torque converter to the drive plate with
eight bolts and torque:
Rotate the crankshatt as necessary to tighten the
bolts to 1/2 of the specilied torque, then to the final
toaque, rn a cnsscross pattern.
After tighten the last bolts, check that the crankshaft
rotates freely.
TOROUE: 12 N.m {1.2 kgl.m.8.7 lbf.ft}
Install the torque converte. cove. and engine
stiffener.
L
9.
6 r 1.O mm12 N.m 11.2 kgt.m, 8.7 lbl.ltl
10.
12 N.m 11.2 kgf.m,8.7 rbt.ft)
Tighten the crankshaft pulley bolt to specified
rorque.
TOROUE: 177 N.m {18.O kgt.m, 130 lbf'ft}
10 x 1.25 mm44 N'm {4.5 kgf.m.33 rbt'frl
8 x '1.25 mm24 N.m (2.4 kgl.m,17 tbf.trl
lO x '1.25 mm43 N.m14.4 kgf.m, 32 lbf.ltl
11. Connect the ATF cooler hoses to the joint pipes.
12. Connect the throttle control cable to the throttle con-
trol lever and install the right front mount/bracket.
THROTTLE CONTROL LEVERTHROTTLE CONTROLCABLE END
JOINT PIPES
12 x 1 .25 mm64 N.m {6.5 kgf.m,47 tbf.ftlReplace.
ATF COOLER HOSES10 x 1.25 mm RIGHT44 N.m (4.5 kgf'm, FRONT33 rbl.ftl MoUNT/BRACK€T
t5.Install the control lever with a new lock washer to
the control shalt. then install the shift cable cover.
CAUTION: Take care not to bend the shift cable.
CONTROLSHAFT
SHIFT CABLE
CONTROL LEVER
6 x 1.0 mm12 N.m{1.2 kgf.m,8.7 lbl.rr)
SHIFT CABLECOVER
LOCK6 x 1.0 mm14 N.m 11.4 kgl.m,10 lbf.fr)
(cont'dl
Replace.ASHER
14-165

Transmission
Installation {cont'd)
14.
15.
Install new set rings on the end of the intermediate
shaft and the driveshaft.
Install the intermediate shaft.
SET RINGBeplace.
16.
10 x 139 N.m14.O kgf.m, 29 lbf.ftl
Install exhaust pipe A. and connect the heated oxv-gen sensor {HO2S) connector.
SELF-LOCKING NUT10 x 1.25 mm54 N.m (5.5 kgl.m,40 rbt.trlReplace.
GASKETReplace.
SELF.LOCKING NUTSI x 1.25 mm22 N.m 12.2 kgl'n,16 lbt.trlRepl6ce.
SHAFT
14-166
DAMPER PINCH BOLT10 x 1.25 mm43 N.m 14.4 kgf.m,32 tbr.ftl
1 7. Install the right and left drivershafts (see section l6l.
NOTE: Turn the right and left steering knuckle fullyoutward, and slide the right driveshaft into the
differential until you feel its spring clip engages theside geaf. Slide the left driveshaft into the intermedi-
ate shaft until you teel the spring clip of the inter-mediate shaft engage the driveshaft.
18. Install right damper fork, then install the right andlett balljoints to each lower arm with the castle nuts
and new cotter Dins.
\
COTTERReplace.CASTLE NUT12 x 1.25 mm49-59 N.m{5.O-6.0 ksf.m, 36-43
SELF.LOCKING NUT12 x 1 .25 mm64 N.m (6.5 kgl.h, 47 lbt.ftlReplace.
rbt'ft1
19. Install the splash shield.
6 x 10 mm BOLT
cltPs, 5

20. Connect the vehicle speed sensor (VSS), mainshatt
speed sensor and counterchalt speed sensor con
nectors.
VEHICLE SPEED SEiISORCONNECTOR
21. Connect the lock-uD control solenoid valve connec-
tor and shift control solenoid valve connector. then
clamp the lock-up control solenoid harness with the
harness stay.
22. Connect the transmission ground cable.
LOCK-UP CONTROLSOLENOID VALVE HARNESS STAY
23. Connect the starter cable to the starter motor, and
install the cable holder.
NOTE: When installing the starter motor cable,
make sure that the crimped side of the ring terminal
is facing out (see section 23).
CABLEHOLDER
6x 1.0 mm'12 N.m (1.2 kgf'm,8.7 lbt.tl)
24.
N.mlO.9 ksr.m, 7 tbr-rtt
STARTER CAELE
Install the air cleaner housing assembly and intake
arr oucl.
AIR CLEANER HOUSINGASSEMBLYINTAKE AIRDUCT
25.
26.
24.
29.
30.
Retill the transmission with ATF(see page '14-93).
Connect the battery positive ( + ) and negative ( - )
cables to the battery.
Start the engine. Set the parking brake, and shift the
transmission through all gears three times.
Check shitr cable adjustment as described on page
14-171 .
Check that front wheel alignment (see section 18).
Let the engine reach operating temperature (the cool-
ing tan comes on) with the transmission in S or @position, then turn it off and check the fluid level.
31. Road test as described on page 14-9o and 91.
14-167

Transmission

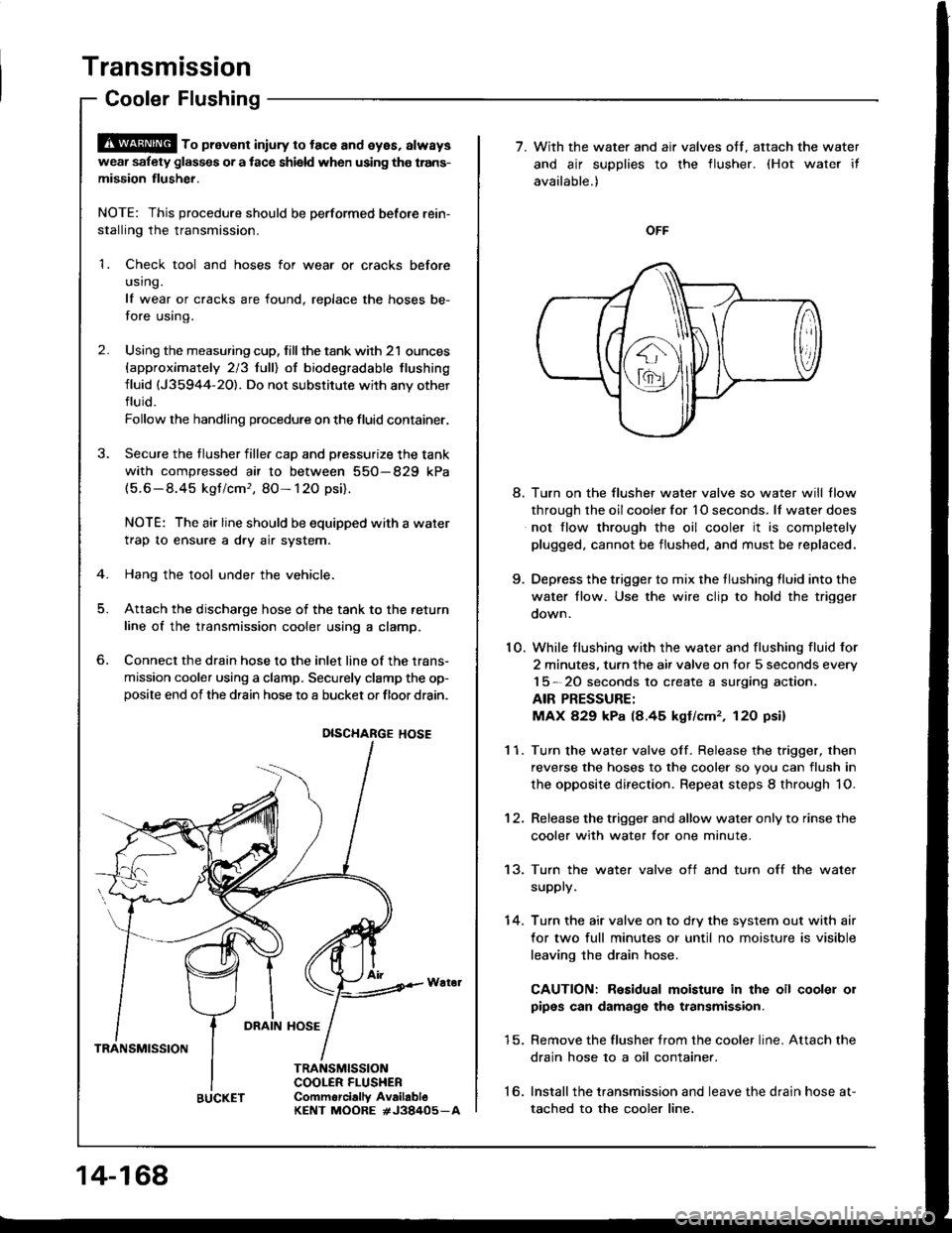

Cooler Flushing
S!@ ro prevent iniury to tace and eyes, always
wear safety glas$es or a tace shield when using the trans-
mission flusher.
NOTE: This procedure should be performed before rein-
stalling the transmission.
1. Check tool and hoses for wear or cracks before
using.
lf wear or cracks are found, replace the hoses be-
fore using.
2. Using the measuring cup, tillthe tank with 21 ounces
{approximately 213 lulll of biodegradable tlushing
fluid (J35944-20). Do not substitute with any other
fluid.
Follow rhe handling procedure on the fluid container.
Secure the tlusher filler cap and pressurize the tank
with compressed air to between 550-829 kPa(5.6-8.45 kgt/cm,, 80- 120 psi),
NOTE: The air line should be equipped with a water
trap to ensure a dry air system.
Hang the tool under the vehicle.
Attach the discharge hose of the tank to the return
line of the transmission cooler using a clamp.
Connect the drain hose to the inlet line of the trans-
mission cooler using a clamp. Securely clamp the op-posite end of the drain hose to a bucket or floor drain.
6.
DRAIN HOSE
TRANSMISSION
TRANSMISSIONCOOLER FLUSHEBCommorcially AvailabloKENT MOORE #J38405_A
DISCHARGE HOSE
14-168
BUCKET
7. With the water and air valves off. attach the water
and air supplies to the flusher. (Hot water it
available.)
OFF
8. Turn on the flusher water valve so water will tlow
through the oil cooler for 1O seconds. lf water does
not flow through the oil cooler it is completely
plugged, cannot be flushed, and must be replaced.
9. Depress the trigger to mix the tlushing lluid into the
water tlow. Use the wire clip to hold the trigger
oown.
10. While flushing with the water and flushing fluid for
2 minutes. turn the air valve on for 5 seconds every
15-20 seconds to create a surging action.
AIR PRESSURE:
MAX 829 kPa (8.45 kgt/cm,, 12O psi)
1 1. Turn the water valve off. Release the trigger, then
reverse the hoses to the cooler so you can flush in
the opposite direction. Repeat steps 8 through 1O.
12. Release the trigger and allow water only to rinse the
cooler with water for one minute.
13. Turn the water valve off and turn off the water
supply.
14. Turn the air valve on to dry the system out with air
for two full minutes or until no moisture is visible
leaving the drain hose.
CAUTION: Residual moisture in the oil cooler 01
pipes can damage the transmission.
15. Remove the flusher trom the cooler line. Attach the
drain hose 10 a oil container.
16. lnstallthe transmission and leave the drain hose at-
tached to the cooler line.

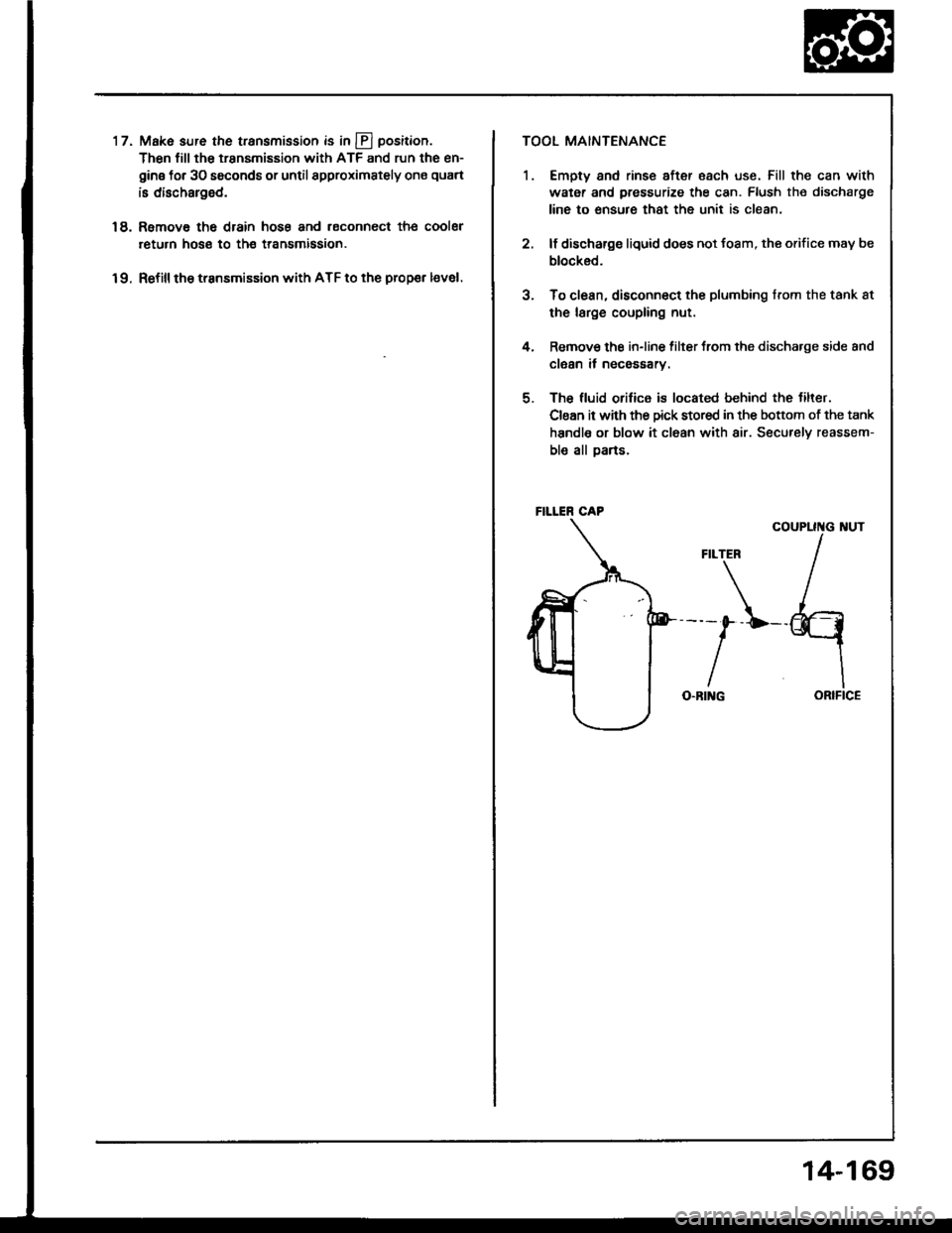

't 7.Make sure the transmission is in @ position.
Then fill the transmission with ATF and run the en-
gins tor 30 saconds or until spproximately ons quart
iB discharged.
Rsmove the drain hose and reconnect the cooler
return hoae to th€ transmission.
Refillth€ trsnsmission with ATF to the prop€r levol.
18.
19.
FILLER CAP
TOOL MAINTENANCE
1. Empty and rinse aftor each use. Fill the can with
water and pressurize the can. Flush the discharge
line to ensure that the unit is clean.
2. lf discharge liquid does not toam, the orifice may be
blocked.
3. To clean, disconnect the plumbing trom the tank 8t
the large coupling nut.
4. Remov€ the in-line filter trom the discharge side and
clean it necossarv.
5. The fluid orilice is located behind the tilter.
Clean it with the Dick stored in the boftom ot the tank
handle or blow it cl6an with air. Securelv reassem-
ble all Darts.
COUPLII{G I{UT
ORIFICE
FILTER
---0--L--
IO.BI G
14-169

shift cable
Removal/lnstallation
a All SRS electrical wiring hamosses are covor€d withyellow insulation.
a Before disconnecting any pan ot th€ SRS wire har-noss, connect the short connectorc (soe page 23-7O1.a Roplace th€ entiro attect€d SRS haness assembly itit has an open circuit ot damaged wi.ing.
@@[ uar" sul€ litts are placed proparty {so6
section 1).
1. Remove the center console {see section 20).
2. Shift to N position. then remove the lock pin from
the cable adjuster.
@J^ll
AJUI[qJ ]l tl---l
LOCK NUT7 N.m(O.7 kgf.m, 5 lbf.ft)
14-170
3. Remove the shift cable bracket.
6x1.0mm12 N.m 11.2 kgf.m,4.7 lbf.ftl
4. Remove the shitt cable holder.
5. Remove the shift cable cover.
6. Remove the control lever from the control shaft, then
remove the shift cable. Take care not to bend the
cable when removing/installing it.
SHIFT CABLE I{OLDER
Install the shift cable in the reverse orde. of removal.
Check the cable adjustment on reassembly, on page
14-171.
7.
8.
12 N.m 11.2 kgf.rh, 8.7 lbf.ftl
14 N.m 11.4 kgl.m, 10lbt.ft)
